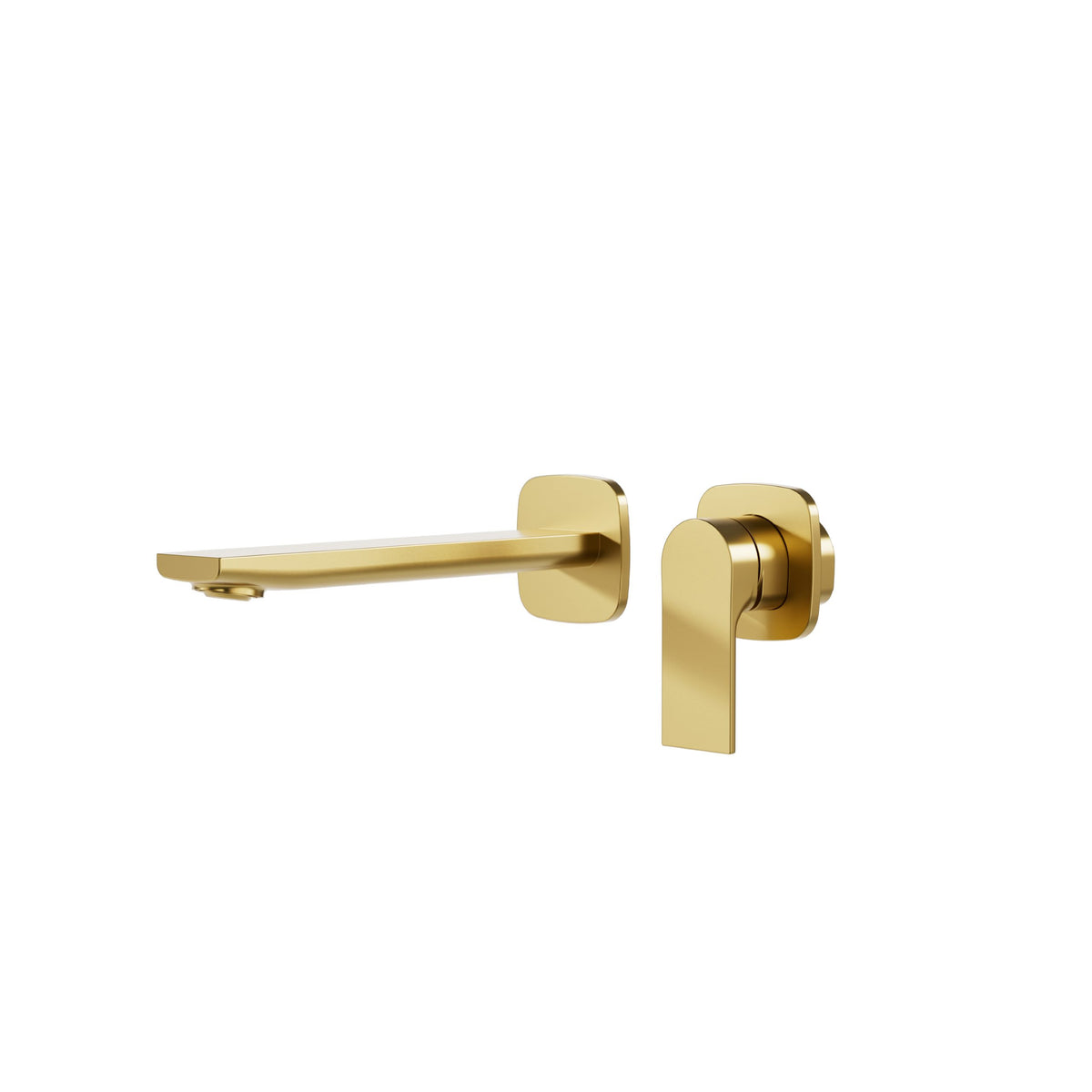

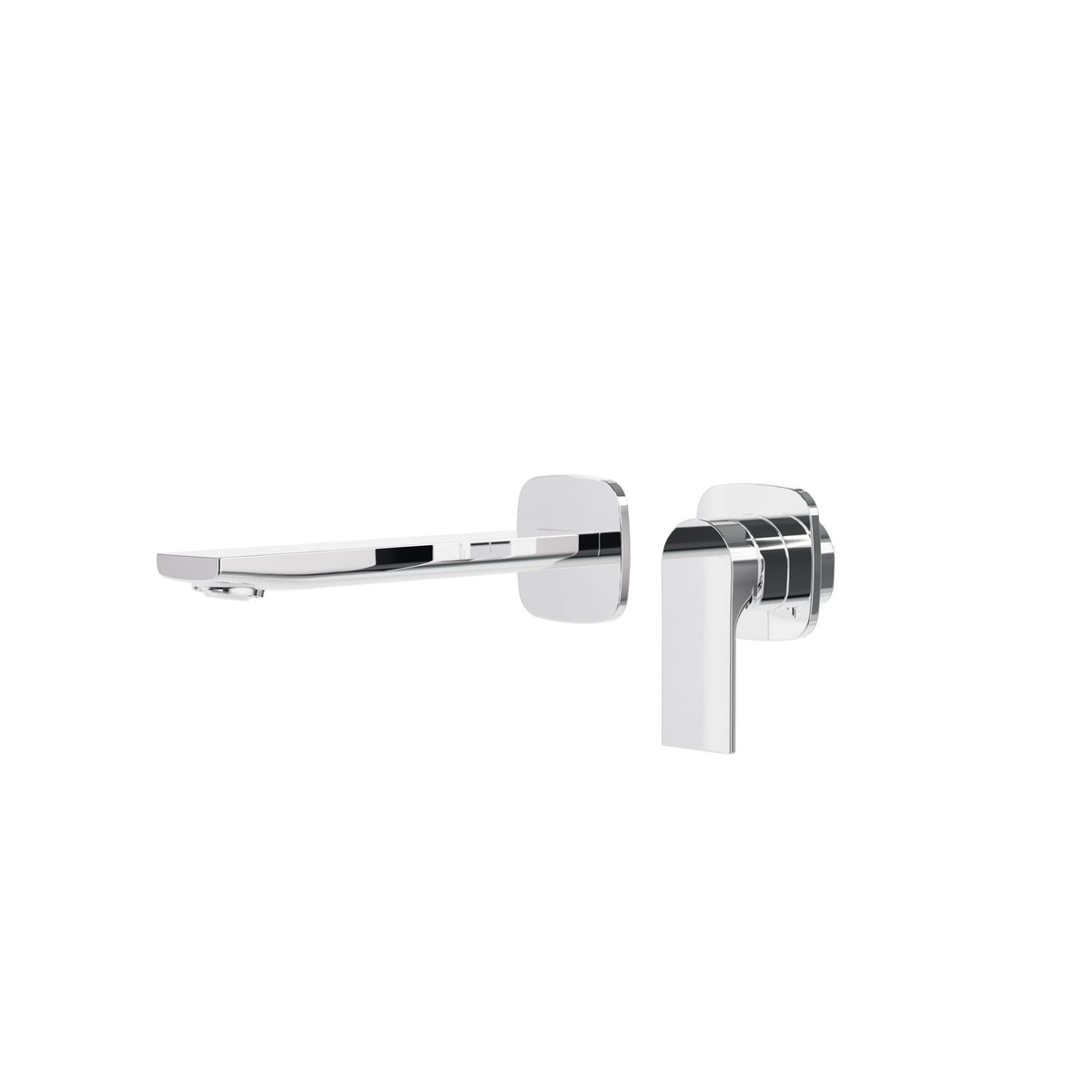

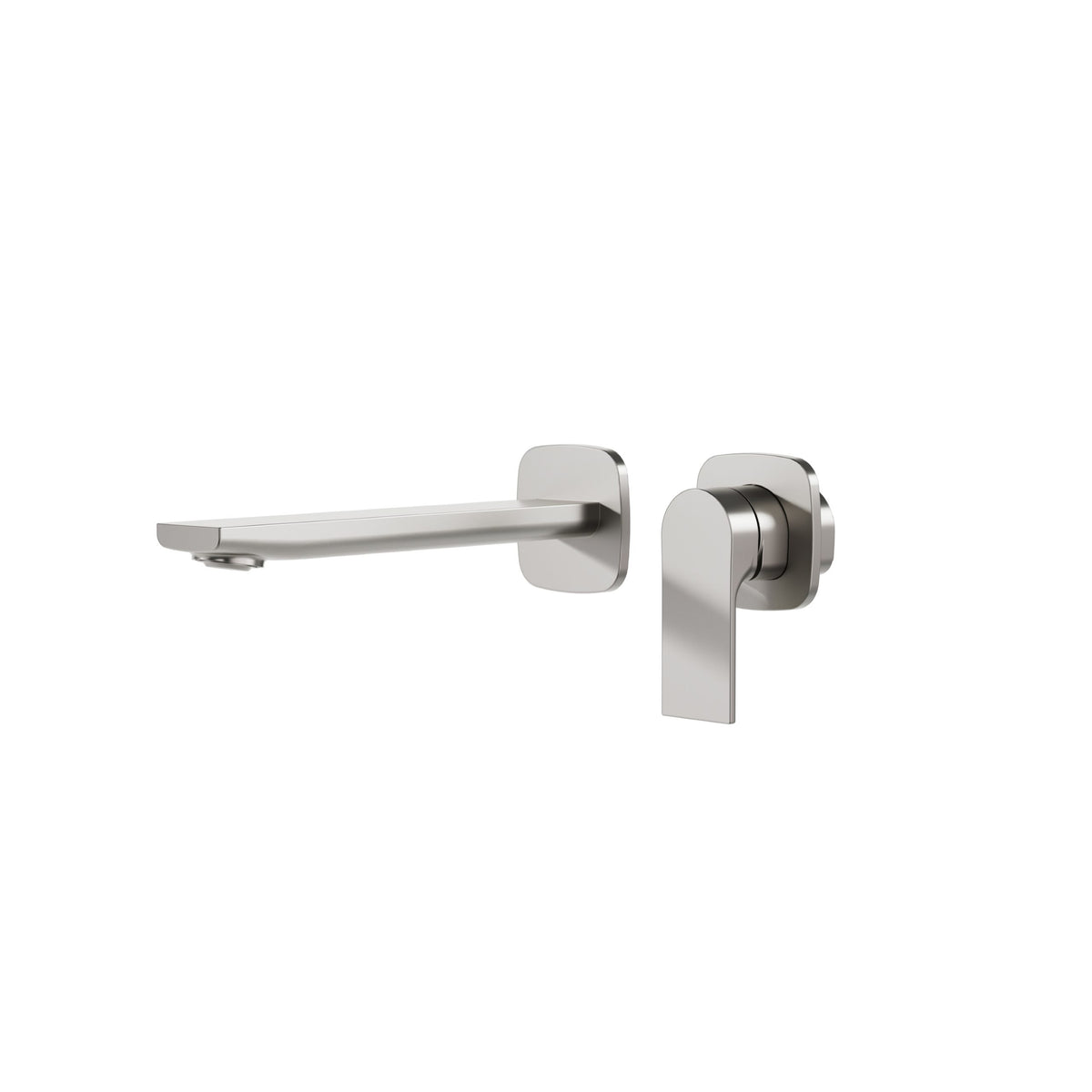

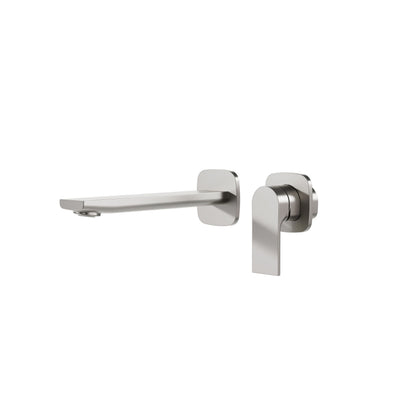

Aquabrass Xpress TMR Wallmount Lavatory Faucet - TMR29

Aquabrass Xpress TMR Wallmount Lavatory Faucet - TMR29

A wall-mounted bathroom faucet trim with a single lever and laminar aerator. The R2904 rough-in is purchased separately.

Features

• Solid brass construction.
• Laminar aerator produces a clear water stream.
• Adjustable temperature limit stop.
• One lever controls water volume and temperature.
• Drain is not included.
• R2904 rough-in is required and sold separately.
• 1/2" water connection.
• Manufacturer-specified ceramic cartridge: ALT75554500, used with the separately purchased rough-in.
• Manufacturer-specified mounting hole: 1 3/8".

Specifications

• Room: Bathroom
• Product type: Wall-mounted lavatory faucet trim
• Collection: TMR Plus
• Model: TMR29
• Installation: Wall mount, two holes
• Control: Single lever
• Material: Solid brass
• Spout-to-handle centre spacing: 3 15/16" (100 mm)
• Overall spout projection: 7 7/8" (200 mm)
• Spout outlet reach: 7 3/16" (182 mm)
• Escutcheon height: 2 3/8" (60 mm)
• Handle assembly height: 3 1/2" (88 mm)
• Handle width: 1 3/8" (35 mm)
• Spout height shown: 1 9/16" (39 mm)
• Connection: 1/2"
• Specified mounting-hole diameter: 1 3/8"; installation guide limits wall openings to 2" (50 mm) maximum.
• The installation guide requires a maximum temperature setting of 120°F (49°C) or lower.

Included Components

• TMR29 spout with aerator and spout flange.
• Lever handle, handle flange, sleeve and dome covers.
• Spout connector.

Required for Installation

Purchase one R2904 rough-in (SKU ABGRPR2904) separately. It is not included with this trim. A drain is also not included; the manufacturer does not specify a required drain model.

Certifications

• ASME A112.18.1 and CSA B125.1
• NSF/ANSI 61 and 372
• EPA WaterSense
• ADA compliance
