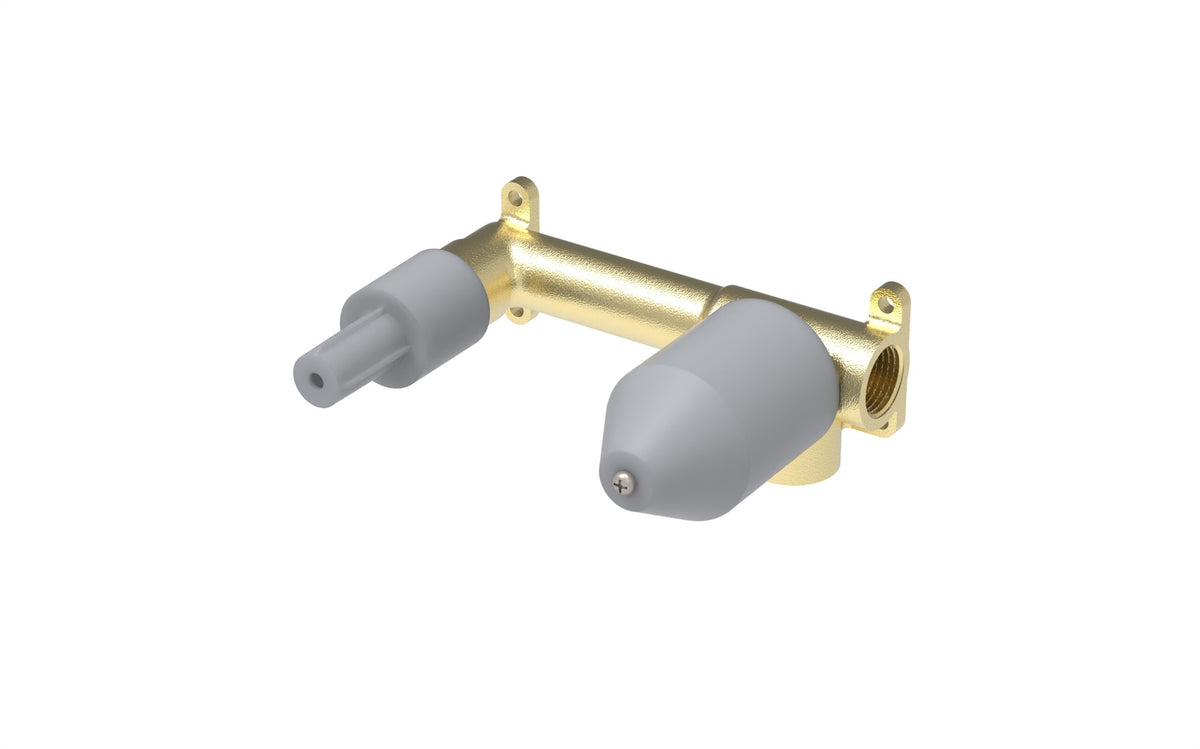

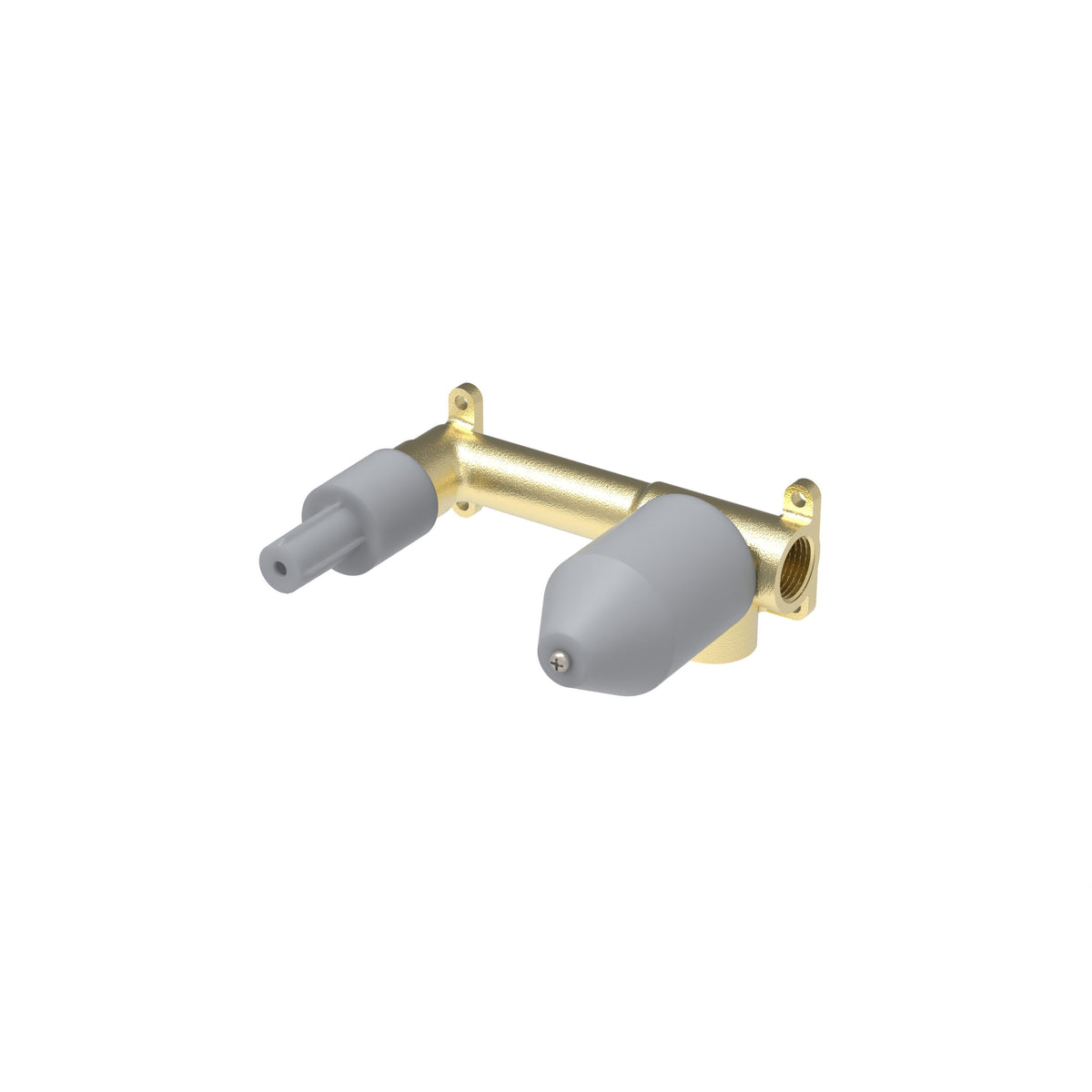

Aquabrass Xpress Rough-in for Wallmount Lavatory Faucet - R2904

Aquabrass Xpress Rough-in for Wallmount Lavatory Faucet - R2904

A concealed brass rough-in with an included cartridge for compatible Aquabrass Xpress wall-mounted lavatory faucets.

Features

• Solid brass construction.
• Cartridge supplied with the rough-in.
• Adjustable temperature-limiting ring; the installation guide requires a maximum setting of 120°F (49°C) or lower.
• Installation depth range: 1 3/4" to 3 1/16" (44–78 mm).

Specifications

• Room: Bathroom
• Product type: Wall-mount lavatory rough-in valve
• Model: R2904
• SKU: ABGRPR2904
• Material: Solid brass
• Valve-to-spout centre spacing: 3 15/16" (100 mm)
• Drawing width: 4 7/8" (123 mm)
• Body depth shown: 3" (76 mm)
• Cartridge sleeve diameter: 1 1/2" (38 mm)
• Vertical fixing-hole spacing: 1 7/16" (36 mm)
• Installation depth: 1 3/4" minimum to 3 1/16" maximum (44–78 mm)

Included Components

• One R2904 rough-in body.
• Cartridge.

Required for Installation

Choose one compatible wall-mounted lavatory faucet trim, purchased separately: TMR29 from TMR Plus or 62329 from UMIX. These are alternatives; both are not required.
