Tenzo T-Box Universal Shower Rough-In Valve, NPT Female - R-30

Tenzo T-Box Universal Shower Rough-In Valve, NPT Female - R-30

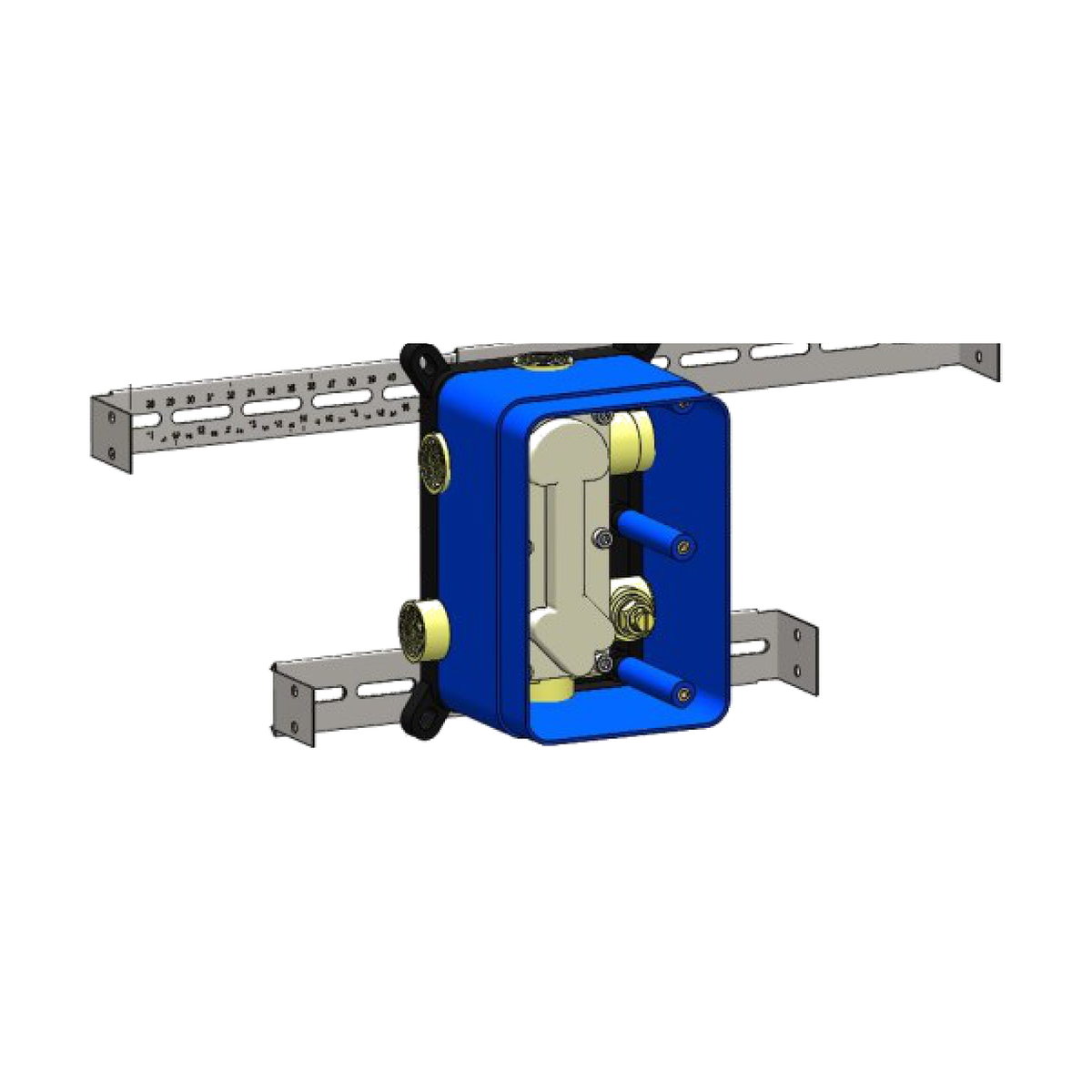

The T-Box universal rough-in body that sits behind every Tenzo T-Box shower kit, with 1/2” female NPT connections. One rough serves the whole range — pressure balance or thermostatic trim, 2 or 3 functions, is chosen later, so the valve can go in the wall before the finish is decided.

Features

• Fits 2 & 3 function diverter valves and thermostatic & pressure balance valves
• 1/2” female NPT connections
• Service check / stop valves built in
• Integrated test cap for pressure testing before the wall closes
• Adjustable mounting brackets

Specifications

• Room: Bathroom
• Product Type: Universal Shower Rough-In Valve
• System: T-Box
• Connection: 1/2” female NPT
• Installation Type: In-wall
• Rough-In Depth: 3¼” [82 mm] min to 4¼” [107 mm] max from finished wall
• Body Size: 4⅛” [105 mm] wide × 5⅞” [150 mm] high × 4” [102 mm] deep
• Bracket Span: 9⅞” [251 mm] min to 17” [432 mm] max
• Finish: Unfinished — concealed behind the wall

Certifications & Warranty

• ASME 112.18.1 / CSA B125.1
• Limited lifetime warranty
