Tenzo Pro 1-Function Pressure Balance Shower Rough-In Valve - R-PB21

Tenzo Pro 1-Function Pressure Balance Shower Rough-In Valve - R-PB21

The rough-in body for a Tenzo single-function pressure balance shower valve, available with three supply connections.

Choosing a connection

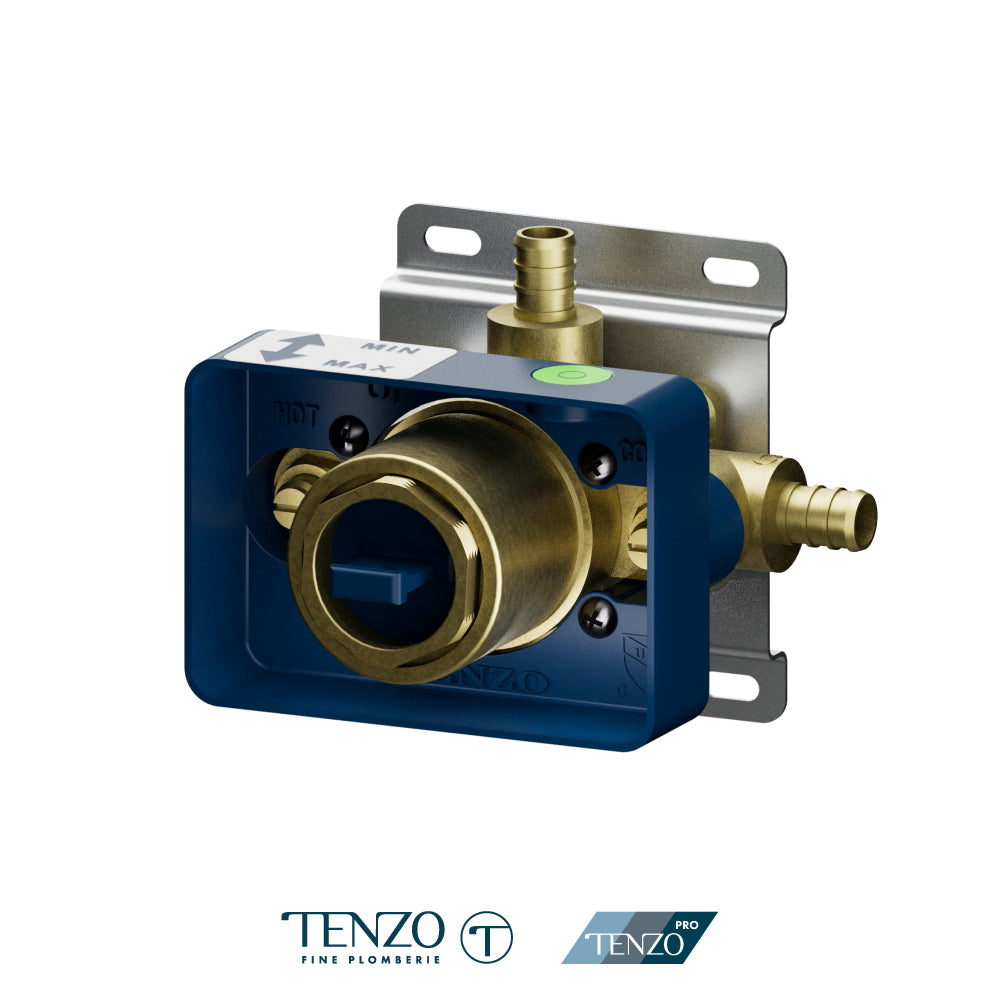

• PEX (R-PB21-P) — 1/2" crimp connections for PEX supply lines.
• NPT (R-PB21-N) — 1/2" male threads that can also be soldered directly to copper. The most adaptable of the three, and the one to choose for copper or iron pipe.
• Expansion PEX (R-PB21-W) — 1/2" connections for expansion-type PEX fittings.

Features

• Pressure balanced valve, one function.
• Adjustable temperature limiting device and adjustable flow limiting device.
• Integrated check-stop valves.
• Test cap included, so the rough can be pressure-tested before the wall is closed.
• 25 mm [1"] minimum to maximum depth adjustment.
• Tub spout outlet, 1/2" male NPT or weld.

Specifications

• Room: Bathroom
• Product Type: Pressure Balance Rough-In Valve
• Functions: 1
• Flow Rate: 25.5 L/min [6.7 gpm] @ 60 psi
• Connection Size: 1/2"
• Tub Spout Outlet: 1/2" male NPT or weld
• Depth Adjustment: 25 mm [1"]
• Installation Type: In-wall
• Includes: Integrated check-stop valves and test cap
• Pressure Balance Cartridge: CAR-HY-PB-JH04BD, supplied with the trim
• Finish: Unfinished — concealed behind the wall

Good to know

• The cartridge is not in the rough. It is supplied with the trim, so the valve body can go in the wall before the finish is chosen.
• The matching trim is F-DEPB21 in the Delano collection.
• Pressure balanced, so it holds the set temperature against pressure changes elsewhere in the house.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
