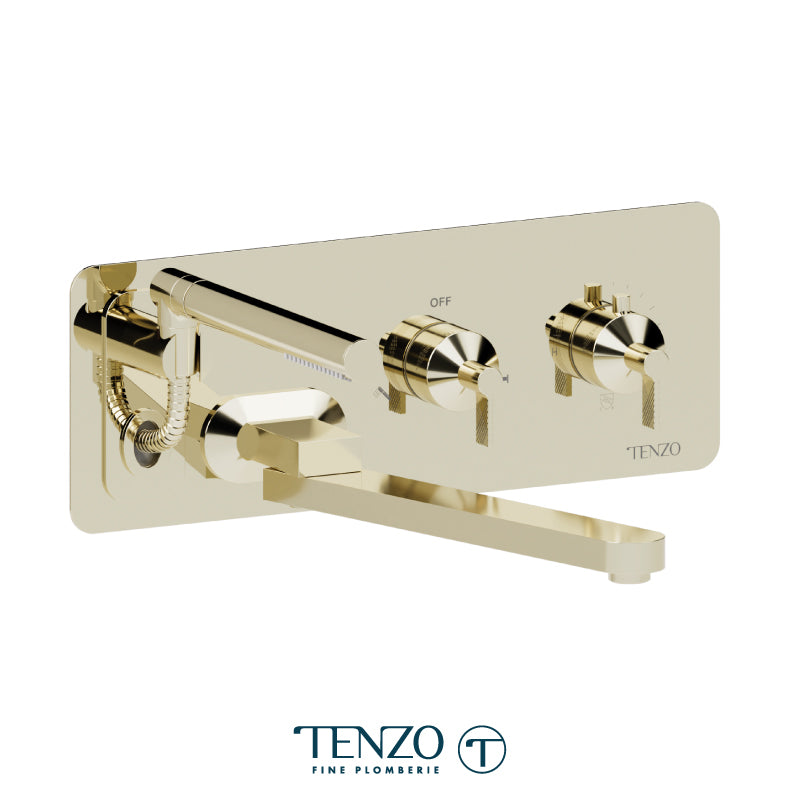

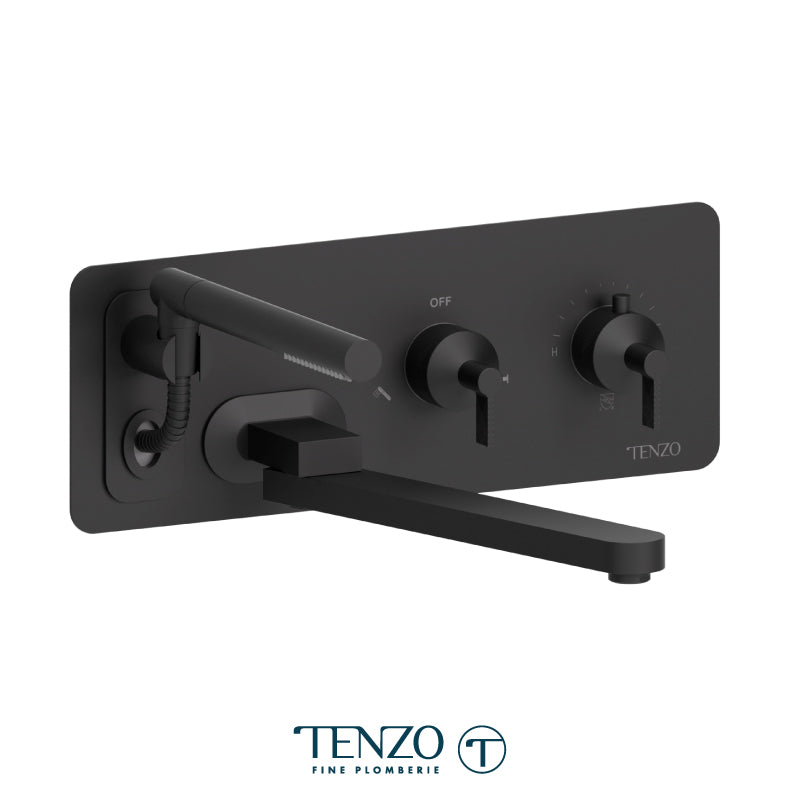

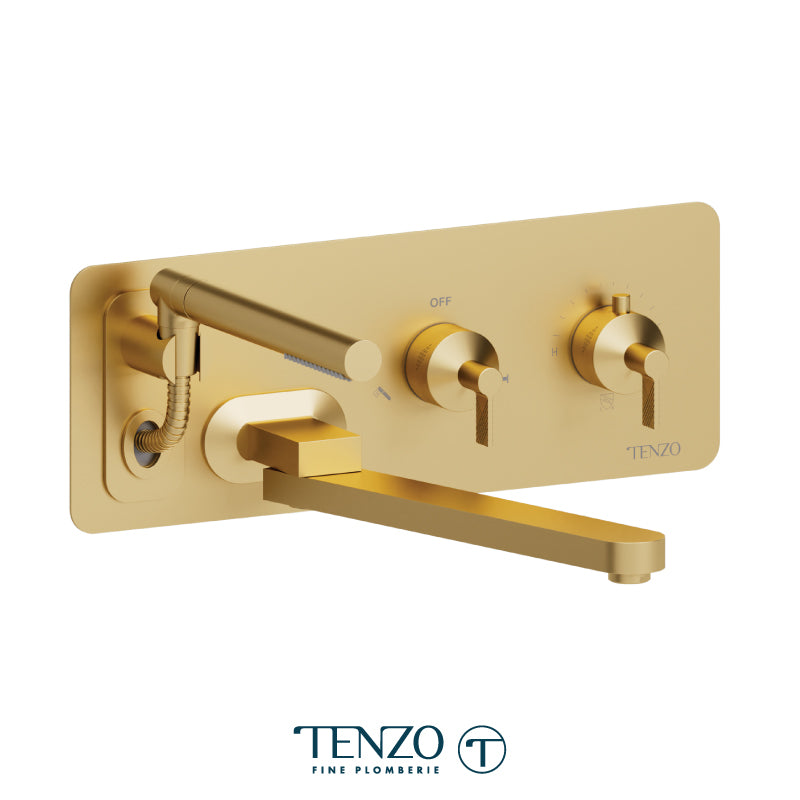

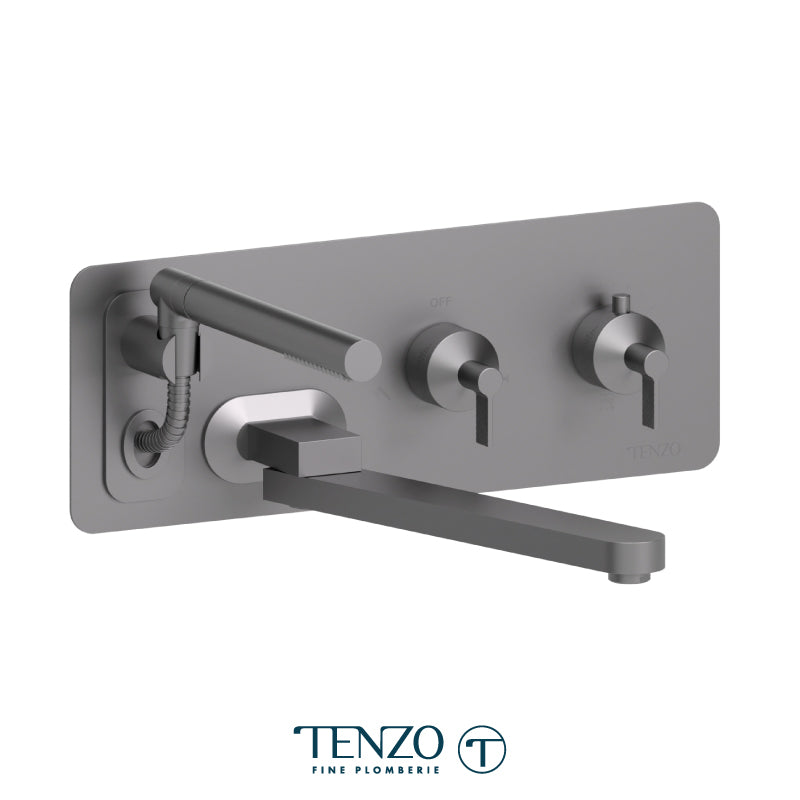

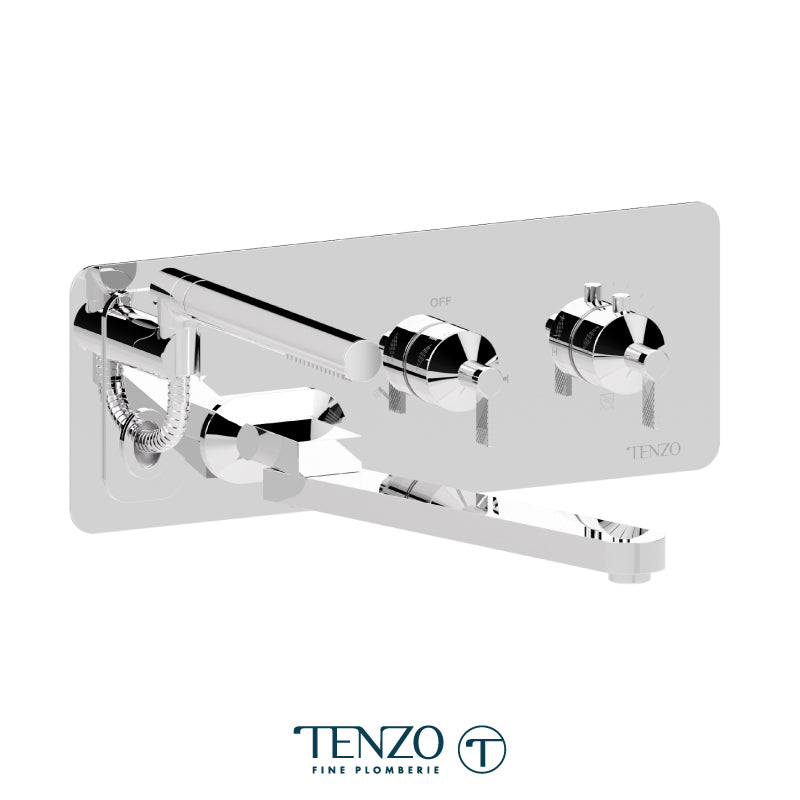

Tenzo Paloma Wall Mount Thermostatic Tub Filler Trim With Swivel Spout & Hand Shower - F-PALT74

Tenzo Paloma Wall Mount Thermostatic Tub Filler Trim With Swivel Spout & Hand Shower - F-PALT74

The finished Paloma wall mount tub filler, for a wall where the rough-in assembly is already in place.

What's included

• Paloma tub filler trim plate with thermostatic control and diverter handle (F-PALT74-XX)
• Wall mount swivel tub spout, 30 cm [12"], solid brass (BSS-314-XX)
• Hand shower (HS-231-XX) on a 150 cm [59"] retractable hose

Not included

• Wall mount tub faucet rough-in assembly (R-70)

Features

• Trim only, every visible above-surface part, finished to match.
• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Vernet thermostatic cartridge, made in France.
• Two-function diverter, not shared, so the spout and the hand shower run one at a time.
• The hose retracts into the wall behind the plate.
• Spout swivels, so it can be turned clear of the tub.
• One plate carries the spout, the hand shower, the thermostatic control and the diverter.
• Solid brass.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Wall Mount Tub Filler Trim
• Collection: Paloma
• Style: Modern
• Mounting Location: Wall
• Functions: 2
• Tub Spout: Wall mount, 30 cm [12"] swivel (BSS-314)
• Tub Spout Flow Rate: 30 L/min [7.9 gpm] @ 60 psi
• Hand Shower: HS-231, on a 150 cm [59"] retractable hose
• Supply Connection: 1/2" NPT female (on the rough-in)
• Thermostatic Cartridge: CAR-VNT-T34-01 (Vernet)
• Diverter Cartridge: CAR-HA-DV3-BK-33097-01
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the rough, this is PALT74.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The rough-in assembly is R-70, which sets the finished wall depth between 76 mm [3"] and 113 mm [4-7/16"].
• The diverter is not shared, so water goes to the spout or to the hand shower, not both at once.
• F-PALT73 is the same trim with a fixed 23 cm [9"] spout.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
