Tenzo Paloma Extenza 3-Function Thermostatic Shower Kit Trim, 10" AirBoost Rain Head, Wall Arm, Sliding Bar Kit & 3 Body Jets - F-PALT43-571168

Tenzo Paloma Extenza 3-Function Thermostatic Shower Kit Trim, 10" AirBoost Rain Head, Wall Arm, Sliding Bar Kit & 3 Body Jets - F-PALT43-571168

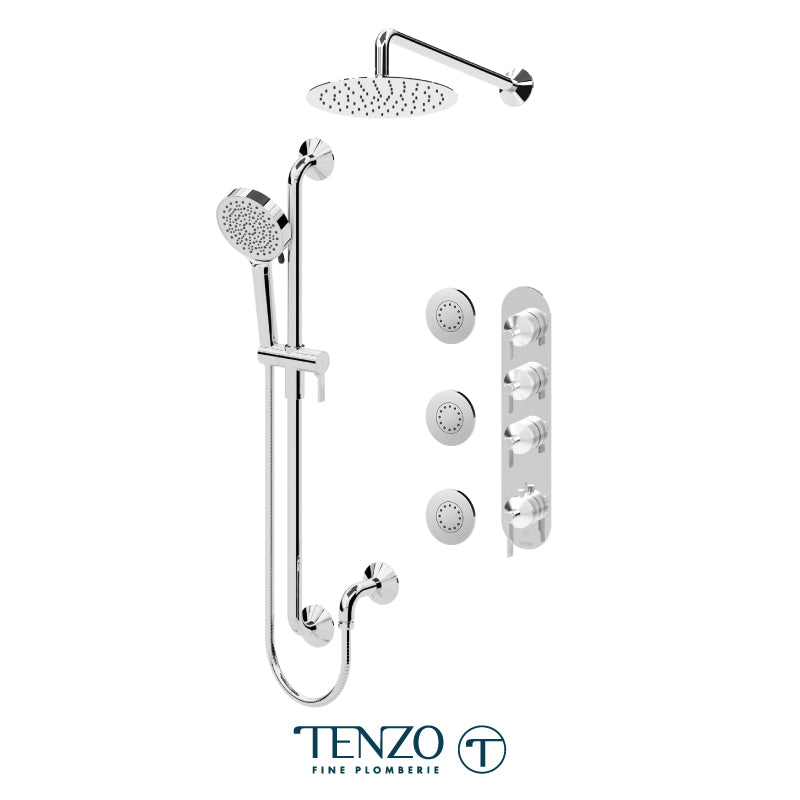

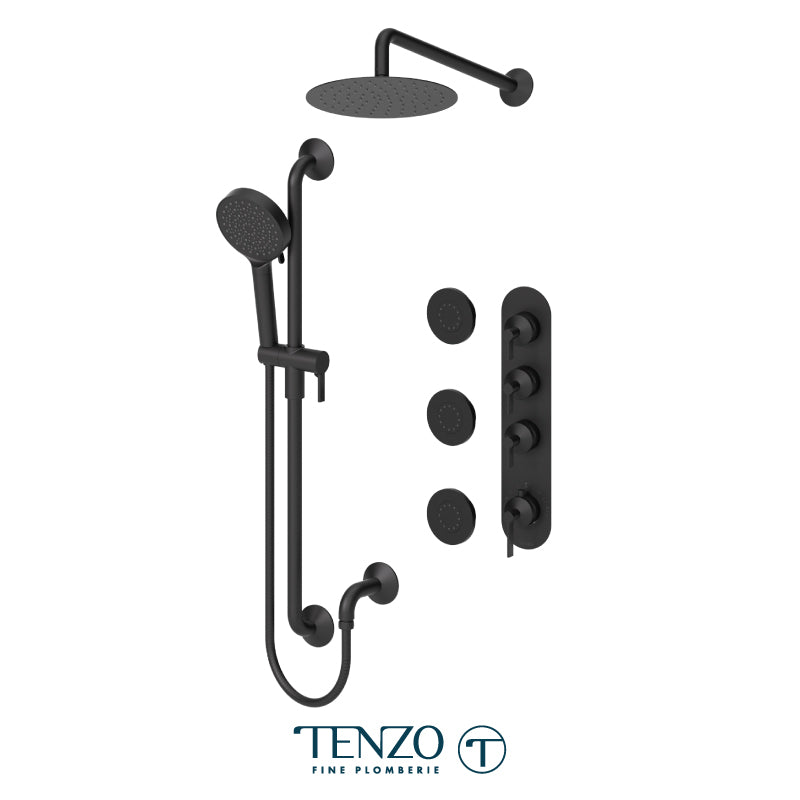

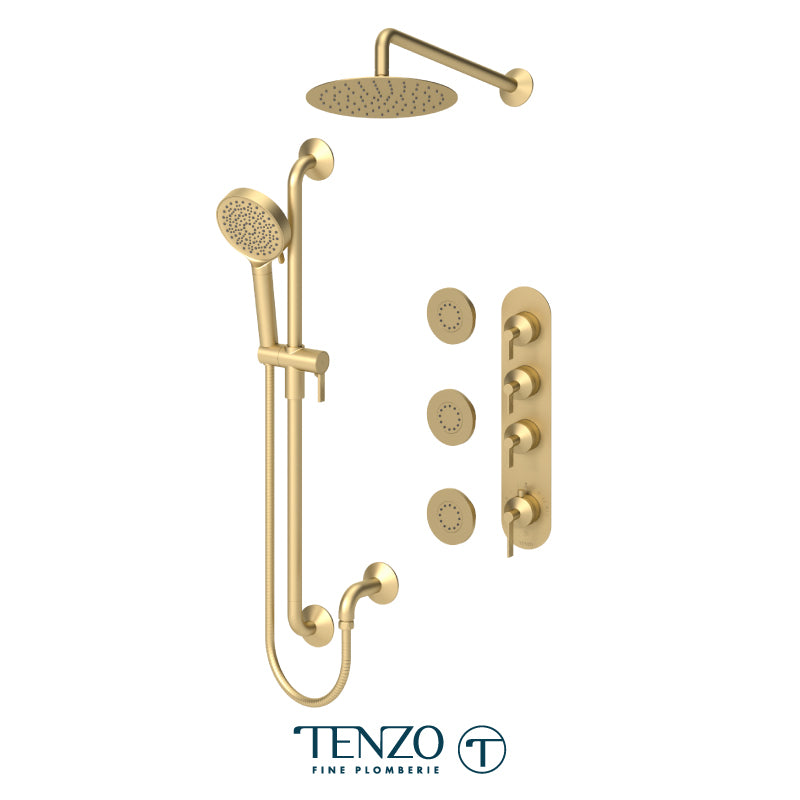

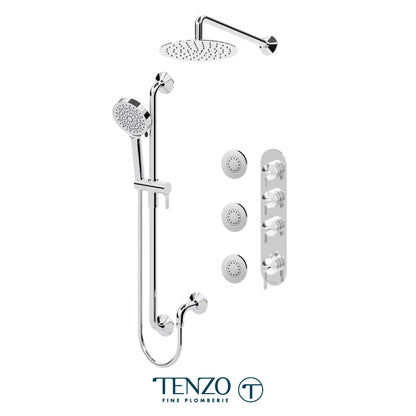

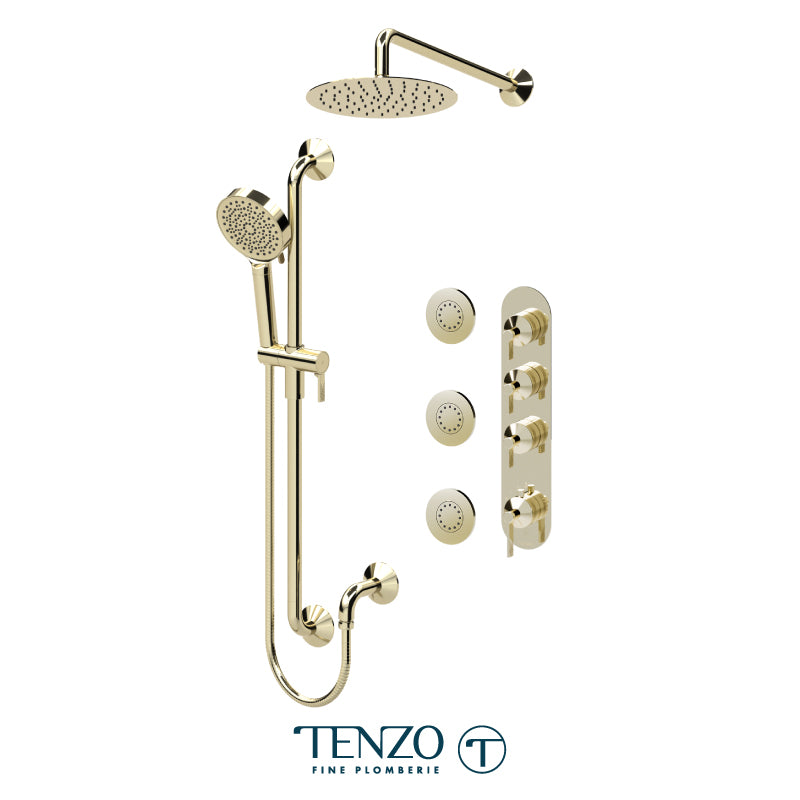

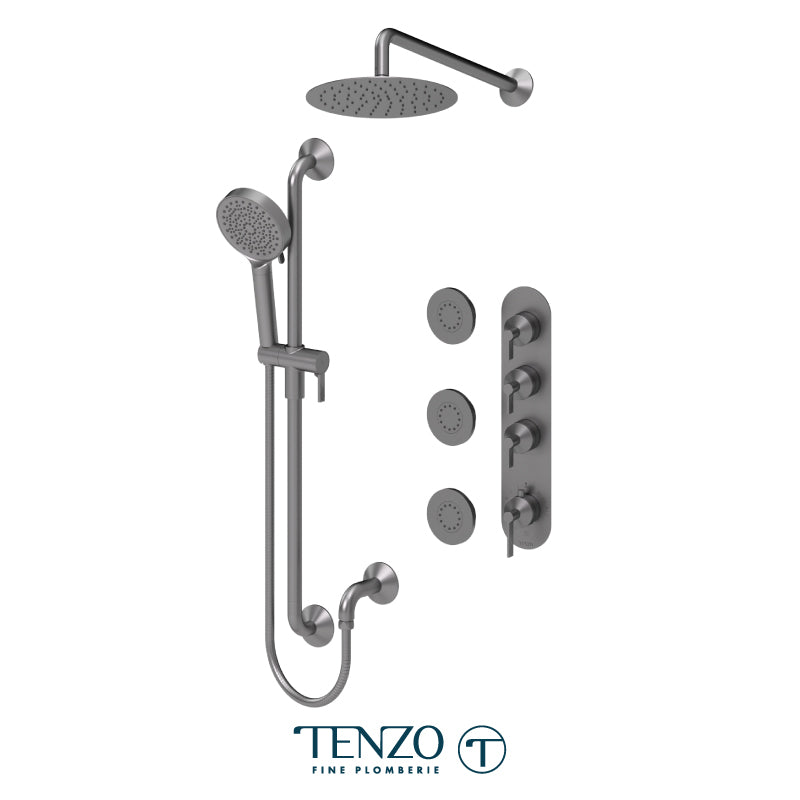

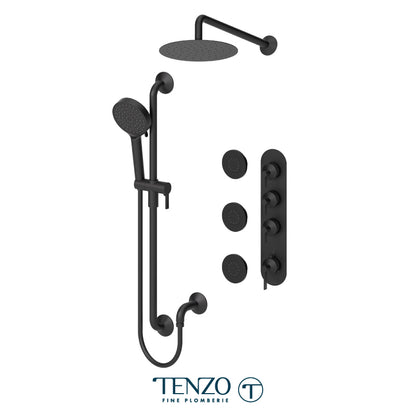

Every visible part of the Paloma PALT43-571168 shower kit, for a wall where the Extenza rough-in valve is already in place.

What's included

• Paloma Extenza valve trim, 3 functions, thermostatic (F-PALT43-XX): escutcheon plate and 4 handles
• AirBoost rain shower head, round, 25 cm [10"], 2 mm stainless steel (SSTS-10-R-XX)
• Wall mount shower arm, 40 cm [16"] (SA-614-XX)
• Sliding bar kit with wall elbow (KRD-3143014-XX): sliding bar, 3-function hand shower, wall supply elbow and a 150 cm [59"] stretchable hose
• Three round recessed body jets (BJ-303-XX)

Not included

• Extenza rough-in valve body, 3 functions (R-43)
• Body jet rough-in kit, 3 units (R-BJ-300-KIT3)

Features

• Trim only, every visible above-surface part, finished to match.
• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Vernet thermostatic cartridge, made in France.
• High-flow 3/4" valve at 45 L/min [12 gpm], enough to run several outlets at once.
• Sliding bar kit is supplied complete with its wall supply elbow and hose.
• Three recessed body jets, which is what the high-flow valve is there to feed.
• Solid brass trim, stainless steel rain head.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Kit Trim
• Collection: Paloma
• Style: Modern
• System: Extenza
• Valve Type: Thermostatic high-flow, 3/4"
• Functions: 3
• Handles: 4 (one thermostatic, 3 shut-off)
• Rain Head: 25 cm [10"] round, AirBoost, stainless steel
• Shower Head Installation: Wall arm, 40 cm [16"]
• Body Jets: 3, round, recessed (BJ-303)
• Hand Shower: 3-function, on a sliding bar
• Hose: 150 cm [59"] stretchable
• Valve Flow: 45 L/min [12 gpm] @ 60 psi
• Supply Connection: 3/4" NPT female (on the rough-in)
• Thermostatic Cartridge: CAR-VNT-T34-07 (Vernet)
• Shut-Off Cartridge: CAR-HA-SO34-108-01
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the rough, this is PALT43-571168.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The Extenza rough carries its own service check and stop valves and an additional direct 3/4" port on top.
• Extenza is the high-flow system. The T-Box valves in the same collection run 25 to 30 L/min; this one runs 45 L/min [12 gpm], which is what lets it feed a rain head, a hand shower and body jets together.
• The body jets need their own roughs. Ordered complete, that is the 3-unit kit R-BJ-300-KIT3.
• The spec sheet also lists a ceiling arm, SA-709-06. That is an alternative to the wall arm, not a second arm, and this kit ships with the wall arm.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
