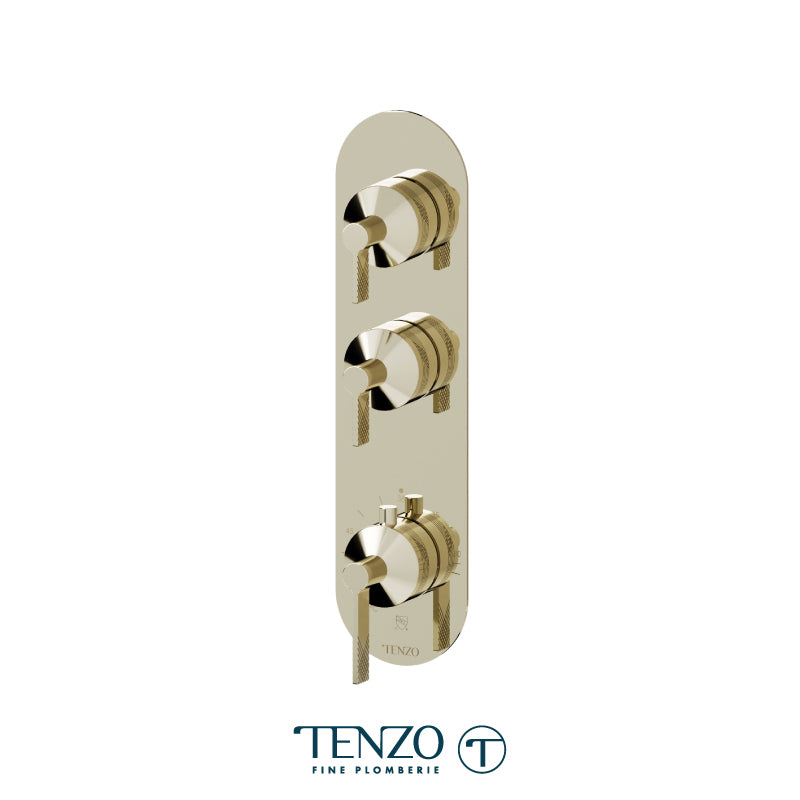

Tenzo Paloma Extenza 2-Function Thermostatic Shower Valve, Rough & Trim - PALT42

Tenzo Paloma Extenza 2-Function Thermostatic Shower Valve, Rough & Trim - PALT42

The complete Paloma Extenza 2-function thermostatic valve, the high-flow rough-in body and the finished trim in one order.

What's included

• Extenza thermostatic rough-in valve, 2 functions (R-42)
• Paloma Extenza valve trim, 2 functions, thermostatic (F-PALT42-XX): escutcheon plate and 3 handles

Features

• Complete valve, the high-flow rough-in body and the finished trim together.
• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Vernet thermostatic cartridge, made in France.
• High-flow 3/4" valve at 45 L/min [12 gpm], enough to run several outlets at once.
• 3 handles: one thermostatic control and 2 independent shut-offs, so each outlet runs on its own.
• Service check and stop valves built into the rough.
• Solid brass.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Complete Shower Valve, rough-in and trim
• Collection: Paloma
• Style: Modern
• System: Extenza
• Valve Type: Thermostatic high-flow, 3/4"
• Functions: 2
• Handles: 3 (one thermostatic, 2 shut-off)
• Rough-In Valve: R-42, 2 functions
• Escutcheon Plate: 120 x 310 mm [4-3/4 x 12-3/16"]
• Valve Flow: 45 L/min [12 gpm] @ 60 psi
• Supply Connection: 3/4" NPT female (on the rough-in)
• Installation Depth: Min. 3-1/2", max. 4-1/2" (set by the rough-in)
• Thermostatic Cartridge: CAR-VNT-T34-07 (Vernet)
• Shut-Off Cartridge: CAR-HA-SO34-108-01
• Supplied As: Complete, rough-in included
• Material: Solid brass

Good to know

• Everything needed for the finished valve, including the body that goes in the wall.
• The Extenza rough carries its own service check and stop valves and an additional direct 3/4" port on top.
• Extenza is the high-flow system. The T-Box valves in the same collection run 25 to 30 L/min; this one runs 45 L/min [12 gpm], which is what lets it feed a rain head, a hand shower and body jets together.
• Where the rough is already set in the wall, F-PALT42 is the same valve as trim only.
• The matching roughs are R-42 for two functions, R-43 for three and R-44 for four.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
