Tenzo Galia Pressure Balance Shower Kit, Rectangular Rain Head & Sliding Bar Kit With Square Hand Shower - GAPB22-1130

Tenzo Galia Pressure Balance Shower Kit, Rectangular Rain Head & Sliding Bar Kit With Square Hand Shower - GAPB22-1130

The complete Tenzo Pro Galia GAPB22-1130 shower, rough-in valve and finished trim in one order.

What's included

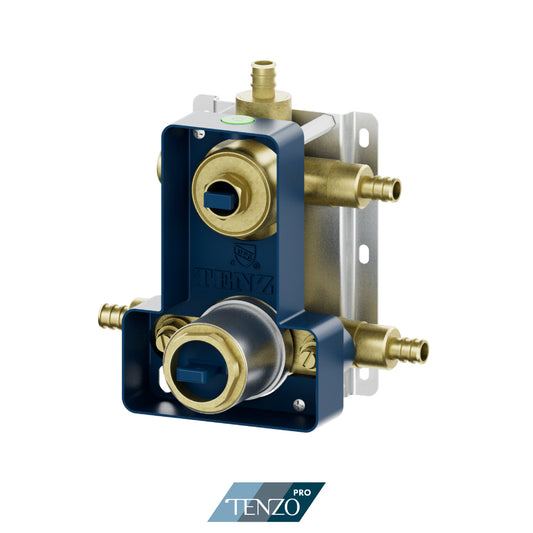

• Tenzo Pro rough-in valve body (R-PB23), PEX connections
• Galia SMART-TRIM valve trim, two functions, shared zones (F-GAPB22S-XX): escutcheon plate, handle and cartridge
• Rectangular shower head, 19 x 27 cm [7-1/2 x 10-3/4"] (PVTS-710-XX)
• Wall mount shower arm, 40 cm [16"] (SA-610-XX)
• Sliding bar kit with wall elbow (KRD-1352410-XX): sliding bar, 3-function square hand shower, wall supply elbow and hose

Features

• Complete shower, rough-in valve and finished trim together.
• Pressure-balanced cartridge holds the set temperature as other outlets draw.
• SMART-TRIM is the Tenzo Pro trim platform: one rough-in body in the wall, and the plate, handle and cartridge supplied together in the trim.
• Sliding bar kit is supplied complete with its wall supply elbow and hose.
• Solid brass.
• 2 finishes.

Specifications

• Room: Bathroom
• Product Type: Complete Shower Kit
• Collection: Galia (Tenzo Pro)
• Style: Modern
• System: SMART-TRIM
• Valve Type: Pressure Balance
• Functions: 2
• Rough-In Valve: R-PB23, two and three functions
• Shower Head: 19 x 27 cm [7-1/2 x 10-3/4"] rectangular
• Shower Head Installation: Wall arm, 40 cm [16"]
• Hand Shower: 3-function square, on a sliding bar
• Valve Flow: 25.5 L/min [6.7 gpm] @ 60 psi
• Pressure Balance Cartridge: CAR-HY-PB-JH04BD
• Diverter Cartridge: CAR-HA-DV3-33058 (shared)
• Supply Connection: 1/2" PEX (on the rough-in)
• Supplied As: Complete, rough-in included
• Material: Solid brass

Good to know

• Everything needed for the finished shower, including the valve body that goes in the wall.
• The matching Tenzo Pro rough is R-PB23, supplied with PEX connections. NPT and expansion PEX versions are available to order.
• The cartridge ships with the trim, not in the rough, so the valve body can go in the wall before the finish is chosen.
• Where the rough is already set in the wall, F-GAPB22-1130 is the same kit as trim only.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
