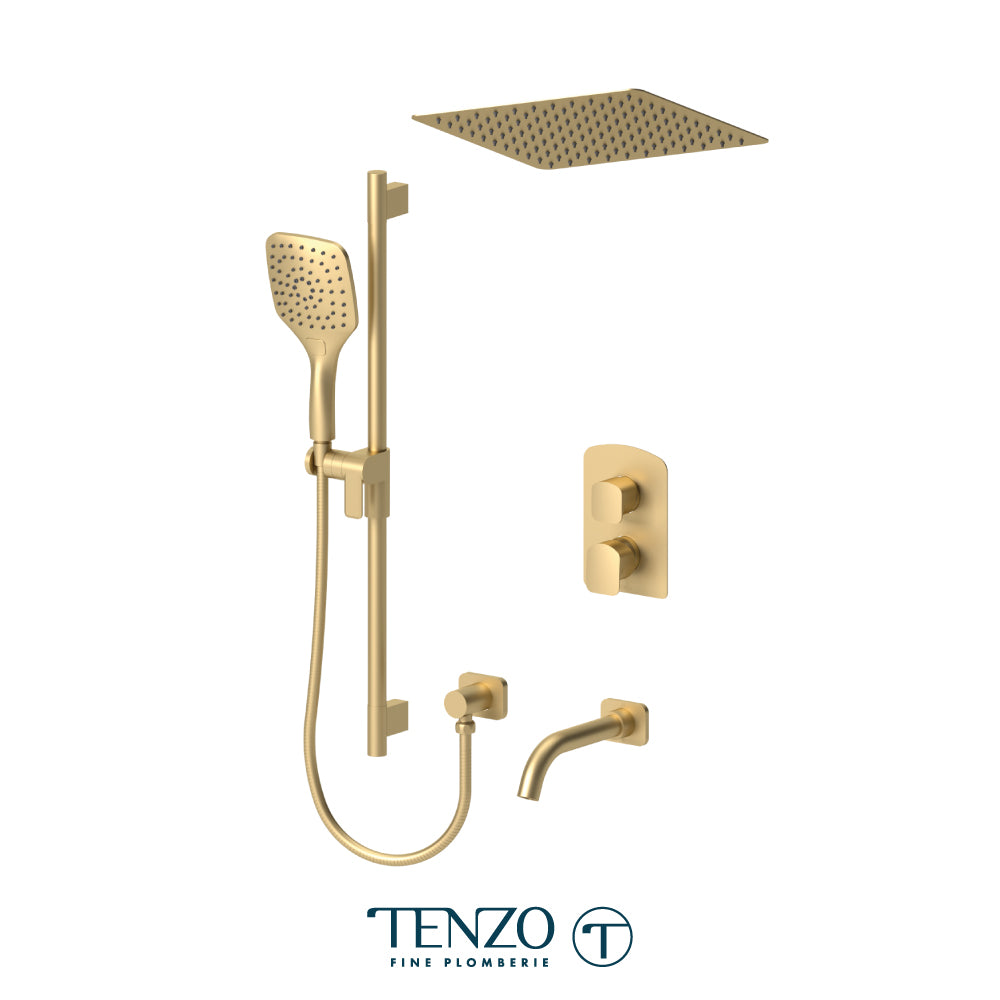

Tenzo Delano T-Box 3-Function Pressure Balance Shower Kit Trim, 12" Recessed Ceiling Rain Head & Tub Spout - F-DEPB33-511655

Tenzo Delano T-Box 3-Function Pressure Balance Shower Kit Trim, 12" Recessed Ceiling Rain Head & Tub Spout - F-DEPB33-511655

Every visible part of the Delano DEPB33-511655 shower kit, for a wall where the T-Box rough-in valve is already in place.

What's included

• Delano 3-function pressure balance valve trim, with both cartridges (F-DEPB33-XX)
• Recessed ceiling rain head, square, 30 x 30 cm [12"] (CSH-12-Q-XX)
• Wall mount tub spout, 20 cm [8"], solid brass (BS-308-XX)
• Sliding bar kit with wall elbow (KRD-35188-XX): solid brass sliding bar, 3-function hand shower, wall supply elbow and a 150 cm [59"] hose

Not included

• Universal T-Box rough-in valve (R-31)

Features

• Trim only, every visible above-surface part, finished to match.
• Pressure-balanced cartridge holds the set temperature as other outlets draw.
• 3-function diverter, shared zones, so more than one outlet can run at the same time.
• The rain head recesses into the ceiling and sits flush, so no arm is needed.
• Sliding bar kit is supplied complete with its wall supply elbow and hose.
• Solid brass trim.
• 3 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower and Bath Kit Trim
• Collection: Delano
• Style: Modern
• System: T-Box
• Valve Type: Pressure Balance
• Functions: 3
• Rain Head: 30 x 30 cm [12"] square, recessed into the ceiling
• Shower Head Installation: Recessed in the ceiling
• Tub Spout: Wall mount, 20 cm [8"], solid brass
• Hand Shower: 3-function, on a solid brass sliding bar
• Hose: 150 cm [59"]
• Valve Flow: 25 L/min [6.6 gpm] @ 60 psi
• Supply Connection: 1/2" NPT female (on the rough-in)
• Pressure Balance Cartridge: CAR-HY-PB-JH04BD
• Diverter Cartridge: CAR-HA-DV4-35097-01
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the rough, this is DEPB33-511655.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The T-Box rough is a bare body with service stops. The cartridges sit in the trim, which is what lets one rough serve a pressure balance or a thermostatic shower.
• The diverter is set up for shared zones, so outlets can run together. Tenzo builds a non-shared version to order, with a -CAL suffix.
• The universal T-Box rough is R-31-P with PEX connections, or R-31-N in male NPT and sweat.
• The recessed head needs a ceiling cavity above it. It is the same head sold on its own as CSH-12-Q.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
