Tenzo Delano T-Box 2-Function Pressure Balance Shower Valve, Rough & Trim - DEPB32

Tenzo Delano T-Box 2-Function Pressure Balance Shower Valve, Rough & Trim - DEPB32

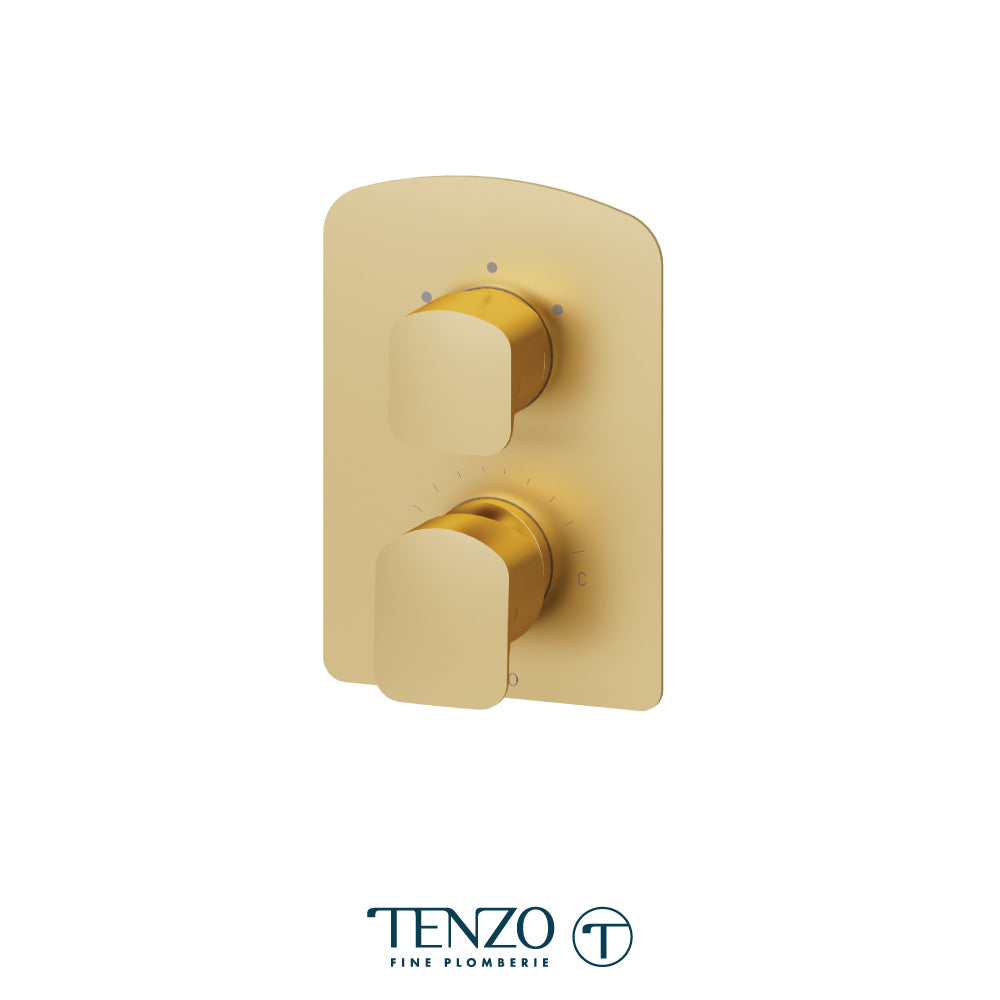

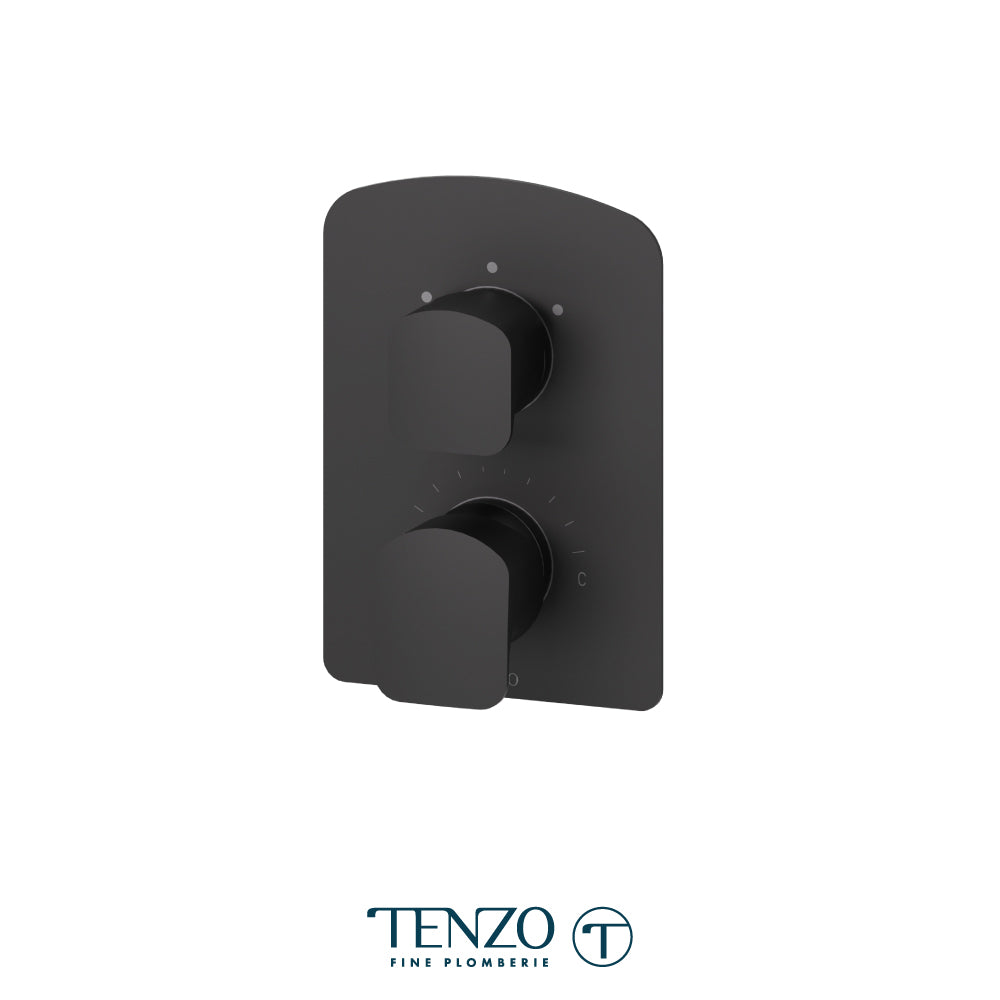

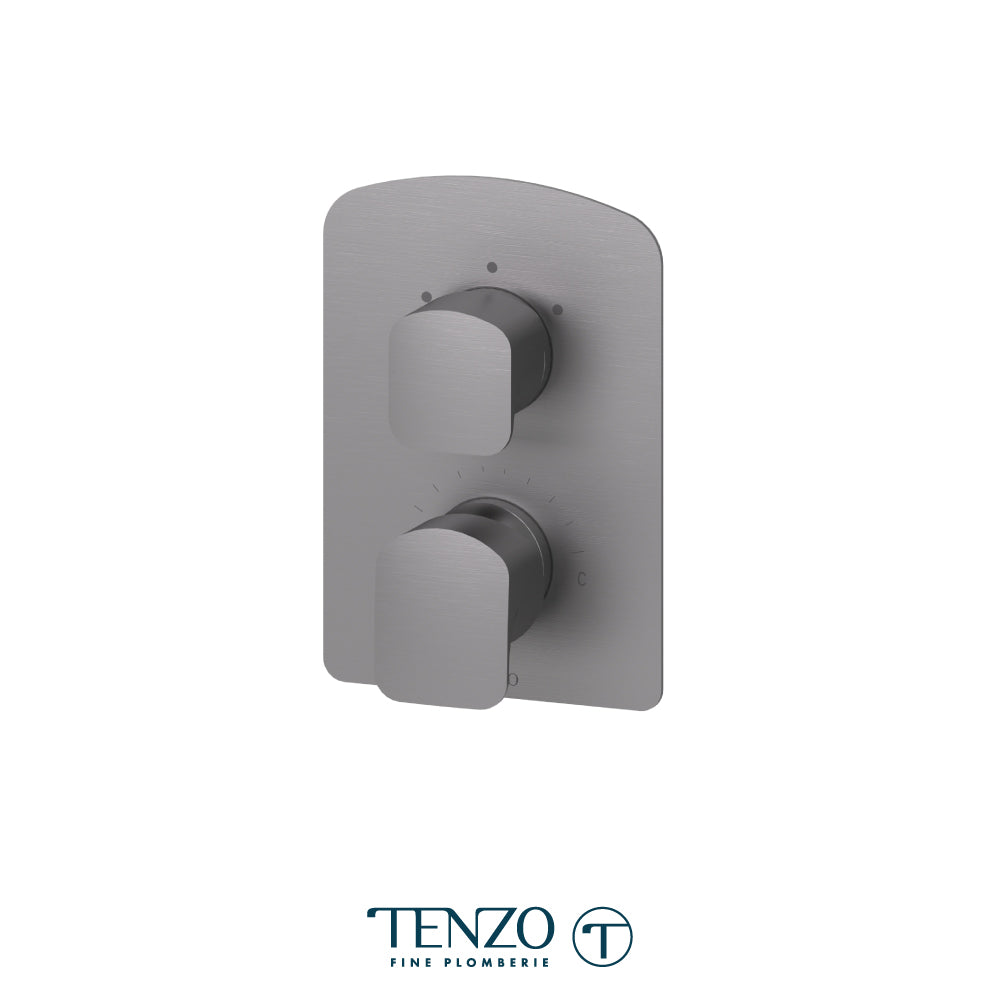

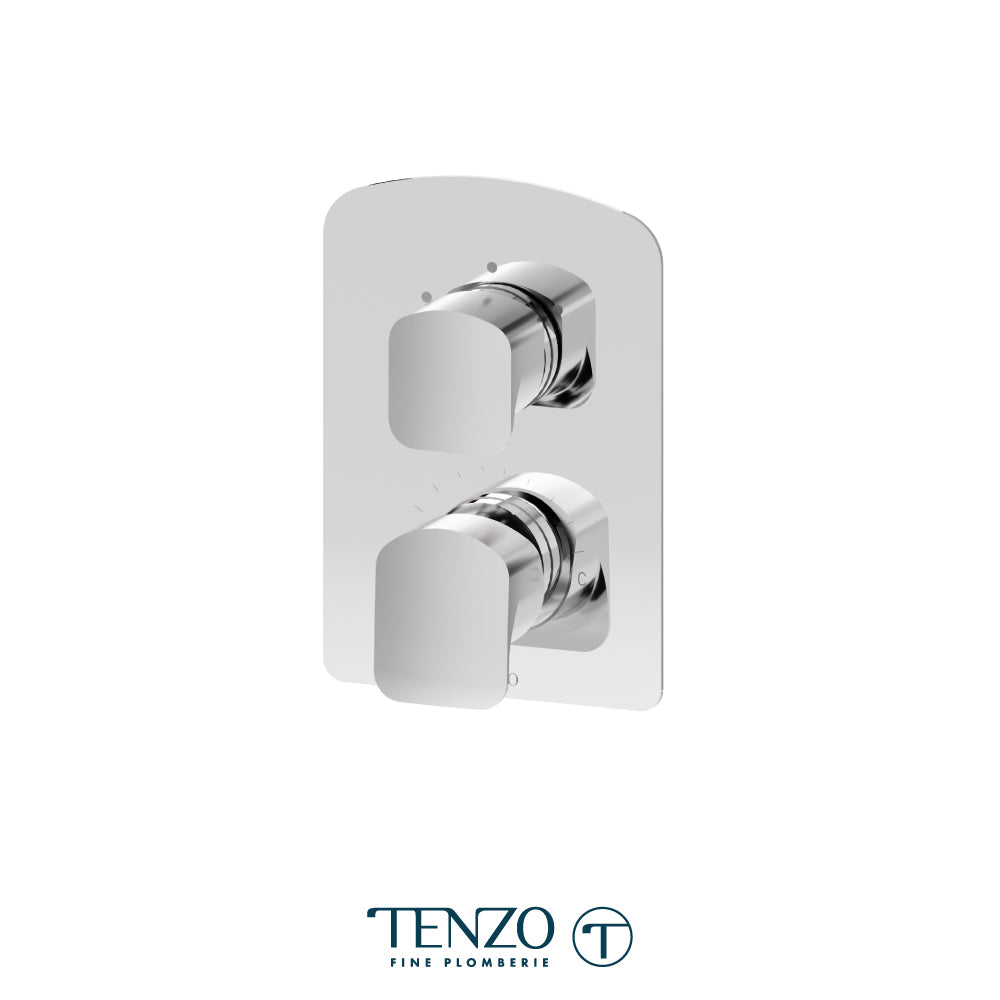

The Delano T-Box shower valve, sold complete as the universal rough-in body plus the two-control pressure balance trim.

What's included

• Universal T-Box rough-in valve, PEX connections (R-31-P)
• Delano 2-function pressure balance trim (F-DEPB32)

Features

• Pressure balanced valve rated 25 L/min [6.6 gpm] at 60 psi, holding temperature when another fixture draws water.
• Two-function diverter: either outlet on its own, or both at once.
• Service check and stop valves built into the rough.
• Universal T-Box body — the rough goes in first and the trim is chosen later.
• 1/2" male PEX connections.
• Solid brass trim.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Valve
• Collection: Delano
• Style: Modern
• Valve: T-Box pressure balance
• Functions: 2
• Flow Rate: 25 L/min [6.6 gpm] @ 60 psi
• Supply Connection: 1/2" male PEX
• Cartridge: Pressure balanced, ceramic
• Material: Solid brass

Good to know

• The two outlets share a zone. For outlets that run independently, order the -CAL version.
• The rough is also sold on its own as R-31, and in a male NPT / sweat version as R-31-N.
• Replacement pressure balance cartridge is CAR-HY-PB-JH04BD.
• The complete shower kits built on this valve are the DEPB32- range.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
