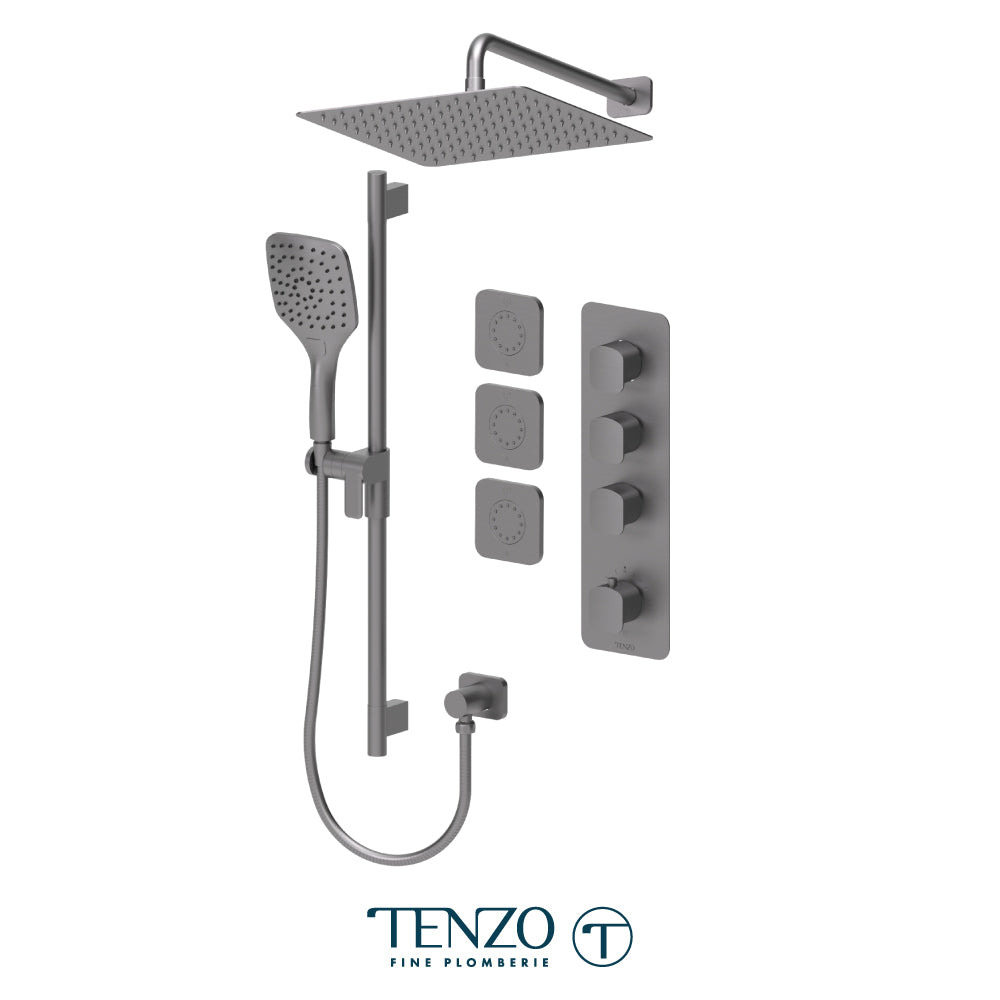

Tenzo Delano Extenza 3-Function Thermostatic Shower Kit Trim, 12" AirBoost Rain Head, Wall Arm & 3 Body Jets - F-DET43-571112

Tenzo Delano Extenza 3-Function Thermostatic Shower Kit Trim, 12" AirBoost Rain Head, Wall Arm & 3 Body Jets - F-DET43-571112

Every visible part of the Delano DET43-571112 shower kit, for a wall where the Extenza rough-in valve is already in place.

What's included

• Delano Extenza valve trim, 3 functions, thermostatic (F-DET43-XX): escutcheon plate and handles
• AirBoost rain shower head, square with round corners, 30 x 30 cm [12"], 2 mm stainless steel (SSTS-12-Q-XX)
• Wall mount shower arm, 40 cm [16"] (SA-608-XX)
• Sliding bar kit with wall elbow (KRD-35188-XX): solid brass sliding bar, 3-function hand shower, wall supply elbow and a 150 cm [59"] hose
• Three recessed body jets (F-BJ-305-XX)

Not included

• Extenza rough-in valve body, 3 functions (R-43)
• Three universal body jet rough-ins, one per jet (R-BJ-300)

Features

• Trim only, every visible above-surface part, finished to match.
• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Vernet thermostatic cartridge, made in France.
• High-flow 3/4" valve at 45 L/min [12 gpm], enough to run several outlets at once.
• 3-function shut-off, each outlet on its own handle.
• Three recessed body jets, each fed by its own shut-off on the valve.
• Sliding bar kit is supplied complete with its wall supply elbow and hose.
• Solid brass trim, stainless steel rain head.
• 4 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Kit Trim
• Collection: Delano
• Style: Modern
• System: Extenza
• Valve Type: Thermostatic high-flow
• Functions: 3
• Rain Head: 30 x 30 cm [12"] square, AirBoost, stainless steel
• Shower Head Installation: Wall arm, 40 cm [16"]
• Body Jets: Three, recessed
• Hand Shower: 3-function, on a solid brass sliding bar
• Hose: 150 cm [59"]
• Valve Flow: 45 L/min [12 gpm] @ 60 psi
• Supply Connection: 3/4" NPT female (on the rough-in)
• Thermostatic Cartridge: CAR-VNT-T34-07 (Vernet)
• Shut-Off Cartridge: CAR-HA-SO34-108-01
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the rough, this is DET43-571112.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The Extenza rough for three functions is R-43.
• Each body jet sits on its own universal body jet rough, R-BJ-300, which is not included here either.
• F-DET43-571112R is the same trim with a 30 cm [12"] round rain head.
• F-DET43-571168 is the same trim with a 25 x 25 cm [10"] square rain head.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
