Tenzo Delano Extenza 3-Function Thermostatic Shower Kit, 12" Recessed Ceiling Rain Head & 3 Body Jets - DET43-601658

Tenzo Delano Extenza 3-Function Thermostatic Shower Kit, 12" Recessed Ceiling Rain Head & 3 Body Jets - DET43-601658

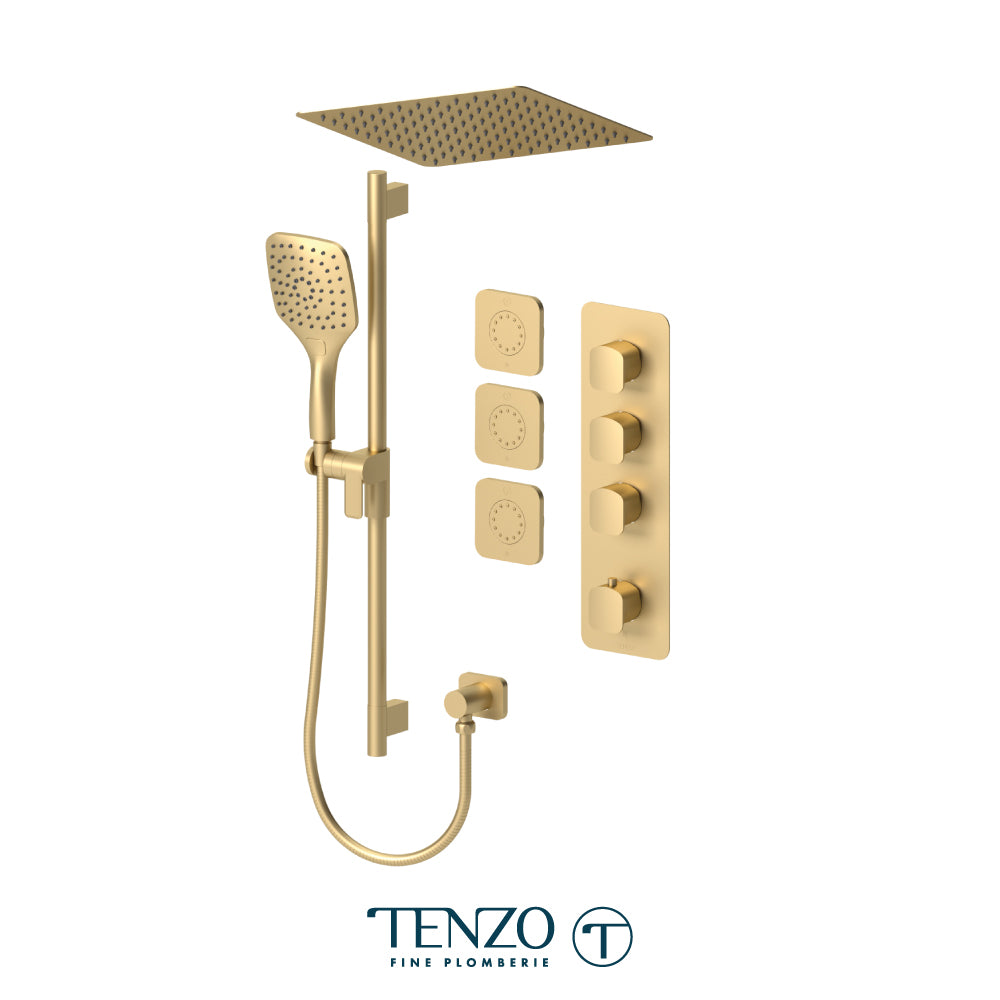

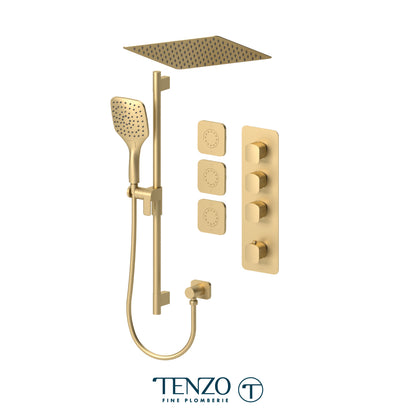

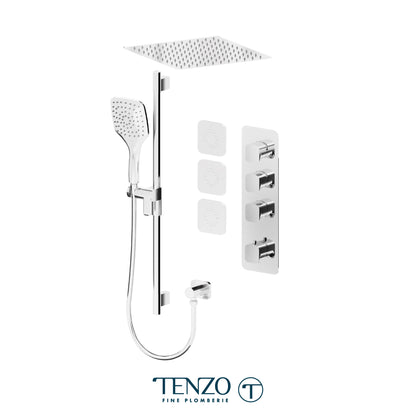

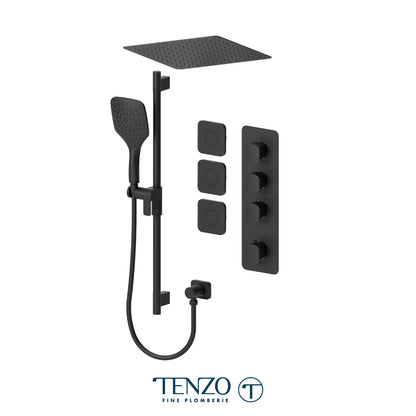

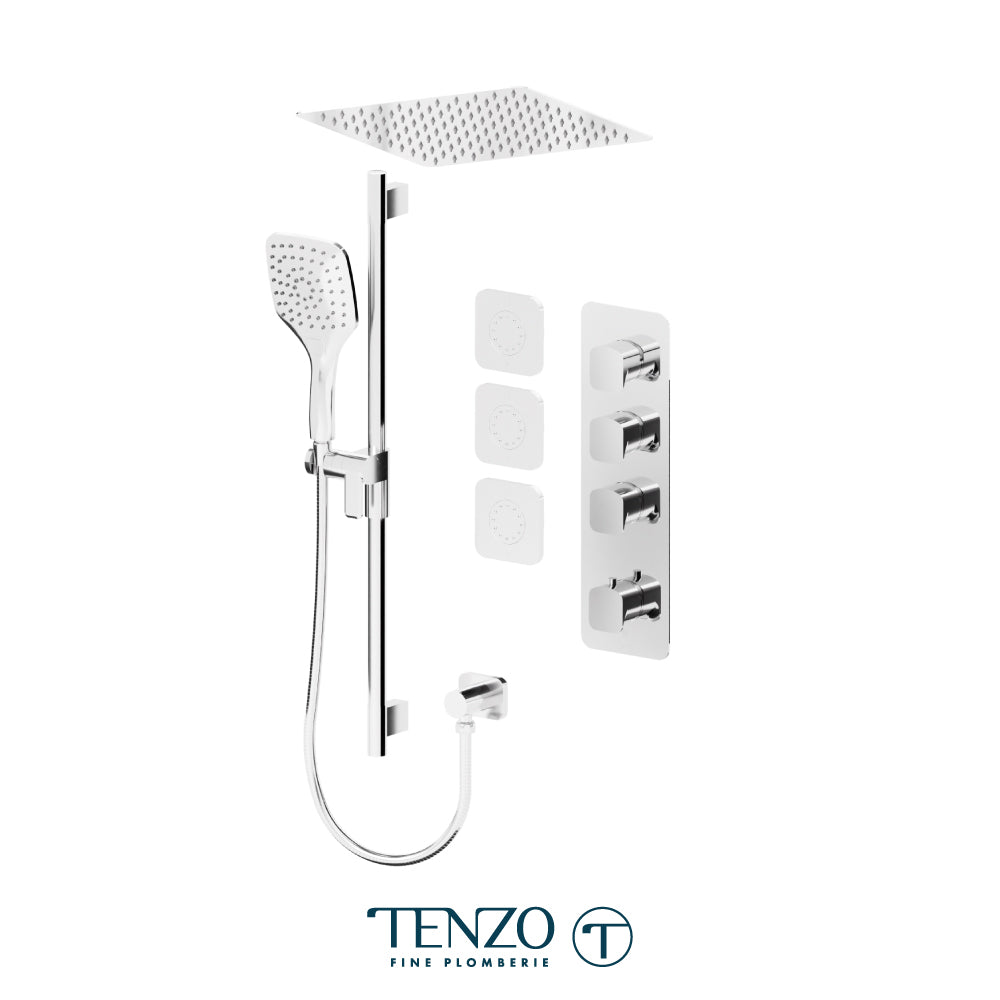

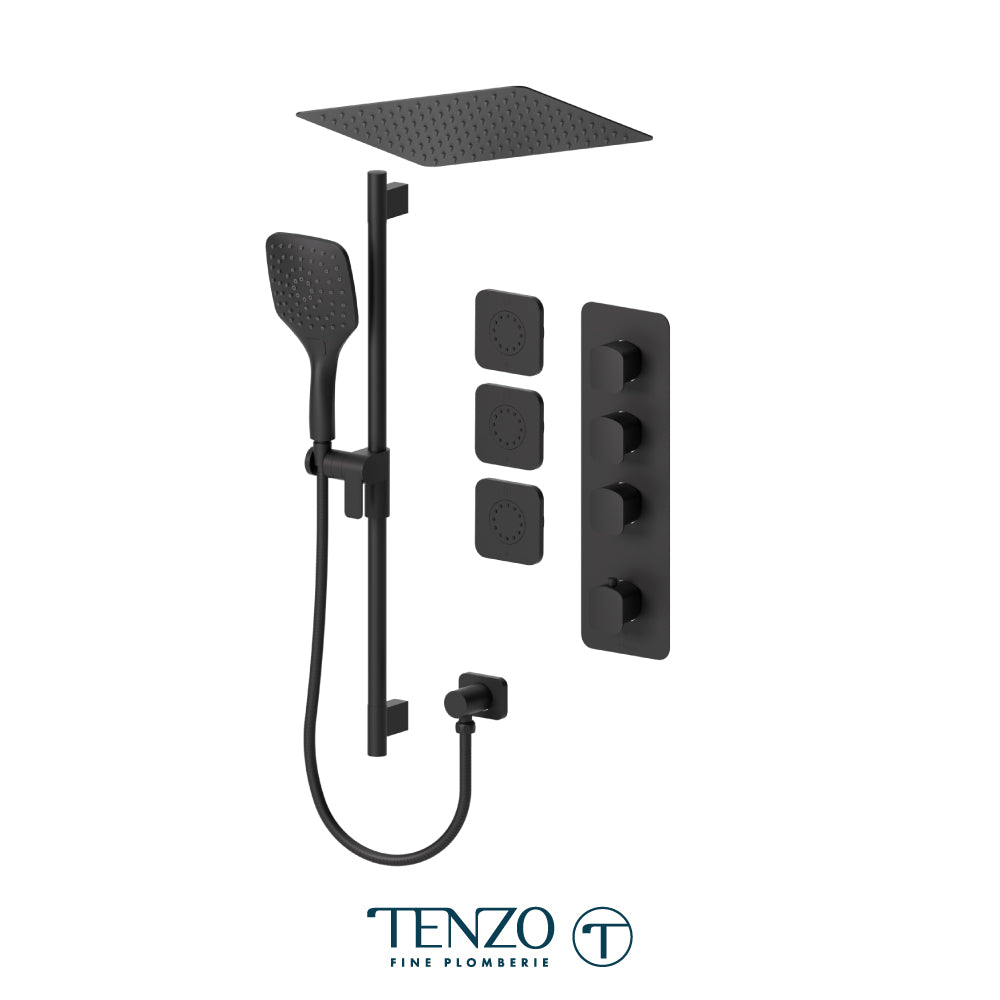

The Delano Extenza shower kit, a 3-function high-flow thermostatic valve feeding a 12" rain head, 3 recessed body jets and a hand shower on a sliding bar.

What's included

• Extenza rough-in valve body, 3 functions (R-43)
• Delano Extenza trim, 3 functions, thermostatic (F-DET43)
• Recessed ceiling rain head, 30 x 30 cm [12"] (CSH-12-Q)
• Sliding bar kit with wall elbow (KRD-35188): bar, 3-function hand shower (HS-218), wall supply elbow and 150 cm [59"] hose
• 3 Quantum recessed body jets (BJ-305)

Features

• Ships complete — rough-in valve, trim, rain head, body jets and hand shower kit in one order.
• The rain head recesses into the ceiling and sits flush, so no arm is needed.
• Extenza is the 3/4" platform, close to twice the throughput of the 1/2" T-Box, which is the headroom a multi-outlet shower needs.
• Thermostatic valve rated 45 L/min [12 gpm] at 60 psi.
• Vernet thermostatic cartridge, made in France.
• 3 shut-off valves, one per outlet, so any combination can run at once.
• Service check and stop valves.
• Installation depth: min. 3 1/2", max. 4 1/2".
• Solid brass trim.
• 3 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Kit
• Collection: Delano
• Style: Modern
• System: Extenza
• Valve: Thermostatic, high flow, 3 function
• Functions: 3
• Flow Rate: 45 L/min [12 gpm] @ 60 psi
• Thermostatic Cartridge: Vernet, made in France (CAR-VNT-T34-07)
• Rain Head: 12" recessed ceiling
• Shower Head Installation: Recessed in the ceiling
• Hand Shower: 3 function, on sliding bar
• Body Jets: 3, Quantum soft-square face, recessed, solid brass, 30° adjustable, 1/2" NPT female inlet
• Body Jet Flow Rate: 7.1 L/min [2.1 gpm] @ 60 psi, each
• Hose Length: 150 cm [59"]
• Supply Connection: 3/4" NPT female
• Material: Solid brass

Good to know

• The valve on its own is DET43; the rough alone is R-43.
• Extenza is a different platform from T-Box: 3/4" NPT rather than 1/2" PEX, and a deeper body. Check the rough-in depth before specifying.
• Each body jet needs the universal body-jet rough-in (R-BJ-300), ordered separately — it is also sold as a three-unit kit.
• The recessed head needs a ceiling cavity above it; it is the same head we sell on its own as CSH-12-Q.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
