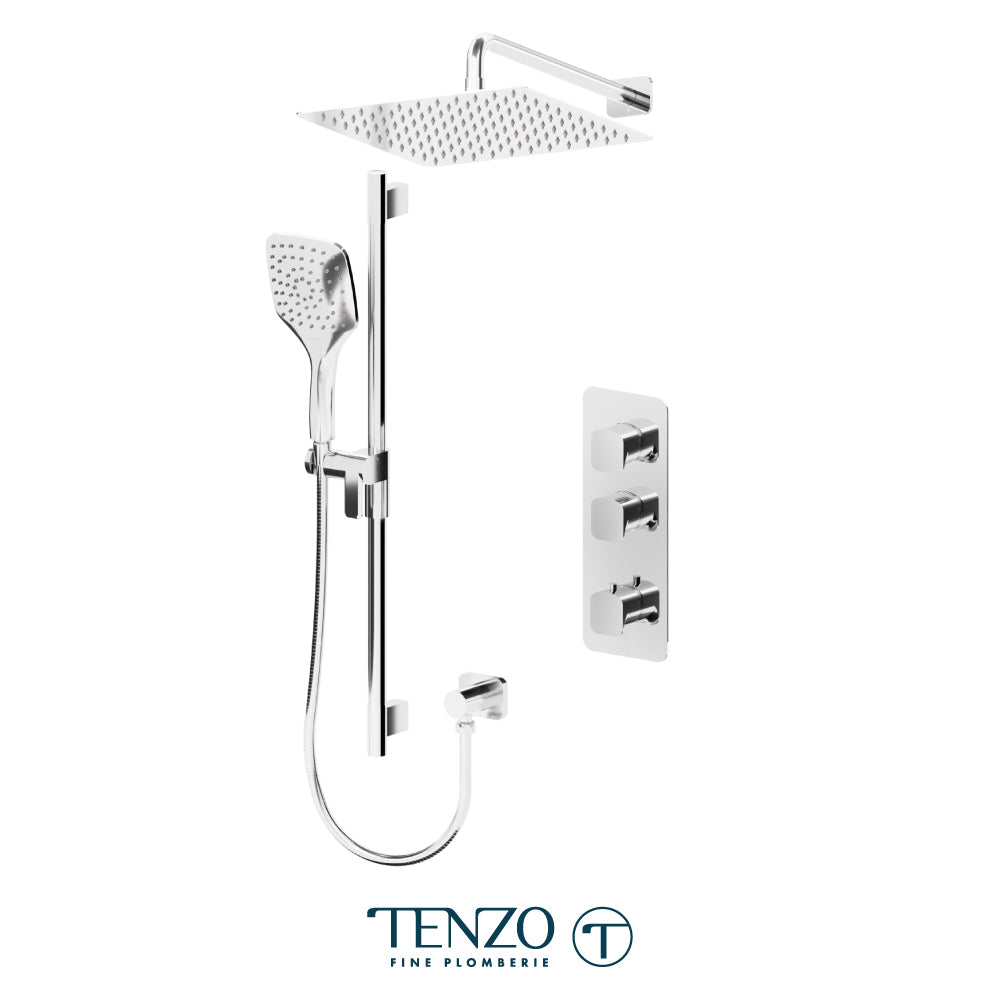

Tenzo Delano Extenza 2-Function Thermostatic Shower Kit, 12" AirBoost Rain Head & Wall Arm - DET42-20112

Tenzo Delano Extenza 2-Function Thermostatic Shower Kit, 12" AirBoost Rain Head & Wall Arm - DET42-20112

The Delano Extenza shower kit, a 2-function high-flow thermostatic valve feeding a 12" rain head on a wall arm and a hand shower on a sliding bar.

What's included

• Extenza rough-in valve body, 2 functions (R-42)
• Delano Extenza trim, 2 functions, thermostatic (F-DET42)
• AirBoost square rain head, 30 x 30 cm [12"] (SSTS-12-Q)
• Wall mount shower arm, 40 cm [16"] (SA-608)
• Sliding bar kit with wall elbow (KRD-35188): bar, 3-function hand shower (HS-218), wall supply elbow and 150 cm [59"] hose

Features

• Ships complete — rough-in valve, trim, rain head and hand shower kit in one order.
• Extenza is the 3/4" platform, close to twice the throughput of the 1/2" T-Box, which is the headroom a multi-outlet shower needs.
• Thermostatic valve rated 45 L/min [12 gpm] at 60 psi.
• Vernet thermostatic cartridge, made in France.
• 2 shut-off valves, one per outlet, so any combination can run at once.
• Service check and stop valves.
• Installation depth: min. 3 1/2", max. 4 1/2".
• Solid brass trim.

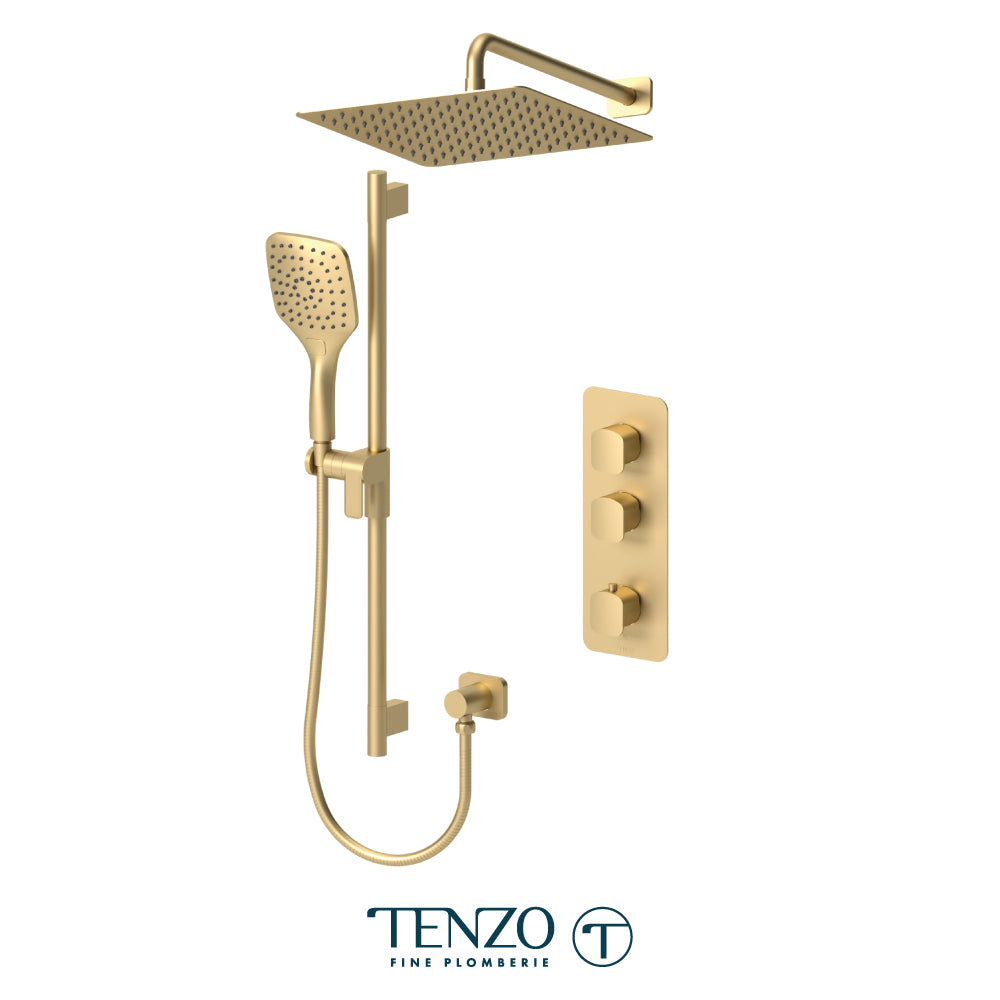

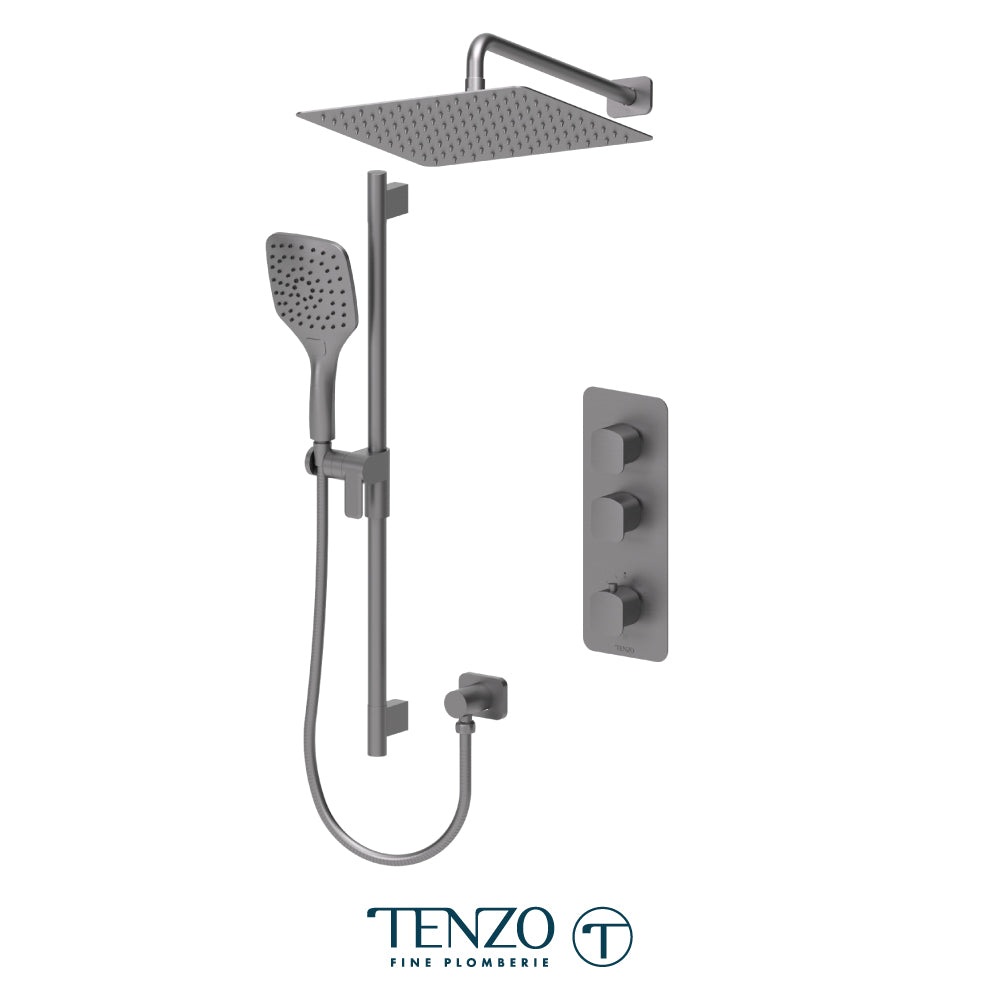

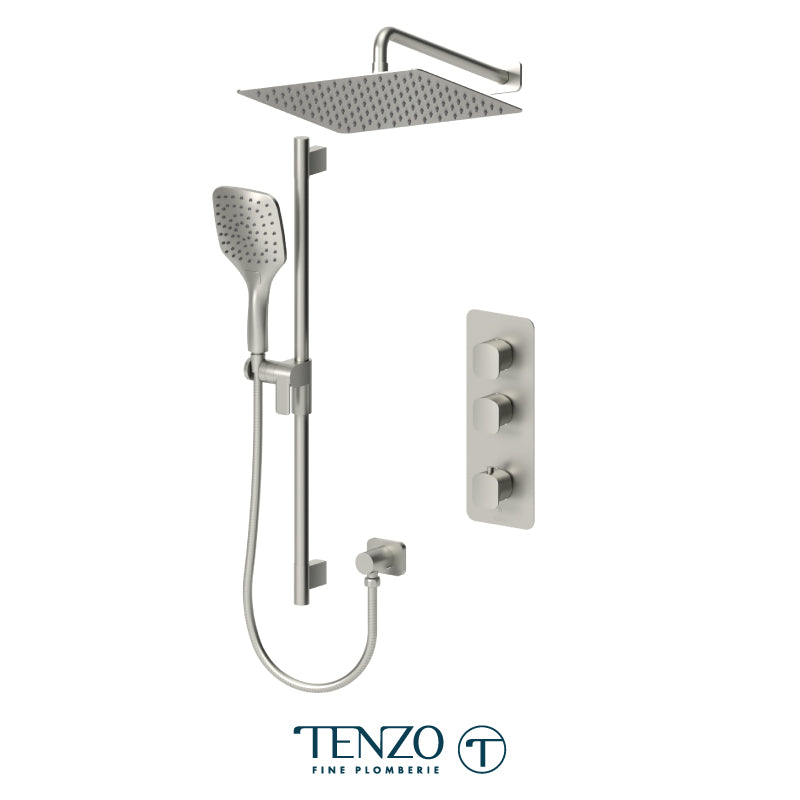

• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Kit
• Collection: Delano
• Style: Modern
• System: Extenza
• Valve: Thermostatic, high flow, 2 function
• Functions: 2
• Flow Rate: 45 L/min [12 gpm] @ 60 psi
• Thermostatic Cartridge: Vernet, made in France (CAR-VNT-T34-07)
• Rain Head: 12" square
• Shower Head Installation: Wall arm, 40 cm [16"]
• Hand Shower: 3 function, on sliding bar
• Hose Length: 150 cm [59"]
• Supply Connection: 3/4" NPT female
• Material: Solid brass

Good to know

• The valve on its own is DET42; the rough alone is R-42.
• Extenza is a different platform from T-Box: 3/4" NPT rather than 1/2" PEX, and a deeper body. Check the rough-in depth before specifying.
• DET42-20112R is the same kit with a round rain head and round hand shower.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
