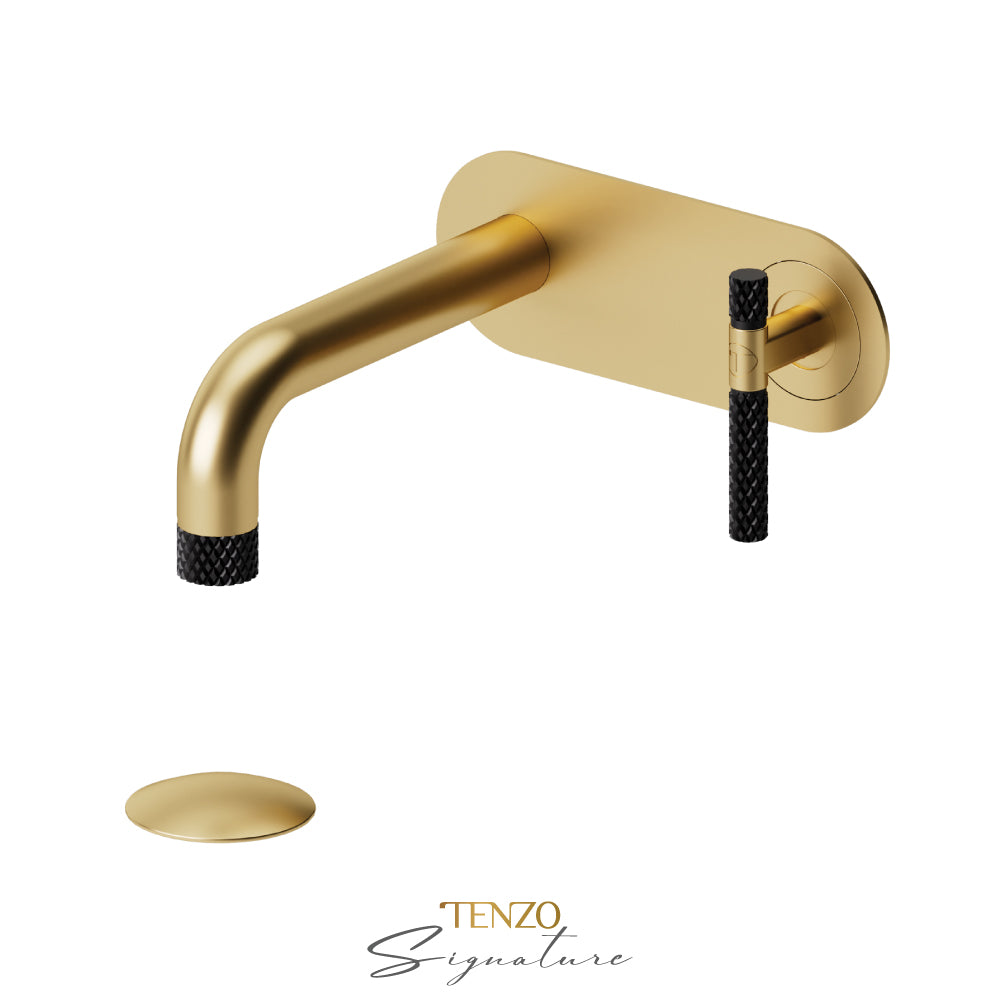

Tenzo Bellacio Single Plate Wall Mount Lavatory Faucet Without Overflow Drain, Larger Knurled - BE15-C-W

Tenzo Bellacio Single Plate Wall Mount Lavatory Faucet Without Overflow Drain, Larger Knurled - BE15-C-W

The Bellacio wall mount lavatory faucet on a single shared escutcheon plate, supplied complete with its in-wall rough-in valve.

What's included

• Wall mount lavatory faucet, solid brass
• R-14 rough-in valve — the in-wall half of the faucet
• Matching pop-up drain without overflow

Features

• Supplied complete — R-14 rough-in valve and finished trim. No separate rough required.
• Spout and handle share one rounded escutcheon plate, 6-13/16” × 2-9/16”. The BE14-C-W is the same faucet on two separate round escutcheons.
• Larger diamond cross-knurl on the spout tip and lever handle. The BE15-F-W carries a finer knurl.
• Reversible handle, mounts left or right of the spout.
• Curved spout with a knurled tip.
• Eight finishes. Five are two-tone; the accent colour applies to the knurled detailing.
• Solid brass. Ceramic cartridge CAR-GN-SL35-01.
• Pop-up drain without overflow included, finished to match the faucet.
• Flow rate 4.5 L/min [1.2 gpm] @ 60 psi.
• Female 1/2” connection.

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet
• Collection: Bellacio (Tenzo Signature)
• Style: Contemporary
• Hole Configuration: 2
• Handles: Single lever, reversible left or right
• Mounting Location: Wall
• Installation Type: Wall Mount, in-wall valve
• Escutcheon: Single plate, 6-13/16” (173 mm) × 2-9/16” (65 mm)
• Spout Reach: 6-15/16” (177 mm)
• Overall Projection: 7-7/16” (190 mm)
• Overall Height: 3-5/8” (92 mm)
• Spout to Handle Centres: 4-5/16” (110 mm)
• Handle Height: 3-1/4” (83 mm)
• Rough-In Depth: 1-13/16” (46 mm) min to 3-5/16” (84 mm) max from the finished wall
• Cartridge: CAR-GN-SL35-01
• Drain: Pop-up, without overflow
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 1/2” female

Good to know

• For basins with no overflow hole, which covers most vessel and above-counter basins. BE15-C-P is the same faucet with the overflow drain.
• Rough-in is set during framing; trim is fitted after the wall is finished.
• Valve body depth 1-13/16” to 3-5/16” behind the finished wall. Confirm against wall build-up before rough-in.
• The single plate covers both wall penetrations. BE14-C-W is the two-escutcheon version of the same faucet.
• On two-tone finishes the first colour is the body, the second the knurled detailing.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
