Tenzo Alyss Wall Mount Thermostatic Tub Filler With Swivel Spout & Hand Shower, Rough & Trim - ALYT74

Tenzo Alyss Wall Mount Thermostatic Tub Filler With Swivel Spout & Hand Shower, Rough & Trim - ALYT74

A complete wall-mounted tub filler on a single plate — the rough-in valve and the finished Alyss trim in one order. The Vernet thermostatic cartridge holds your set temperature no matter what the flow does elsewhere in the house, and a two-function diverter sends water either to the 12” swivel spout or to the hand shower on its 59” retractable hose. The spout turns a full 180°, so it reaches across a wide tub and swings clear when you are getting in.

What's included

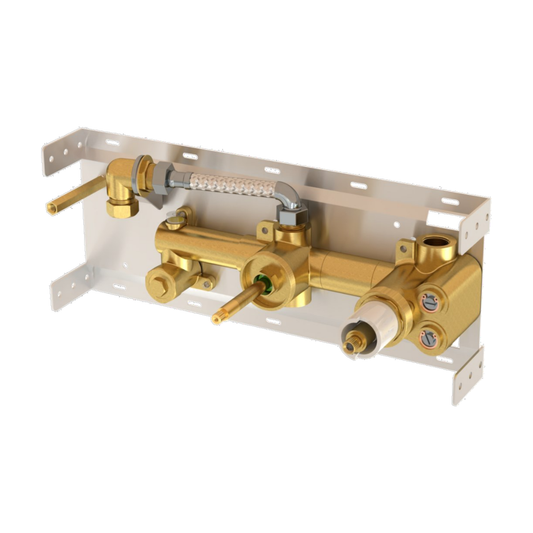

• Wall mount tub filler rough-in valve (R-70)

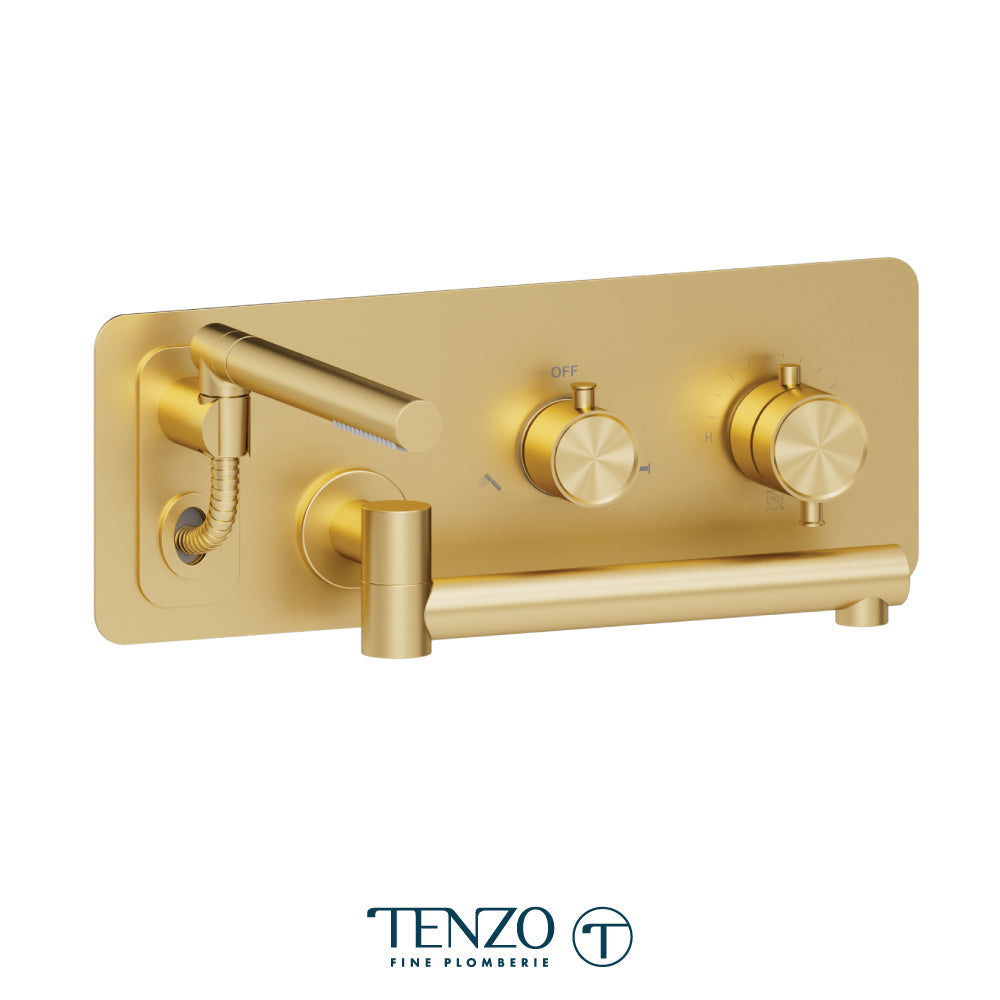

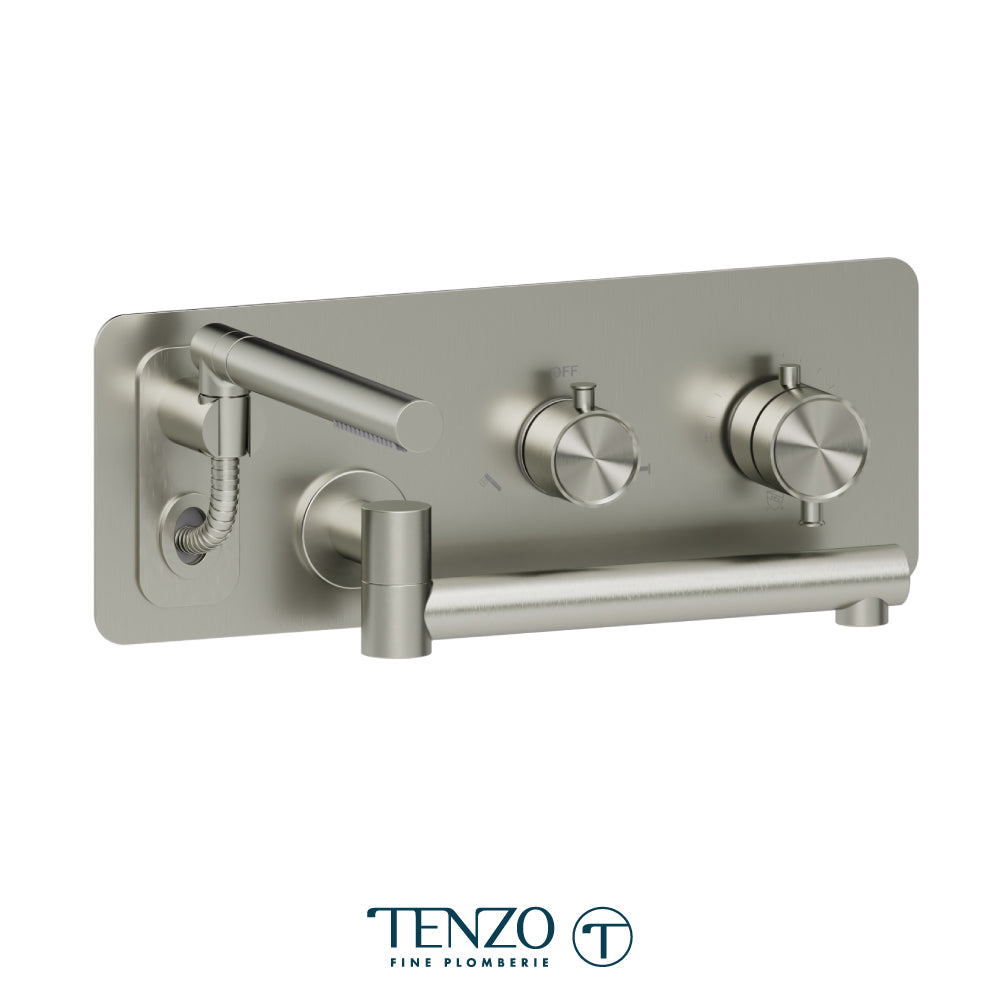

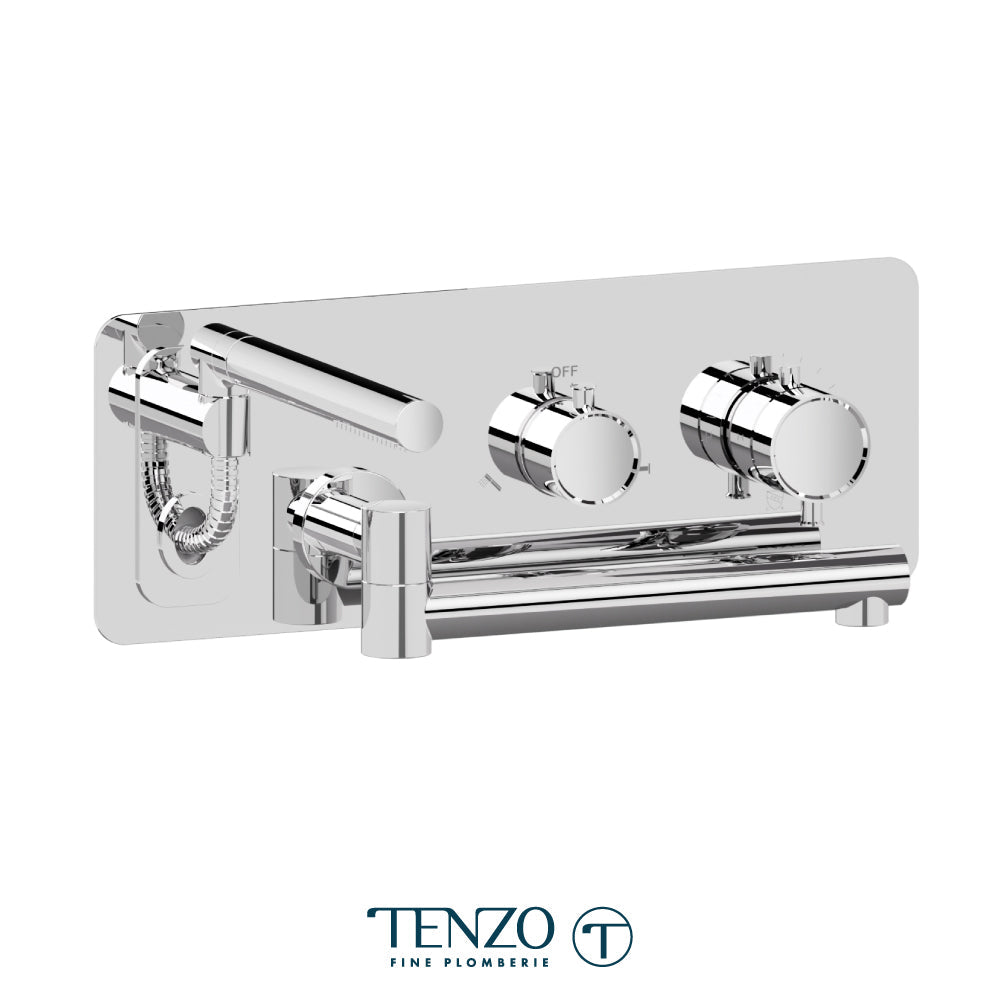

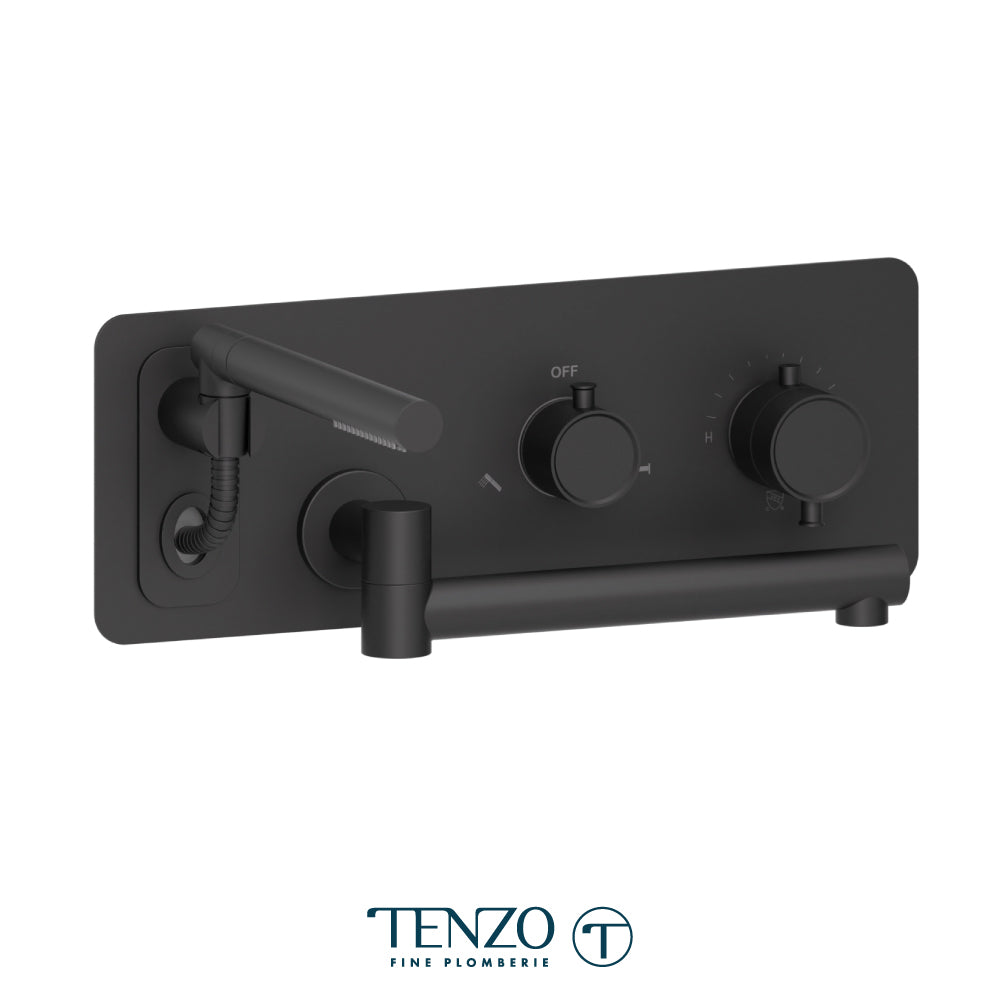

• Alyss thermostatic trim with diverter (F-ALYT74-XX)
• 12” wall-mount swivel tub spout (BSS-303-XX)
• Single-function hand shower (HS-231-XX) with 59” retractable hose

Features

• Vernet thermostatic cartridge, made in France
• 2-function diverter with no shared zone — full flow to whichever outlet is open
• Solid brass swivel tub spout, 180° rotation, 12” [307 mm] reach, slip-fit
• Stainless steel hand shower with anti-limescale silicone nozzles
• Service check / stop valves

Specifications

• Room: Bathroom
• Product Type: Complete Wall Mount Tub Filler (rough-in and trim)
• Valve Type: Thermostatic
• Functions: 2 (tub spout / hand shower)
• Tub Spout Flow: 30 L/min [7.9 gpm] @ 60 psi
• Hand Shower Flow: 7.6 L/min [2.0 gpm] @ 60 psi
• Spout Reach: 12” [307 mm], swivels 180°
• Supply Connection: 1/2” NPT female

Good to know

• Need the trim only, because the rough is already in the wall? That is F-ALYT74-XX — ask us.
• Want a shorter fixed spout instead? The ALYT73 is the same filler with an 8” spout.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty

Shop the Tenzo Alyss Wall Mount Tub Filler at e-unoia.com
