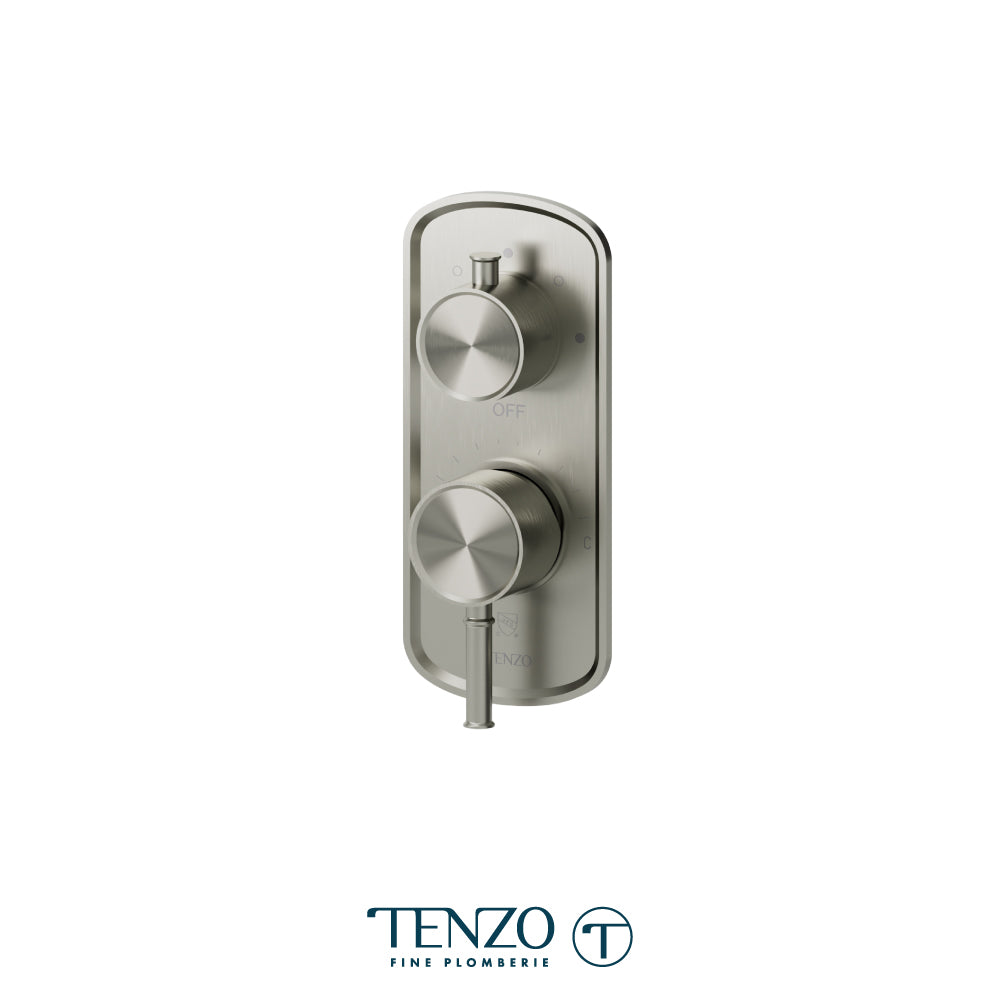

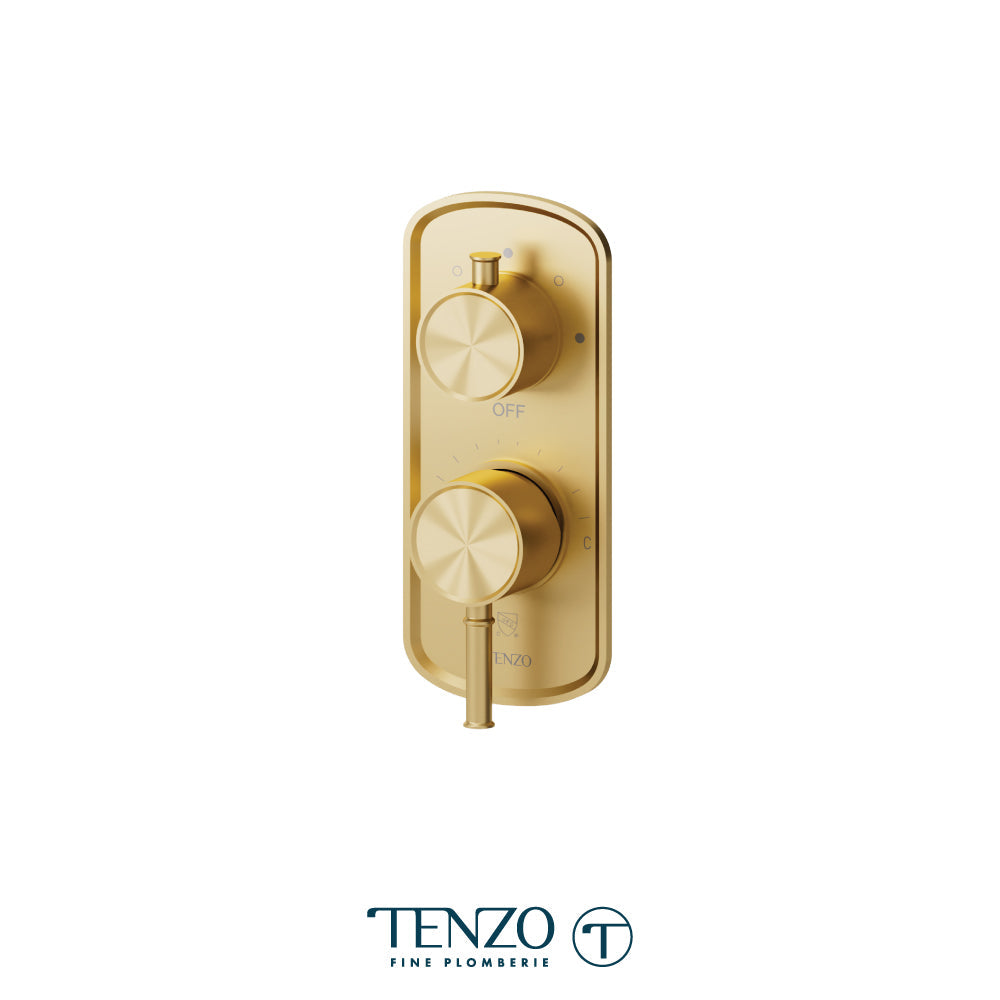

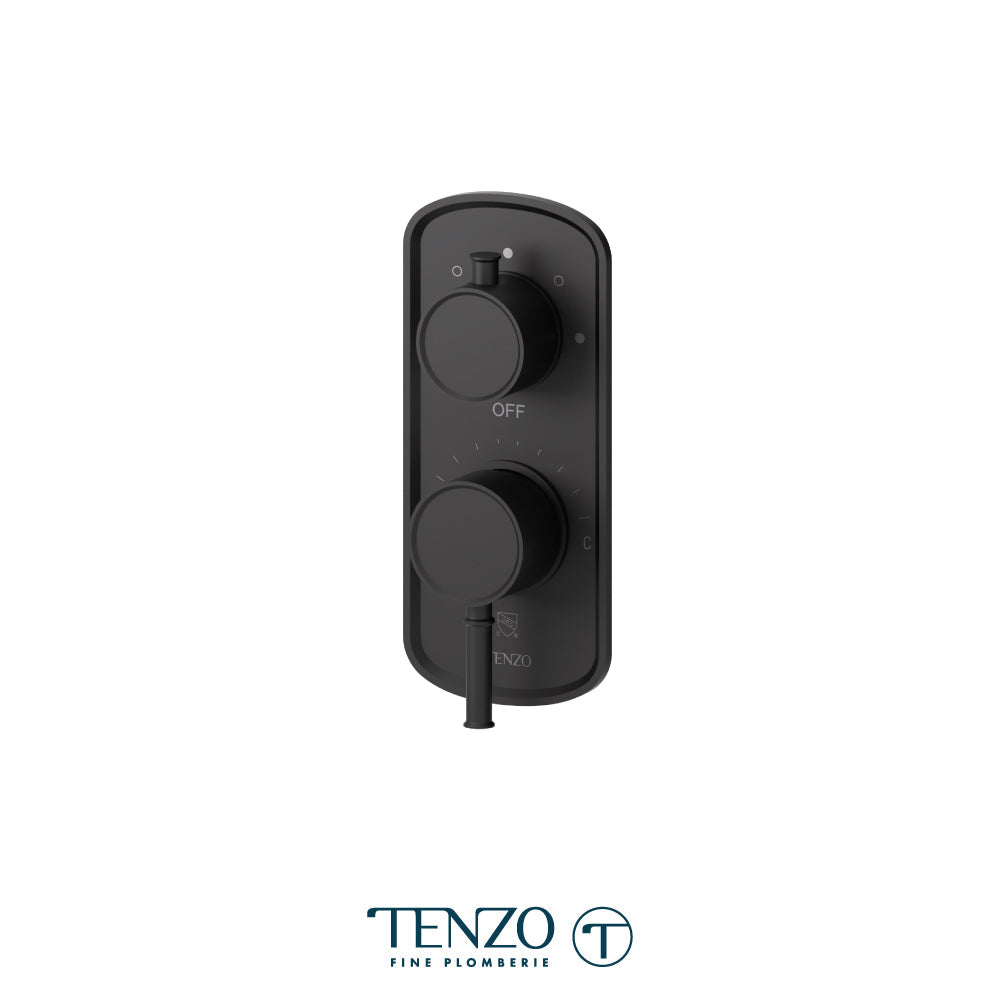

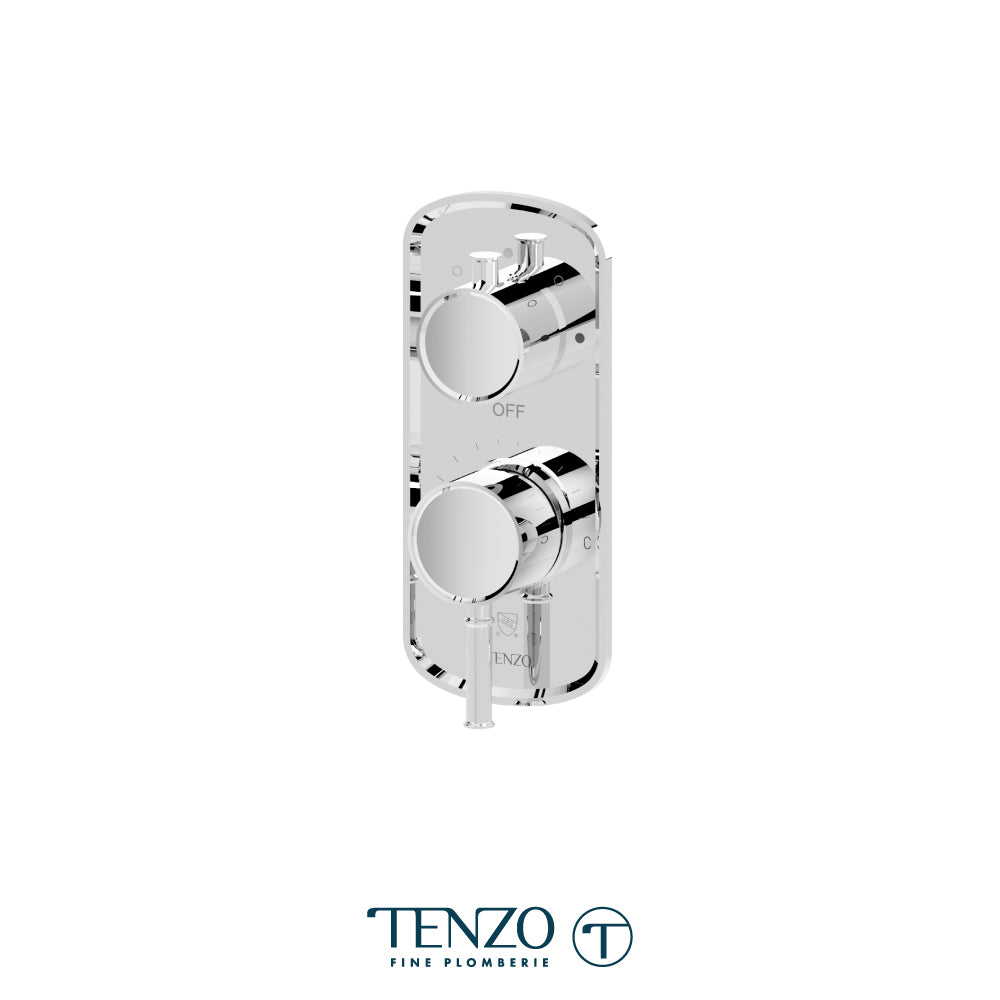

Tenzo Alyss T-Box 3-Function Pressure Balance Shower Valve, Rough & Trim - ALYPB33

Tenzo Alyss T-Box 3-Function Pressure Balance Shower Valve, Rough & Trim - ALYPB33

The complete Alyss T-Box valve — the universal rough-in body and the finished trim in one order.

What's included

• T-Box universal rough-in valve, PEX connection (R-31-P)
• Alyss T-Box valve trim, 3 functions, pressure balance (F-ALYPB33-XX)

Features

• One control sets the temperature, the other chooses between three outlets
• Pressure balanced — holds temperature when another fixture in the house draws water
• 3-function diverter, shared zones: outlets can run at the same time
• Service check / stop valves built into the rough
• Pressure balance cartridge: CAR-HY-PB-JH04BD
• Diverter cartridge: CAR-HA-DV4-BK-35097-01

Specifications

• Room: Bathroom
• Product Type: Complete Shower Valve (rough-in and trim)
• System: T-Box
• Valve Type: Pressure Balance
• Functions: 3
• Valve Flow: 25 L/min [6.6 gpm] @ 60 psi
• Trim Plate: 3⅜” [85 mm] wide × 7¹¹⁄₁₆” [196 mm] high
• Supply Connection: 1/2” PEX (R-31-P) — ships as standard. 1/2” male NPT / weld (R-31-N) available; specify when ordering.

Good to know

• The valve at the heart of every 3-function Alyss T-Box shower kit, sold on its own for a shower you are specifying piece by piece
• Need the trim only, because the rough is already in the wall? That is F-ALYPB33-XX — ask us.
• Need non-shared zones, so only one outlet runs at a time? Tenzo builds that as a separate code (add -ECO). Ask us before ordering.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
