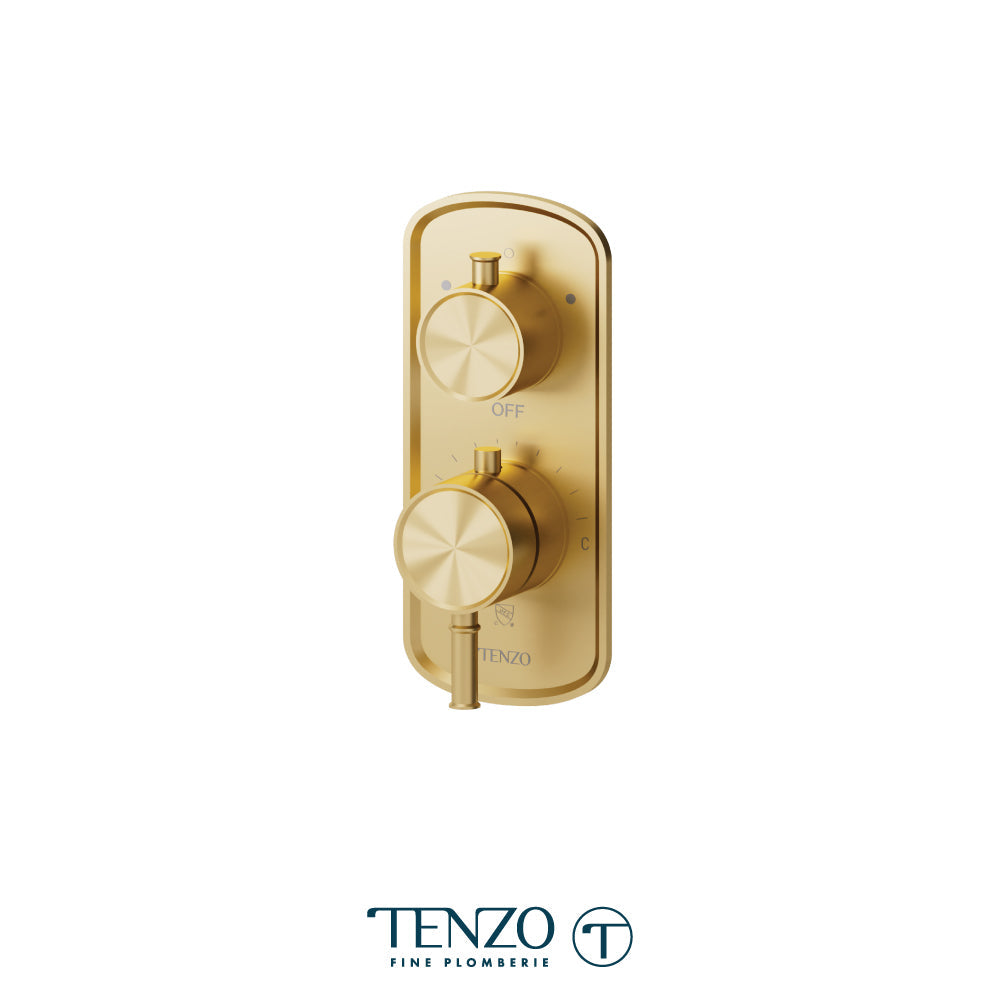

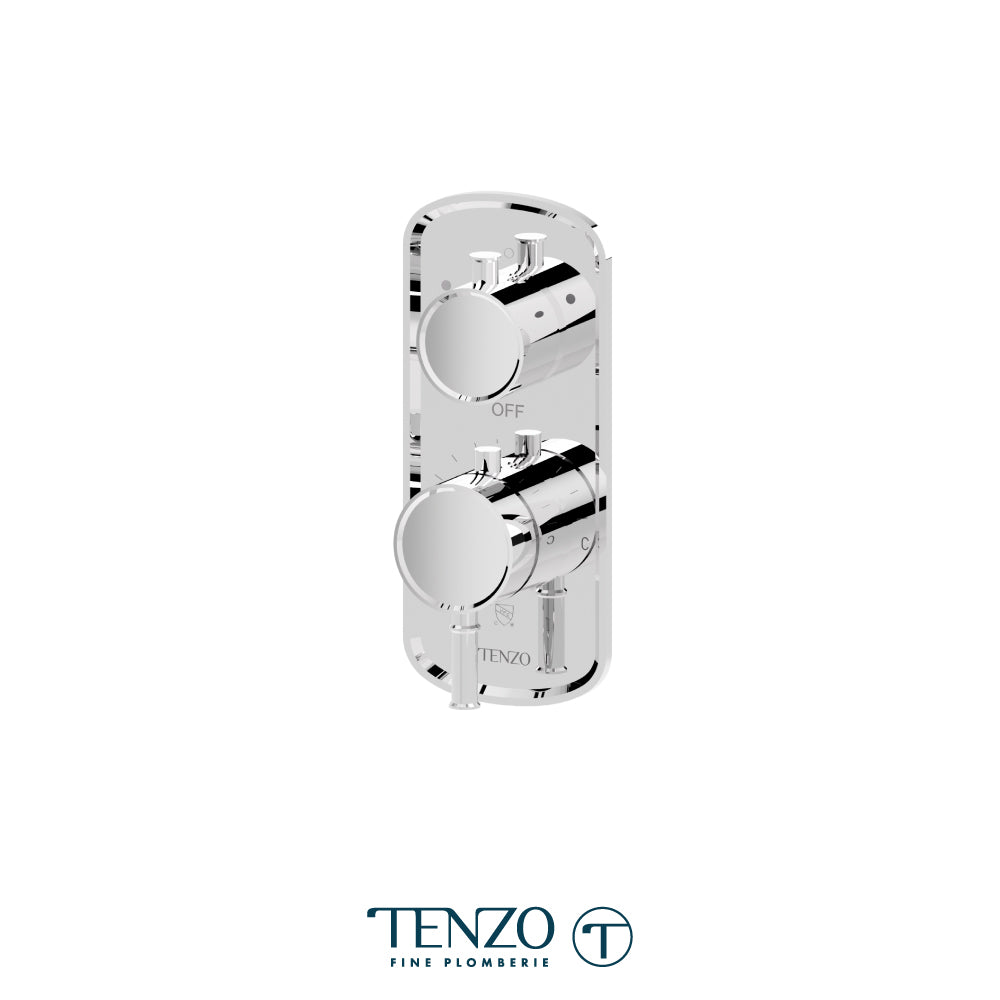

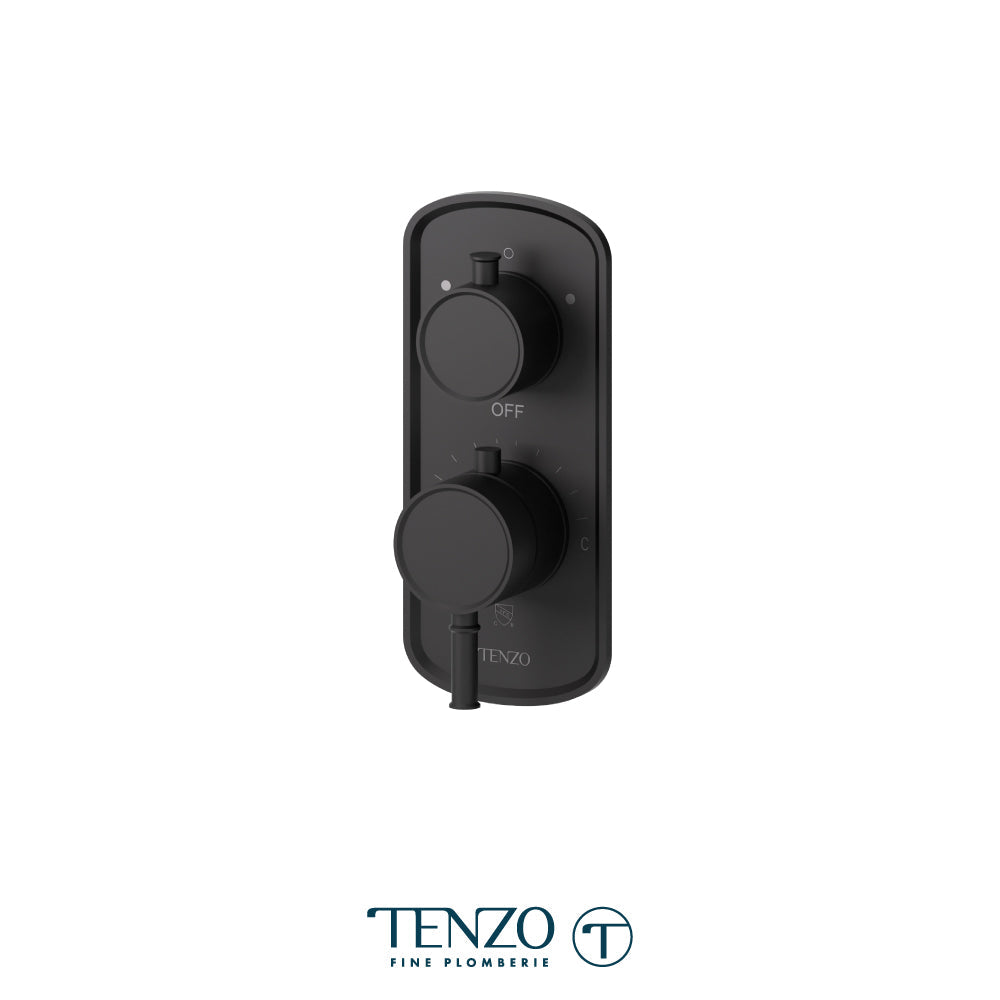

Tenzo Alyss T-Box 2-Function Thermostatic Shower Valve, Rough & Trim - ALYT32

Tenzo Alyss T-Box 2-Function Thermostatic Shower Valve, Rough & Trim - ALYT32

The complete Alyss T-Box thermostatic valve — the universal rough-in body and the finished trim in one order. The Vernet thermostatic cartridge holds your chosen temperature independently of the flow, so one control sets how hot and the other sets how much, and a 2-function diverter chooses between two outlets. This is the valve at the heart of every 2-function Alyss T-Box thermostatic shower kit, sold on its own for a shower you are specifying piece by piece.

What's included

• T-Box universal rough-in valve, PEX connection (R-31-P)
• Alyss T-Box valve trim, 2 functions, thermostatic (F-ALYT32-XX)

Features

• Thermostatic — temperature is set independently of volume and holds when another fixture draws water
• Vernet thermostatic cartridge, made in France (CAR-VNT-T12-01)
• 2-function diverter, shared zones: outlets can run at the same time
• Service check / stop valves built into the rough
• Diverter cartridge: CAR-HA-DV3-BK-33097-01

Specifications

• Room: Bathroom
• Product Type: Complete Shower Valve (rough-in and trim)
• System: T-Box
• Valve Type: Thermostatic
• Functions: 2
• Valve Flow: 30 L/min [7.9 gpm] @ 60 psi
• Trim Plate: 3⅜” [85 mm] wide × 7¹¹⁄₁₆” [196 mm] high
• Supply Connection: 1/2” PEX (R-31-P) — ships as standard. 1/2” male NPT / weld (R-31-N) available; specify when ordering.

Good to know

• Need the trim only, because the rough is already in the wall? That is F-ALYT32-XX — ask us.
• Need non-shared zones, so only one outlet runs at a time? Tenzo builds that as a separate code (add -ECO). Ask us before ordering.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
