Tenzo Alyss Extenza 4-Function Thermostatic High-Flow Shower Valve, Rough & Trim - ALYT44

Tenzo Alyss Extenza 4-Function Thermostatic High-Flow Shower Valve, Rough & Trim - ALYT44

The largest of the Alyss Extenza valves — the rough-in body and the finished trim in one order. Extenza is Tenzo's high-flow platform: a 3/4” thermostatic valve rated at 45 L/min [12 gpm], nearly twice the throughput of the 1/2” T-Box, which is what lets a shower run a rain head, a hand shower and two sets of body jets properly at the same time. The Vernet thermostatic cartridge holds your chosen temperature independently of the flow, and four independent shut-off valves put each outlet on its own control.

What's included

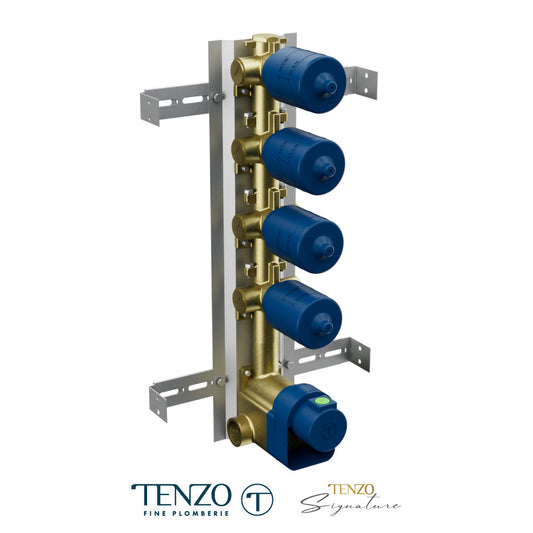

• Extenza rough-in valve body, 4 functions (R-44)

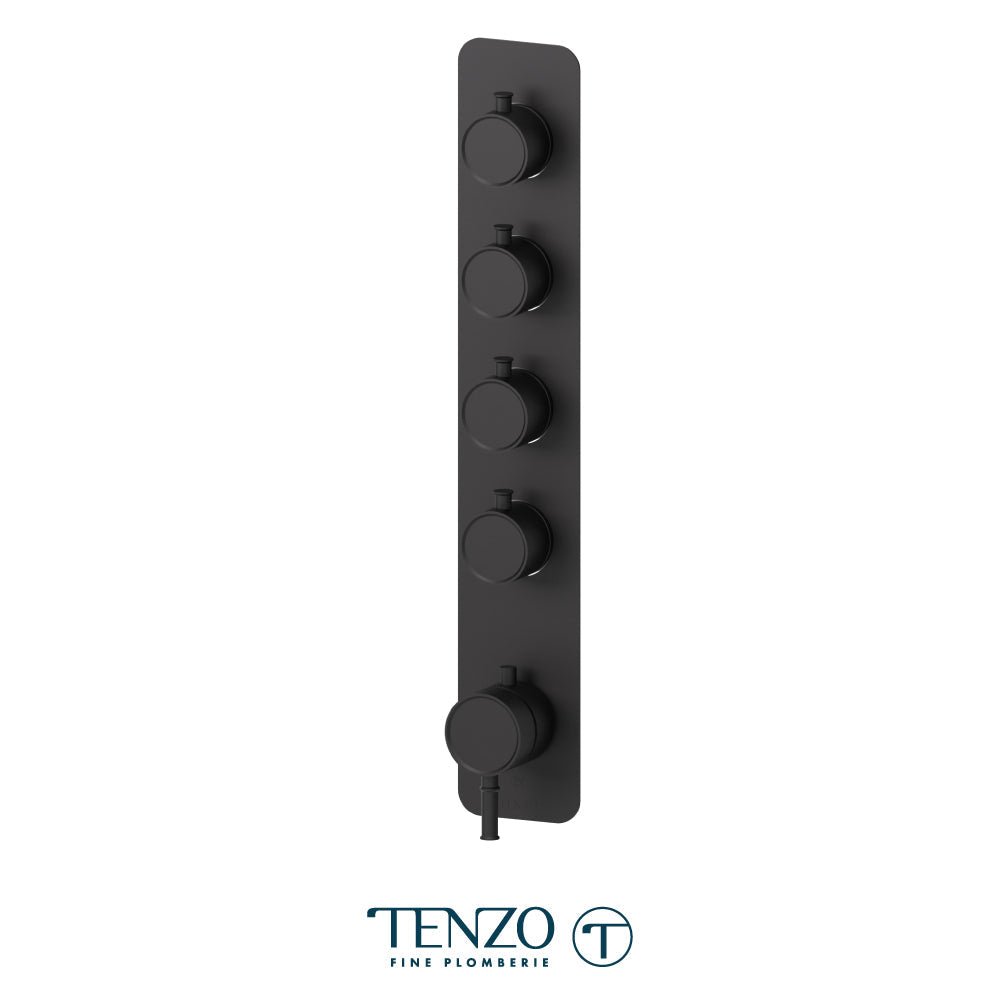

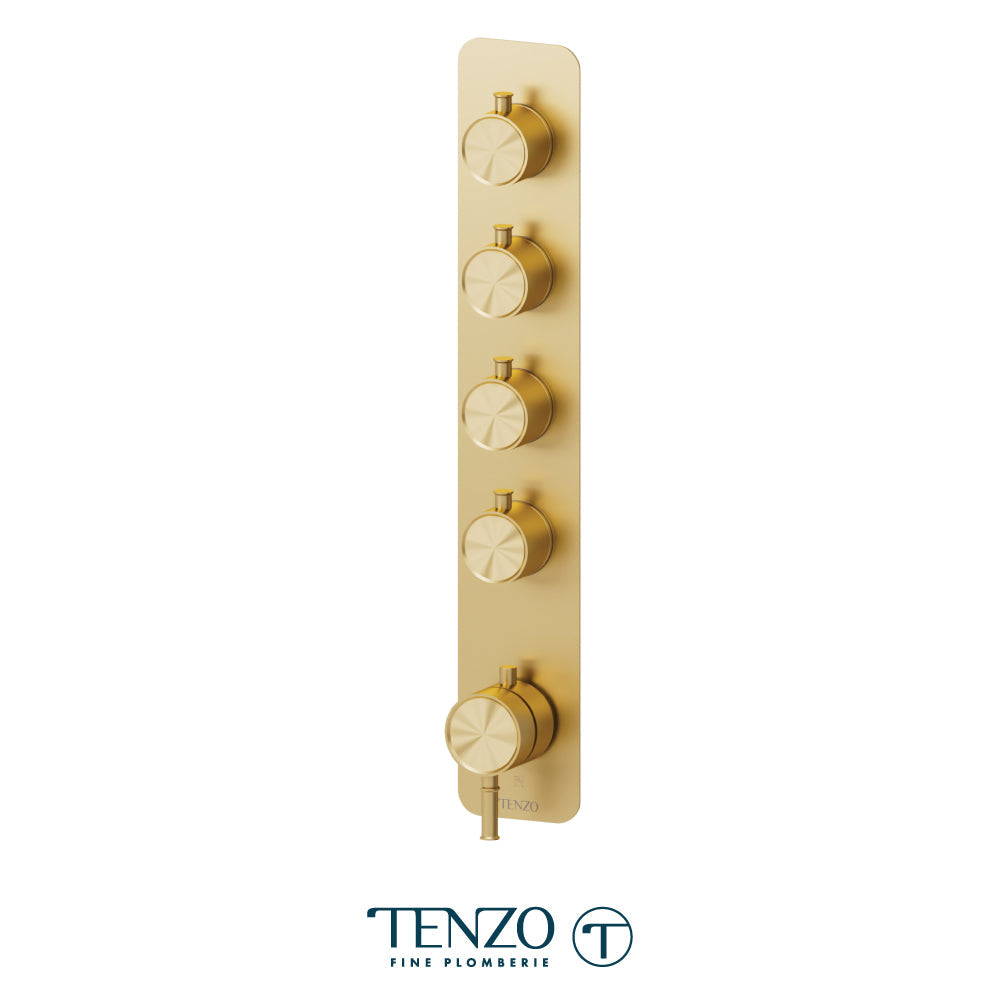

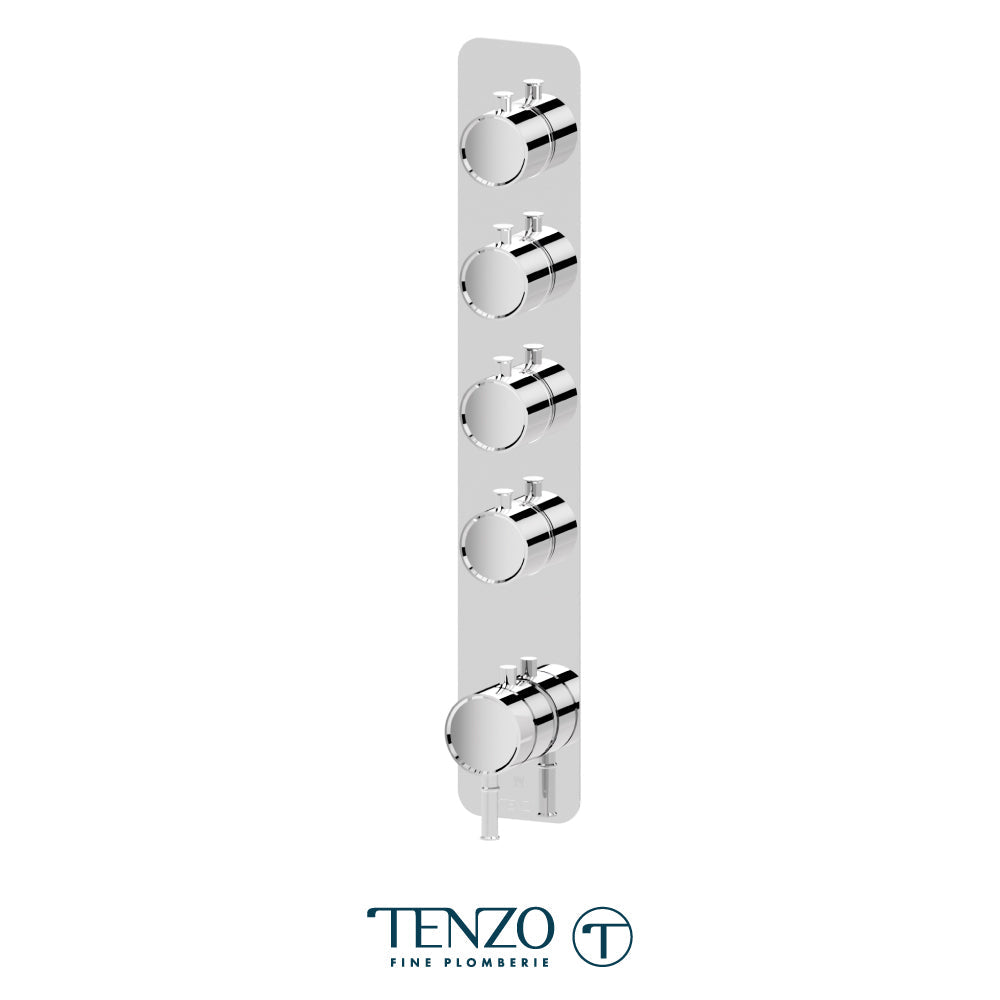

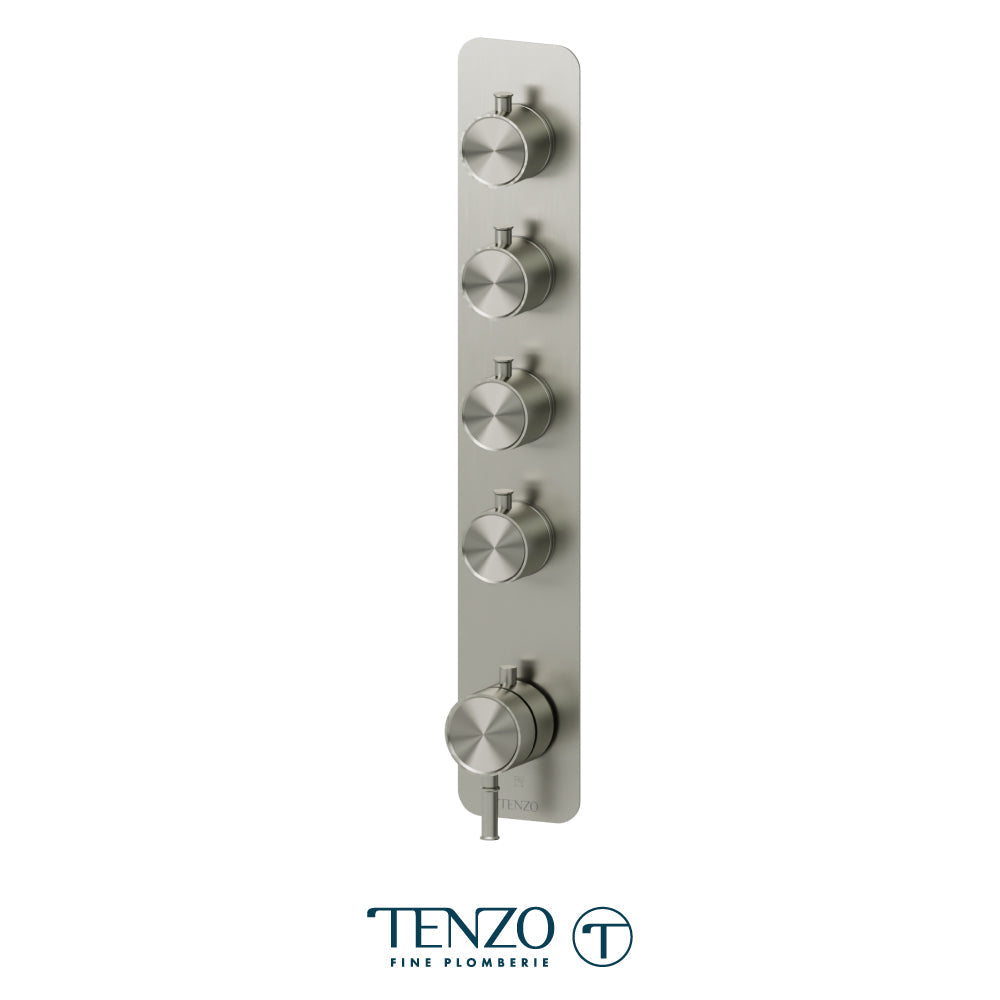

• Alyss Extenza valve trim, 4 functions, thermostatic (F-ALYT44-XX)

Features

• 3/4” thermostatic high-flow valve — 45 L/min [12 gpm] @ 60 psi
• Vernet thermostatic cartridge, made in France
• 4 shut-off valves, each with outlets on both sides
• Additional direct 3/4” port on top
• Service check / stop valves
• Hot and cold inlets from the bottom and the side, for easier installation
• Installation depth: min. 3½”, max. 4½”

Specifications

• Room: Bathroom
• Product Type: Complete Shower Valve (rough-in and trim)
• System: Extenza
• Valve Type: Thermostatic, high-flow
• Functions: 4
• Valve Flow: 45 L/min [12 gpm] @ 60 psi
• Supply Connection: 3/4” NPT female

Good to know

• Need the trim only, because the rough is already in the wall? That is F-ALYT44-XX — ask us.
• Extenza is a different platform from T-Box: 3/4” NPT rather than 1/2” PEX, and a deeper body. Check the rough-in depth before specifying.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
