LAUFEN INEOLINK Slim (90 mm) Concealed Cistern for Wall-Hung WC and Shower WC - H9201110000001

LAUFEN INEOLINK Slim (90 mm) Concealed Cistern for Wall-Hung WC and Shower WC - H9201110000001

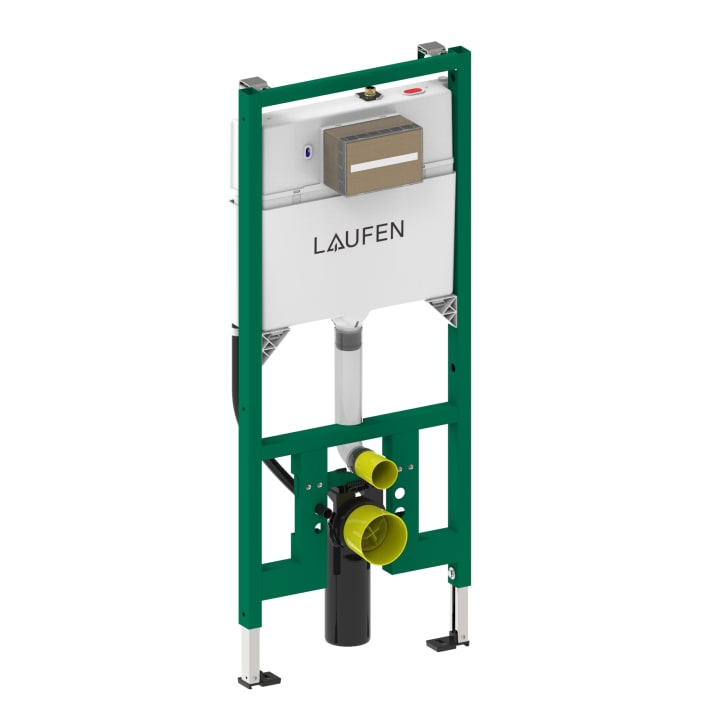

The LAUFEN INEOLINK slim combines a concealed cistern with a self-supporting steel frame for wall-hung toilets and shower toilets. Designed for studded walls or installation in front of a solid wall, it features front-operated dual flushing, adjustable feet and a silent fill valve. The flush actuator is sold separately.

Features

• Slim concealed installation element with a powder-coated, self-supporting steel frame
• Suitable for wood-frame, drywall and solid-wall installations, including 4" x 2" and 6" x 2" wood construction
• Compatible with INEOGRID railsystem and UW 50 / UW 75 U-profiles
• Height-adjustable feet with non-slip leg supports and rotatable foot plates
• Supports WC ceramics with small contact surfaces
• Shower-toilet ready and LAUFEN EasyFit compatible
• Front-operated dual-flush cable mechanism
• Silent fill valve rated below 20 dB
• Water-condensation insulation
• Compatible with all INEO flush plates; actuator sold separately

Specifications

• Room: Bathroom
• Product Type: Concealed Cistern and Wall-Hung Toilet Carrier
• Collection: INEO
• Cistern Material: Polypropylene (PP)
• Frame Material: Powder-coated steel
• Feet Adjustment: 0–200 mm (0–7.87")
• Water Connection: Top inlet, R 1/2", brass
• Waste Outlet: DN 90/110 with depth-adjustable pipe clamp
• WC Fixation Spacing: 180 mm or 230 mm
• Water Pressure: 0.5–10 bar
• Maximum Water Temperature: 25°C
• Maximum Load Capacity: 400 kg
• Country of Origin: Germany
• Model: H9201110000001

Included Components

• Concealed cistern and support frame
• 1/2" angle valve
• Revision box with concealed box and conduit pipe for electronic flush-plate connections
• Protection box for the service opening
• Fastening material and two M12 threaded rods
• DN 90 HDPE WC connection set
• DN 90 HDPE drain elbow with DN 90/110 HDPE adapter

Required for Installation

• Compatible INEO flush actuator plate, sold separately

Optional Accessories

• 1/2" NPT water-inlet adapter, sold separately as needed for the installation
• Copper-pipe adapter, sold separately as needed
• Ø90 mm outlet-pipe adapter clamp, sold separately as needed

Certifications & Warranty

• Certified to ASME A112.6.2 / A112.19.2 / CSA B45.1
