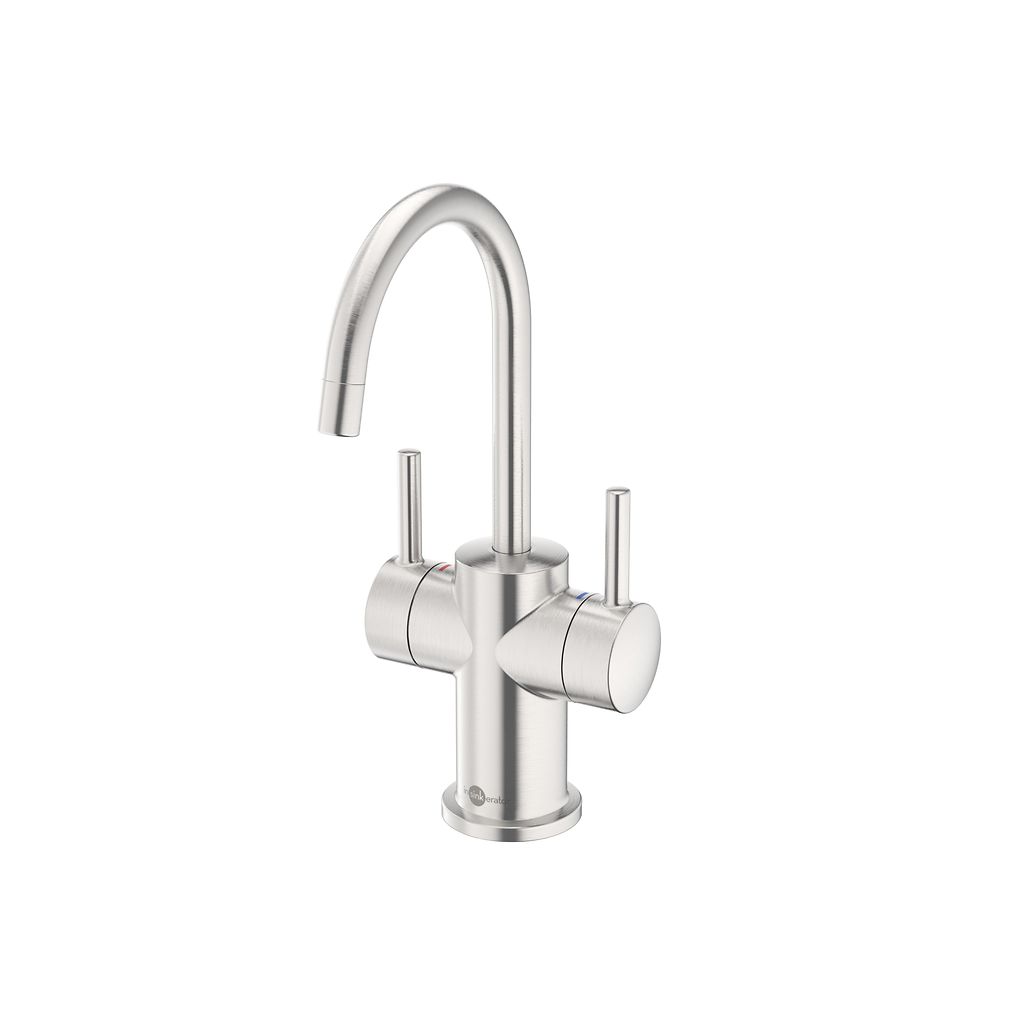

InSinkErator Modern 3010 Instant Hot and Cold Water Faucet - Stainless Steel - 45394AU-ISE

InSinkErator Modern 3010 Instant Hot and Cold Water Faucet - Stainless Steel - 45394AU-ISE

The InSinkErator FHC3010SS Modern 3010 faucet in Stainless Steel delivers near-boiling water and cold drinking water through separate handles when connected to a compatible InSinkErator hot-water tank.

Features

• Solid brass construction.
• Corrosion-resistant ceramic disc valve.
• Spout swivels 360° for convenient positioning.
• Forward-operating handles help avoid backsplash contact.
• Self-closing hot-water valve automatically shuts off when released.
• Reverse-osmosis compatible and certified to NSF/ANSI 58.
• Lead-free certified and tested to NSF 61, Section 9.

Specifications

• Room: Kitchen
• Product type: Hot and Cold Water Dispenser Faucet
• Collection: Modern 3010
• Installation: Single-hole deck mount at the sink or countertop
• Finish: Stainless Steel
• Material: Brass
• Water function: Instant hot and cold
• Spout rotation: 360°
• Overall faucet height: 9″ (22.86 cm)
• Spout outlet height: 6.46″ (16.41 cm)
• Spout reach: 4.03″ (10.24 cm)
• Supply connection: 1/4″ compression and/or push fitting
• Required sink hole: 1-3/8″ (35 mm)
• Supply pressure: 25–80 psi (172–550 kPa)
• Minimum backsplash clearance: 2″ (5.08 cm) from hole centre
• Maximum countertop thickness: 3″ (7.62 cm)
• Model: FHC3010SS
• SKU: 45394AU-ISE

Included Components

• Faucet with inlet tubing, silicone tank outlet tube and vent tube
• Pre-installed O-ring
• Plastic tripod
• Rubber gasket
• Metal gasket
• Locking nut
• Two locking screws

Required for Installation

A compatible InSinkErator instant hot-water tank is required and sold separately. The manufacturer’s installation manual includes HWT300 configurations. Connect the system to a cold-water supply with the appropriate shutoff valve and fittings, and provide the grounded, continuously powered outlet required by the tank. The faucet does not heat water on its own.

Optional Accessories

An InSinkErator filtration system may be added for filtered water and is sold separately. The installation manual provides configurations with and without filtration.

Certifications & Warranty

• NSF/ANSI 372; NSF/ANSI 58; NSF/ANSI/CAN 61 Q ≤ 1.
• UPC certified and ADA compliant.
• ASME A112.18.1 and ASSE 1023.
• We Come To You® 5-Year In-Home Limited Warranty covering parts and labour.
