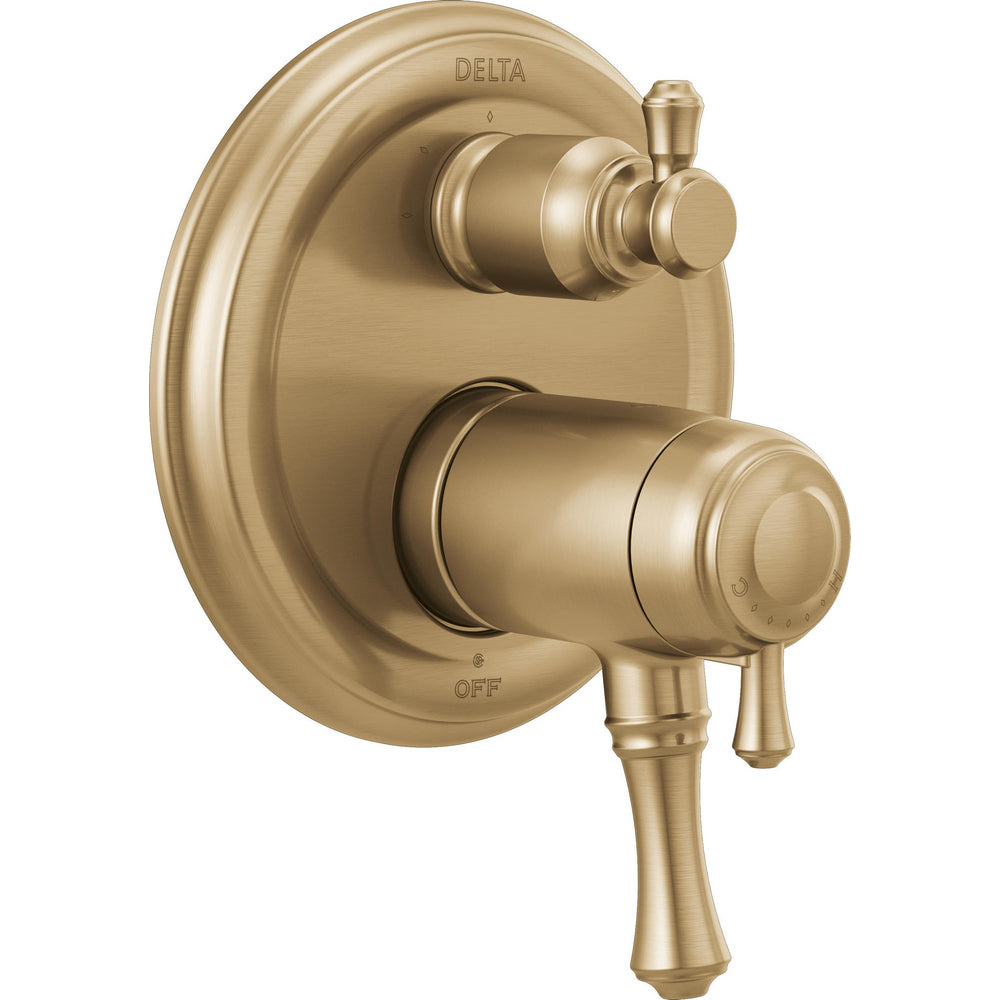

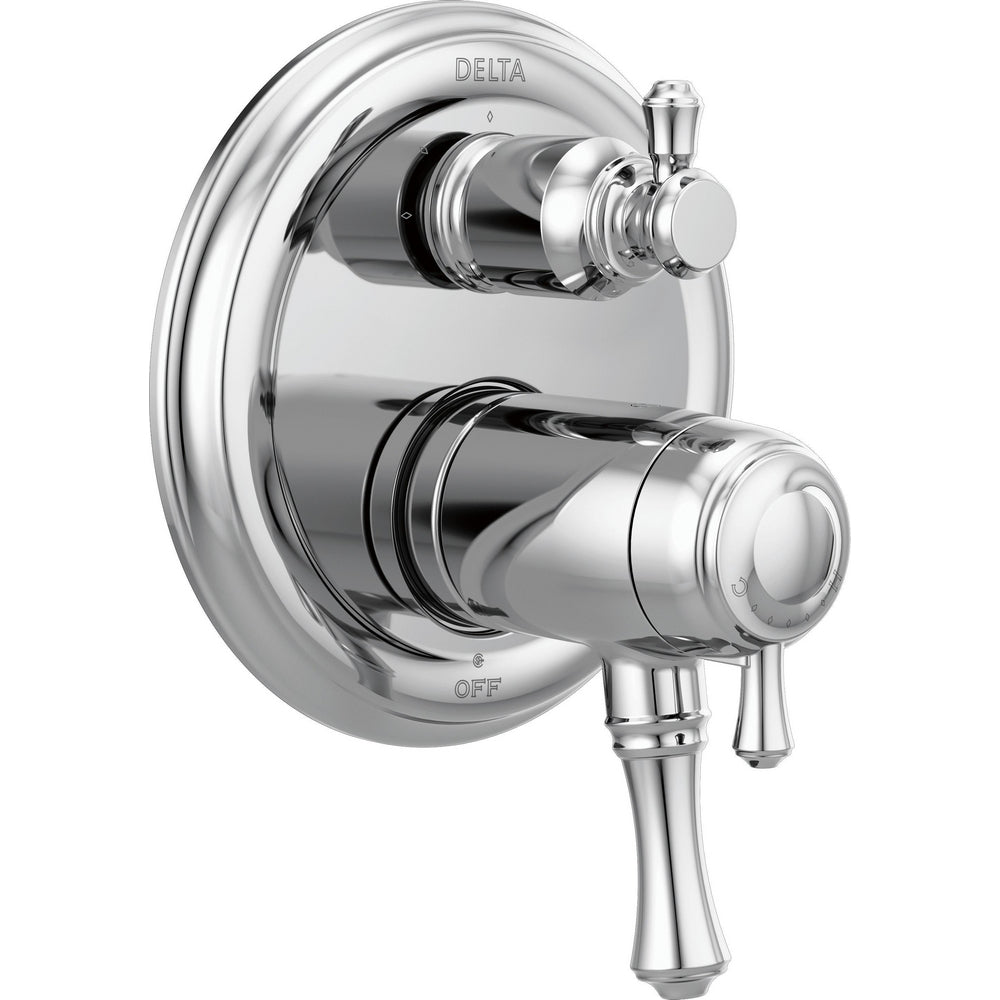

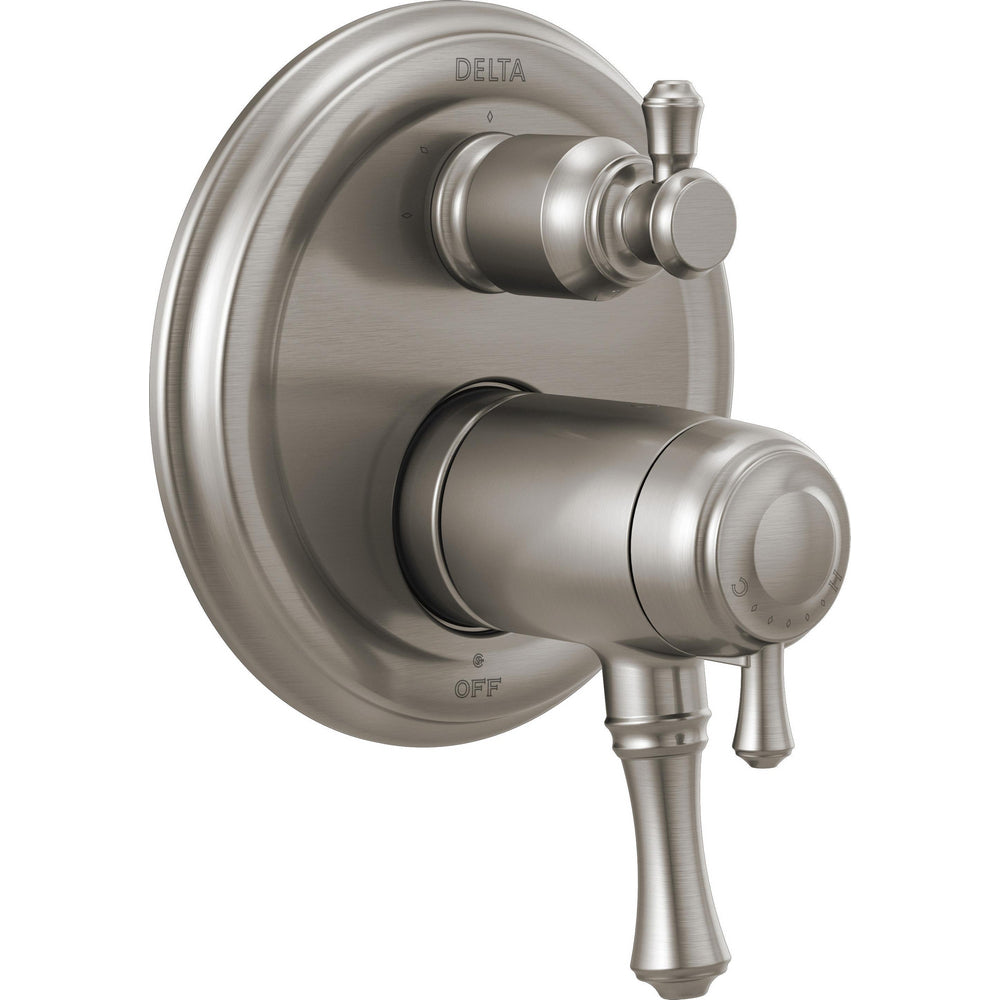

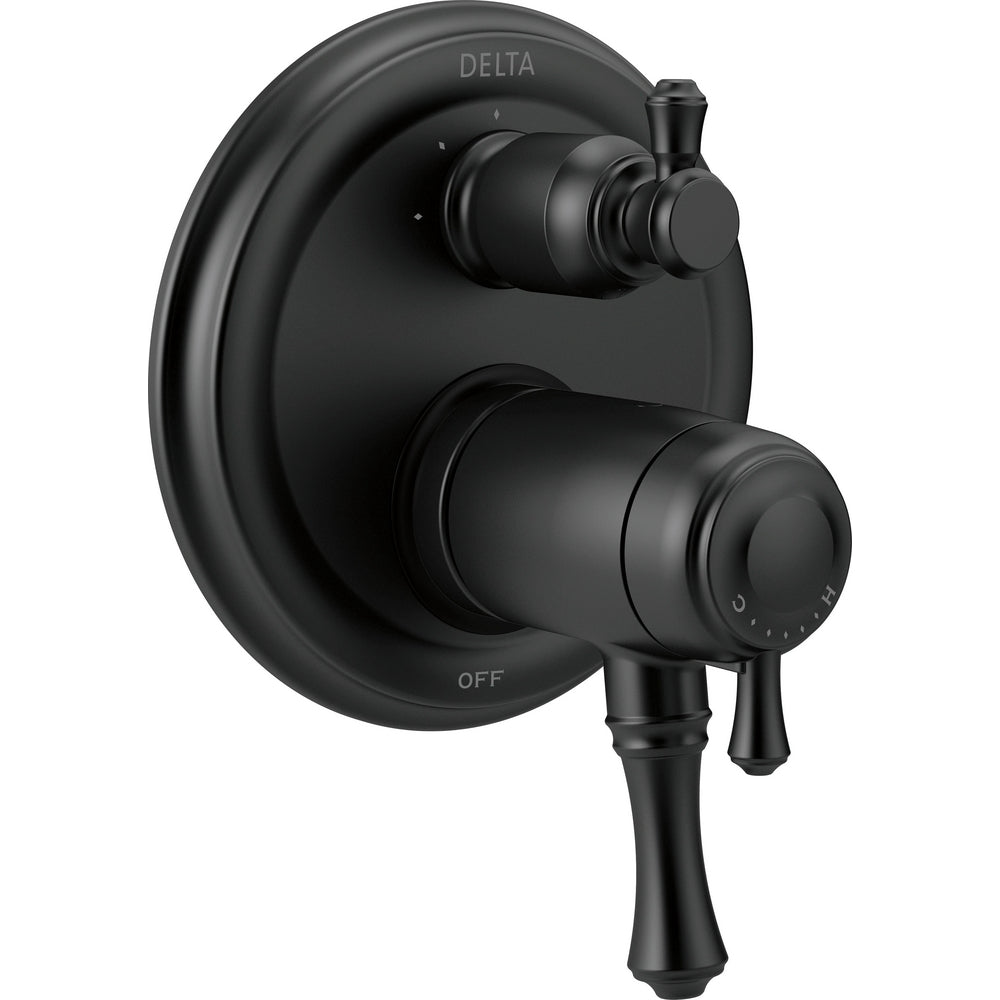

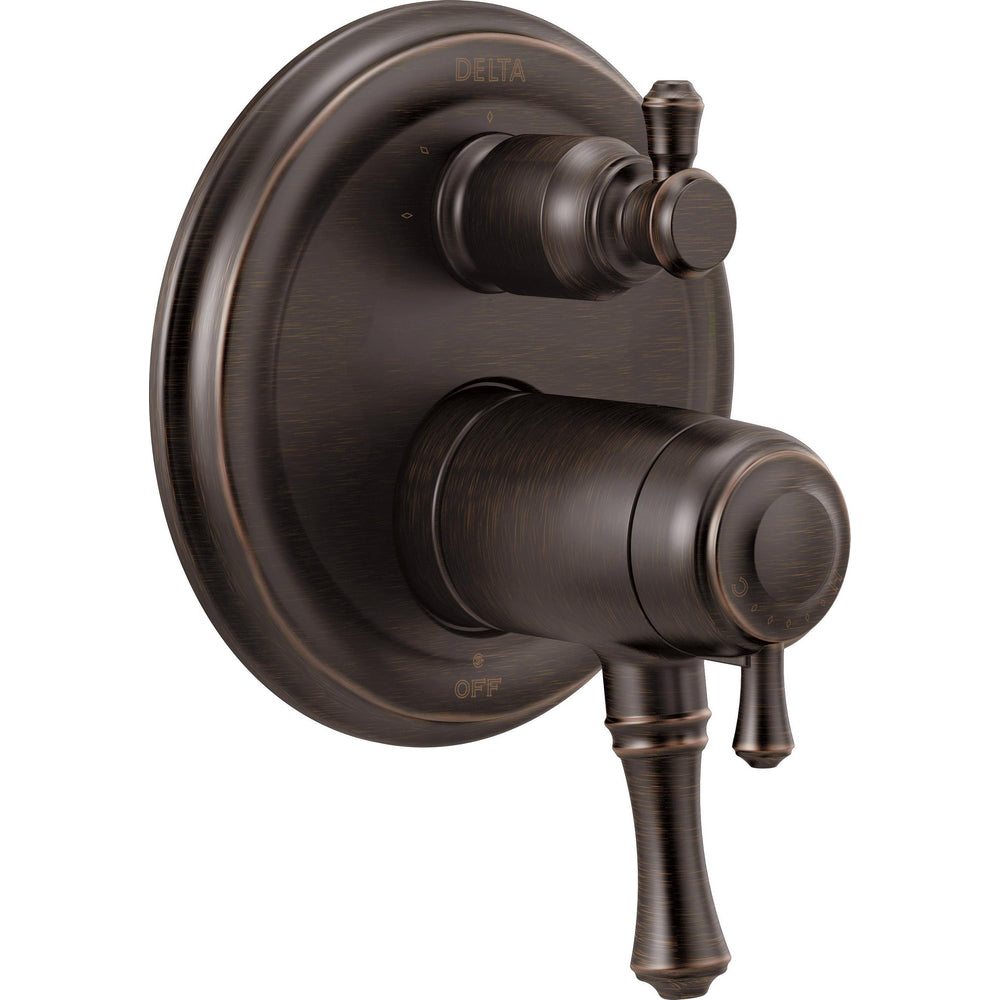

Delta T27T897 Cassidy Garniture de robinet avec inverseur intégré à 3 fonctions

SKU:T27T897

Delta Cassidy Traditional TempAssure 17T Series 3-Setting Integrated Diverter Trim - T27T897

The Delta Cassidy T27T897 combines traditional styling with TempAssure thermostatic temperature control and an integrated 3-setting diverter. Designed for use with the R22000 Series MultiChoice Universal integrated shower diverter rough, it provides independent control of water volume and temperature while supporting two individual shower functions and one shared setting.

Features

Part of the Delta Cassidy Collection
Traditional design with integrated shower diverter
TempAssure 17T ...Read more

Delta Cassidy Traditional TempAssure 17T Series 3-Setting Integrated Diverter Trim - T27T897

The Delta Cassidy T27T897 combines traditional styling with TempAssure thermostatic temperature control and an integrated 3-setting diverter. Designed for use with the R22000 Series MultiChoice Universal integrated shower diverter rough, it provides independent control of water volume and temperature while supporting two individual shower functions and one shared setting.

Features

Part of the Delta Cassidy Collection
Traditional design with integrated shower diverter
TempAssure 17T Series dual-function thermostatic cartridge
Maintains outlet temperature within ±3.6°F (±1.7°C)
3-setting diverter with 2 individual positions and 1 shared position
Top handle controls diverter functions
Separate bottom controls for on/off/volume and temperature
Independent volume and temperature adjustment
Field-adjustable hot water temperature limit
Maximum 90° bottom handle rotation
Red and blue temperature indicator markings
Maximum system flow rate of 7.2 GPM at 60 PSI with R22000
ADA-compliant lever handles
Cartridges included
R22000 Series rough-in required and sold separately
Optional configurations available for non-shared functions
Optional thick-wall installation kit available

Specifications

Room: Bathroom
Product Type: Integrated Diverter Trim
Collection: Cassidy
Style: Traditional
Valve Series: TempAssure 17T
Valve Type: Thermostatic
Diverter Settings: 3
Individual Positions: 2
Shared Positions: 1
Temperature Accuracy: ±3.6°F / ±1.7°C
Maximum System Flow Rate: 7.2 GPM @ 60 PSI with R22000
Rough-In Size: 1/2”
Standard Finished Wall Thickness: Up to 1-1/8”
Maximum Finished Wall Thickness with RP90544: Up to 2-1/8”
Cartridge Included: Yes
Rough-In Included: No
ADA Compliant: Yes
Model: T27T897

Required for Installation

R22000 Series – MultiChoice Universal Integrated Shower Diverter Rough (Sold Separately)

Configuration Options

Standard T27T897 configuration – 2 individual positions + 1 shared position
RP71717 – Optional diverter cartridge for 2 individual functions with no shared function
RP90544 – Optional thick-wall installation kit for finished walls up to 2-1/8”

Certifications & Warranty
