Delta T27T889 Tetra Garniture de robinet à inverseur intégré à 3 réglages

SKU:T27T889-BL

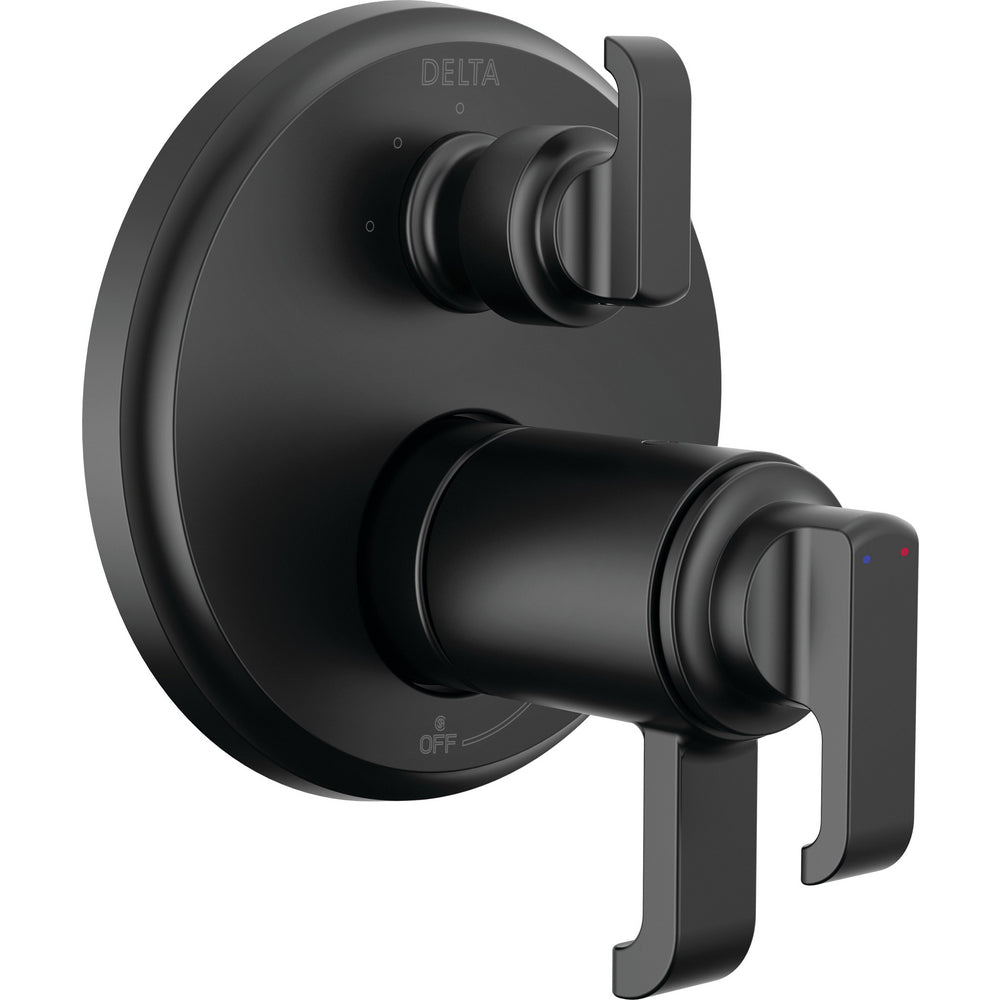

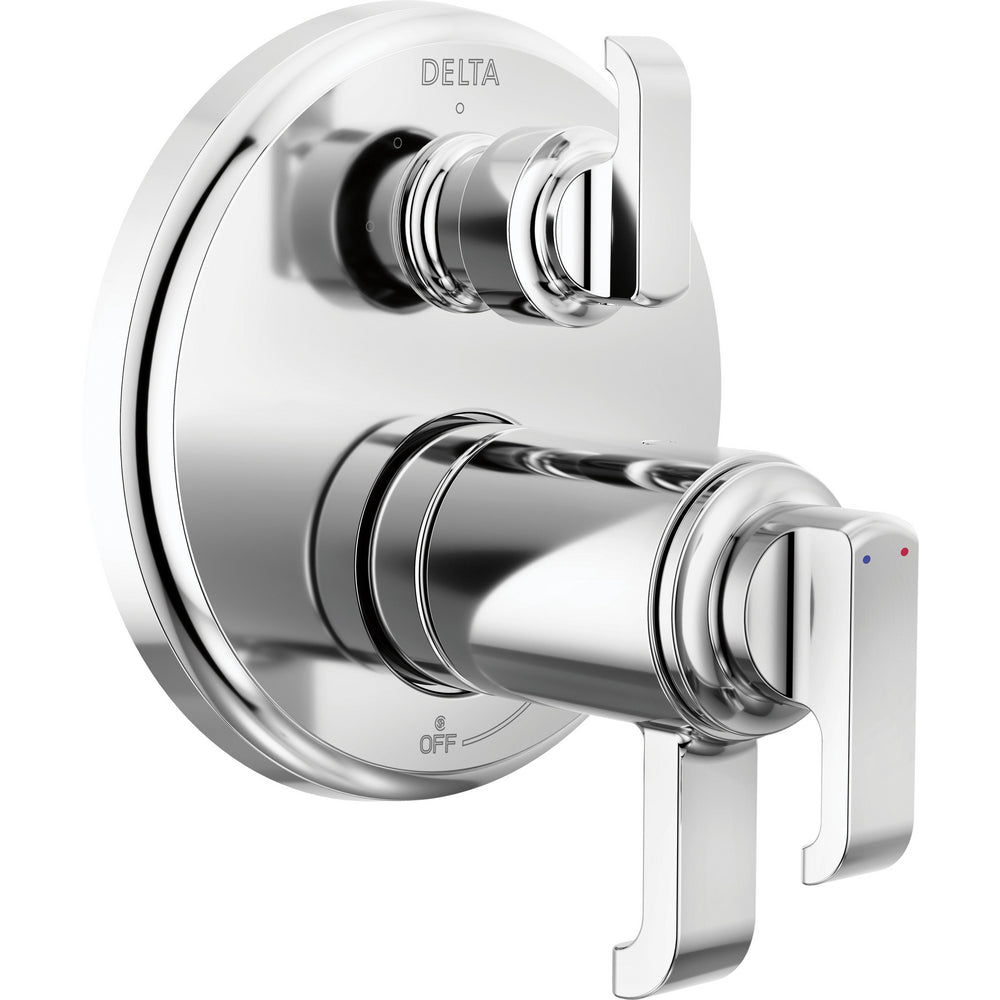

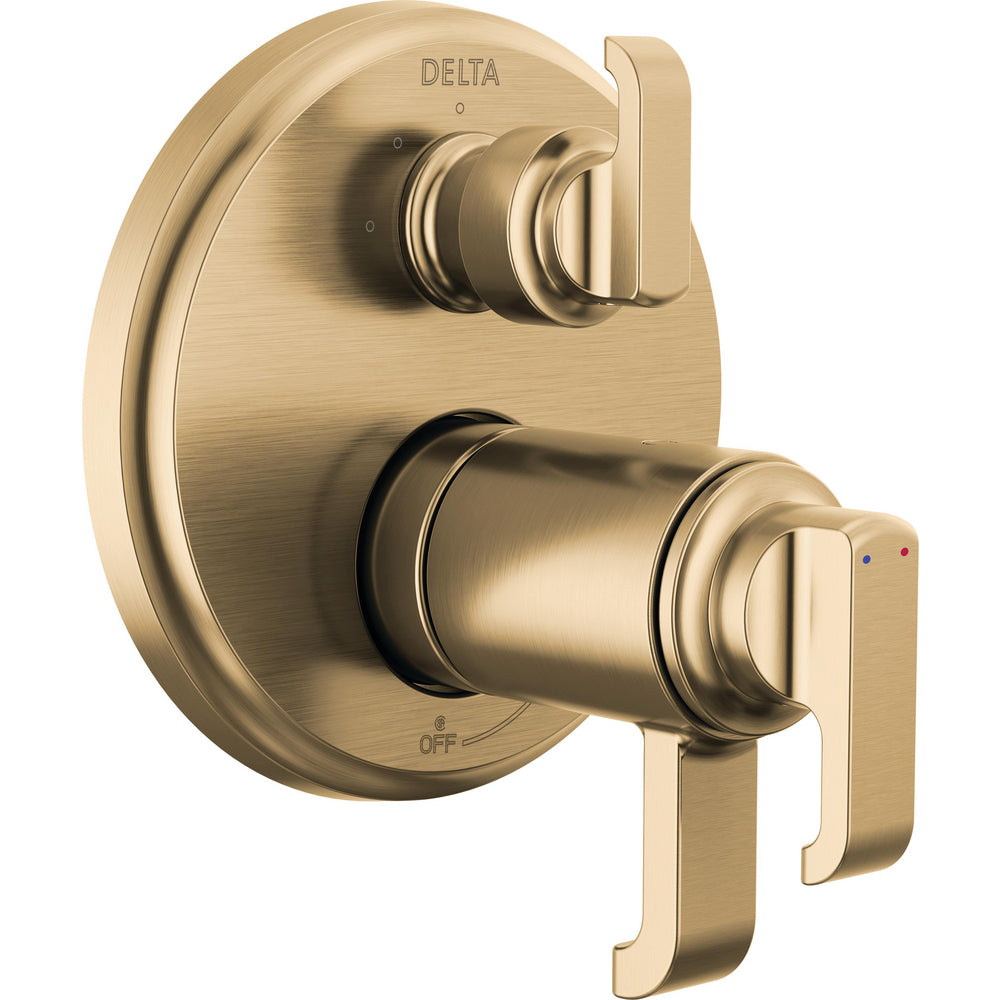

Delta Tetra TempAssure 17T Series 3-Setting Integrated Diverter Trim - T27T889

The Delta Tetra T27T889 combines the architectural styling of the Tetra Collection with TempAssure thermostatic temperature control and an integrated 3-setting diverter. Designed for use with the R22000 MultiChoice Universal integrated shower diverter rough, it provides independent control of water volume and temperature with two individual shower positions and one shared position.

Features

Part of the Delta Tetra Collection
TempAssure 17T thermostatic valve trim
Thermostatic ...Read more

Delta Tetra TempAssure 17T Series 3-Setting Integrated Diverter Trim - T27T889

The Delta Tetra T27T889 combines the architectural styling of the Tetra Collection with TempAssure thermostatic temperature control and an integrated 3-setting diverter. Designed for use with the R22000 MultiChoice Universal integrated shower diverter rough, it provides independent control of water volume and temperature with two individual shower positions and one shared position.

Features

Part of the Delta Tetra Collection
TempAssure 17T thermostatic valve trim
Thermostatic wax element maintains outlet temperature within ±3.6°F (±1.7°C)

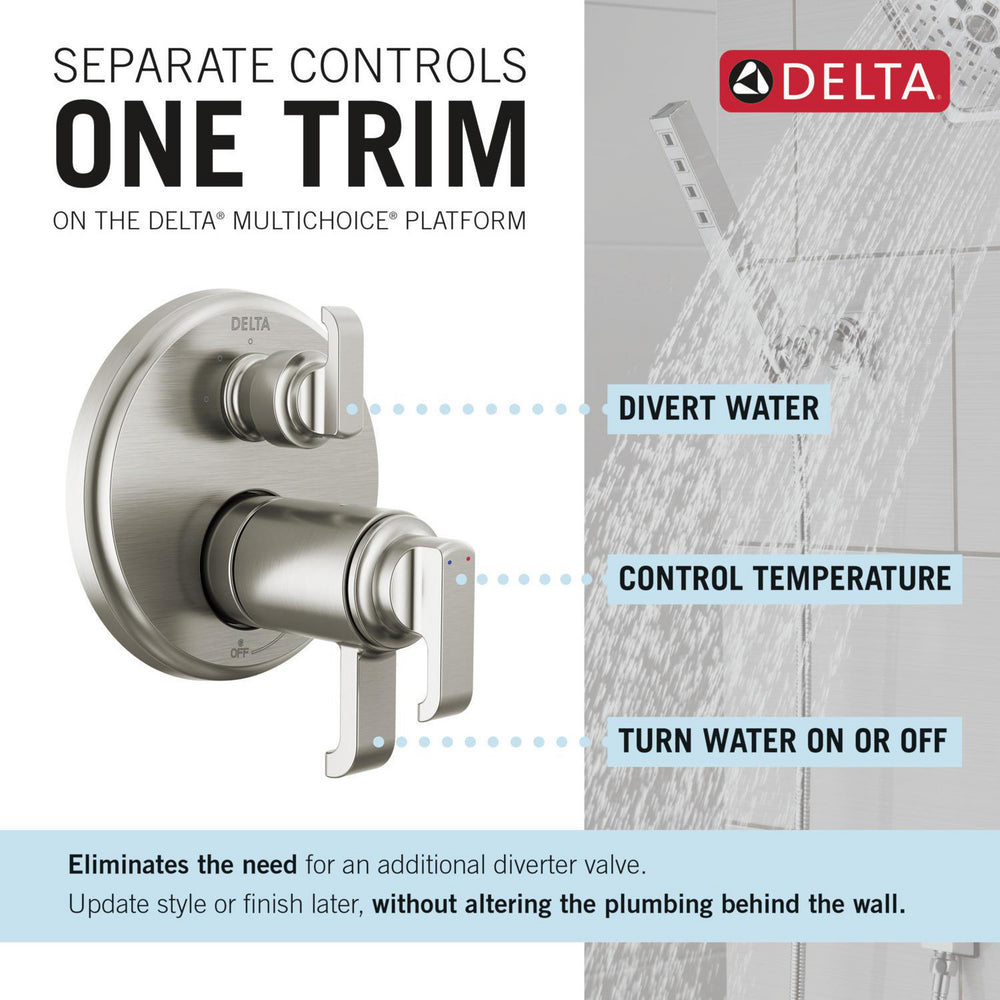

MultiChoice integrated shower diverter design
3-setting diverter with 2 individual positions and 1 shared position
Top handle controls diverter functions
Bottom handle controls on/off and water volume
Separate dial controls water temperature
Independent volume and temperature control
Field-adjustable hot water temperature limit
Maximum 90° bottom handle rotation
Red and blue temperature indicator markings
Maximum system flow rate of 7.2 GPM at 60 PSI with R22000
Cartridges included
ADA compliant
Lumicoat finishes on -PR models resist mineral buildup and hard water stains
R22000 rough-in required and sold separately

Specifications

Room: Bathroom
Product Type: Integrated Diverter Trim
Collection: Tetra
Style: Contemporary
Valve Series: TempAssure 17T
Valve Type: Thermostatic
Diverter Settings: 3
Individual Positions: 2
Shared Positions: 1
Temperature Accuracy: ±3.6°F / ±1.7°C
Maximum System Flow Rate: 7.2 GPM @ 60 PSI with R22000
Rough-In Size: 1/2”
Standard Finished Wall Thickness: Up to 1-1/8”
Maximum Finished Wall Thickness with RP90544: Up to 2-1/8”
Cartridge Included: Yes
Rough-In Included: No
ADA Compliant: Yes
Model: T27T889

Required for Installation

R22000 – MultiChoice Universal Integrated Shower Diverter Rough (Sold Separately)

Configuration Options

Standard T27T889 – 2 individual positions + 1 shared position
RP71717 – Optional diverter cartridge for 2 individual functions with no shared function
RP90544 – Optional thick-wall installation kit for finished walls up to 2-1/8”

Certifications & Warranty
