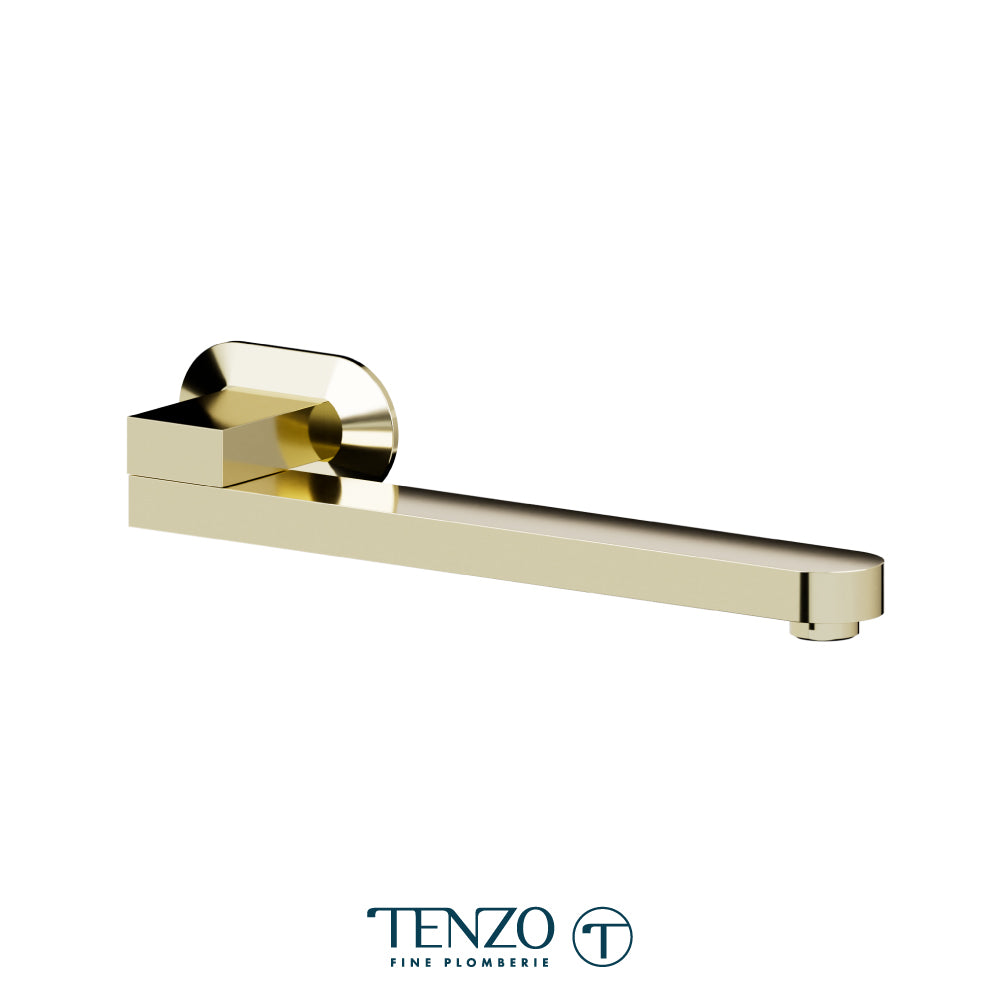

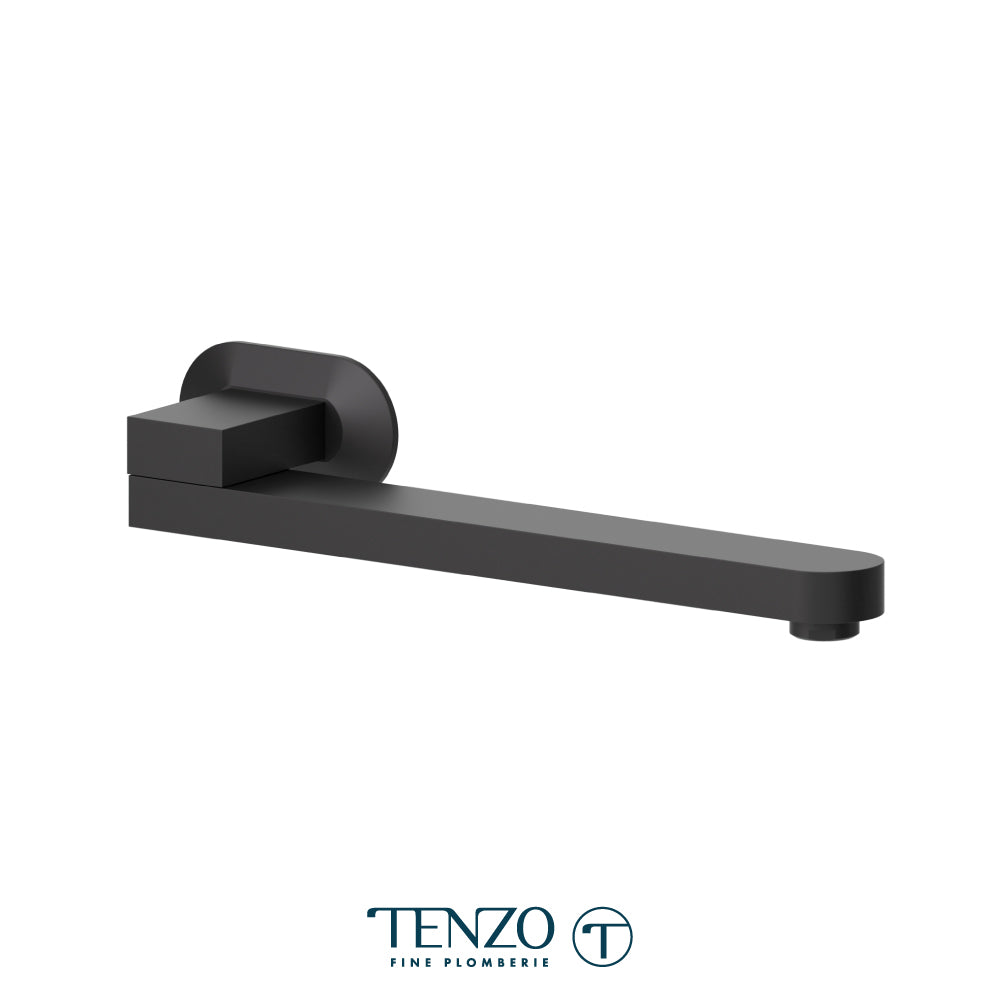

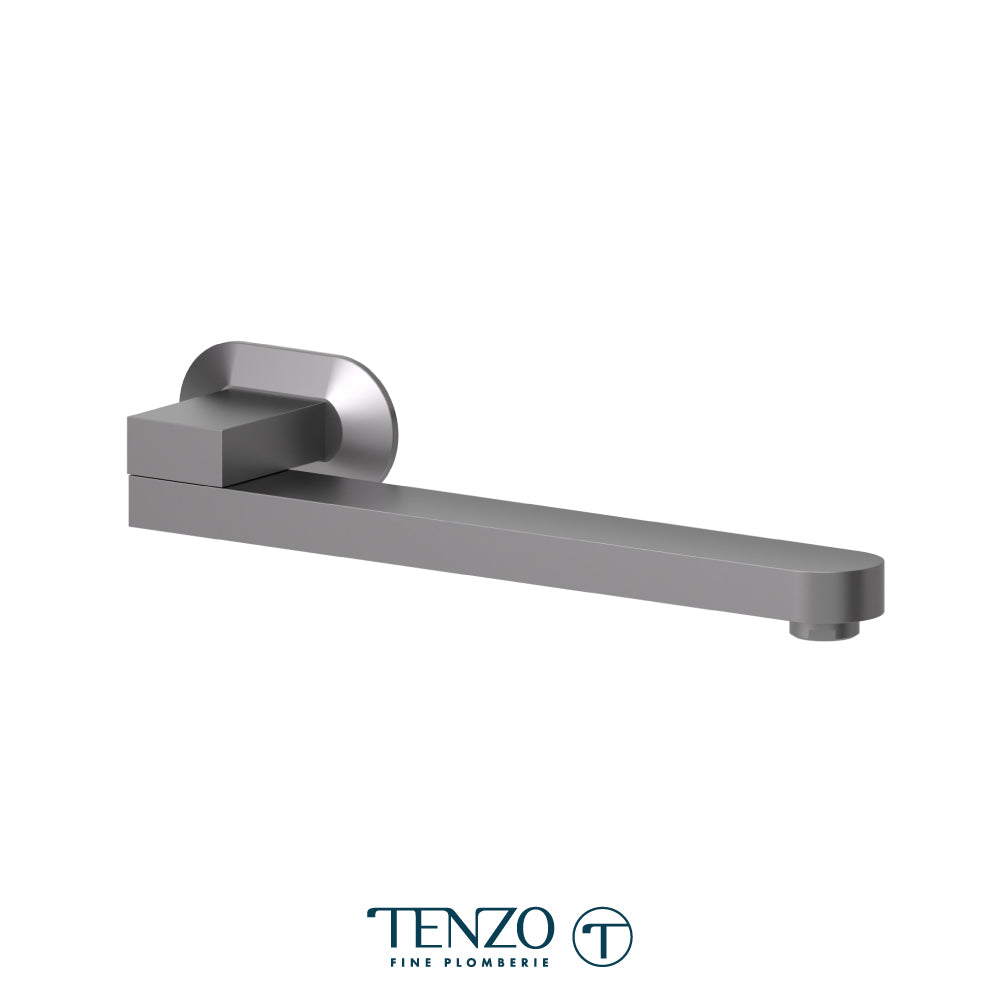

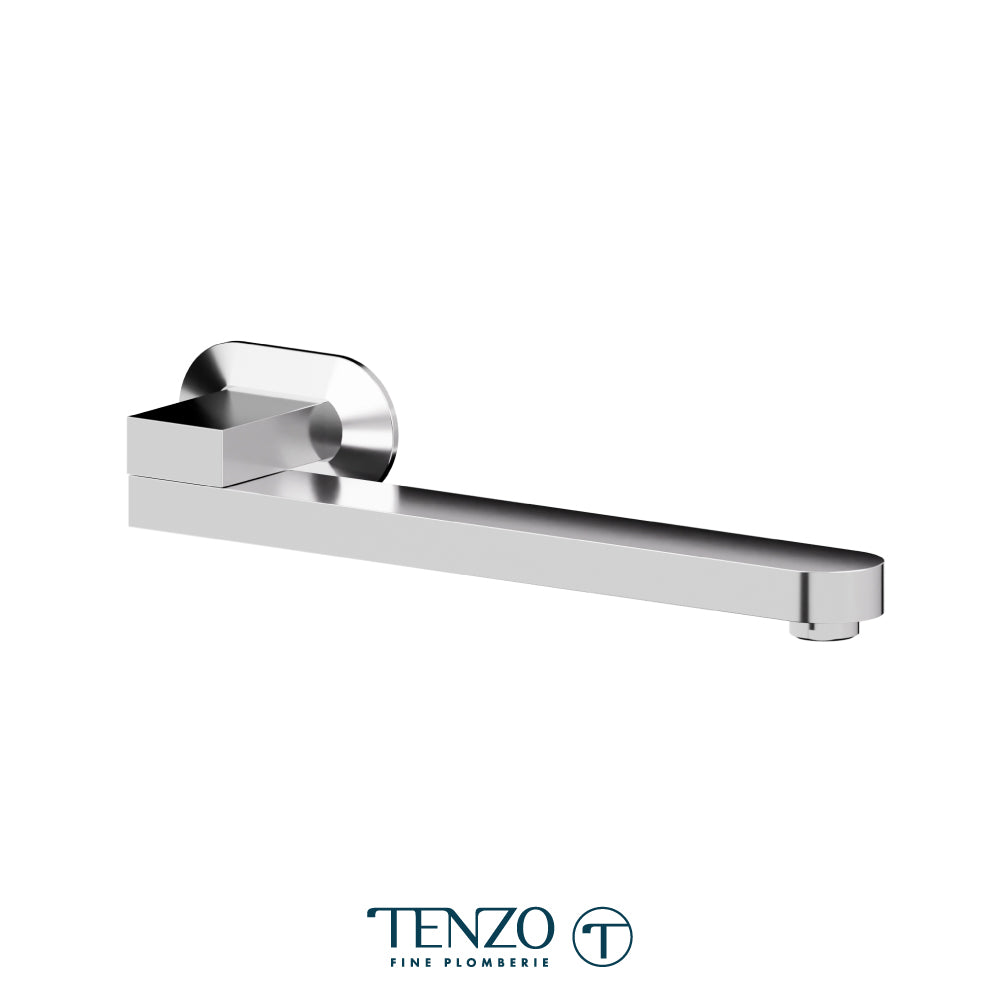

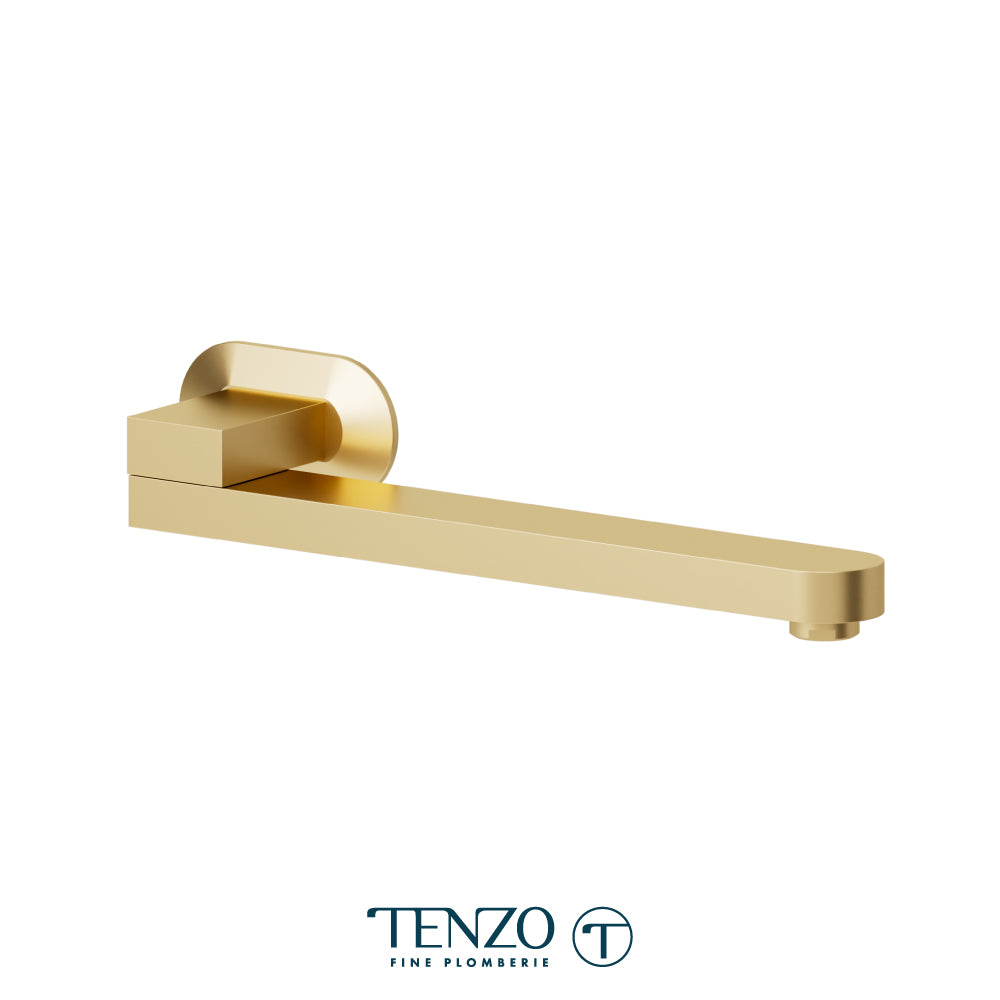

Tenzo Wall Mount Swivel Tub Spout, Flat With Squared Joint, 30 cm [12”] - BSS-314

Tenzo Wall Mount Swivel Tub Spout, Flat With Squared Joint, 30 cm [12”] - BSS-314

A 180° swivel wall-mount tub spout in solid brass, 30 cm [12”] from the wall, swinging clear of the bath.

Features

• A flat rectangular arm on a squared wall block.
• Swings through 180°, so the arm can be turned out of the way for filling or cleaning.
• Slip-fit installation — a connector screws into the drop-ear elbow, the spout slides over it on three O-rings and locks with set screws, so no fixing shows.
• Solid brass body.

Specifications

• Room: Bathroom
• Product Type: Wall Mount Tub Spout
• Projection: 30 cm [12”]
• Dimensions: 306 mm [12.05”] arm, 326 mm [12.83”] overall, 90 mm [3.54”] wall projection at the joint
• Swivel: 180°
• Inlet: 1/2” NPT male
• Installation: Slip-fit
• Material: Solid brass

Good to know

• Slip-fit spouts are not interchangeable by projection alone — check the inlet before substituting one for another.
• BSS-305 is the same arm on a round wall flange.
• Tenzo does not publish a flow rate for this model; the rest of the range is rated 25 L/min [6.6 gpm] @ 60 psi.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
