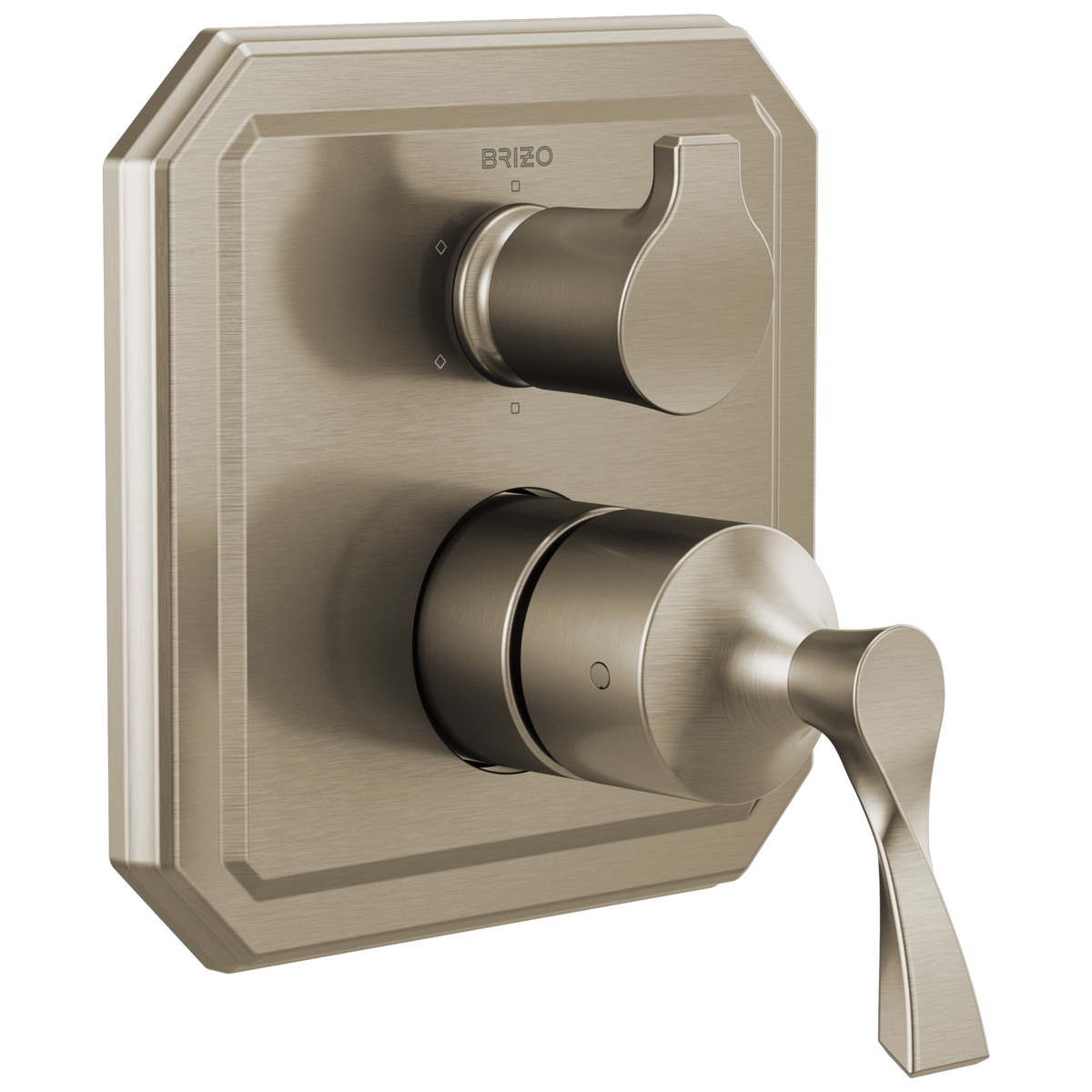

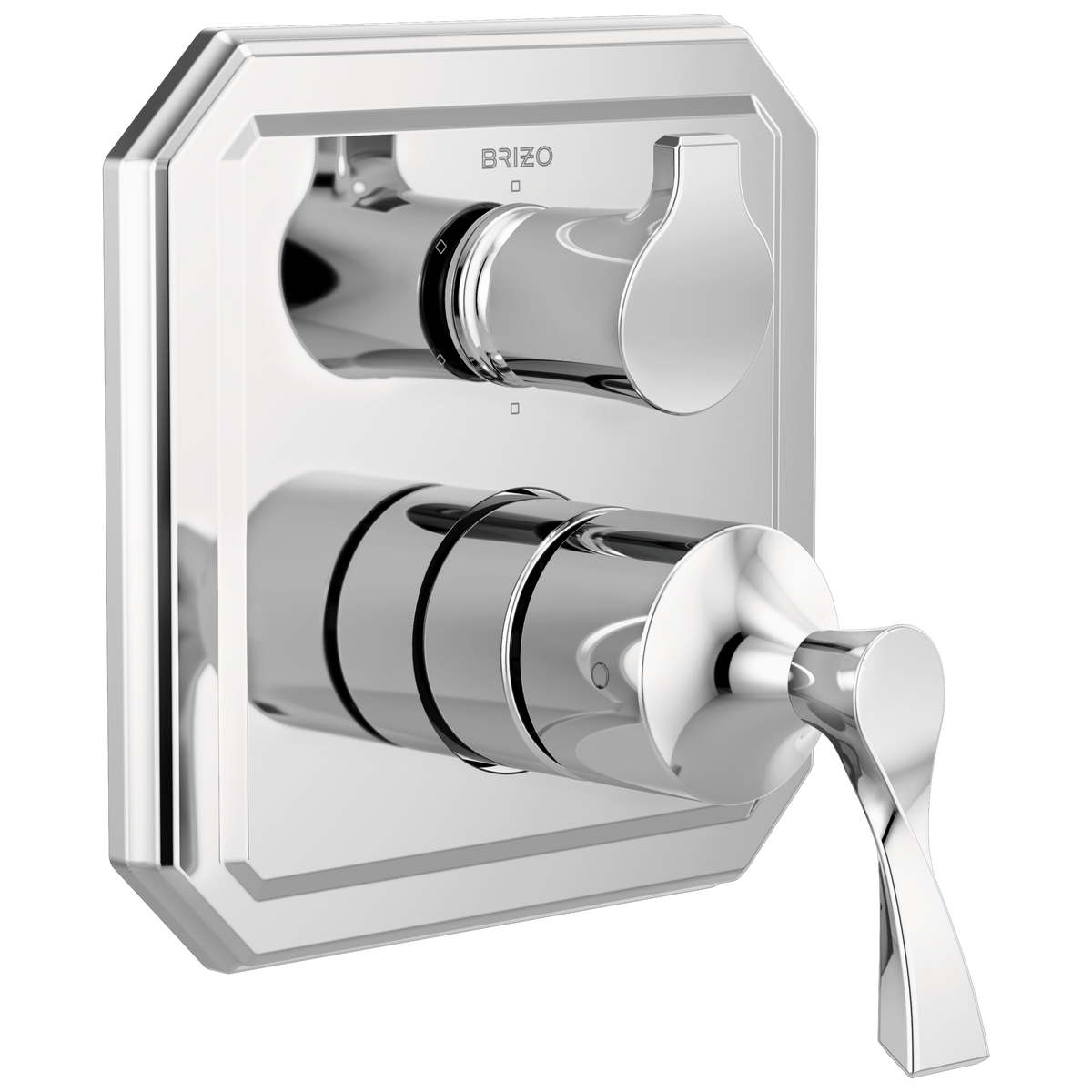

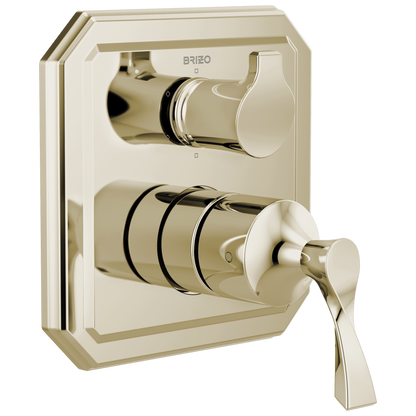

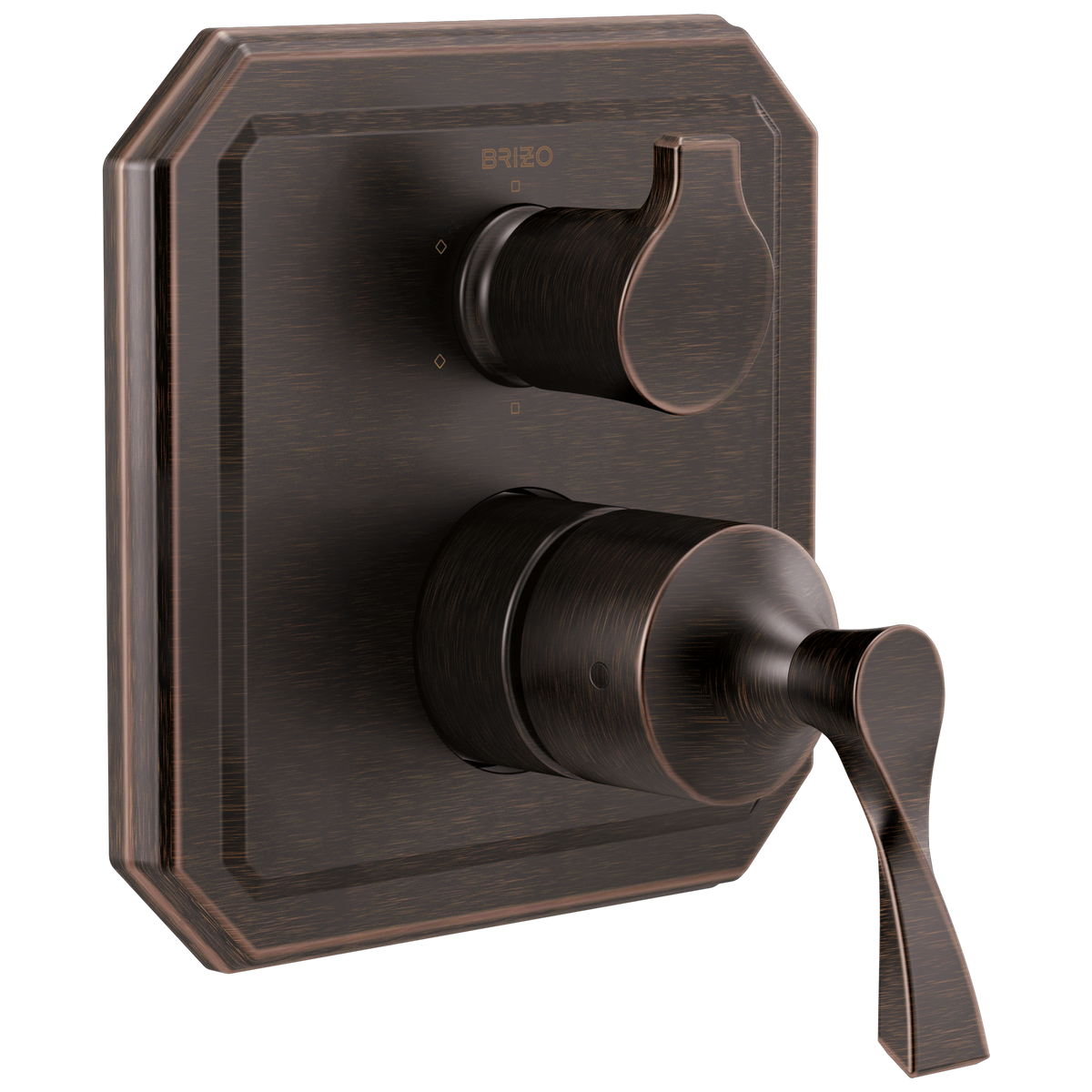

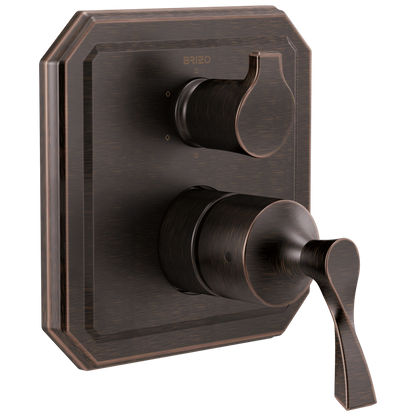

Brizo Virage Pressure Balance Valve with Integrated 6-Function Diverter Trim - T75P630

Brizo Virage Pressure Balance Valve with Integrated 6-Function Diverter Trim - T75P630

The Brizo Virage T75P630 combines pressure-balanced temperature control with a six-function diverter in one wall-mounted trim. It directs water to three shower outlets using three individual and three shared positions. The rough-in is sold separately.

Features

• Single-function pressure-balance cartridge helps maintain balanced hot and cold water pressure.
• Upper control selects diverter functions; lower control operates on/off and temperature.
• Three individual and three shared diverter positions serve three shower outlets.
• Field-adjustable rotational limit stop restricts travel into the hot-water range.
• Back-to-back installation capability.
• Compatible with the MultiChoice Universal Integrated Shower Diverter Rough, R75000 Series.

Specifications

• Room: Bathroom
• Product Type: Pressure Balance Valve Trim with Integrated Diverter
• Collection: Virage
• Installation: Wall Mount
• Diverter: 6 functions / 3 outlets
• Maximum System Flow Rate: 7.2 gpm at 60 psi with R75000; this is valve-system capacity, not a shower-head flow rating.
• Rough-In Connection: 1/2"
• Model: T75P630

Included Components

• Pressure-balance and diverter cartridges.
• Valve and diverter handles.

Required for Installation

• Choose ONE compatible R75000 Series rough-in, sold separately: R75000 (universal connections), R75000-WS (universal connections with stops), R75000-PX (PEX connections) or R75000-PXWS (PEX connections with stops).

Optional Accessories

• RP72124 diverter cartridge provides three individual positions with no shared positions, sold separately.
• RP100160 thick-wall extension kit, sold separately. Order the appropriate finish where applicable.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1; ASSE 1016 / ASME A112.1016 / CSA B125.16; ICC/ANSI A117.1
• Brizo limited warranty applies; coverage and exclusions depend on the purchaser and installation.
