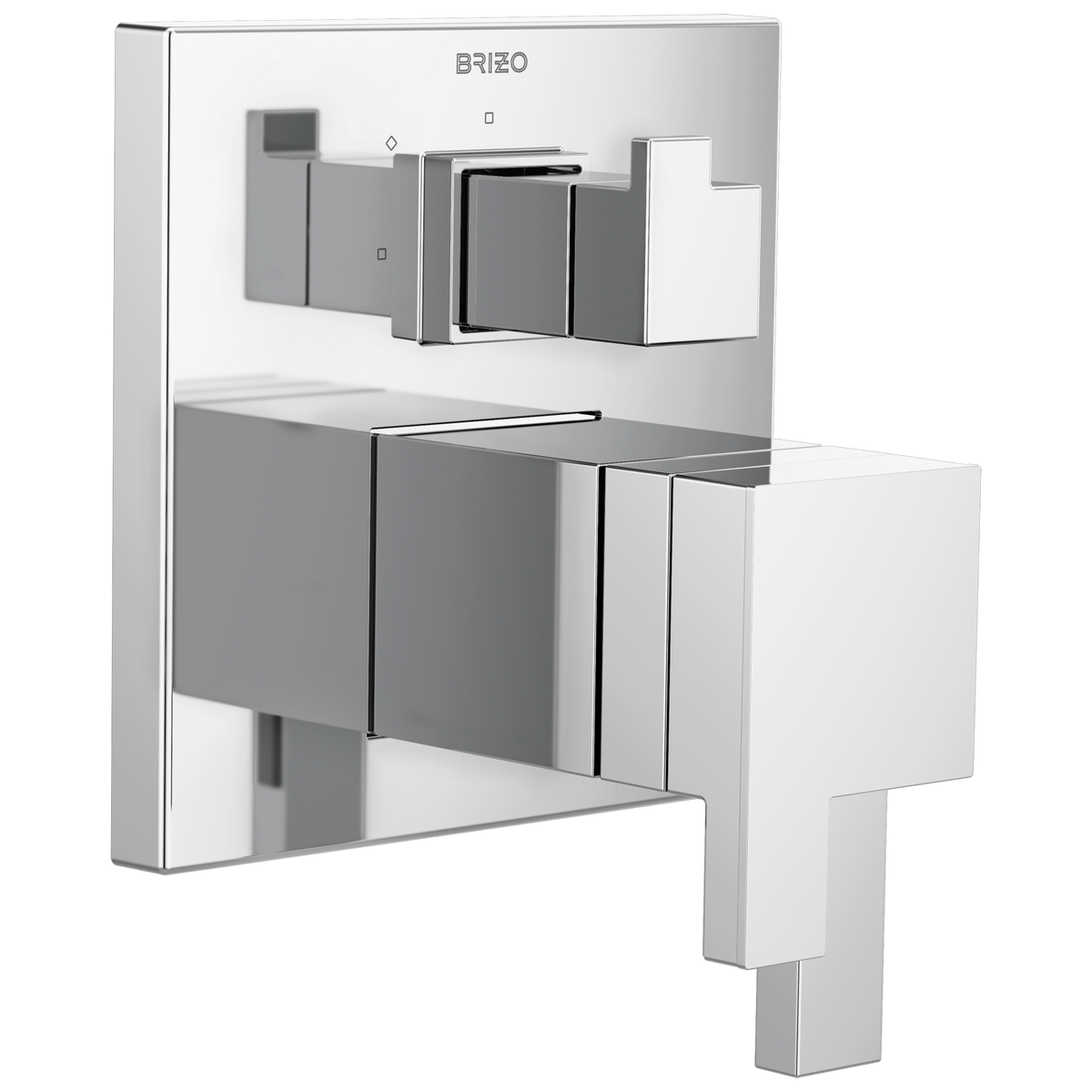

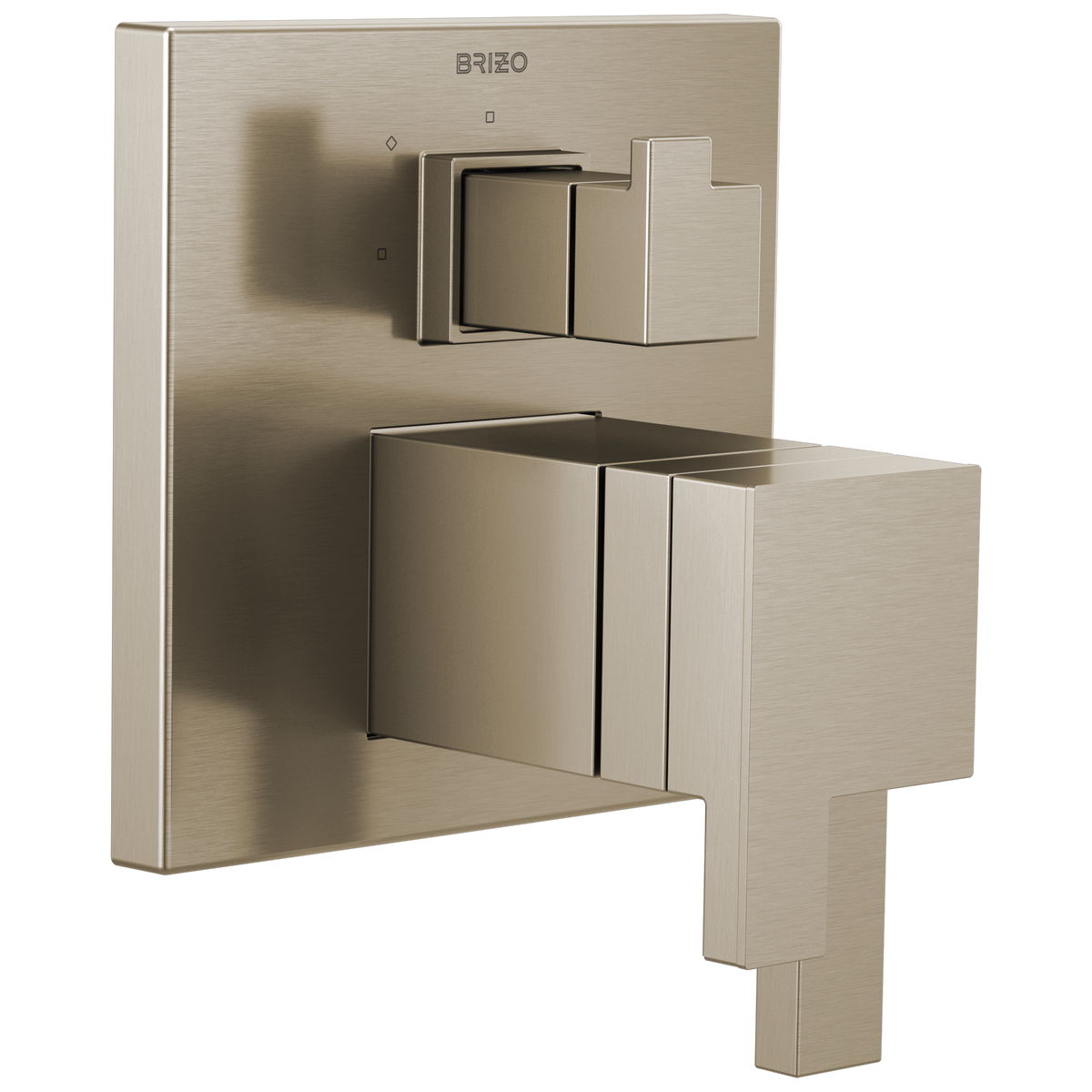

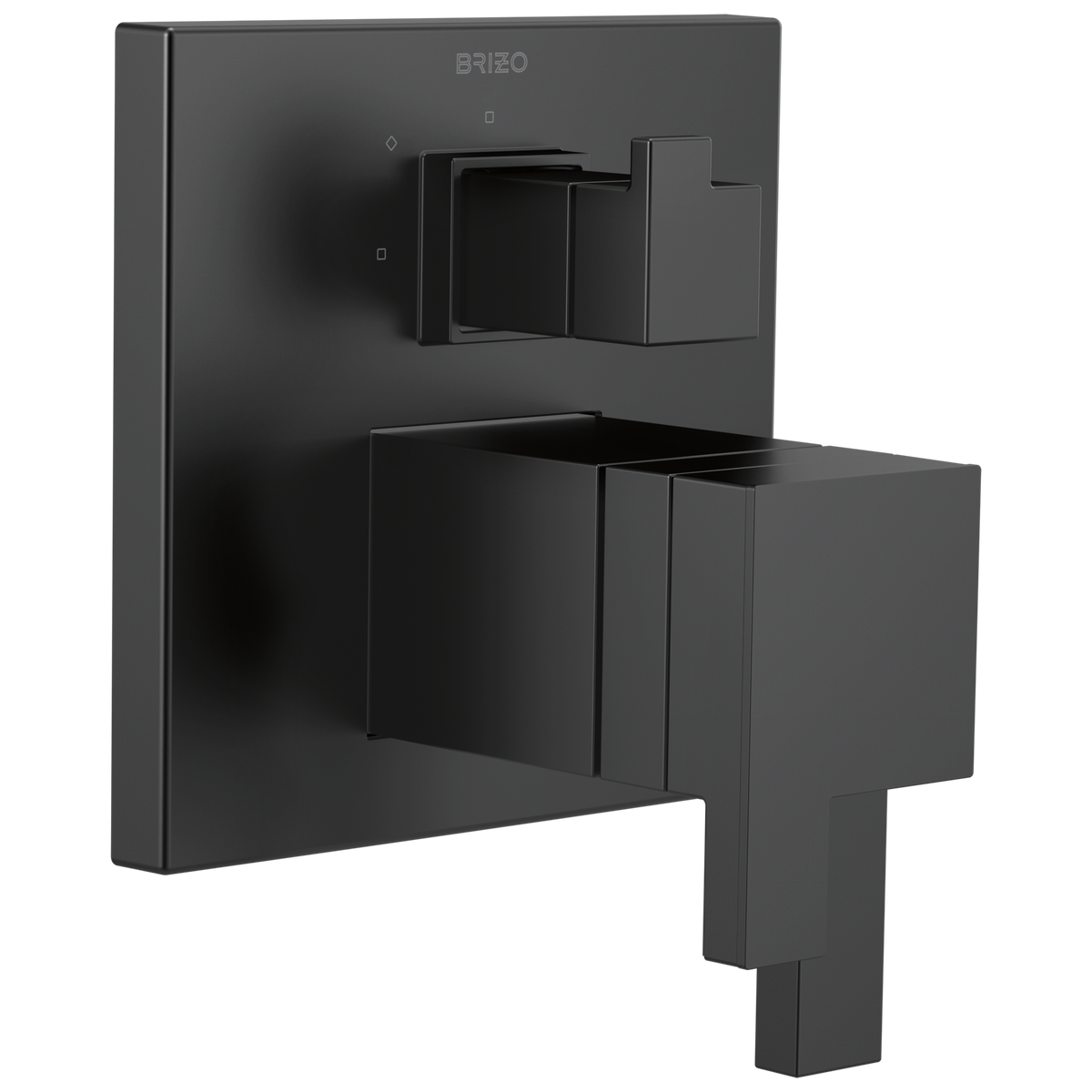

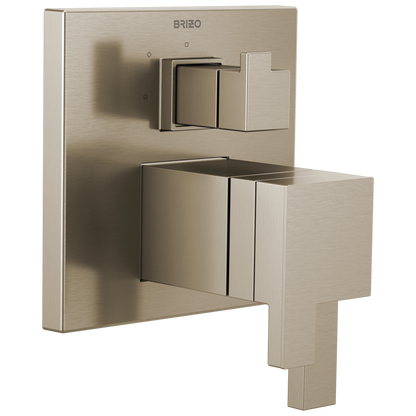

Brizo Siderna TempAssure Thermostatic Valve with Integrated 3-Function Diverter Trim - T75580

Brizo Siderna TempAssure Thermostatic Valve with Integrated 3-Function Diverter Trim - T75580

The Brizo Siderna T75580 brings independent temperature, volume and outlet selection to a wall-mounted shower control. Its three-function diverter serves two outlets, separately or together. The rough-in is sold separately.

Features

• TempAssure thermostatic cartridge uses a wax element to help hold the selected outlet temperature within ±3.6°F.
• Upper handle selects the outlet combination; separate lower controls adjust water volume and temperature.
• Two individual and one shared diverter settings.
• Adjustable temperature limit stop and hot/cold markings.
• Volume handle turns up to 90°.
• Supports back-to-back installations.

Specifications

• Room: Bathroom
• Product Type: Thermostatic Trim
• Collection: Siderna
• Installation: Wall Mount
• Diverter: 3 functions / 2 outlets
• Maximum System Flow Rate: 7.2 gpm at 60 psi with R75000; valve-system capacity, not a shower-head flow rating.
• Rough-In Connection: 1/2"
• Model: T75580

Included Components

• Thermostatic and diverter cartridges.
• Trim and control handles.

Required for Installation

• Choose ONE compatible R75000 Series rough-in, sold separately: R75000 (universal connections), R75000-WS (universal connections with stops), R75000-PX (PEX connections) or R75000-PXWS (PEX connections with stops).

Optional Accessories

• RP72123 cartridge replaces the shared setting with two individual outlet positions, sold separately.
• RP100669 thick-wall extension kit, sold separately; choose the matching finish.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1; ASSE 1016 / ASME A112.1016 / CSA B125.16; ICC/ANSI A117.1.
• Brizo limited warranty applies; terms depend on purchaser and installation.
