Brizo Kintsu / Allaria TempAssure Thermostatic Valve with Integrated 6-Function Diverter Trim (Less Handles) - T75606

Brizo Kintsu / Allaria TempAssure Thermostatic Valve with Integrated 6-Function Diverter Trim (Less Handles) - T75606

The Brizo Kintsu / Allaria T75606 brings independent temperature, volume and outlet selection to a wall-mounted shower control. Its six-function diverter serves three outlets, individually or in pairs. The rough-in and handle kit are sold separately.

Features

• TempAssure thermostatic cartridge uses a wax element to help hold the selected outlet temperature within ±3.6°F.
• Upper handle selects the outlet combination; separate lower controls adjust water volume and temperature.
• Three individual and three shared diverter settings.
• Adjustable temperature limit stop and hot/cold markings.
• Volume handle turns up to 90°.
• Supports back-to-back installations.

Specifications

• Room: Bathroom
• Product Type: Thermostatic Trim
• Collection: Kintsu / Allaria
• Installation: Wall Mount
• Diverter: 6 functions / 3 outlets
• Maximum System Flow Rate: 7.2 gpm at 60 psi with R75000; valve-system capacity, not a shower-head flow rating.
• Rough-In Connection: 1/2"
• Model: T75606

Included Components

• Thermostatic and diverter cartridges.

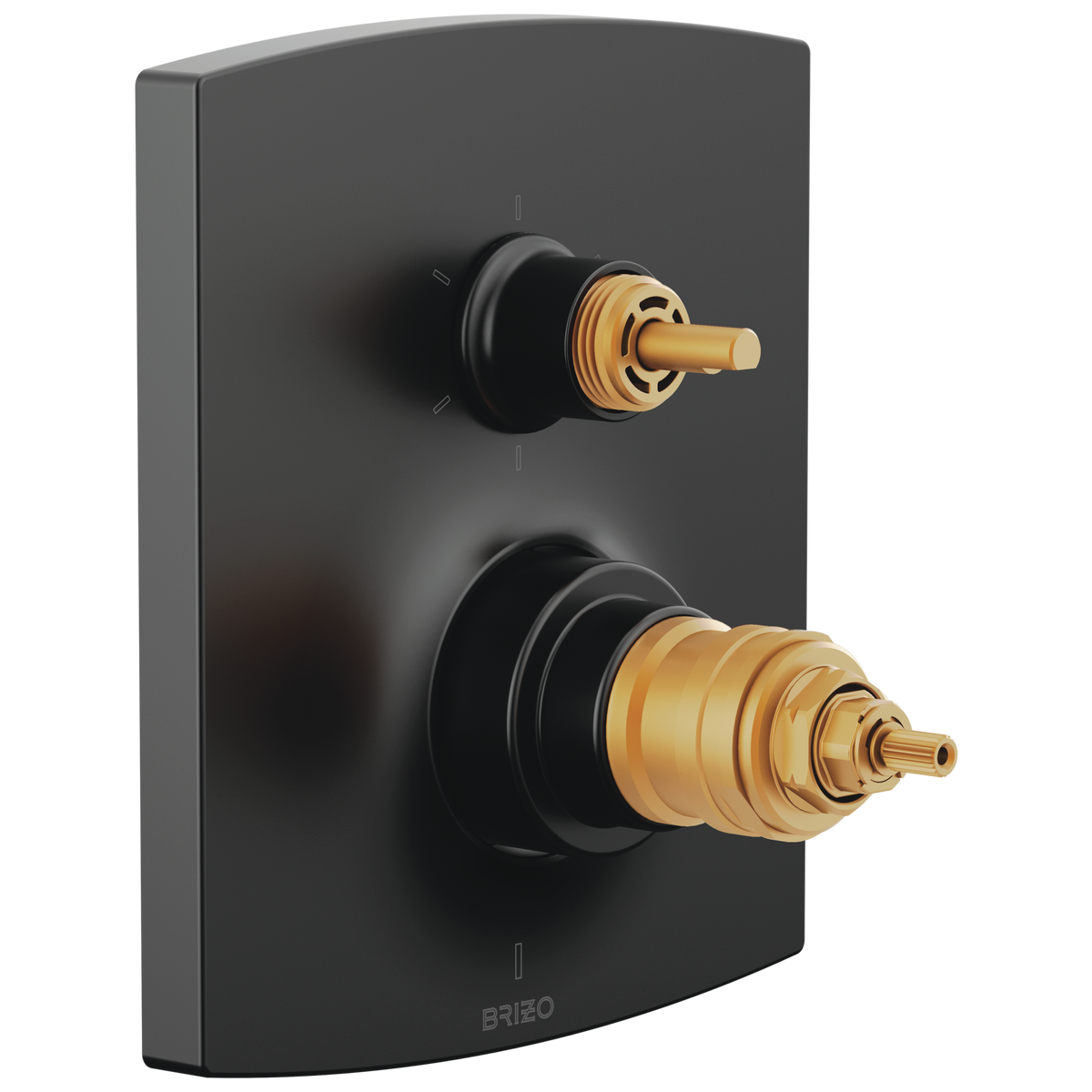

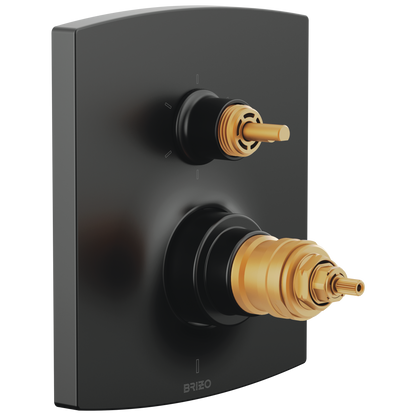

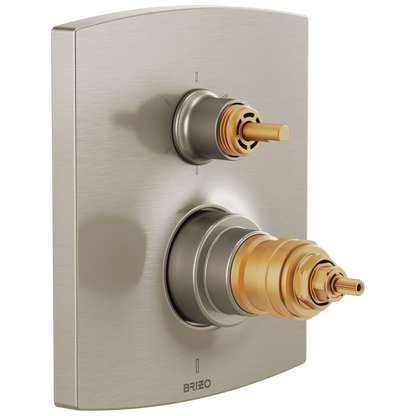

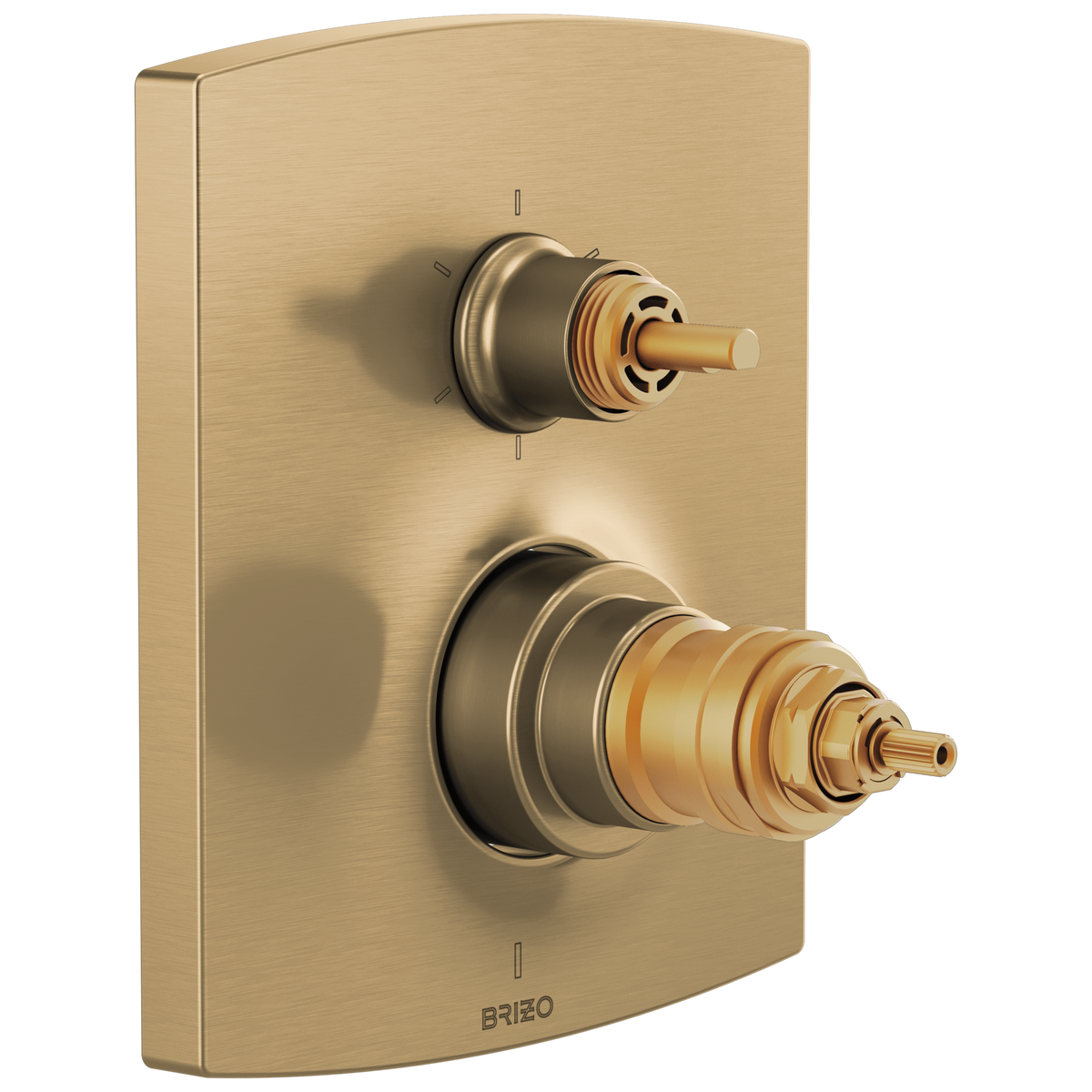

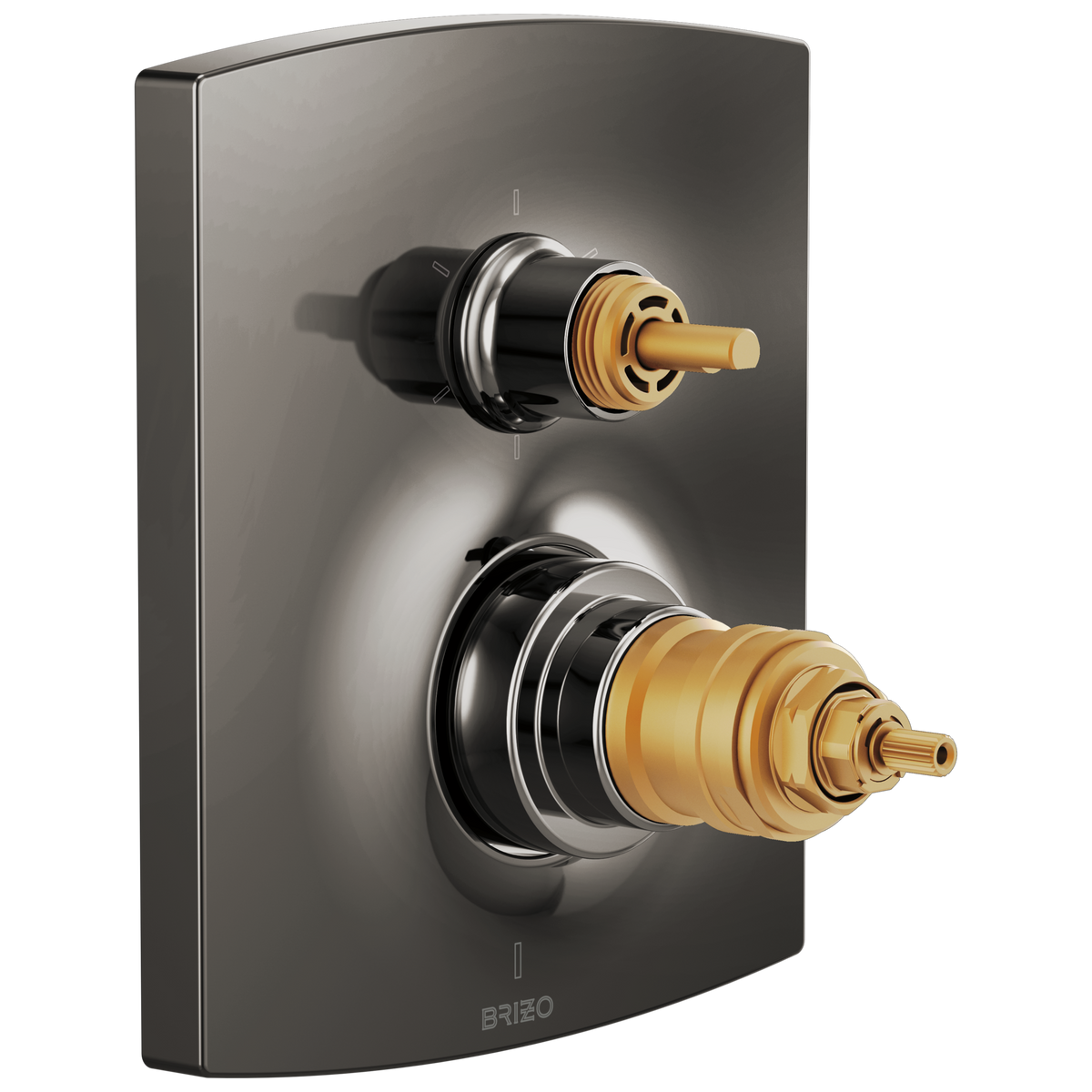

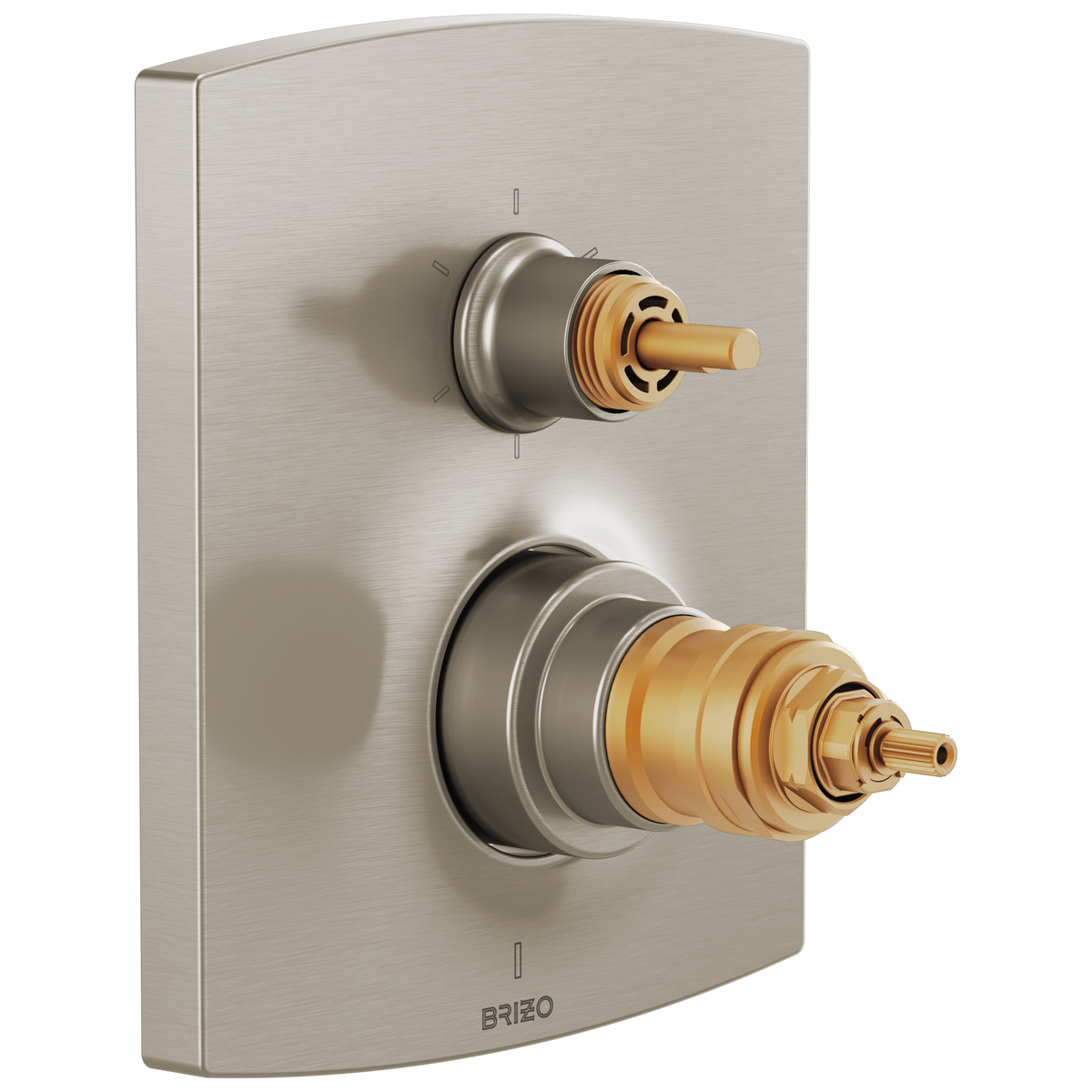

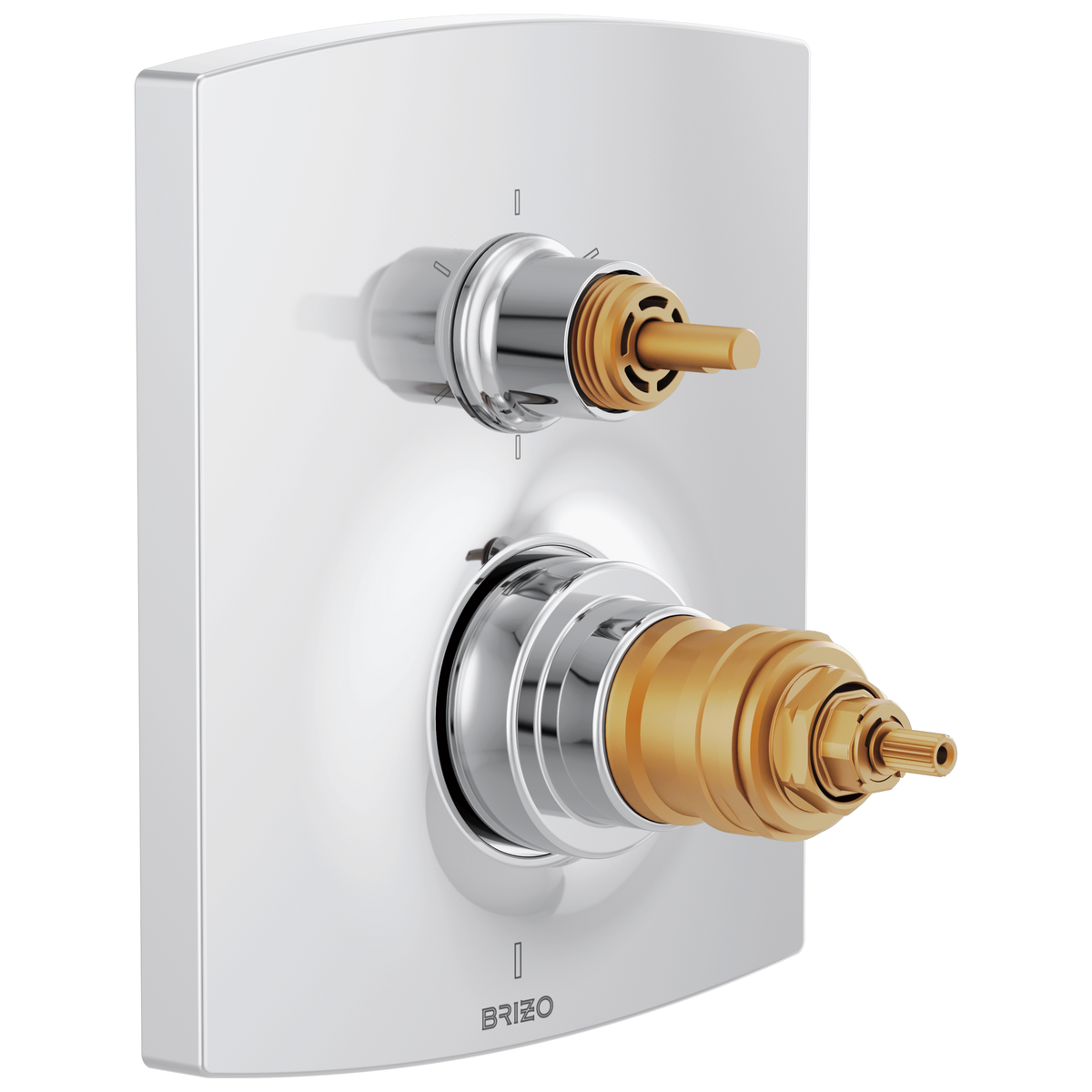

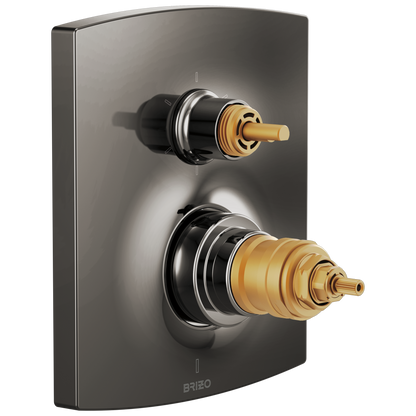

• Trim plate and fittings; handles sold separately.

Required for Installation

• Choose ONE compatible R75000 Series rough-in, sold separately: R75000 (universal connections), R75000-WS (universal connections with stops), R75000-PX (PEX connections) or R75000-PXWS (PEX connections with stops).

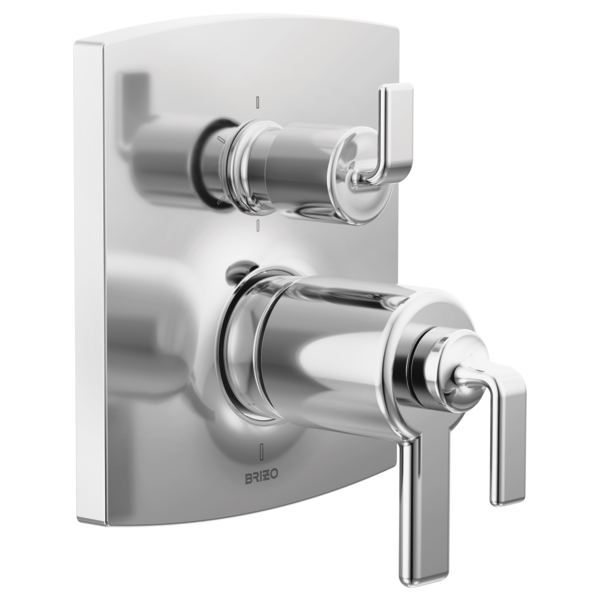

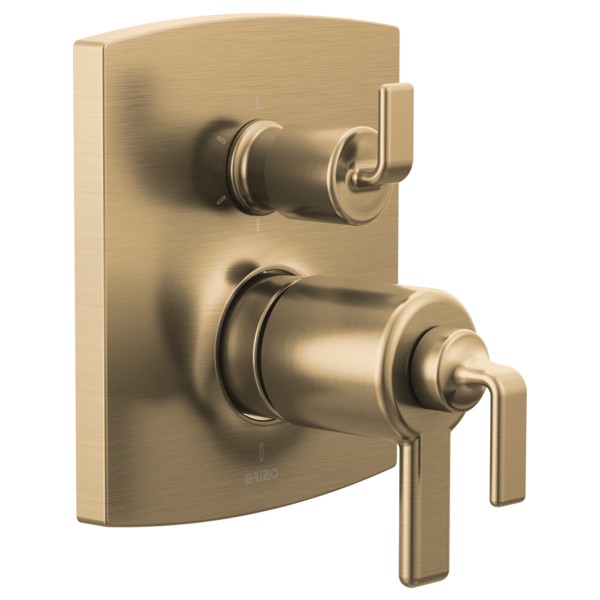

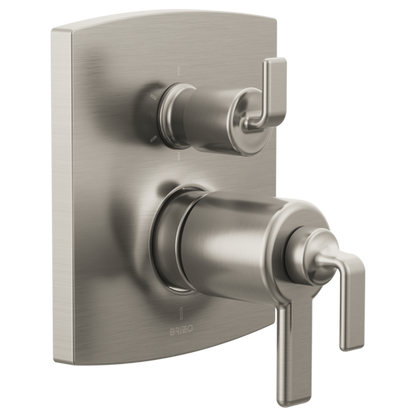

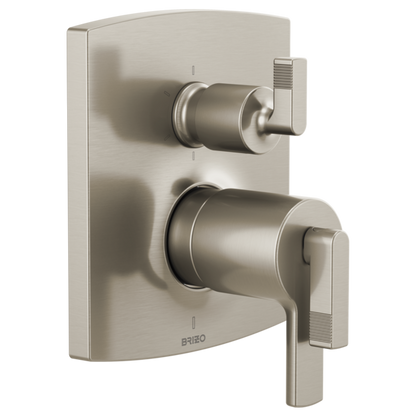

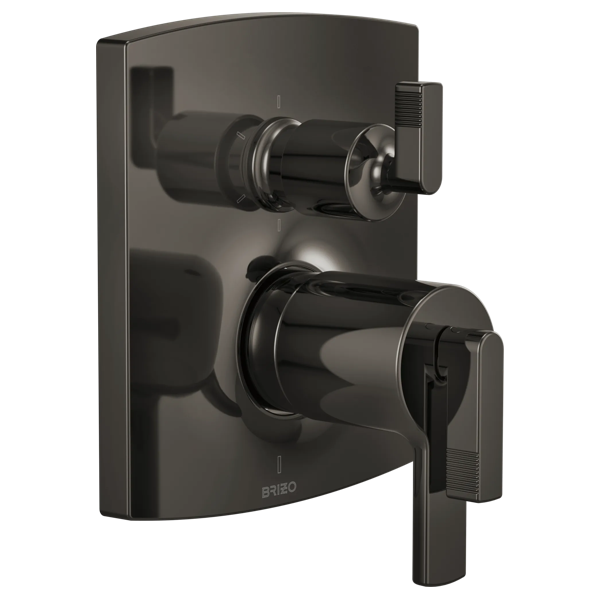

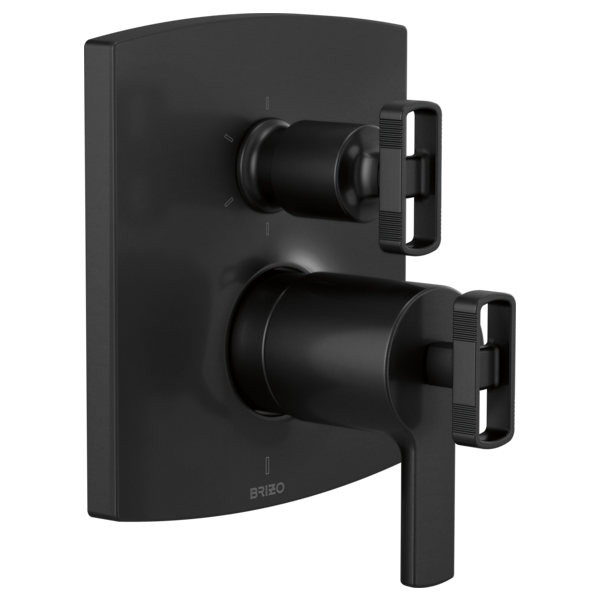

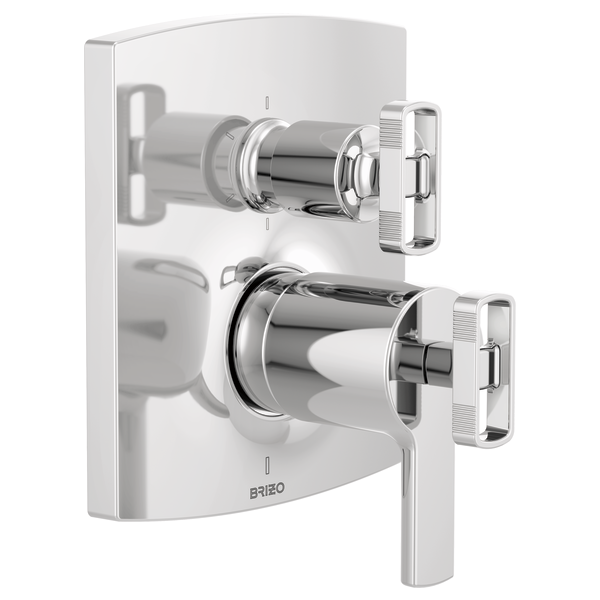

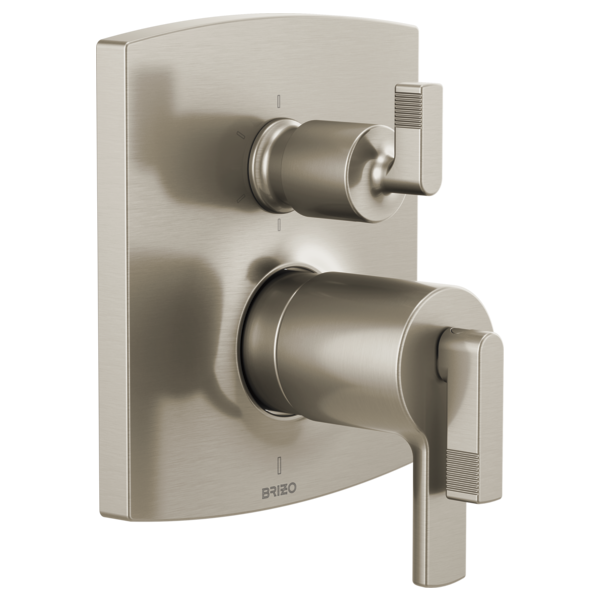

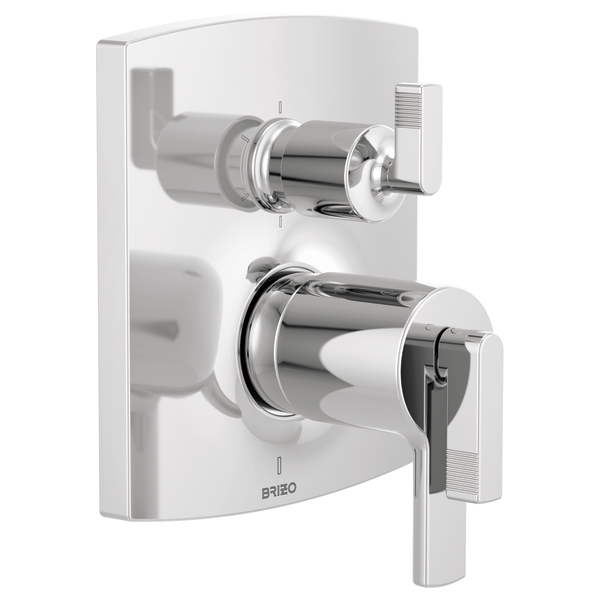

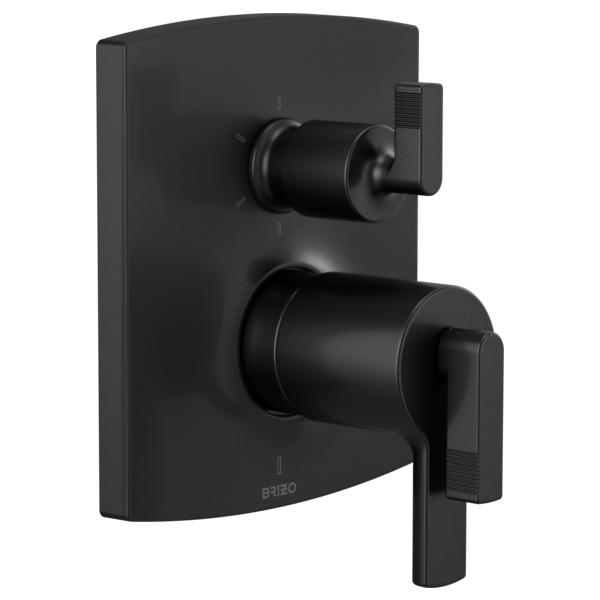

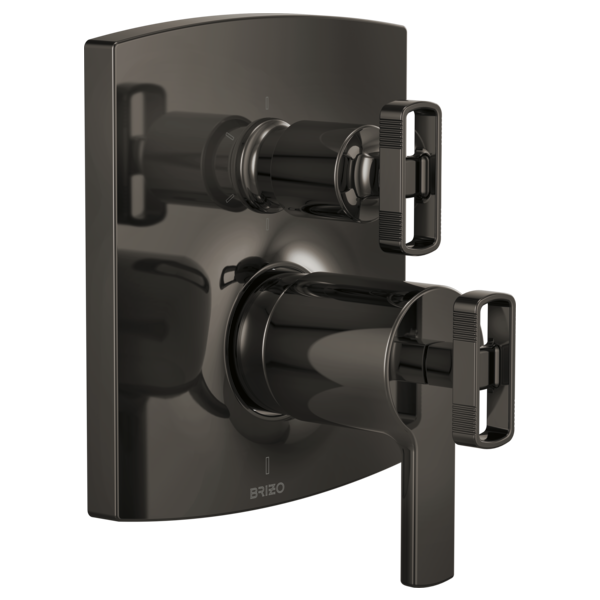

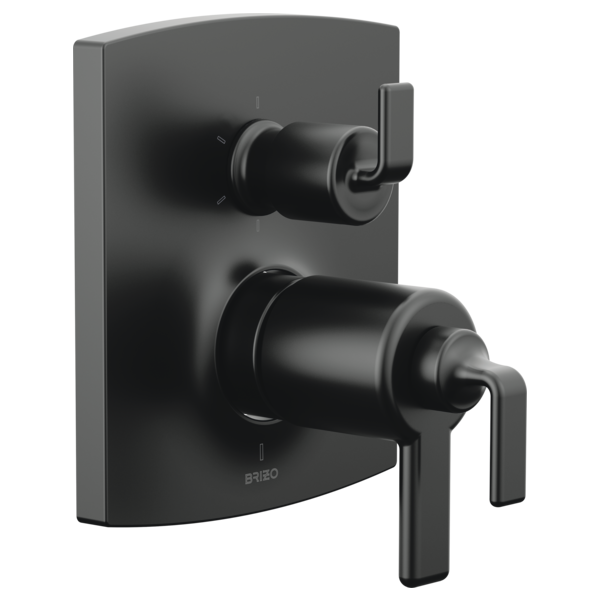

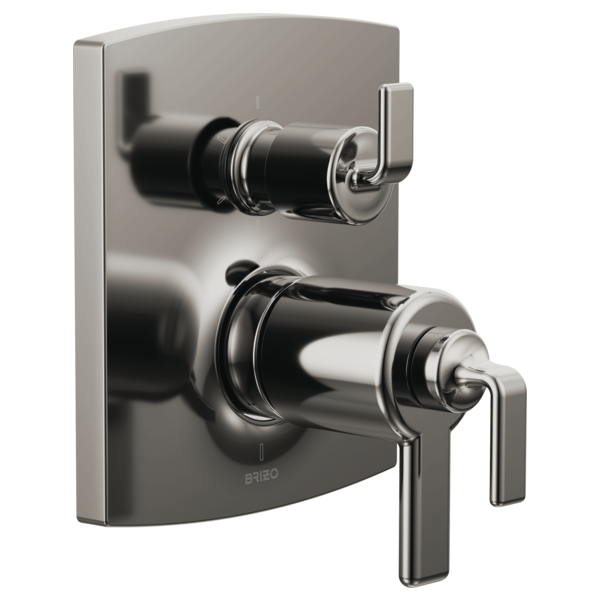

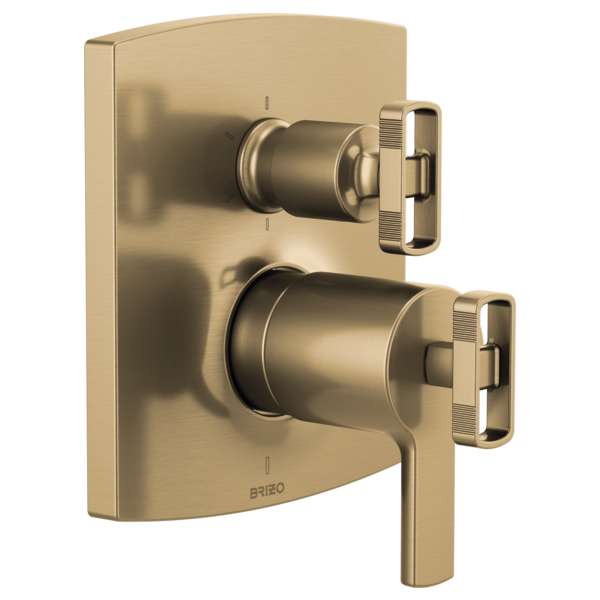

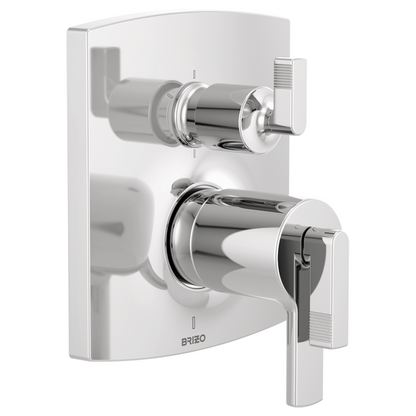

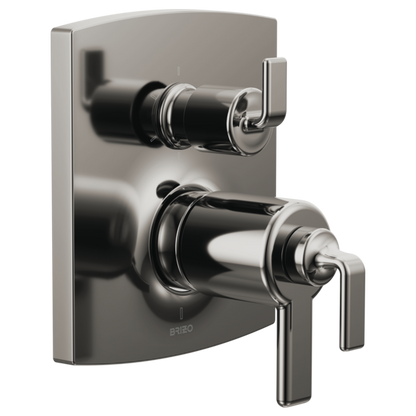

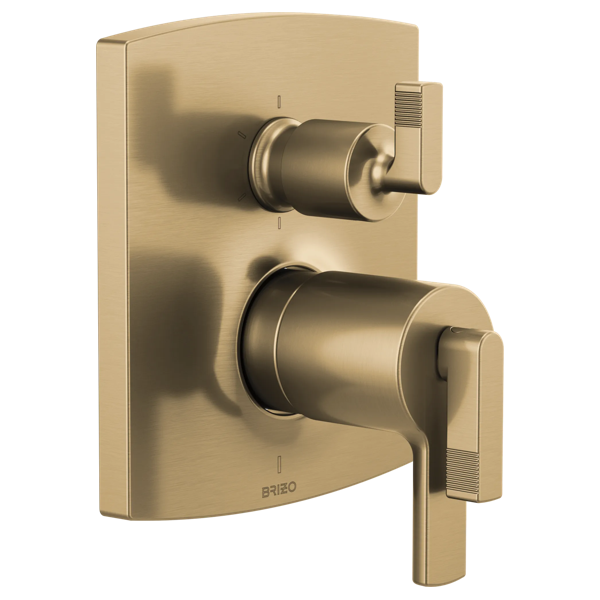

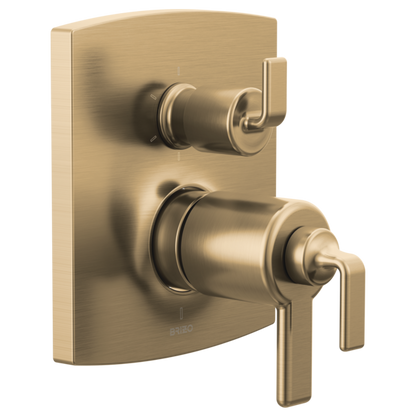

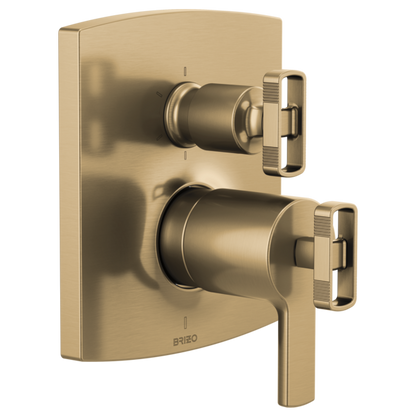

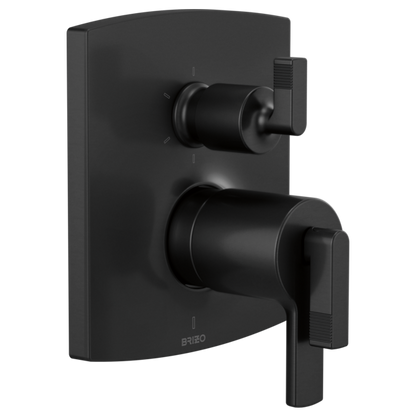

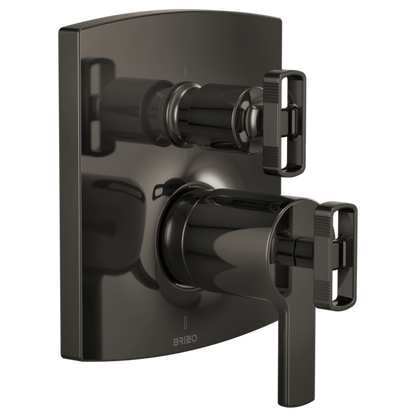

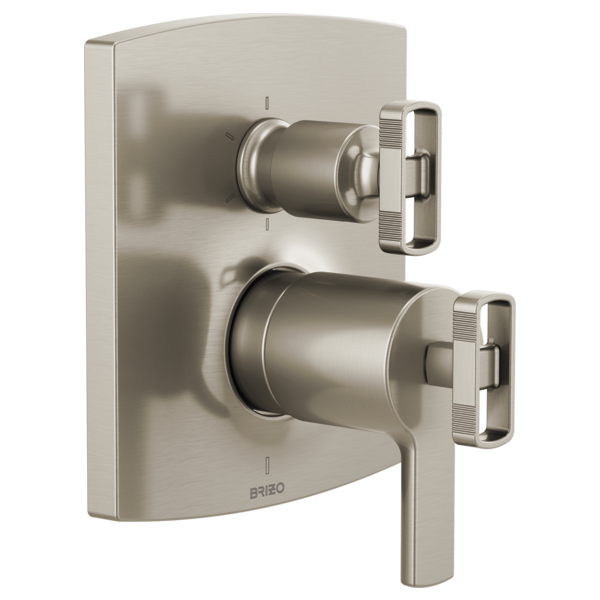

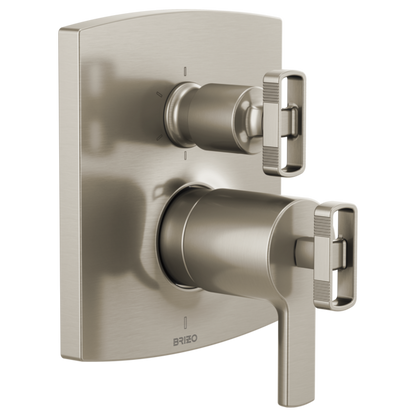

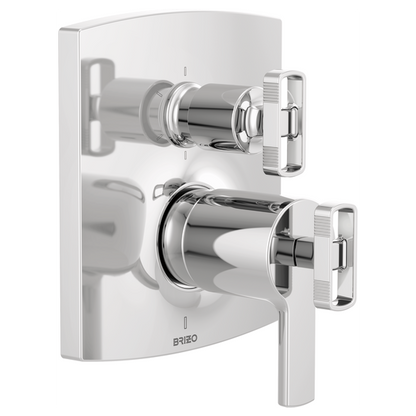

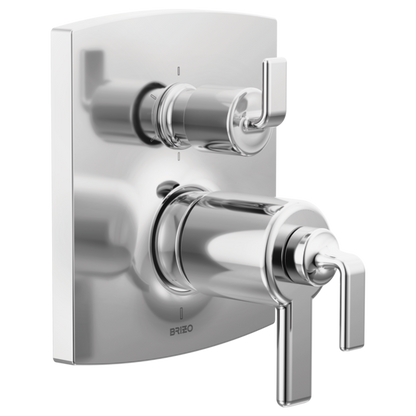

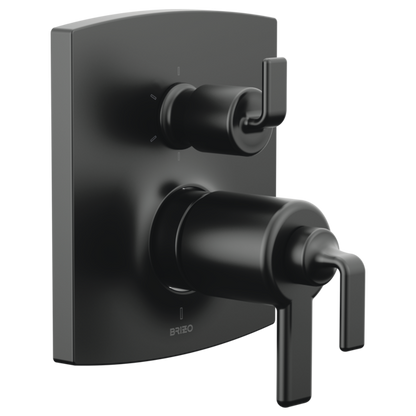

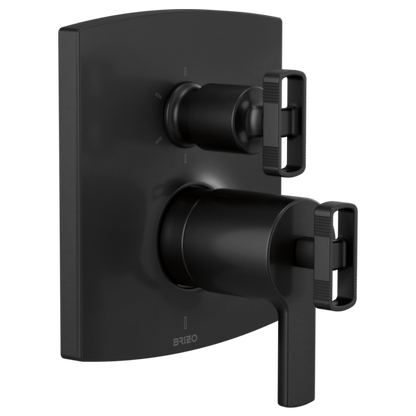

• Choose ONE compatible handle kit in the matching finish, sold separately: HK7506 Kintsu knob, HL7506 Kintsu lever or HL7567 Allaria twist lever. Images with handles show configuration options.

Optional Accessories

• RP72124 cartridge replaces the shared settings with three individual outlet positions, sold separately.
• RP101619 thick-wall extension kit, sold separately; choose the matching finish.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1; ICC/ANSI A117.1.
• Brizo limited warranty applies; terms depend on purchaser and installation.
