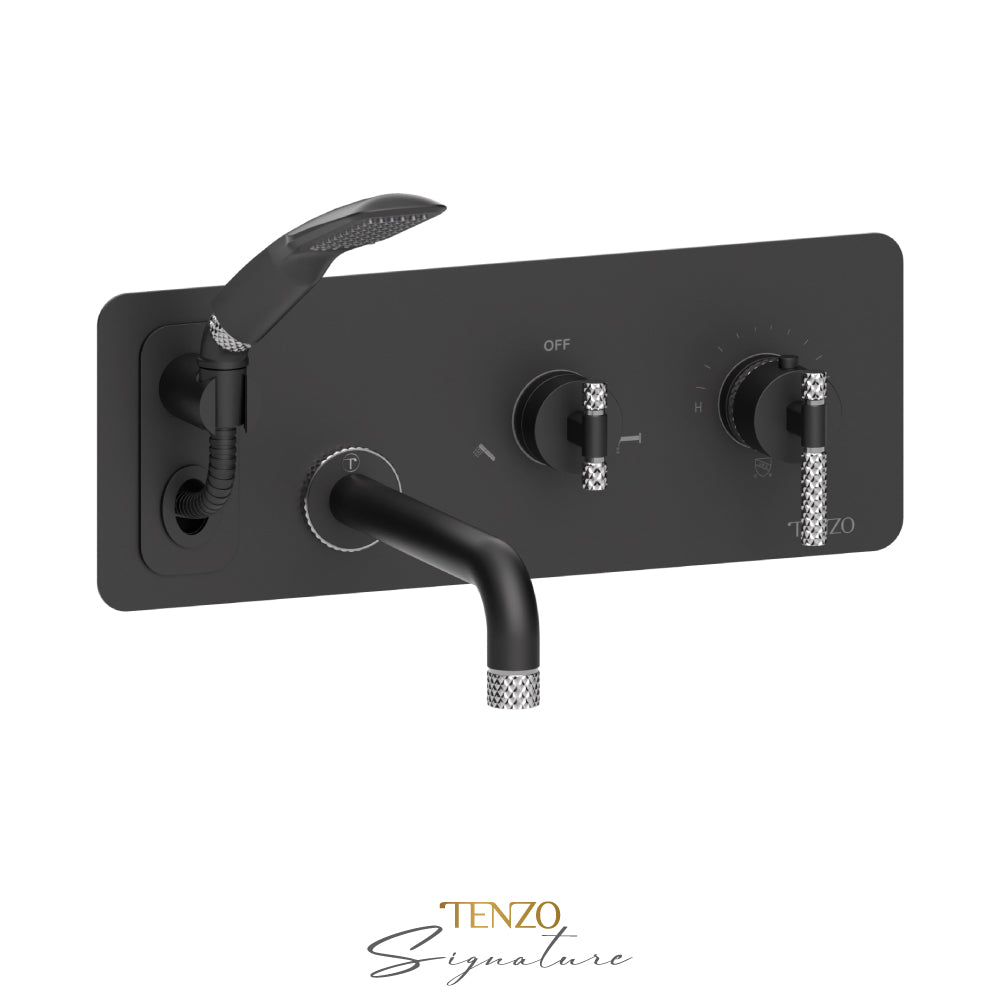

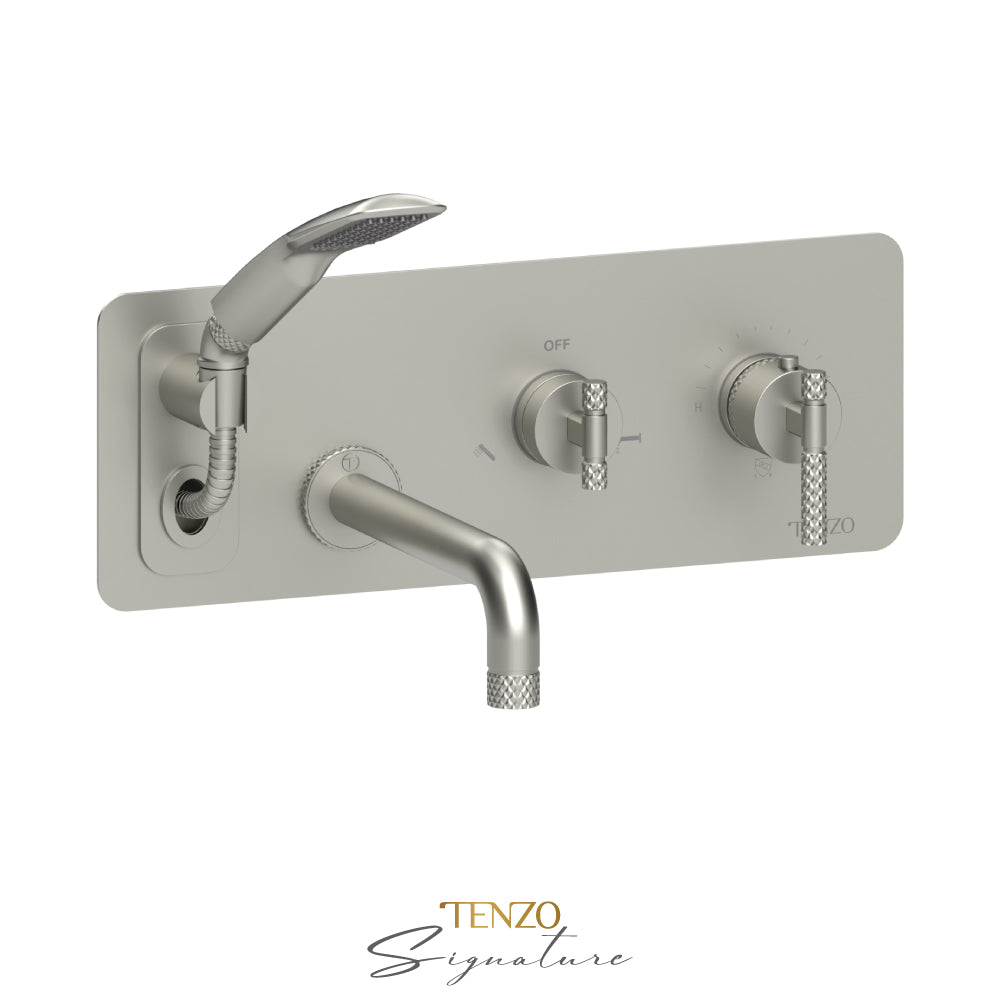

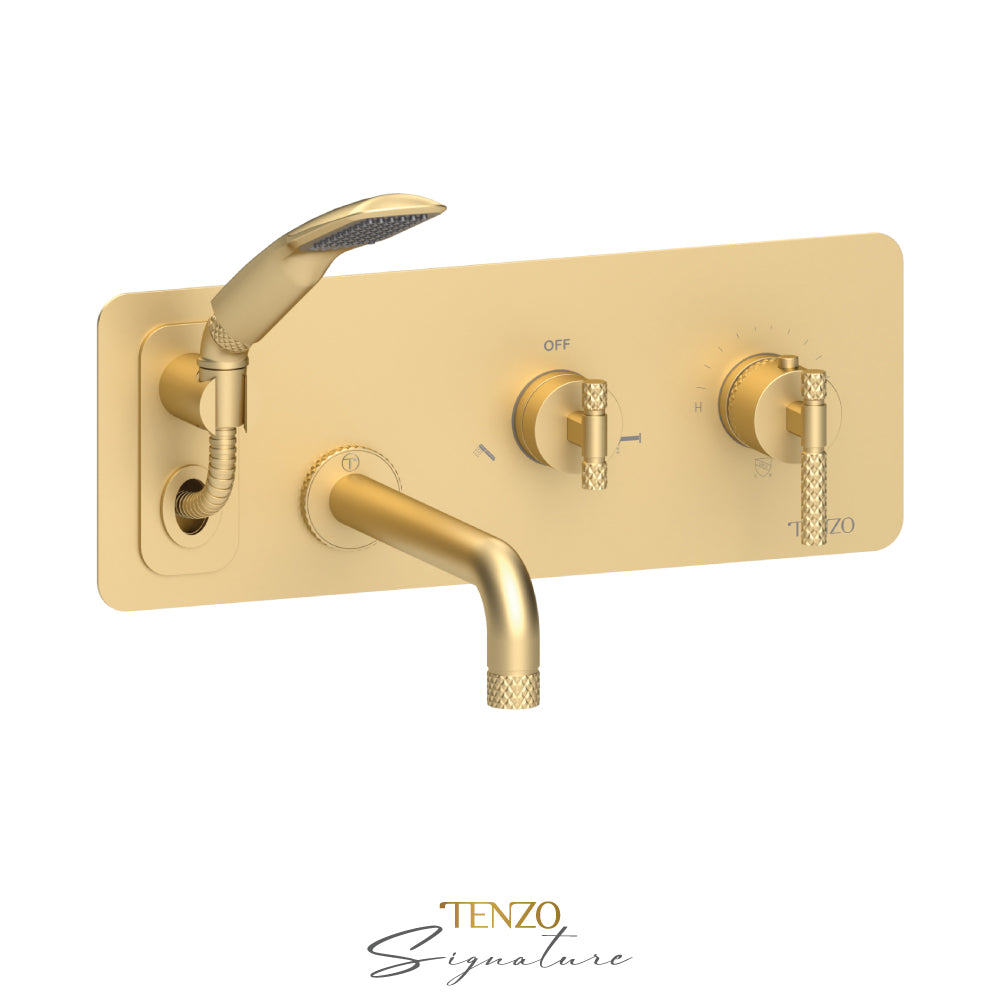

Tenzo Bellacio Wall Mount Thermostatic Tub Filler With Hand Shower, Rough & Trim, Larger Knurled - BET73-C

Tenzo Bellacio Wall Mount Thermostatic Tub Filler With Hand Shower, Rough & Trim, Larger Knurled - BET73-C

The complete Bellacio wall-mount tub filler on a single plate — the rough-in valve and the finished trim in one order.

What's included

• Wall-mount tub filler rough-in valve (R-70)
• Bellacio-C thermostatic trim with diverter (F-BET73-C-XX)
• Bellacio wall-mount tub spout (BS-312-C-XX)
• Single-function hand shower (HS-223-XX) with 59” retractable hose

Features

• Vernet thermostatic cartridge, made in France — holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• 2-function diverter with no shared zone: full flow to whichever outlet is open, tub spout or hand shower.
• Two controls on the plate — a diverter lever marked OFF above the two outlet positions, and a graduated temperature dial.
• Bellacio tub spout, solid brass, slip-fit, with a knurled base collar and tip band matching the handles.
• Hand shower in PVC with anti-limescale silicone nozzles, on a 59” retractable hose that stows into the plate.
• Service check / stop valves built into the rough-in.
• Larger diamond cross-knurl on the handles, collars and hand-shower grip. The BET73-F carries the same pattern at a much finer pitch.
• Solid brass. Eight finishes; five are two-tone, with the accent colour on the knurled detailing.

Specifications

• Room: Bathroom
• Product Type: Complete Wall-Mount Tub Filler (rough-in and trim)
• Collection: Bellacio (Tenzo Signature)
• Valve Type: Thermostatic
• Functions: 2 (tub spout / hand shower)
• Tub Spout Flow: 30 L/min [7.9 gpm] @ 60 psi
• Hand Shower Flow: 7.6 L/min [2.0 gpm] @ 60 psi
• Supply Connection: 1/2” NPT female
• Thermostatic Cartridge: CAR-VNT-T34-01 (Vernet)
• Diverter Cartridge: CAR-HA-DV3-33097-01
• Knurling: Coarse

Good to know

• Trim only, where the rough-in is already in the wall, is F-BET73-C-XX — ordered separately.
• The rough-in is the R-70, shared across every Tenzo wall-mount tub filler, so the valve can go in before the collection is chosen.

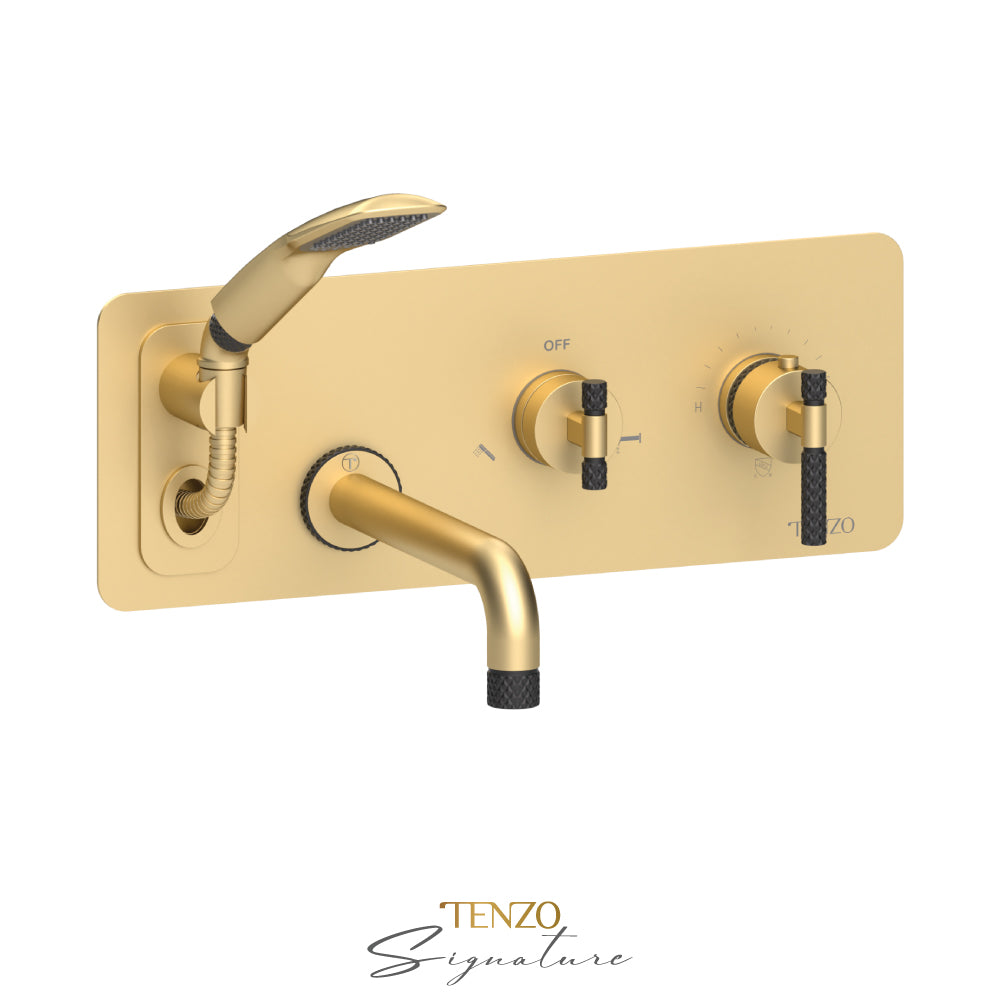

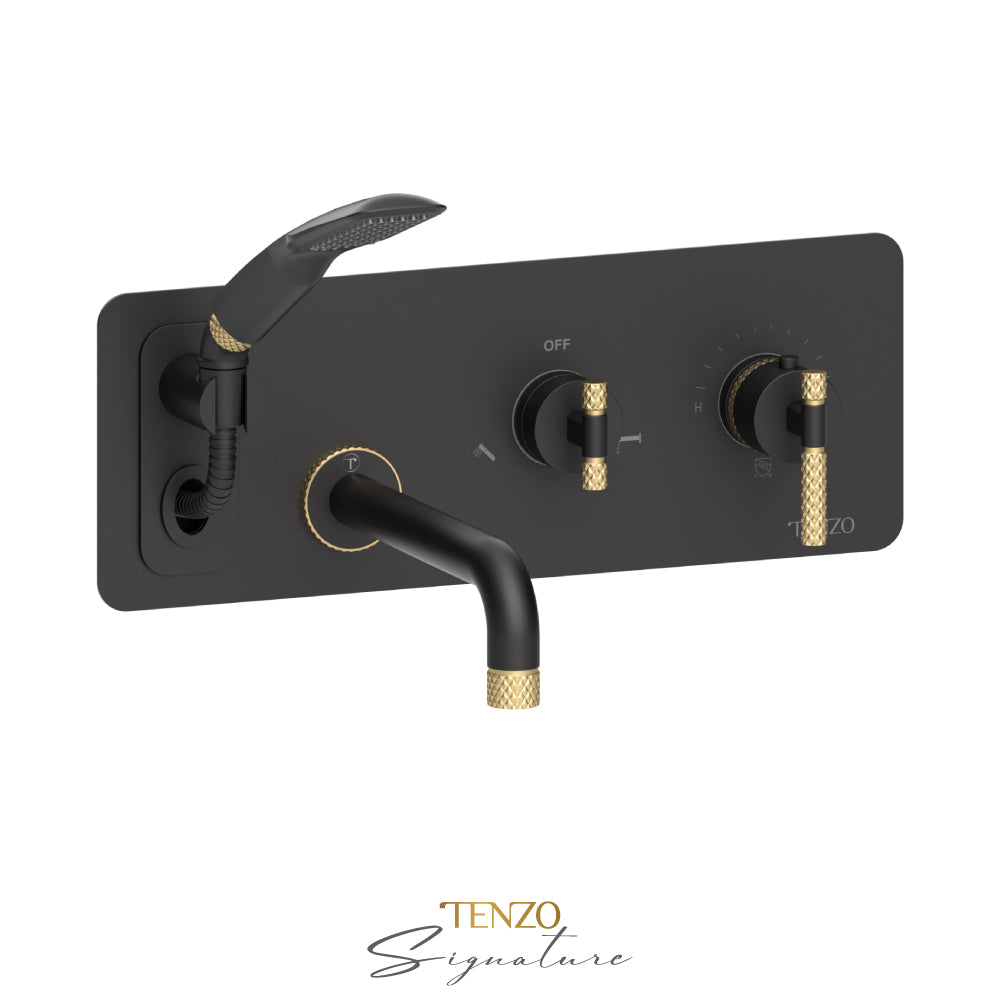

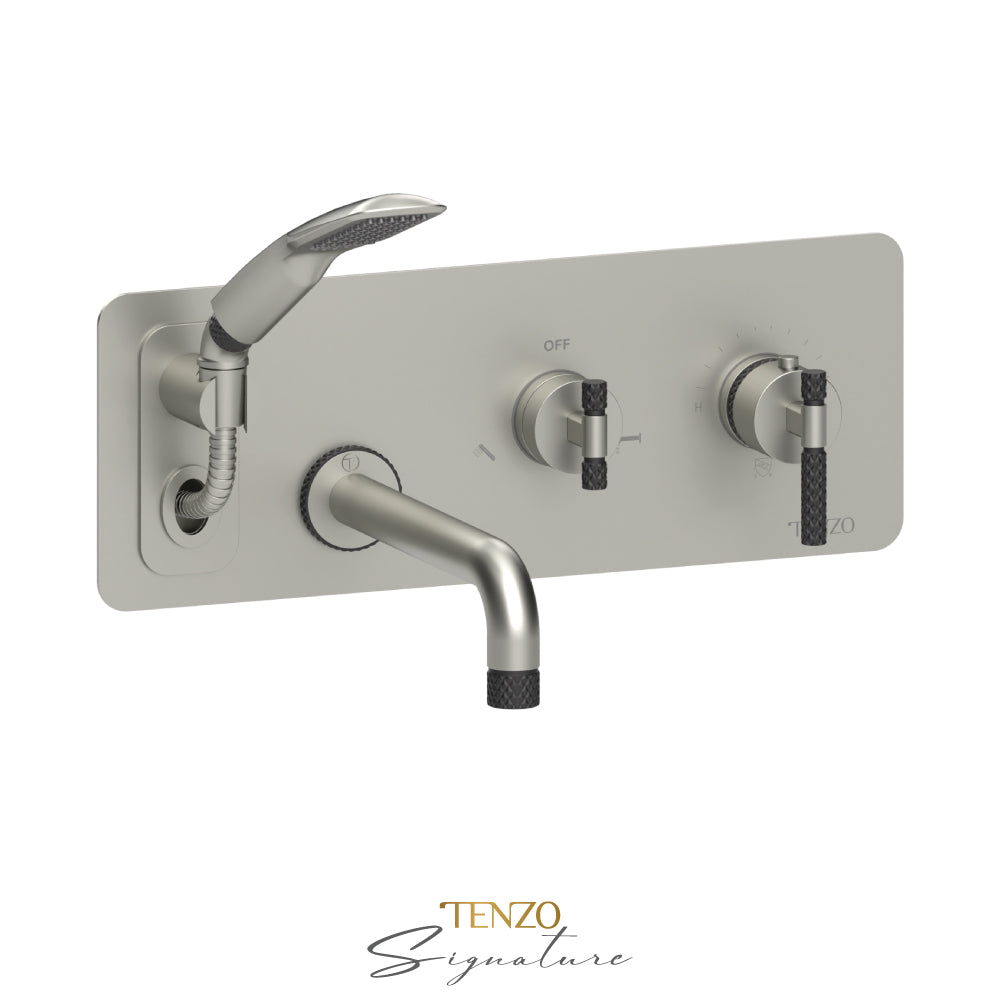

• On two-tone finishes the first colour is the body and the second the knurled detailing — handles, hand-shower grip, and the spout's base collar and tip band.
• BET73-F is the same filler with a finer knurl.
• BET74-C is the same filler with a 30 cm [12”] 180° swivel spout in place of the fixed Bellacio spout.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
