Tenzo Bellacio T-Box 3-Function Thermostatic Shower Valve, Rough & Trim, Smaller Knurled - BET33-F

Tenzo Bellacio T-Box 3-Function Thermostatic Shower Valve, Rough & Trim, Smaller Knurled - BET33-F

The complete Bellacio T-Box three-outlet thermostatic valve — the universal rough-in body and the finished trim in one order.

What's included

• T-Box universal rough-in valve, 1/2” male PEX connections (R-31-P)
• Bellacio-F T-Box valve trim, 3 functions, thermostatic (F-BET33-F-XX)

Features

• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Vernet thermostatic cartridge, made in France.
• Two controls on the trim plate — the upper selects the outlet, the lower sets temperature.
• Three-function diverter, shared zones: more than one outlet can run at a time.
• Service check/stop valves built into the rough-in.
• Finer diamond cross-knurl on the trim handles and the base collar. The BET33-C carries the same pattern at a much coarser pitch.

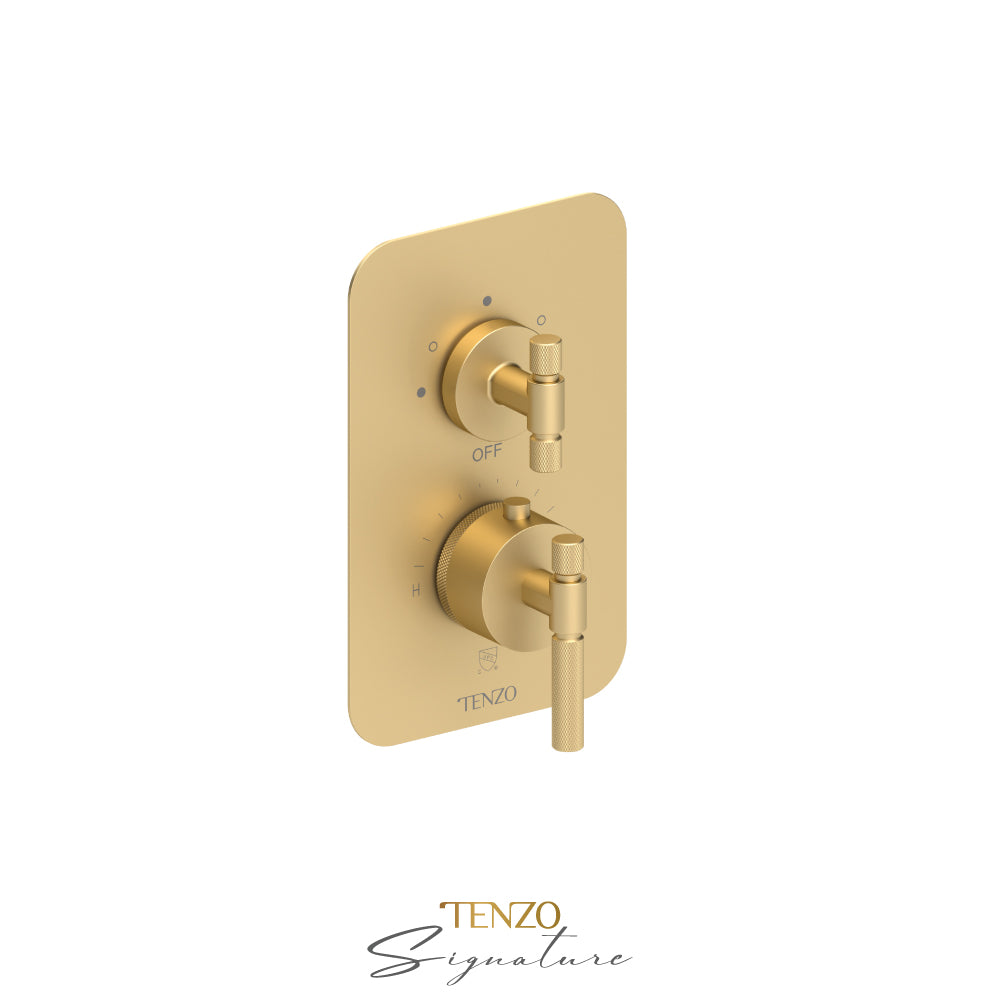

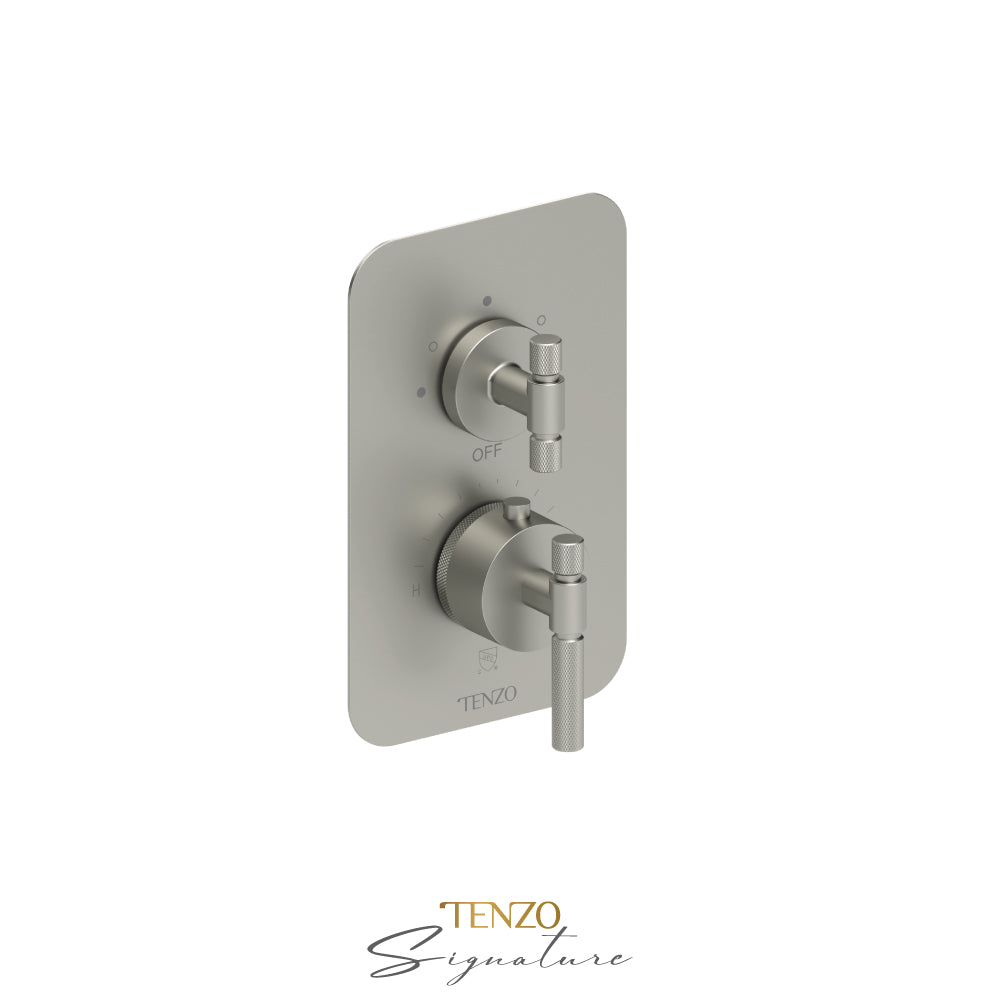

• Solid brass. Eight finishes; five are two-tone, with the accent colour on the knurled detailing.

Specifications

• Room: Bathroom
• Product Type: Complete Shower Valve (rough-in and trim)
• Collection: Bellacio (Tenzo Signature)
• System: T-Box
• Valve Type: Thermostatic
• Functions: 3
• Valve Flow: 30 L/min [7.9 gpm] @ 60 psi
• Trim Plate: 4¹⁵⁄₁₆” [126 mm] wide × 7⁷⁄₈” [200 mm] high
• Rough-In Box: 6³⁄₈” [162 mm] high × 2³⁄₈” [60 mm] deep
• Supply Connection: 1/2” male PEX (R-31-P), shipped as standard — 1/2” male NPT/weld (R-31-N) available on request
• Outlet Connections: 1/2” NPT female
• Thermostatic Cartridge: CAR-VNT-T12-01 (Vernet)
• Diverter Cartridge: CAR-HA-DV4-35097-01
• Knurling: Fine

Good to know

• The valve at the heart of every Bellacio three-function T-Box shower kit, sold on its own for a shower specified piece by piece.
• Trim only, where the rough-in is already in the wall, is F-BET33-F-XX — ordered separately.
• The diverter is set up for shared zones. Tenzo builds a non-shared version to order (-CAL suffix).
• Thermostatic, not pressure balanced — it holds temperature against supply drift as well as pressure changes, and carries a higher flow than the pressure-balance version.

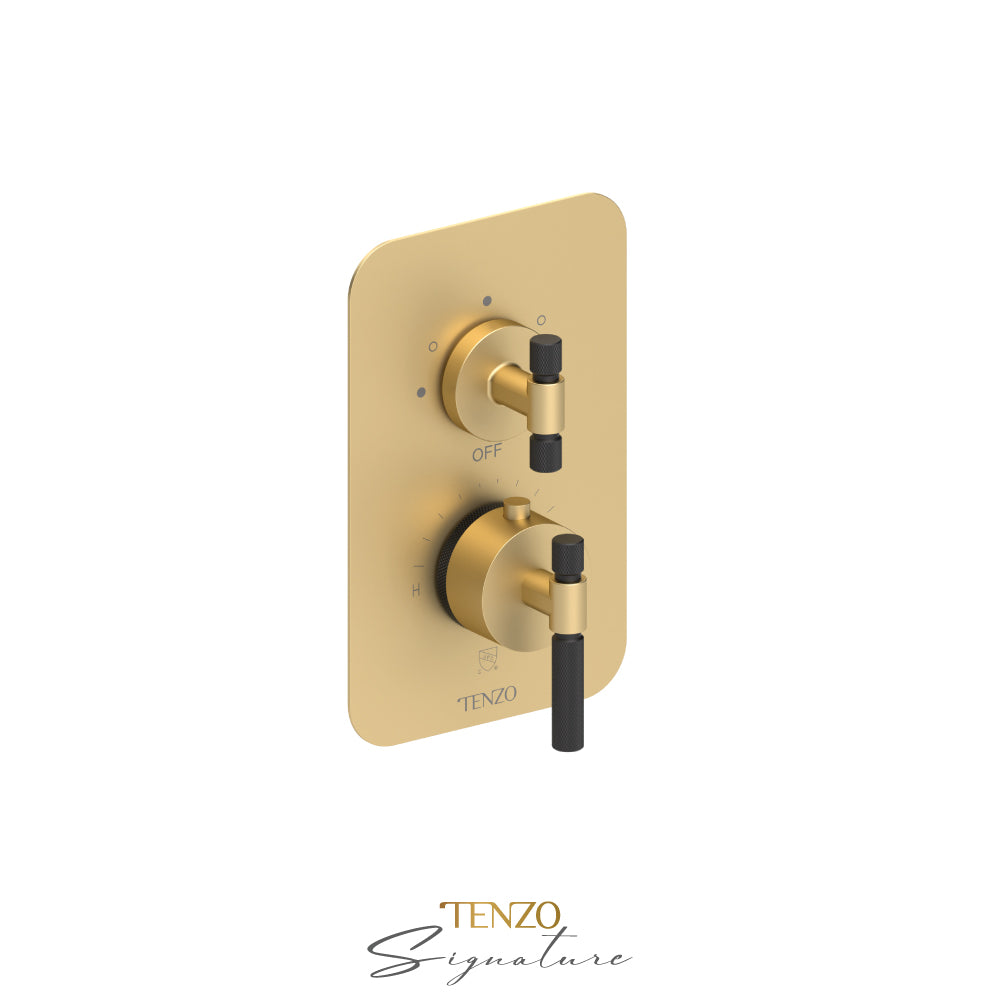

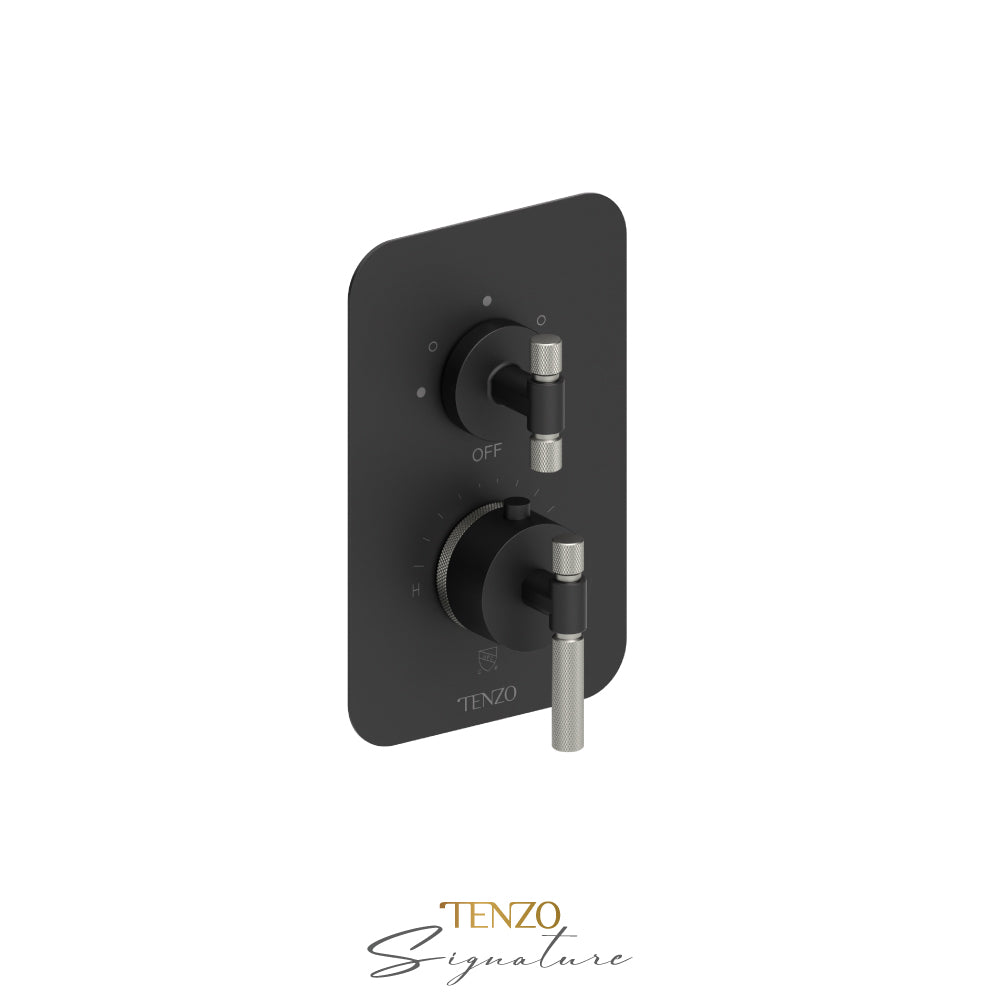

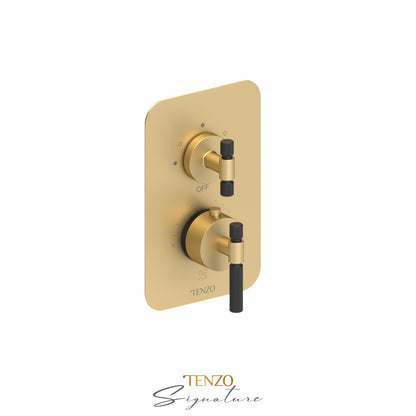

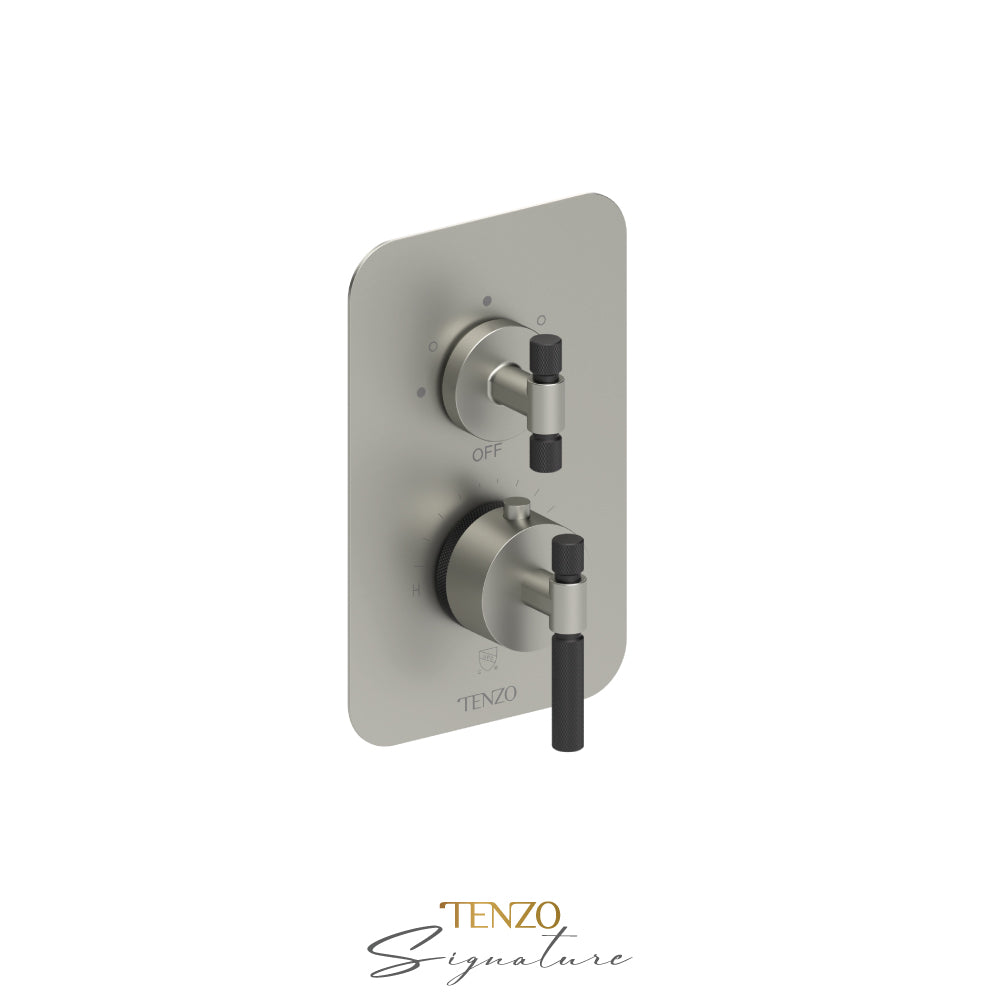

• On two-tone finishes the first colour is the body, the second the knurled detailing.
• BET33-C is the same valve with a coarser knurl.
• BEPB33-F is the pressure-balance version of the same valve, at a lower price.
• BET32-F is the two-outlet version.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
