Aquabrass Xpress Rough-ins (X2) for Wallmount Tub Filler - R2904-2

Aquabrass Xpress Rough-ins (X2) for Wallmount Tub Filler - R2904-2

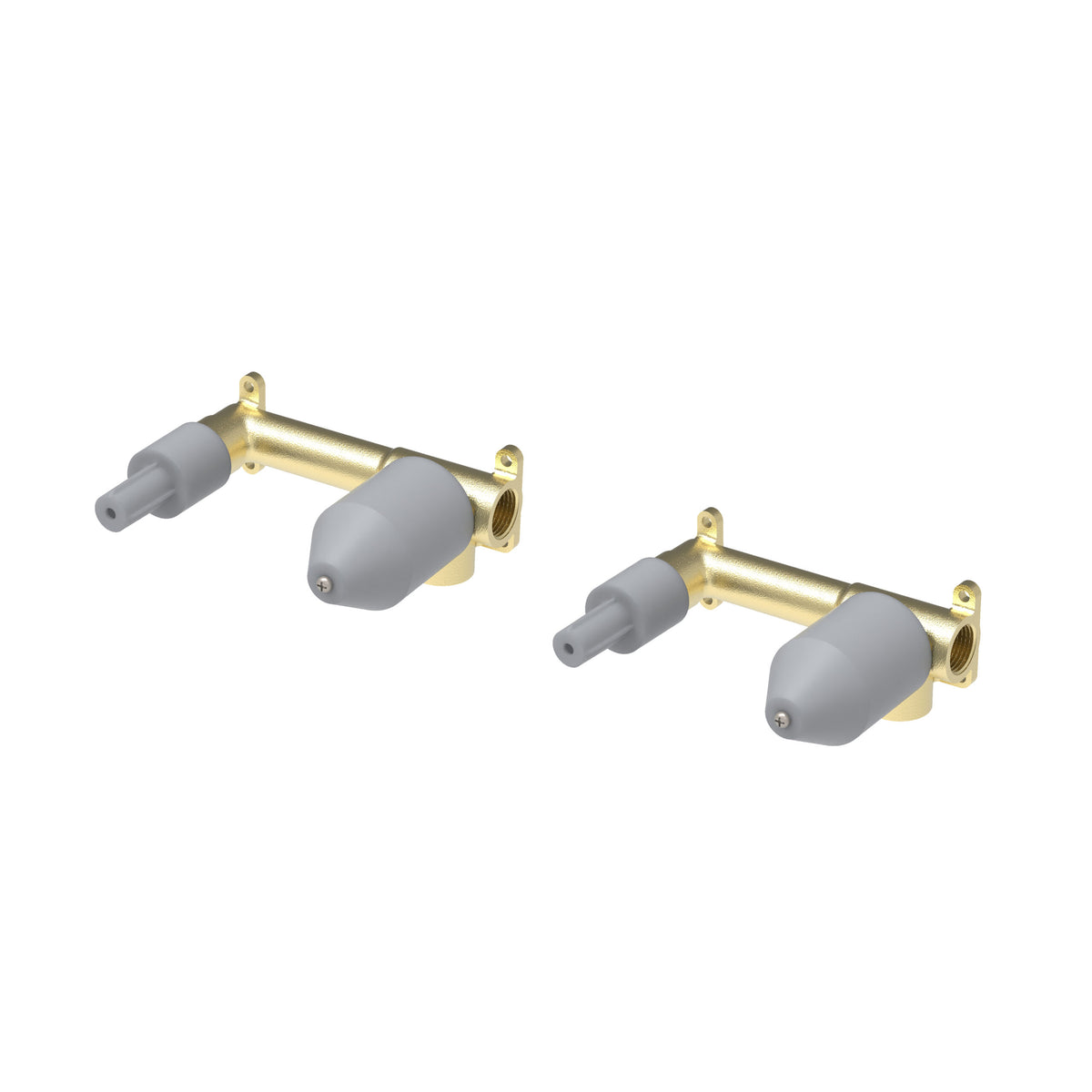

A pair of concealed brass rough-ins with included cartridges for the independently controlled tub spout and handshower of the TMR04 system.

Features

• Two rough-in bodies supplied as one package.
• Solid brass construction.
• Cartridges included.
• Temperature-limiting rings allow adjustment of the maximum temperature; the installation guide specifies 120°F (49°C) or lower.

Specifications

• Room: Bathroom
• Product type: Wall-mount tub filler rough-in valves
• Model: R2904-2
• SKU: ABGRPR2904-2
• Package quantity: Two rough-ins
• Material: Solid brass
• Valve-to-outlet centre spacing, each body: 3 15/16" (100 mm)
• Drawing width, each body: 4 7/8" (123 mm)
• Body depth shown: 3" (76 mm)
• Cartridge sleeve diameter: 1 1/2" (38 mm)
• Vertical fixing-hole spacing: 1 7/16" (36 mm)
• Installation depth: 1 3/4" to 3 1/16" (44–78 mm)

Included Components

• Two rough-in bodies.
• Two cartridges, one per rough-in.

Required for Installation

Matching faucet trim is purchased separately. For the TMR04 installation, purchase one TMR04 wallmount tub filler trim set; both rough-ins in this package are used.
