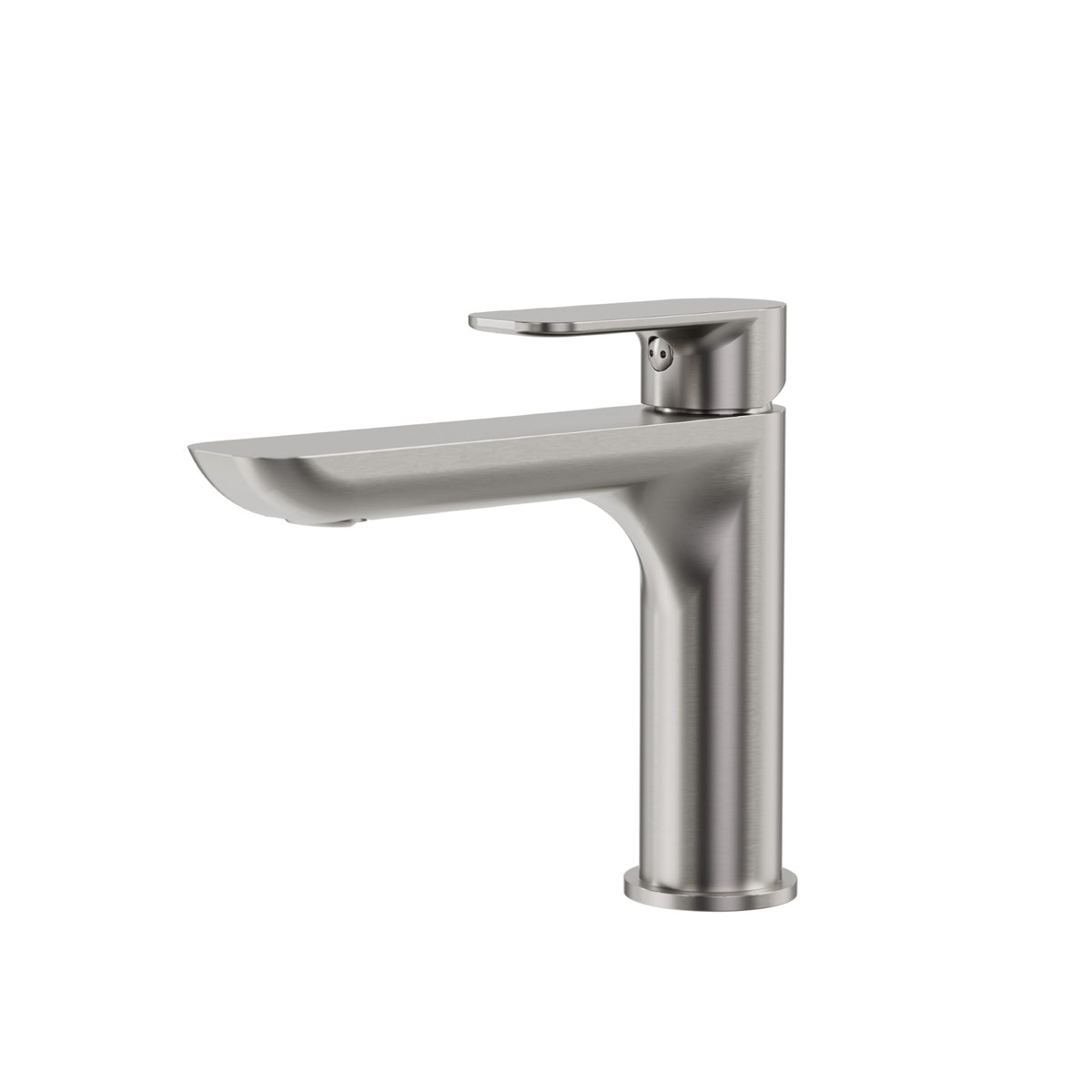

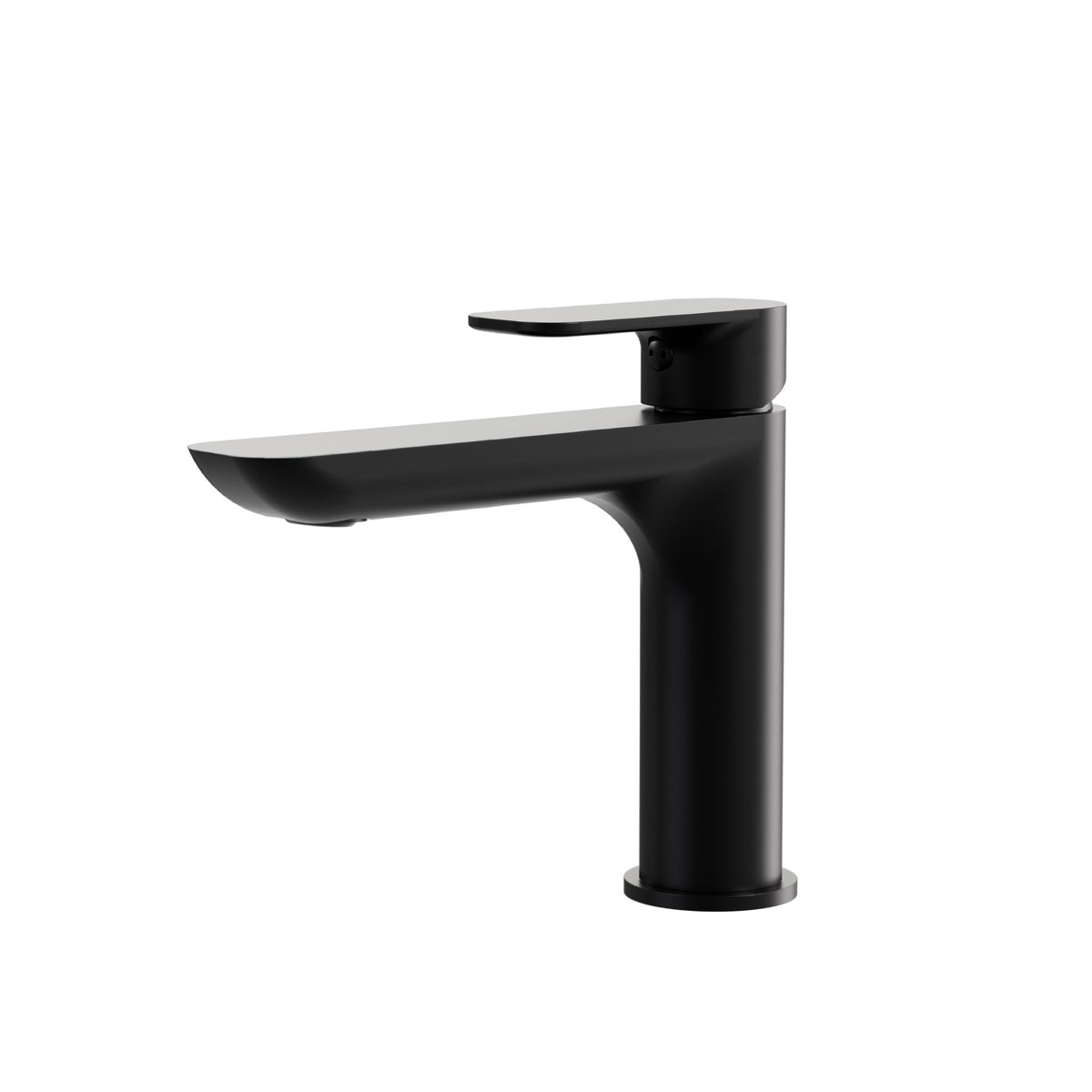

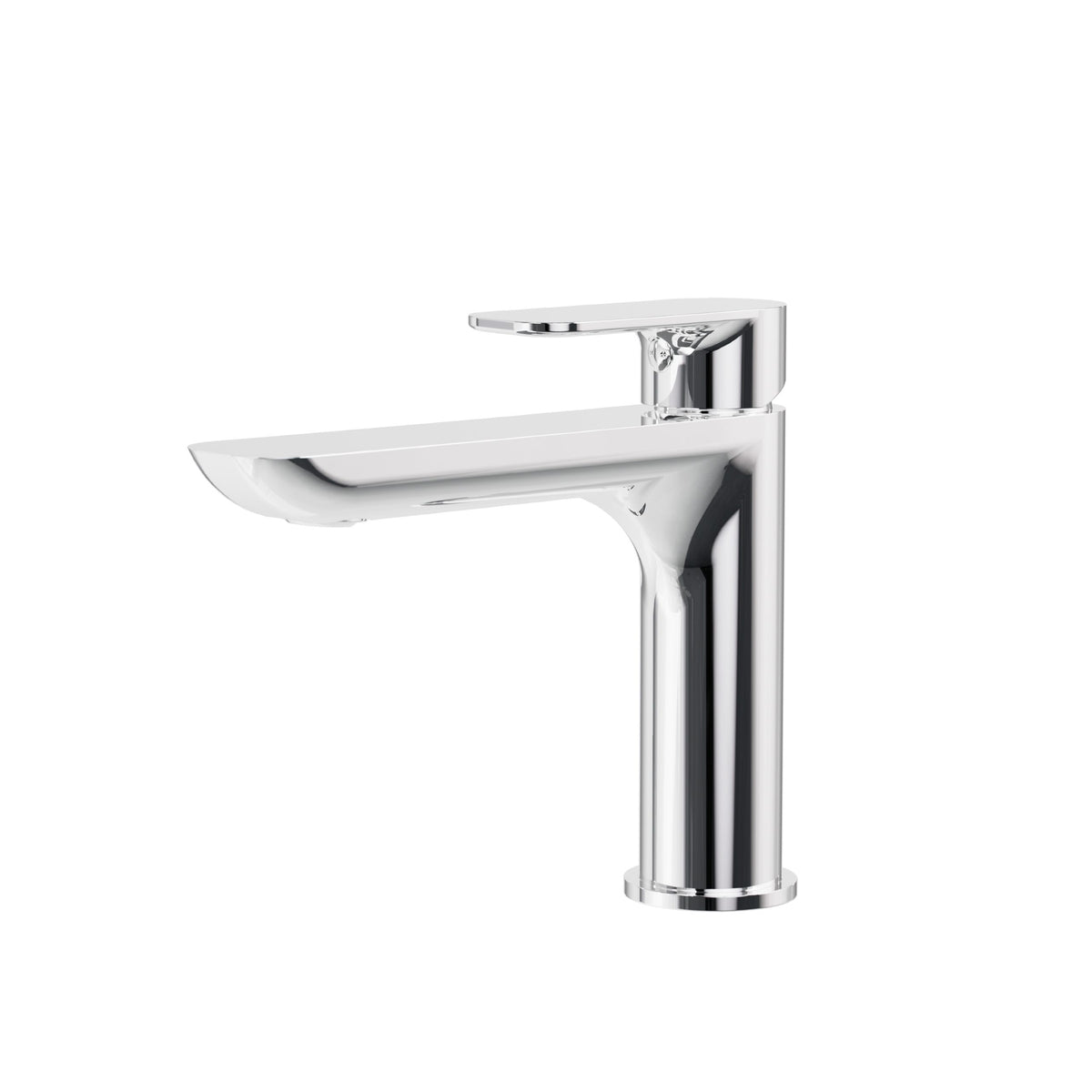

Aquabrass Xpress Must Single-hole Lavatory Faucet - 56014

Aquabrass Xpress Must Single-hole Lavatory Faucet - 56014

A single-hole bathroom faucet with a lever handle, pivoting laminar aerator and included overflow drain.

Features

• Body made from solid brass.
• Laminar water stream with a clear appearance.
• Adjustable stop limits the maximum temperature setting.
• Aerator resists scale buildup and pivots through 10°.
• ABDR00899 press-operated pop-up drain with overflow is supplied.
• 3/8" water-supply connection.
• Ceramic cartridge, model ABCA56040.
• Water flow: 1.2 gpm (4.5 L/min), measured at 60 psi.
• Requires a 1 3/8" mounting hole.
• Manufacturer-stated counter depth: minimum 1 3/8", maximum 2 3/8".

Specifications

• Room: Bathroom
• Product type: Single-hole lavatory faucet
• Collection: Must
• Model: 56014
• Installation: Deck-mounted, one hole
• Control: Single lever
• Material: Solid brass
• Flow rate: 1.2 gpm (4.5 L/min) at 60 psi
• Spout reach: 4 15/16" (125 mm)
• Spout outlet height: 4 1/4" (107 mm)
• Overall front-to-back dimension: 7" (approximately 177 mm)
• Body diameter: 1 7/16" (37 mm)
• Base diameter: 1 3/4" (45 mm)
• Mounting-hole diameter: 1 3/8" (35 mm)
• Counter depth: 1 3/8" minimum to 2 3/8" maximum
• Supply connection: 3/8"
• Cartridge: ABCA56040, ceramic

Included Components

• Must 56014 faucet.
• Press pop-up drain with overflow, ABDR00899.

Required for Installation

No separately purchased, model-specific installation component is specified by the manufacturer.

Certifications

• ASME A112.18.1 and CSA B125.1
• NSF/ANSI 61 and 372
• EPA WaterSense
• ADA compliance
