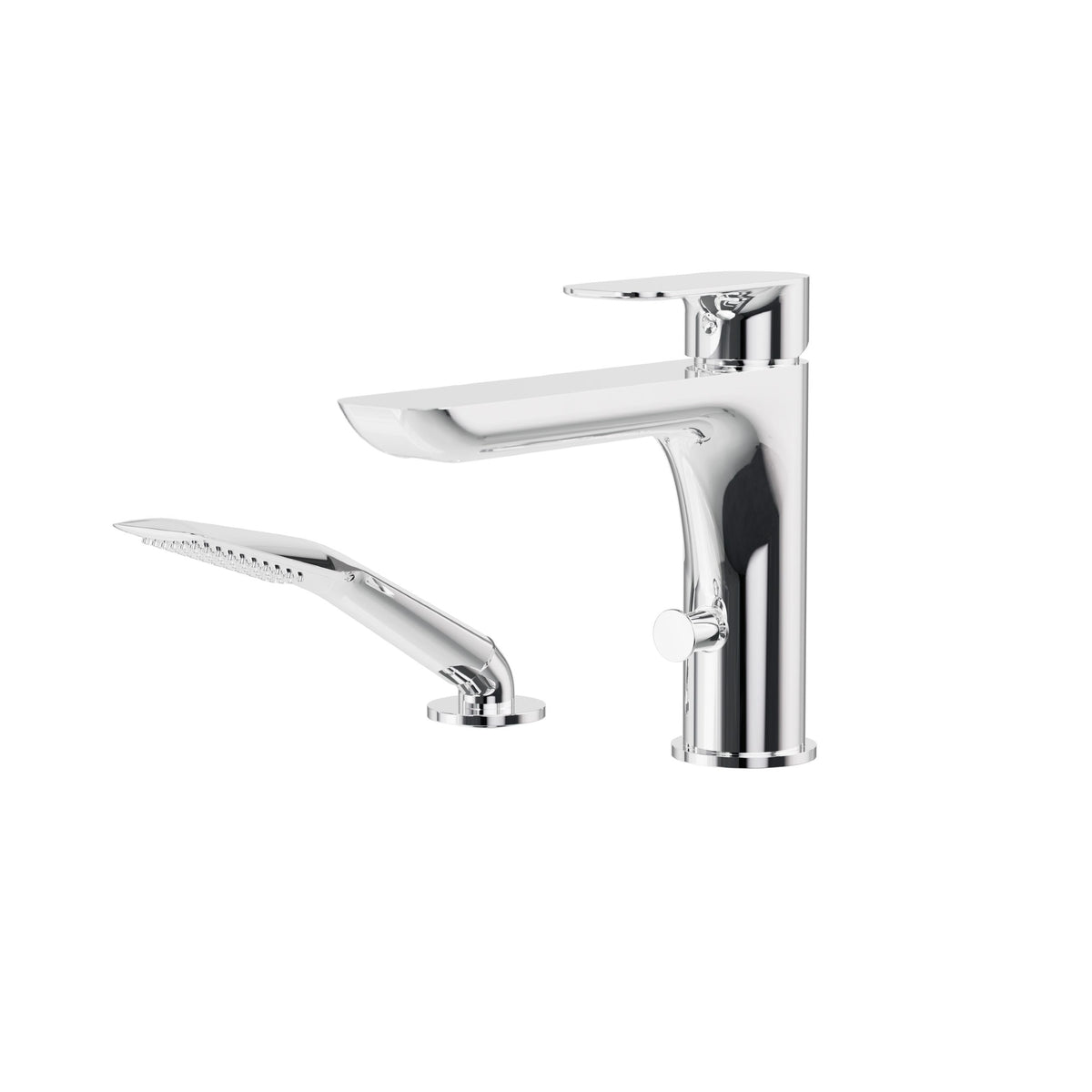

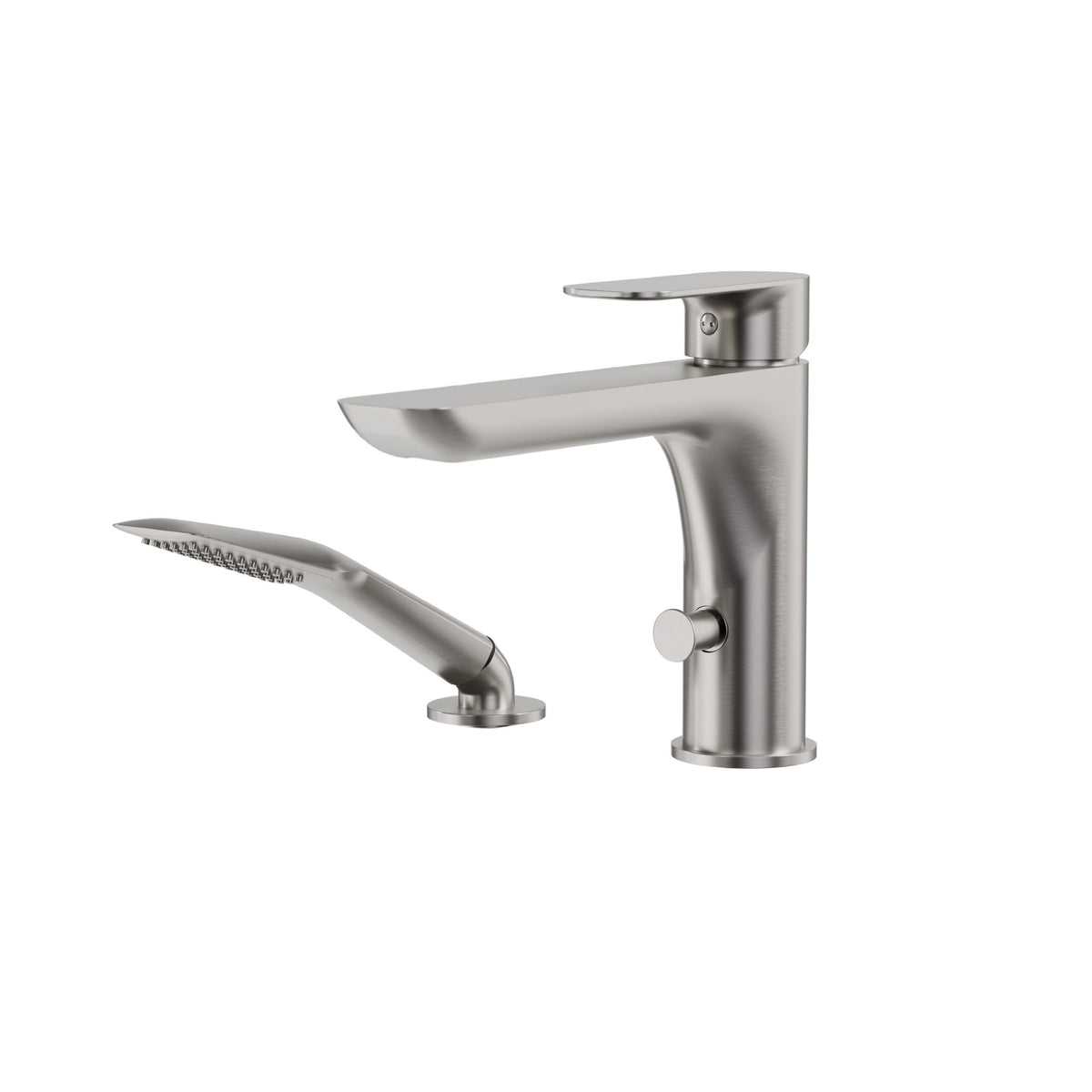

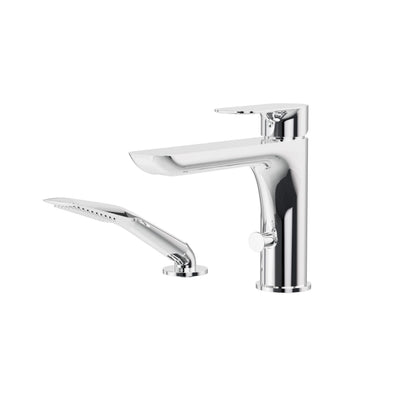

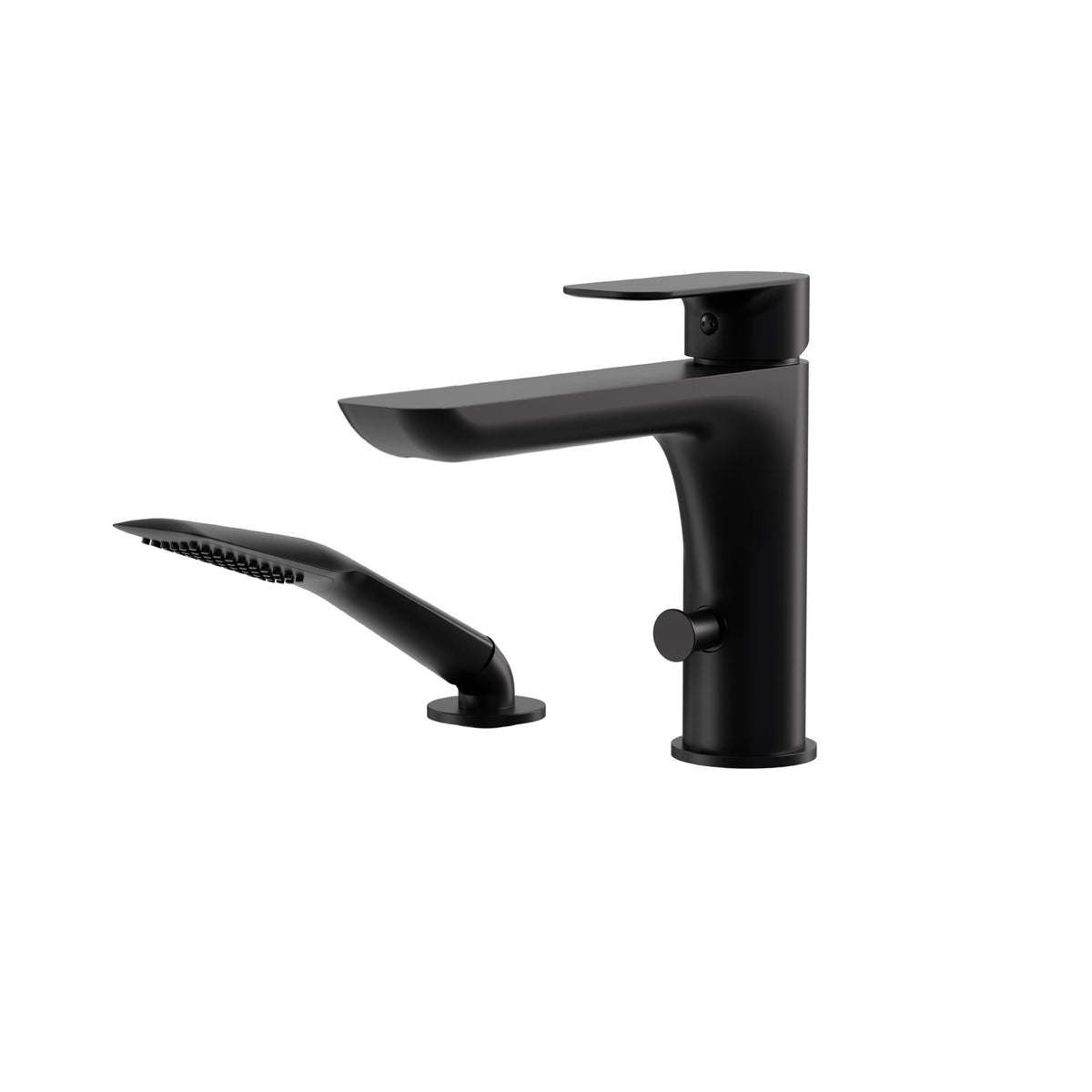

Aquabrass Xpress Must 2-piece Deckmount Tub Filler with Handshower - 56074

Aquabrass Xpress Must 2-piece Deckmount Tub Filler with Handshower - 56074

A two-piece deck-mounted tub filler with single-lever controls, a pressure-balance cartridge and a separate handshower with a hidden hose.

Features

• Solid brass construction.
• Concealed aerator produces a clear laminar water stream.
• Anti-scaling aerator pivots through 10°.
• Adjustable temperature limit stop.
• Pressure-balance cartridge, model ABCA56084.
• Single lever controls water volume and temperature.
• Handshower with a 5-foot double-helix hidden hose.
• Pull-button diverter on the front of the spout switches between tub filler and handshower.
• 1/2" supply connection.
• Tub filler flow: 5 gpm (19 L/min).
• Handshower flow: 1.8 gpm (6.8 L/min).
• Faucet mounting-hole diameter: 1 1/2".
• Manufacturer-stated counter depth: minimum 1 3/8", maximum 2 3/8".

Specifications

• Room: Bathroom
• Product type: Deck-mounted tub filler with handshower
• Collection: Must
• Model: 56074
• Installation: Two-hole deck mount
• Material: Solid brass
• Control: Single lever
• Diverter: Two-way, tub filler and handshower
• Cartridge: ABCA56084, pressure balance
• Tub filler flow: 5 gpm (19 L/min)
• Handshower flow: 1.8 gpm (6.8 L/min)
• Overall faucet height: 8 1/4"
• Handle length: 5 1/8" (130 mm)
• Faucet body diameter: 2 1/8" (54 mm)
• Faucet base diameter: 2 1/2" (64 mm)
• Handshower base diameter: 2 3/16" (55 mm)
• Faucet mounting-hole diameter: 1 1/2" (38 mm)
• Handshower mounting-hole diameter: minimum 1 3/8" (35 mm)
• Counter depth: 1 3/8" minimum to 2 3/8" maximum
• Supply connection: 1/2"
• Handshower hose length: 5 feet

Included Components

• Must 56074 tub filler with single-lever handle, pressure-balance cartridge and diverter.
• Handshower with 5-foot double-helix hidden hose.

Required for Installation

No separately purchased, model-specific installation component is specified by the manufacturer.

Certifications

• ASME A112.18.1 and CSA B125.1
• ADA compliance
• EPA WaterSense: handshower only
