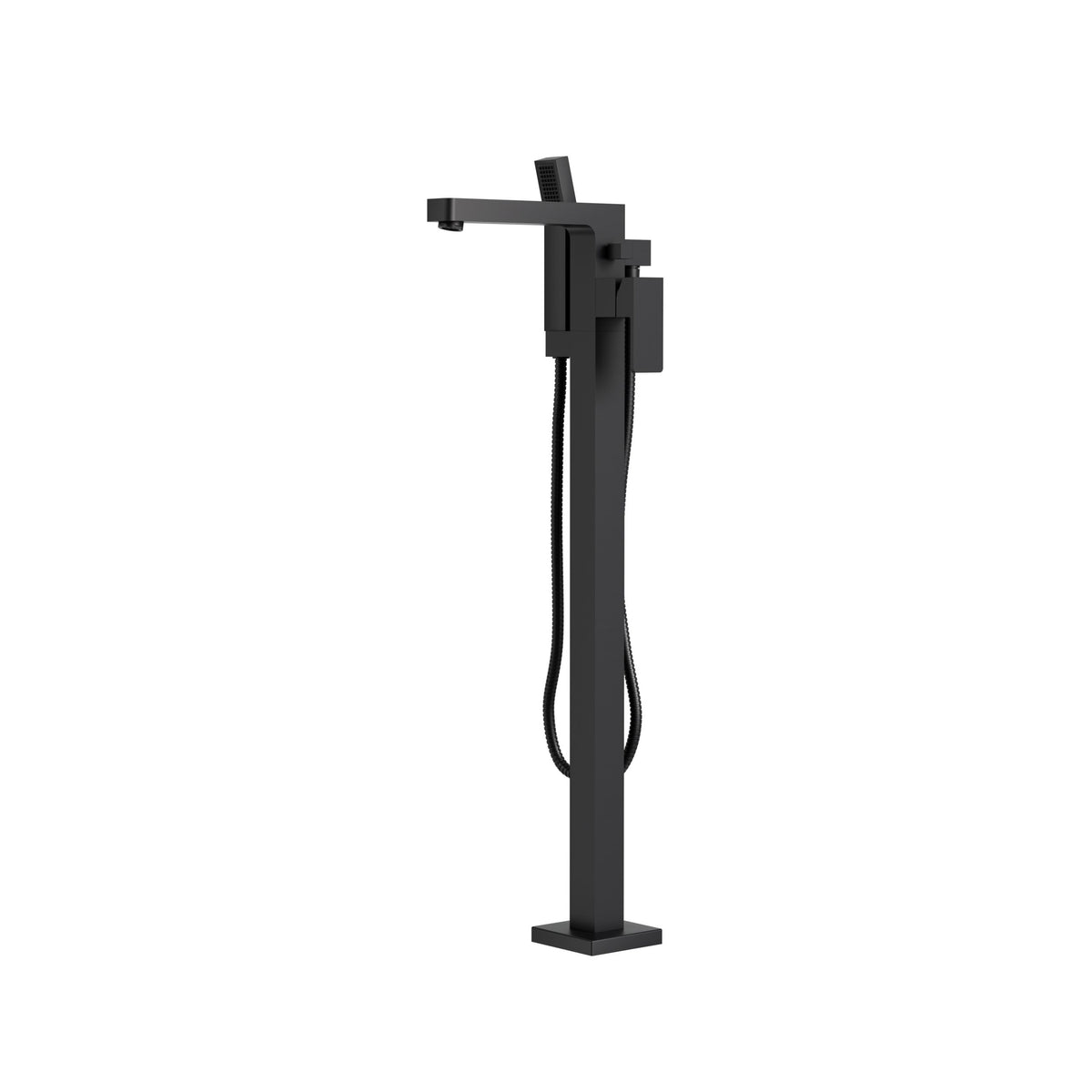

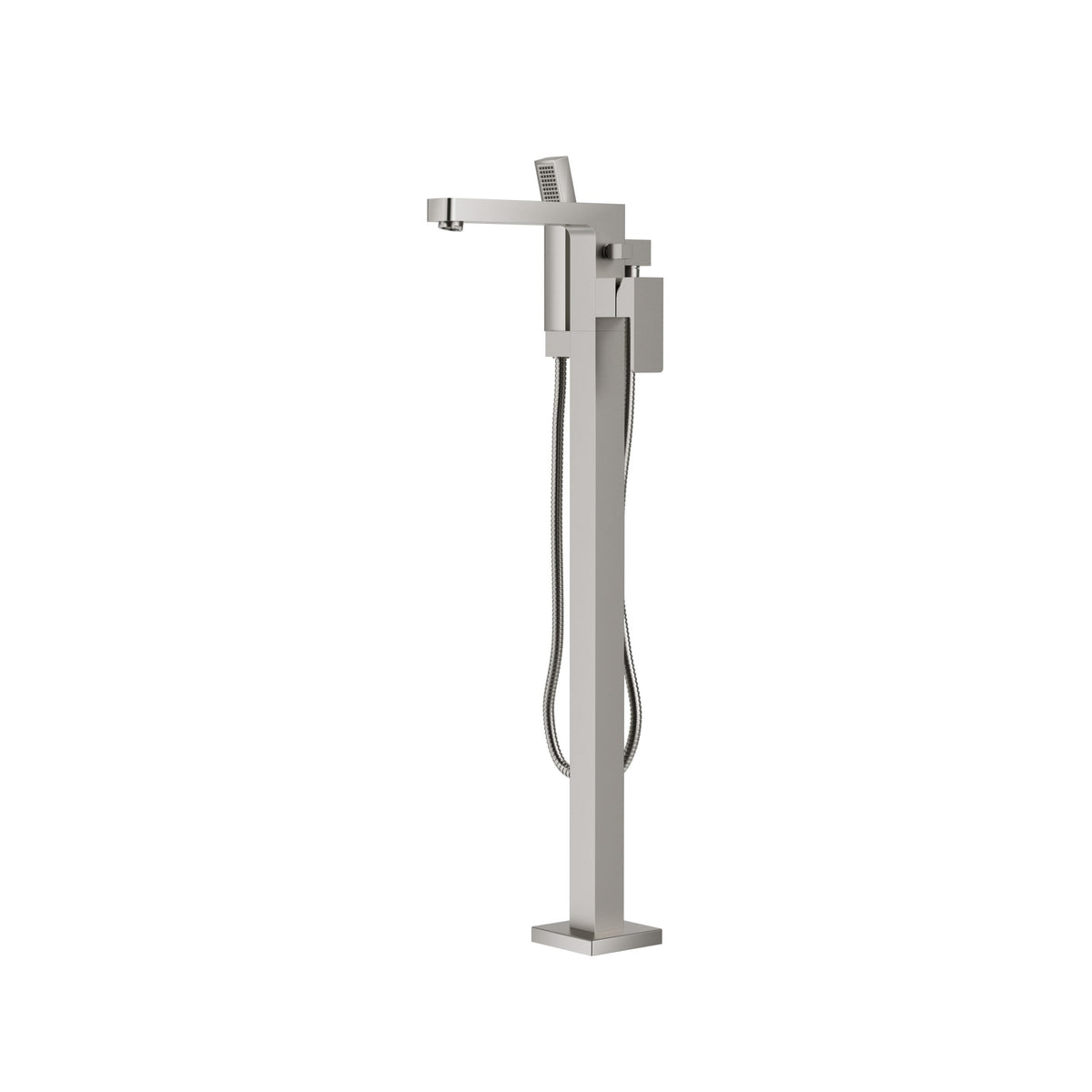

Aquabrass Xpress Madison Floormount Tub Filler with Handshower - 86N85

Aquabrass Xpress Madison Floormount Tub Filler with Handshower - 86N85

A floor-mounted bathroom tub filler with solid brass construction, a single control lever and a handshower.

Features

• Body made from solid brass.
• Laminar aerator delivers a clear, smooth water stream.
• Temperature limit stop can be adjusted during installation.
• Pressure-balancing cartridge, model ABCA86499.
• A single lever adjusts both water volume and temperature.
• Handshower supplied with a 5-foot double-helix hose.
• Pull-button diverter positioned on the side of the spout.
• Easy-fit installation system supplied with the faucet.
• 1/2" MIP supply connection.
• Tub spout delivers 5 gpm (19 L/min).
• Handshower delivers 1.8 gpm (6.8 L/min).
• Easy-fit supply connections can be oriented independently of the final spout position.

Specifications

• Room: Bathroom
• Product type: Floor-mounted tub filler with handshower
• Collection: Madison
• Model: 86N85
• Material: Solid brass
• Tub filler flow rate: 5 gpm (19 L/min)
• Handshower flow rate: 1.8 gpm (6.8 L/min)
• Spout reach: 8 1/2" (216 mm)
• Height from floor to top of spout: 34 1/4" (870 mm)
• Base width: 4 1/4" (108 mm); base thickness: 3/4" (19 mm)
• Column width: 1 3/4" (45 mm)
• Supply connection: 1/2" MIP
• Recommended floor opening: 2 1/2" diameter or smaller
• Supply-connection depth below finished floor: 1/2" to 2"
• Maximum spacing between hose-adapter centres: 15/16" (23 mm)
• Mounting: Four floor fasteners; align the spout before securing the flange.
• Set the maximum water temperature to 120°F (49°C) or lower during installation.

Included Components

• Tub filler with spout, lever, diverter and pressure-balancing cartridge.
• Handshower and 5-foot hose.
• Easy-fit installation system.

Required for Installation

For supply connections deeper than 2", the installation manual requires commercially available standard male-female extensions, purchased separately. No manufacturer ordering code is specified.

Certifications

• ASME A112.18.1 and CSA B125.1
• ADA compliance
• EPA WaterSense certification applies to the handshower.
