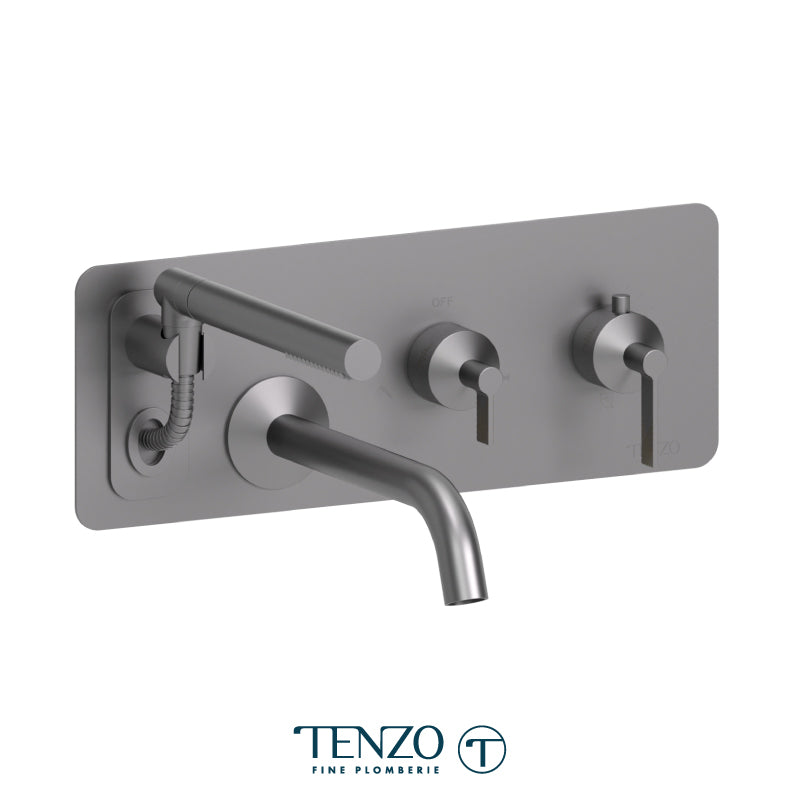

Tenzo Paloma Wall Mount Thermostatic Tub Filler With Hand Shower - PALT73

Tenzo Paloma Wall Mount Thermostatic Tub Filler With Hand Shower - PALT73

The complete Paloma wall mount tub filler, the rough-in assembly and every finished part in one order.

What's included

• Wall mount tub faucet rough-in assembly (R-70)
• Paloma tub filler trim plate with thermostatic control and diverter handle (F-PALT73-XX)
• Wall mount tub spout, 23 cm [9"], solid brass (BS-314-XX)
• Hand shower (HS-231-XX) on a 150 cm [59"] retractable hose

Features

• Complete tub filler, rough-in assembly and finished trim together.
• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Vernet thermostatic cartridge, made in France.
• Two-function diverter, not shared, so the spout and the hand shower run one at a time.
• The hose retracts into the wall behind the plate.
• Fixed spout, 23 cm [9"] projection.
• One plate carries the spout, the hand shower, the thermostatic control and the diverter.
• Solid brass.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Complete Wall Mount Tub Filler
• Collection: Paloma
• Style: Modern
• Mounting Location: Wall
• Functions: 2
• Tub Spout: Wall mount, 23 cm [9"] (BS-314)
• Rough-In Valve: R-70, wall mount tub faucet assembly
• Tub Spout Flow Rate: 30 L/min [7.9 gpm] @ 60 psi
• Hand Shower: HS-231, on a 150 cm [59"] retractable hose
• Supply Connection: 1/2" NPT female (on the rough-in)
• Thermostatic Cartridge: CAR-VNT-T34-01 (Vernet)
• Diverter Cartridge: CAR-HA-DV3-BK-33097-01
• Supplied As: Complete, rough-in included
• Material: Solid brass

Good to know

• Everything needed for the finished tub filler, including the assembly that goes in the wall.
• The rough-in assembly is R-70, which sets the finished wall depth between 76 mm [3"] and 113 mm [4-7/16"].
• The diverter is not shared, so water goes to the spout or to the hand shower, not both at once.
• Where the rough is already set in the wall, F-PALT73 is the same filler as trim only.
• PALT74 is the same filler with a 30 cm [12"] swivel spout.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
