Tenzo Wall Mount Tub Faucet Thermostatic Rough-In Assembly - R-70

Tenzo Wall Mount Tub Faucet Thermostatic Rough-In Assembly - R-70

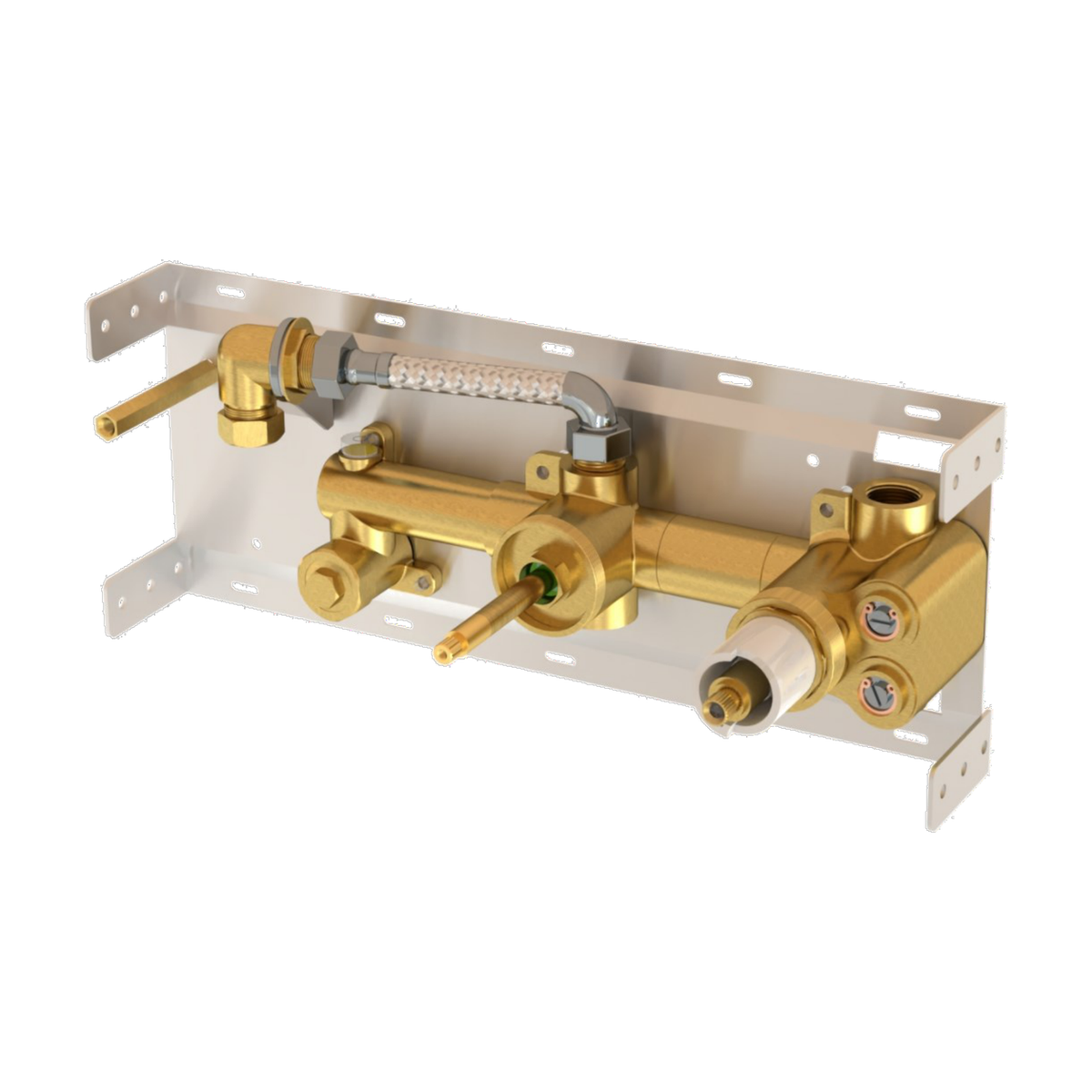

Complete rough-in assembly for Tenzo wall-mount bath faucets, supplied on its mounting bracket with the thermostatic and diverter cartridges already fitted. Installed in the wall during framing; the finished trim is ordered separately in the finish you want.

Features

• Vernet thermostatic cartridge, made in France (CAR-VNT-T34-01)
• 2-function diverter valve, non-shared zones — one outlet runs at a time (CAR-HA-DV3-33097-01)
• Service valves built in
• Supplied on a pre-assembled mounting bracket

Specifications

• Room: Bathroom
• Product Type: Thermostatic Rough-In Assembly
• For: Wall-mount bath faucets
• Functions: 2
• Tub Spout Flow Rate: 30 L/min [7.9 gpm] @ 60 psi
• Installation Type: In-wall
• Rough-In Depth: 3” [76 mm] min to 4⁷⁄₁₆” [113 mm] max from finished wall
• Assembly Size: 14³⁄₁₆” [361 mm] wide × 5⁹⁄₁₆” [142 mm] high
• Finish: Unfinished — concealed behind the wall

Certifications & Warranty

• ASME 112.18.1 / CSA B125.1
• Limited lifetime warranty
