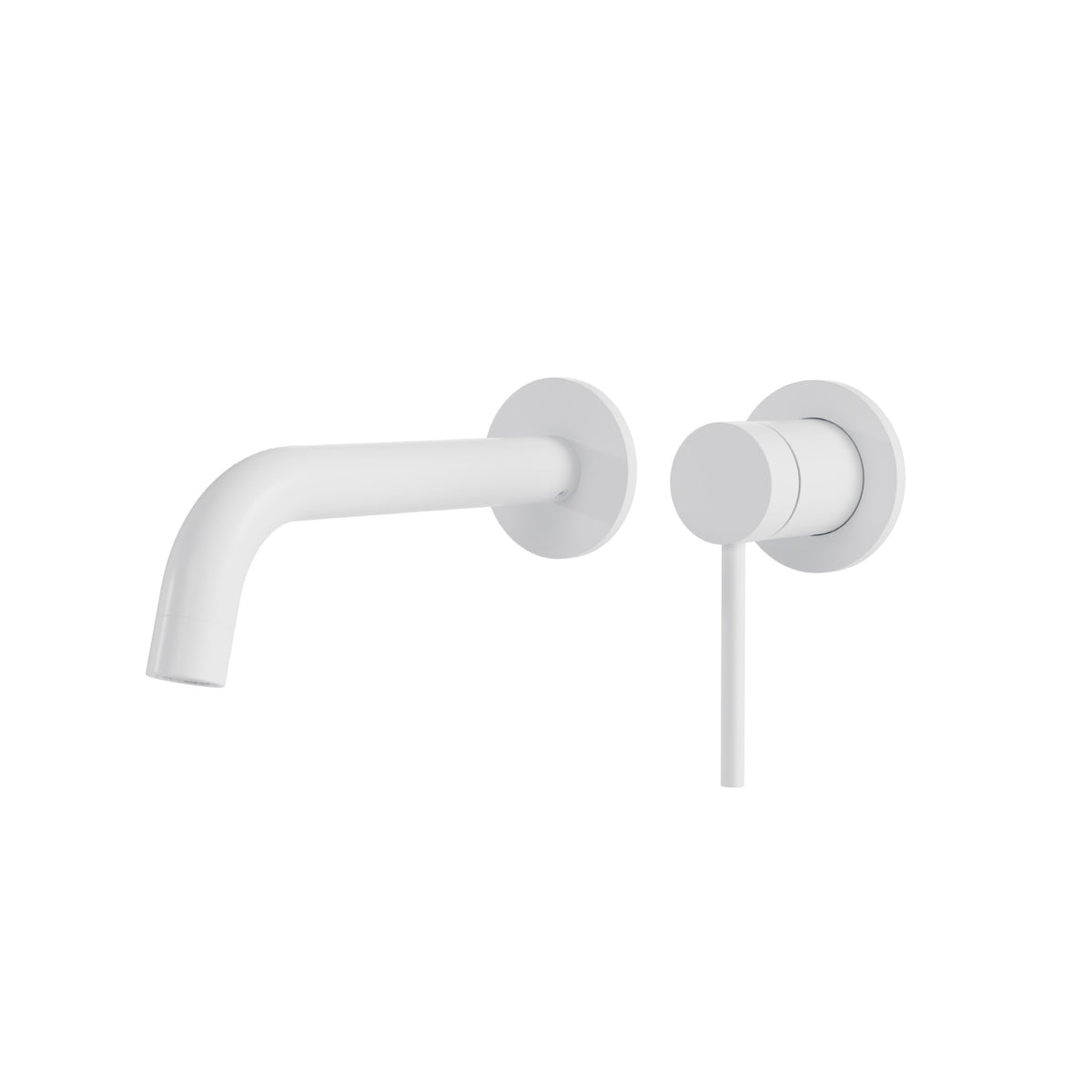

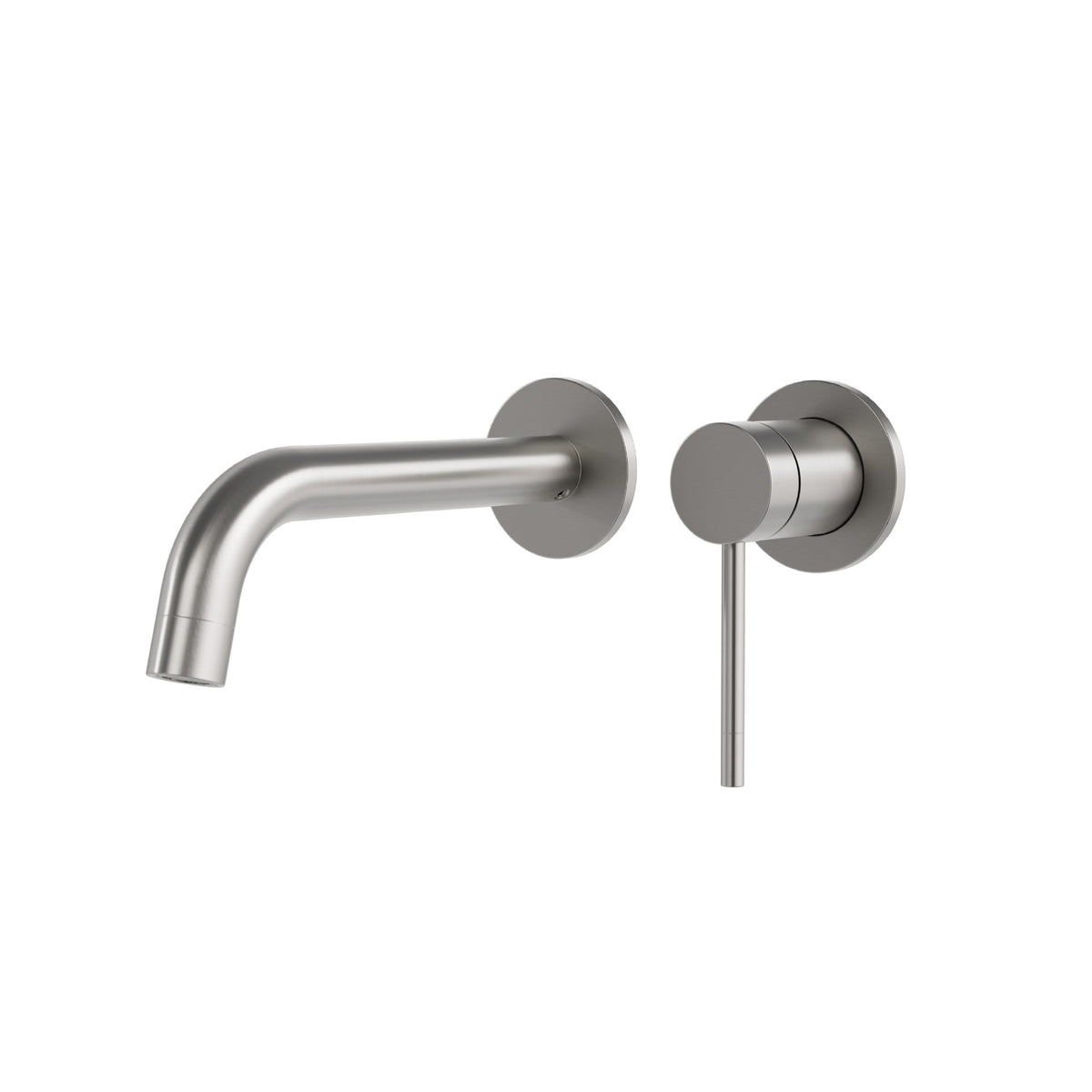

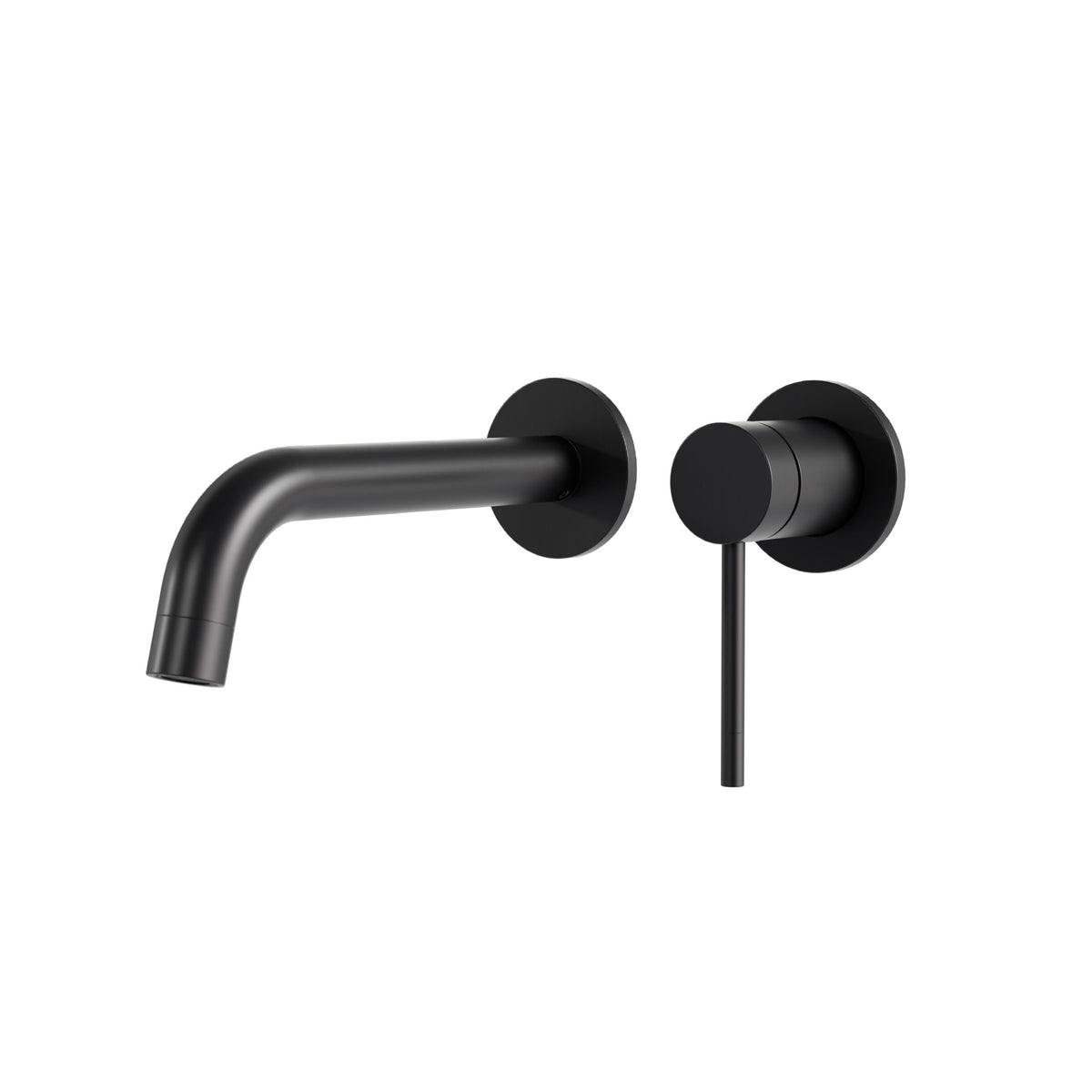

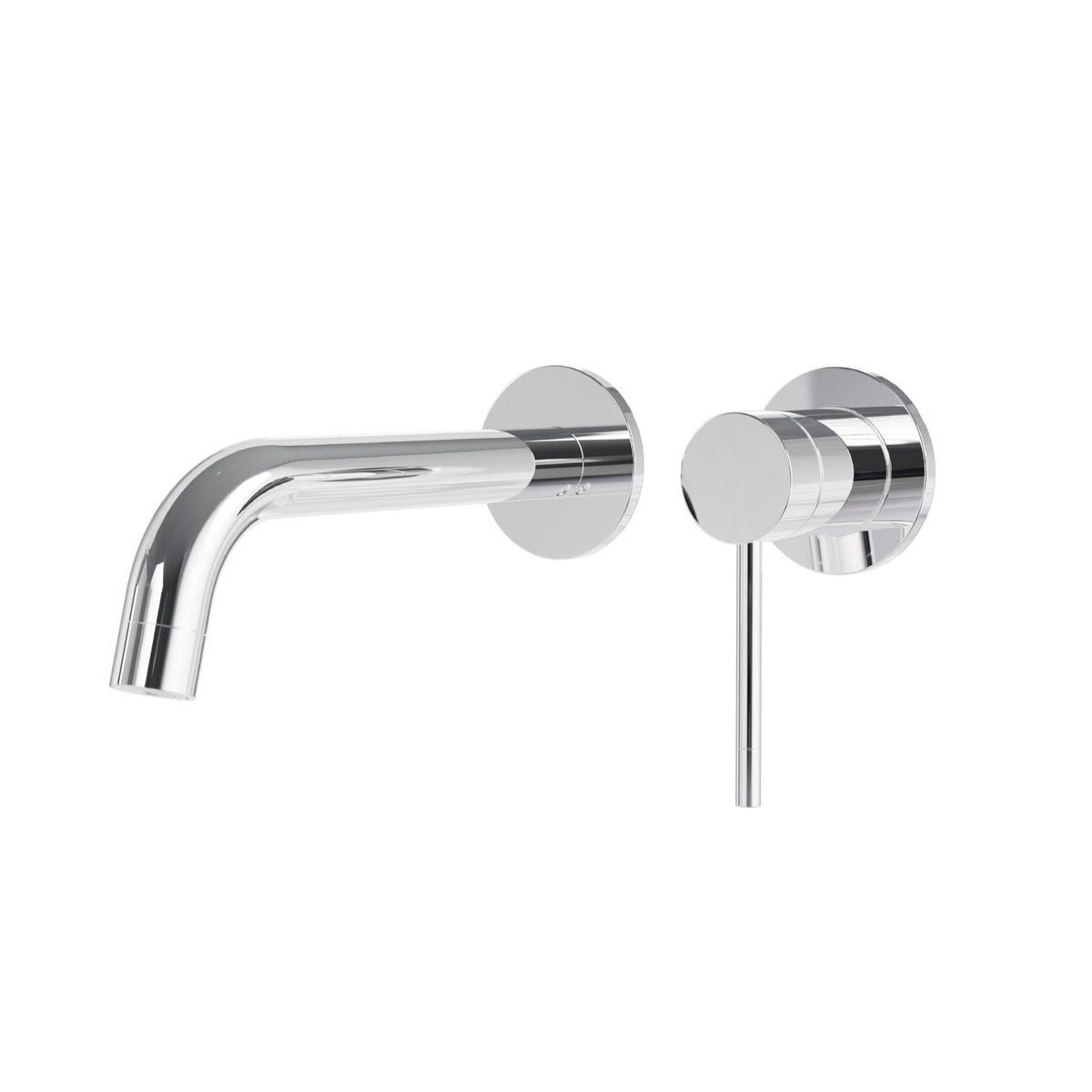

Aquabrass Xpress Umix 2-piece Wallmount Lavatory Faucet - 62329

SKU:ABFC62329PC

Aquabrass Xpress Umix 2-piece Wallmount Lavatory Faucet - 62329

A two-piece wall-mounted lavatory faucet trim with a separate single-lever control. The R2904 rough-in and sink drain are sold separately.

Features

Solid brass construction.
Laminar aerator produces a clear water stream.
Single lever controls water volume and temperature.
Adjustable temperature limit stop.
Drain not included.
R2904 rough-in required and sold separately.
1/2" water connection.
Manufacturer-specified ceramic cartridge: ALT75554500, used with the separately purchased rough-in.
Flow rate: 1.2 gpm (4.5 L/min) at 60 psi.

Aquabrass Xpress Umix 2-piece Wallmount Lavatory Faucet - 62329

A two-piece wall-mounted lavatory faucet trim with a separate single-lever control. The R2904 rough-in and sink drain are sold separately.

Features

Solid brass construction.
Laminar aerator produces a clear water stream.
Single lever controls water volume and temperature.
Adjustable temperature limit stop.
Drain not included.
R2904 rough-in required and sold separately.
1/2" water connection.
Manufacturer-specified ceramic cartridge: ALT75554500, used with the separately purchased rough-in.
Flow rate: 1.2 gpm (4.5 L/min) at 60 psi.
Mounting-hole diameter: 1 3/8".
UMIX components allow colour customization; optional knurled handle base sold separately.

Specifications

Room: Bathroom
Product type: Wall-mounted lavatory faucet trim
Collection: UMIX
Model: 62329
Installation: Wall mount; two holes
Control: Single lever
Material: Solid brass
Flow: 1.2 gpm (4.5 L/min) at 60 psi
Spout-to-control centre spacing: 3 15/16" (100 mm)
Overall spout projection: 7 3/8" (188 mm)
Spout reach shown: 6 3/4" (172 mm)
Spout drop shown: 2 1/8" (53 mm)
Handle assembly height shown: 3 9/16" (91 mm)
Escutcheon diameter: 2 3/8" (60 mm)
Connection: 1/2"
Mounting holes: 1 3/8"; installation guide specifies a maximum opening of 2" (50 mm)
Required rough-in: R2904; installation depth 1 3/4" to 3 1/16" (44–78 mm), per rough-in instructions

Included Components

Tubular lavatory spout with laminar aerator and spout flange.
Lever handle with handle flange.
Spout adaptor shown in the installation guide.

Required for Installation

Purchase one R2904 rough-in (SKU ABGRPR2904) separately. A sink drain is also not included; select a drain appropriate to the sink. The manufacturer does not specify a required drain model.

Optional Accessories

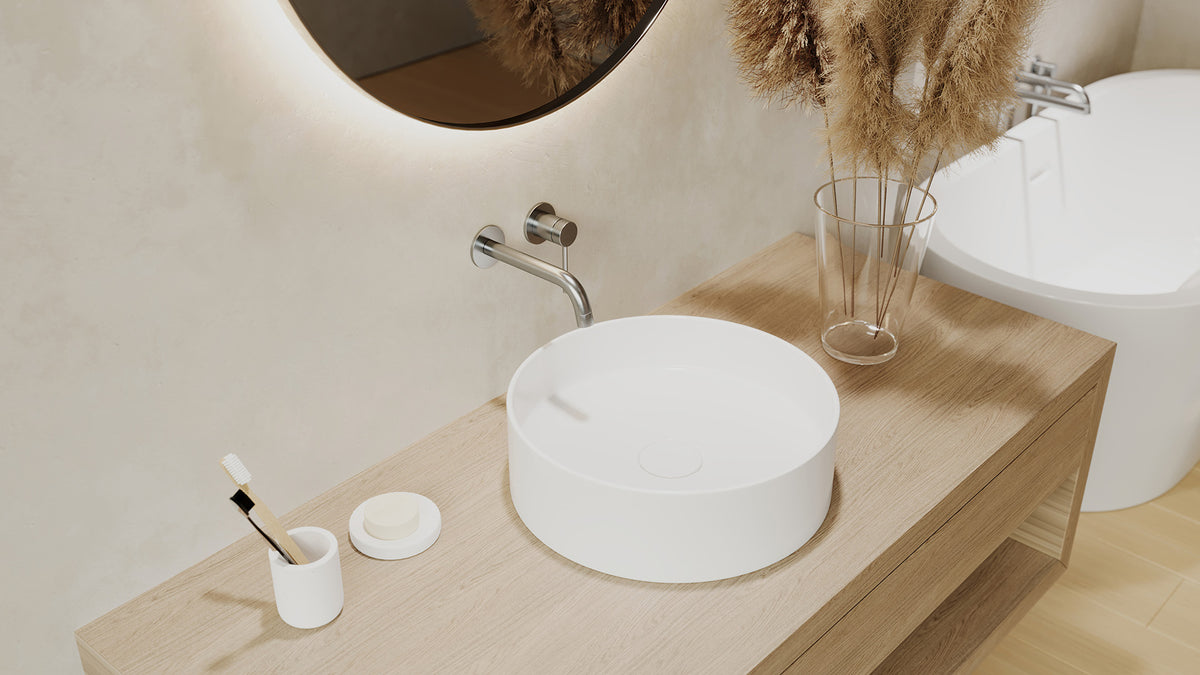

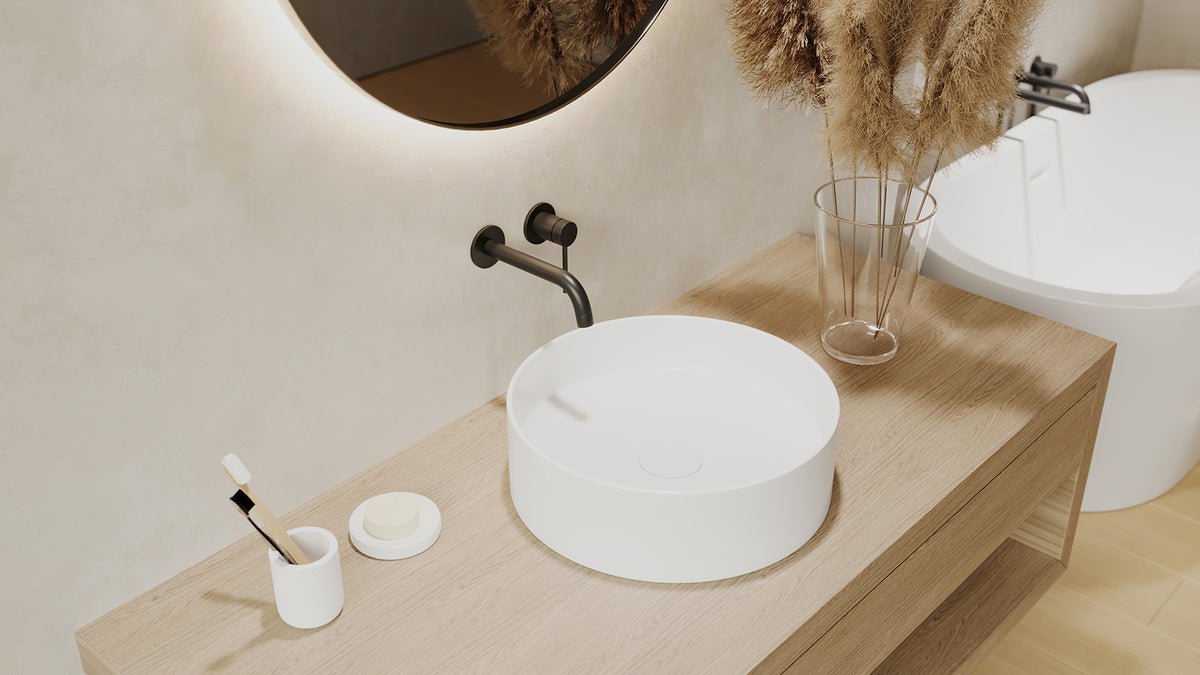

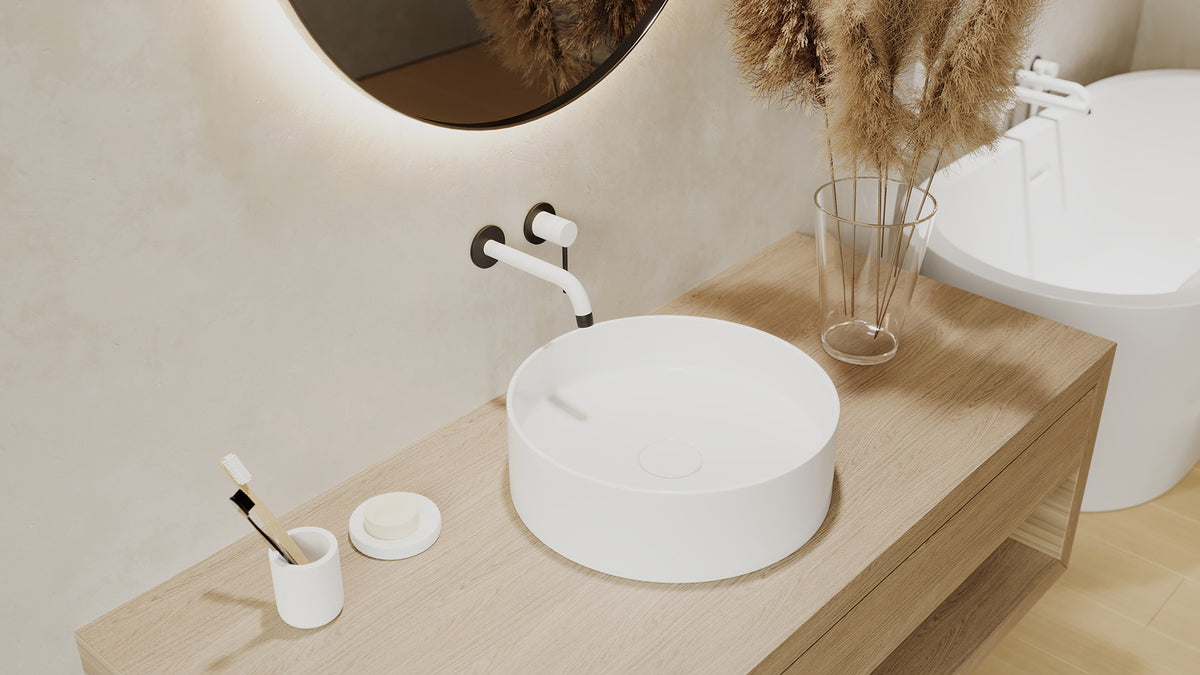

The 62307 UMIX knurled handle base is an optional accessory sold separately. Lifestyle images may show contrasting accents; the listed variants are the five standard single-finish SKUs.
