Tenzo Pro Exposed Thermostatic Shower Kit With Volume Control & KRD-10822 Sliding Bar Kit - TEX109-10822

Tenzo Pro Exposed Thermostatic Shower Kit With Volume Control & KRD-10822 Sliding Bar Kit - TEX109-10822

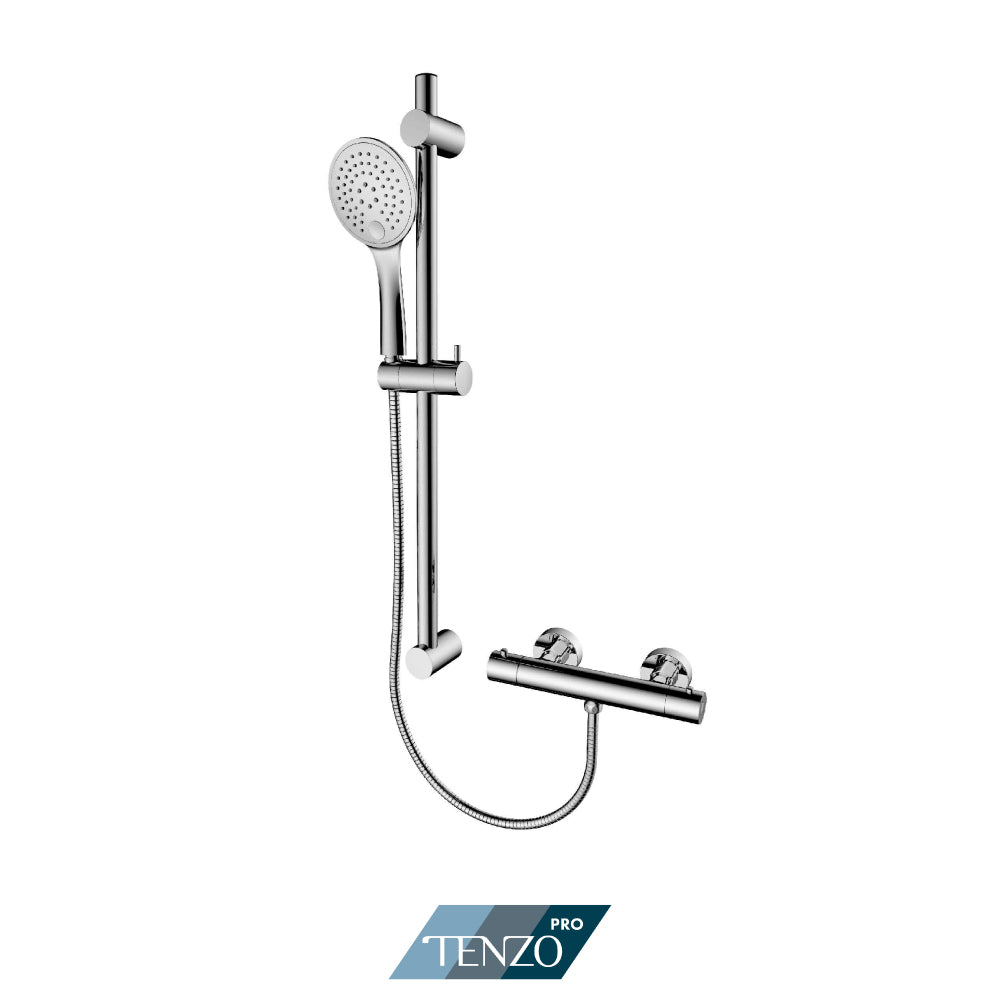

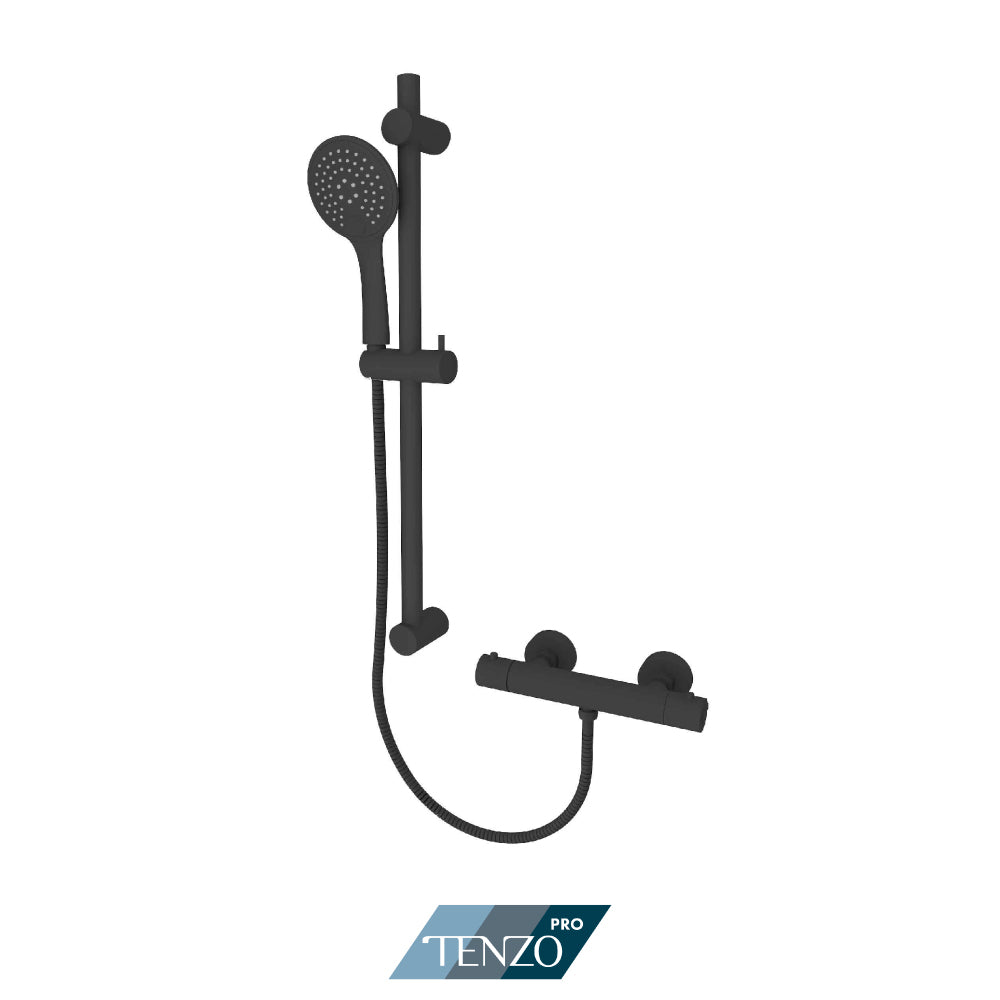

An exposed thermostatic shower, bar and sliding bar kit together, mounted on the finished wall.

What's included

• Exposed thermostatic shower bar with volume control (TEX-109-XX)
• Sliding bar kit with hand shower and hose (KRD-10822-XX)

Features

• Mounts on the finished wall, so no rough-in goes behind the tile.
• Thermostatic valve holds the set temperature as other outlets draw.
• Separate volume control, on and off.
• Sliding bar kit (KRD-10822) sets the hand shower to any height.
• Flow 25 L/min [6.0 gpm] at 60 psi.
• Solid brass.
• 2 finishes.

Specifications

• Room: Bathroom
• Product Type: Exposed Thermostatic Shower Kit
• Line: Tenzo Pro
• Style: Modern
• Mounting Location: Wall, exposed
• Valve Type: Thermostatic
• Sliding Bar Kit: KRD-10822
• Hand Shower: On a sliding bar
• Flow Rate: 25 L/min [6.0 gpm] @ 60 psi
• Connection: 1/2" female x 3/4" male
• Thermostatic Cartridge: CAR-GUO-T12-01
• Volume Cartridge: CAR-CT-SO-8C-01
• Material: Solid brass

Good to know

• Everything mounts on the finished wall, so this suits a retrofit where opening the wall is not an option.
• TEX-109 is the bar on its own, without the sliding bar kit.
• The two kit codes differ only in the sliding bar set: this one carries KRD-10822, the other KRD-13522.
• Tenzo serves the same spec sheet for the bar and both kits; it covers the valve, not the kit contents.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
