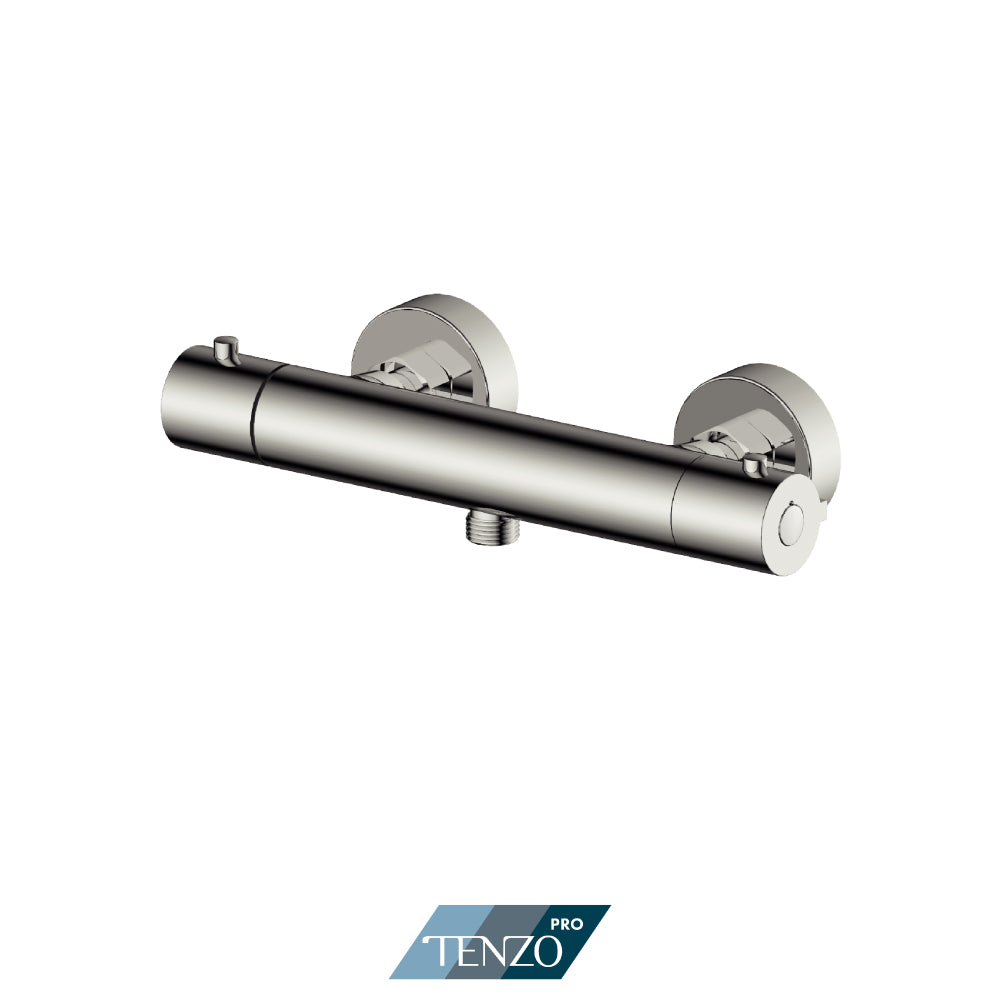

Tenzo Pro Exposed Thermostatic Shower Bar With Volume Control - TEX-109

Tenzo Pro Exposed Thermostatic Shower Bar With Volume Control - TEX-109

An exposed thermostatic shower bar that mounts on the finished wall, with separate temperature and volume controls.

What's included

• Exposed thermostatic shower bar with volume control (TEX-109-XX), with its two wall escutcheons

Features

• Mounts on the finished wall, so no rough-in goes behind the tile.
• Thermostatic valve holds the set temperature as other outlets draw.
• Separate volume control, on and off.
• Outlet faces down from the centre of the bar.
• Flow 25 L/min [6.0 gpm] at 60 psi.
• Solid brass.

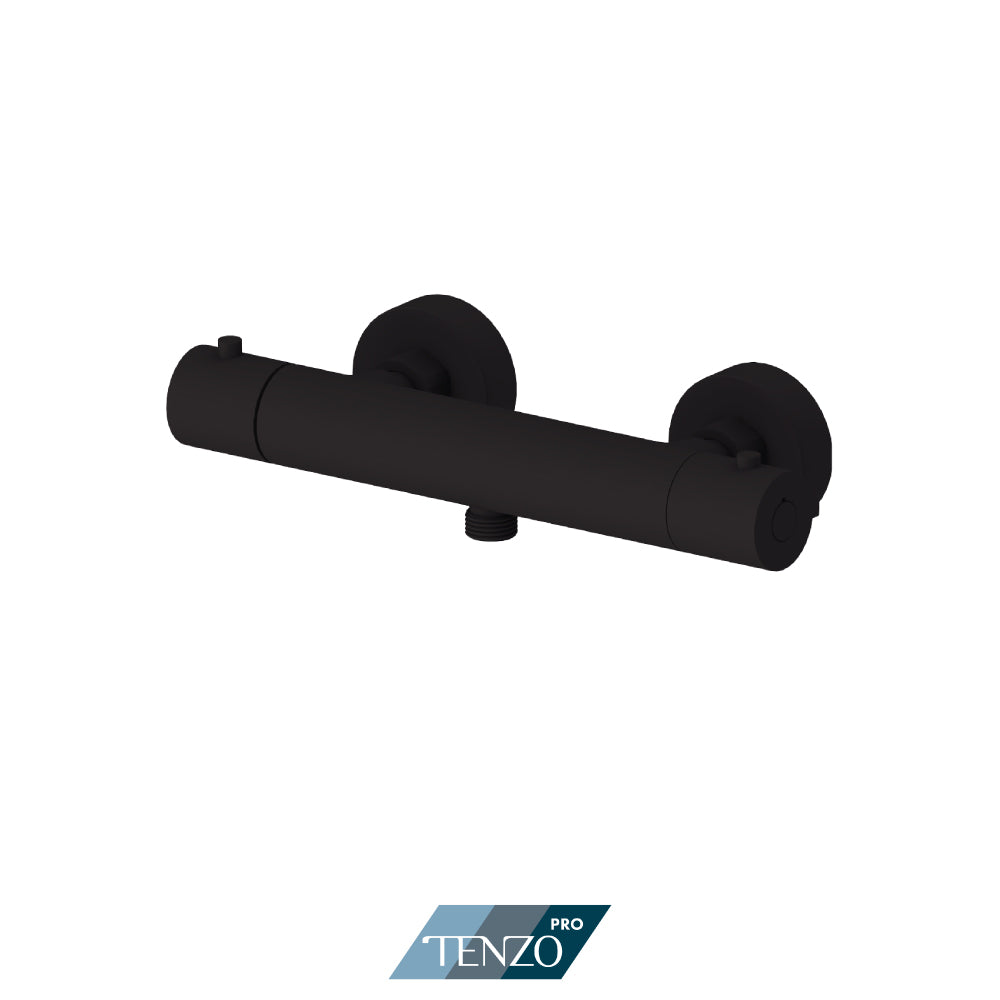

• 2 finishes.

Specifications

• Room: Bathroom
• Product Type: Exposed Thermostatic Shower Bar
• Line: Tenzo Pro
• Style: Modern
• Mounting Location: Wall, exposed
• Valve Type: Thermostatic
• Flow Rate: 25 L/min [6.0 gpm] @ 60 psi
• Connection: 1/2" female x 3/4" male
• Thermostatic Cartridge: CAR-GUO-T12-01
• Volume Cartridge: CAR-CT-SO-8C-01
• Material: Solid brass

Good to know

• Supplied as the bar only. No shower head, hand shower or sliding bar kit is included.
• Everything mounts on the finished wall, so this suits a retrofit where opening the wall is not an option.
• TEX109-10822 and TEX109-13522 are the same bar supplied with a sliding bar kit.
• Tenzo serves the same spec sheet for the bar and both kits; it covers the valve, not the kit contents.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
