Tenzo Pro 2-Function Rotary Pressure Balance Shower Rough-In Valve - R-PB22R

Tenzo Pro 2-Function Rotary Pressure Balance Shower Rough-In Valve - R-PB22R

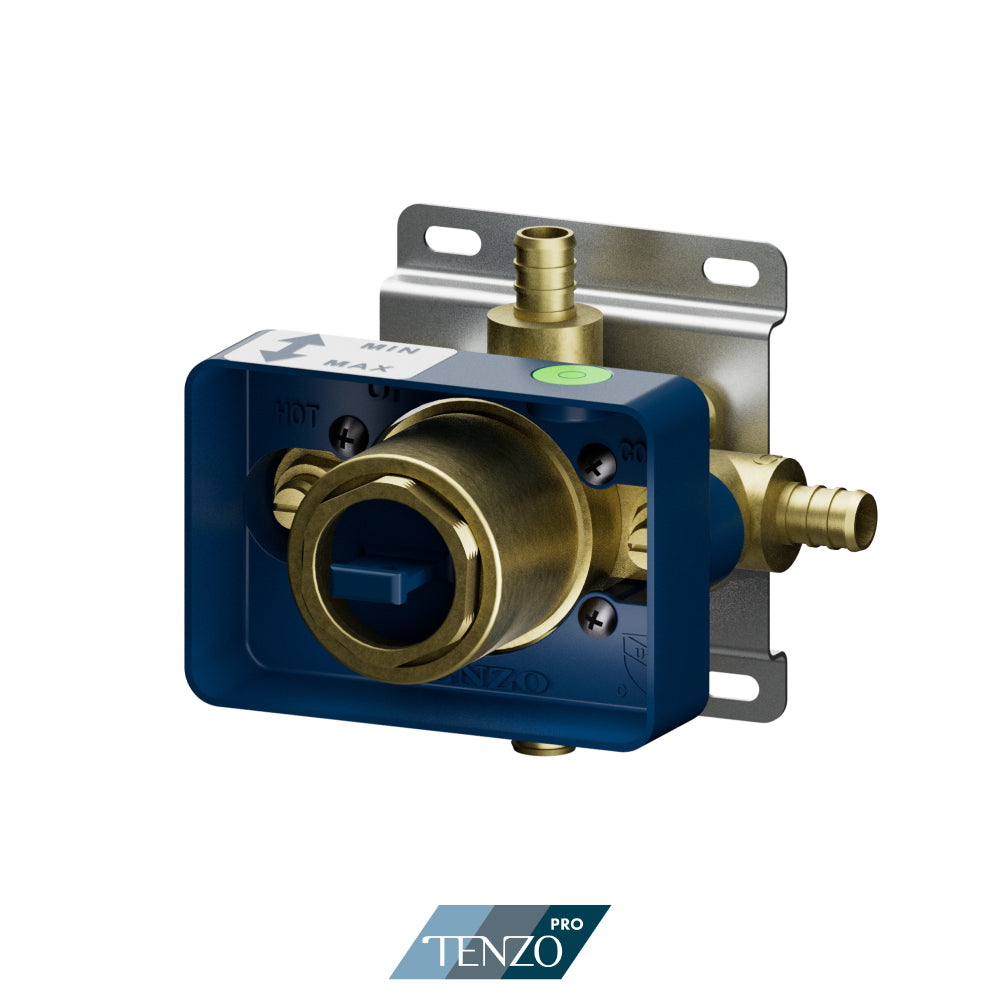

The rough-in body for a Tenzo Pro two-function rotary pressure balance shower valve, available with three supply connections.

Choosing a connection

• PEX (R-PB22R-P) — 1/2" PEX crimp connections
• NPT (R-PB22R-N) — 1/2" male NPT threads, solderable directly to copper
• Expansion PEX (R-PB22R-W) — 1/2" expansion PEX connections

Features

• Pressure balanced valve, two individual functions, not shared.
• Rotary control, so both functions sit on one turning handle at the trim.
• Integrated service valve with non-return valves.
• Test cap included, so the rough can be pressure-tested before the wall is closed.
• 25 mm [1"] minimum to maximum depth adjustment.
• Body measures 81 x 94 mm, set 53 mm to 78 mm behind the finished wall.

Specifications

• Room: Bathroom
• Product Type: Pressure Balance Rough-In Valve
• System: SMART-TRIM (Tenzo Pro)
• Functions: 2, rotary, not shared
• Flow Rate: 22 L/min [4.8 gpm] @ 60 psi
• Connection Size: 1/2"
• Depth Adjustment: 25 mm [1"]
• Installation Type: In-wall
• Includes: Integrated service valve with non-return valves and test cap
• Pressure Balance Cartridge: CAR-HY-PB-RO40-01, supplied with the trim
• Finish: Unfinished, concealed behind the wall

Good to know

• The cartridge is not in the rough. It is supplied with the trim, so the valve body can go in the wall before the finish is chosen.
• The matching trims are the Tenzo Pro SMART-TRIM two-function rotary trims, such as F-GAPB22R and F-KAPB22R.
• Its cartridge, CAR-HY-PB-RO40-01, is a pressure balanced cartridge with an integrated two-function diverter.
• Pressure balanced, so it holds the set temperature against pressure changes elsewhere in the house.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
