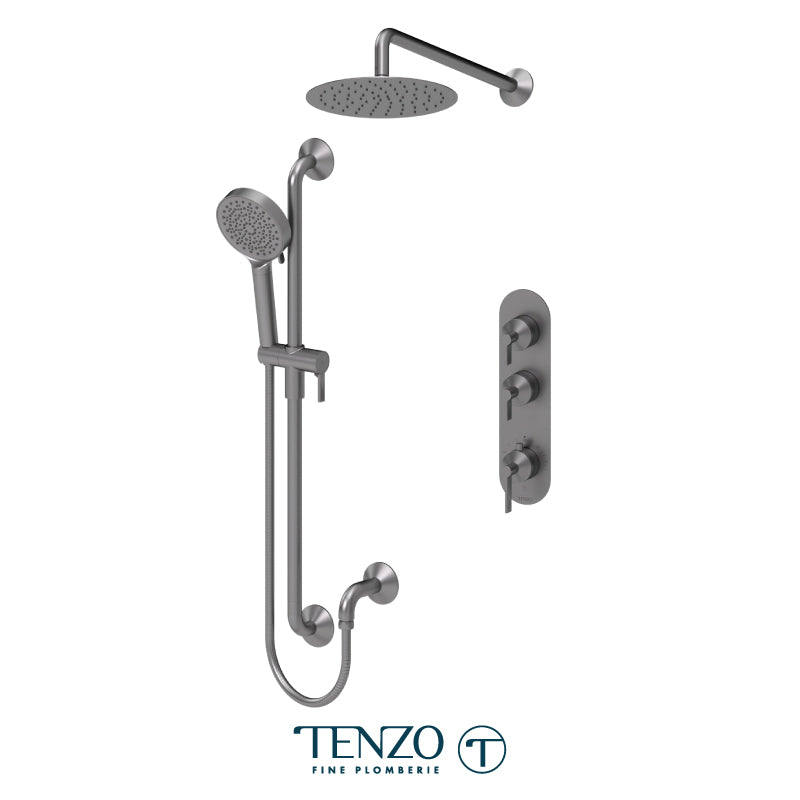

Tenzo Paloma Extenza 2-Function Thermostatic Shower Kit, 10" AirBoost Rain Head, Wall Arm & Sliding Bar Kit - PALT42-20111

Tenzo Paloma Extenza 2-Function Thermostatic Shower Kit, 10" AirBoost Rain Head, Wall Arm & Sliding Bar Kit - PALT42-20111

The complete Paloma PALT42-20111 shower, the Extenza high-flow rough-in valve and every finished part in one order.

What's included

• Extenza thermostatic rough-in valve, 2 functions (R-42)
• Paloma Extenza valve trim, 2 functions, thermostatic (F-PALT42-XX): escutcheon plate and 3 handles
• AirBoost rain shower head, round, 25 cm [10"], 2 mm stainless steel (SSTS-10-R-XX)
• Wall mount shower arm, 40 cm [16"] (SA-614-XX)
• Sliding bar kit with wall elbow (KRD-3143014-XX): sliding bar, 3-function hand shower, wall supply elbow and a 150 cm [59"] stretchable hose

Features

• Complete shower, rough-in valve and finished trim together.
• Thermostatic cartridge holds the set temperature against both pressure and supply temperature changes, and shuts off if the cold supply fails.
• Vernet thermostatic cartridge, made in France.
• High-flow 3/4" valve at 45 L/min [12 gpm], enough to run several outlets at once.
• Sliding bar kit is supplied complete with its wall supply elbow and hose.
• Solid brass trim, stainless steel rain head.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Complete Shower Kit
• Collection: Paloma
• Style: Modern
• System: Extenza
• Valve Type: Thermostatic high-flow, 3/4"
• Functions: 2
• Handles: 3 (one thermostatic, 2 shut-off)
• Rough-In Valve: R-42, 2 functions
• Rain Head: 25 cm [10"] round, AirBoost, stainless steel
• Shower Head Installation: Wall arm, 40 cm [16"]
• Hand Shower: 3-function, on a sliding bar
• Hose: 150 cm [59"] stretchable
• Valve Flow: 45 L/min [12 gpm] @ 60 psi
• Supply Connection: 3/4" NPT female (on the rough-in)
• Thermostatic Cartridge: CAR-VNT-T34-07 (Vernet)
• Shut-Off Cartridge: CAR-HA-SO34-108-01
• Supplied As: Complete, rough-in included
• Material: Solid brass

Good to know

• Everything needed for the finished shower, including the valve body that goes in the wall.
• The Extenza rough carries its own service check and stop valves and an additional direct 3/4" port on top.
• Extenza is the high-flow system. The T-Box valves in the same collection run 25 to 30 L/min; this one runs 45 L/min [12 gpm], which is what lets it feed a rain head, a hand shower and body jets together.
• Where the rough is already set in the wall, F-PALT42-20111 is the same kit as trim only.
• The spec sheet also lists a ceiling arm, SA-709-06. That is an alternative to the wall arm, not a second arm, and this kit ships with the wall arm.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
