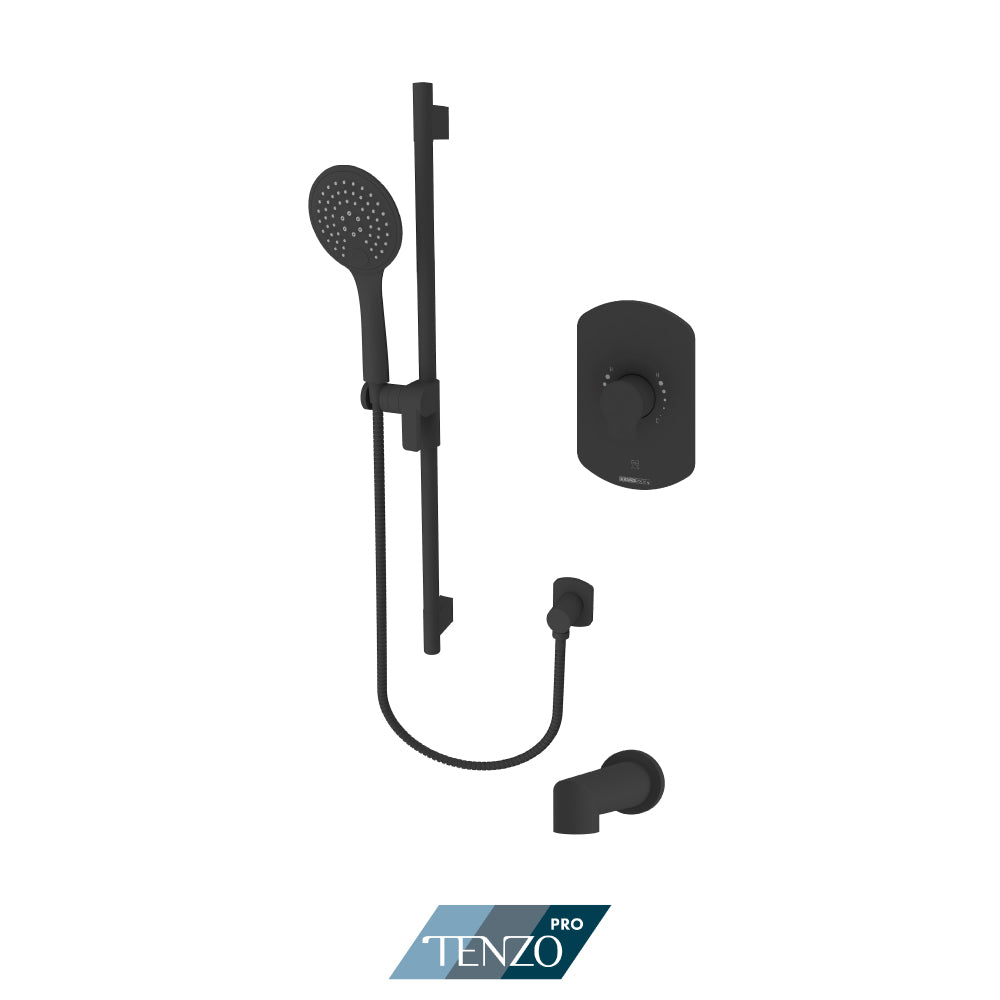

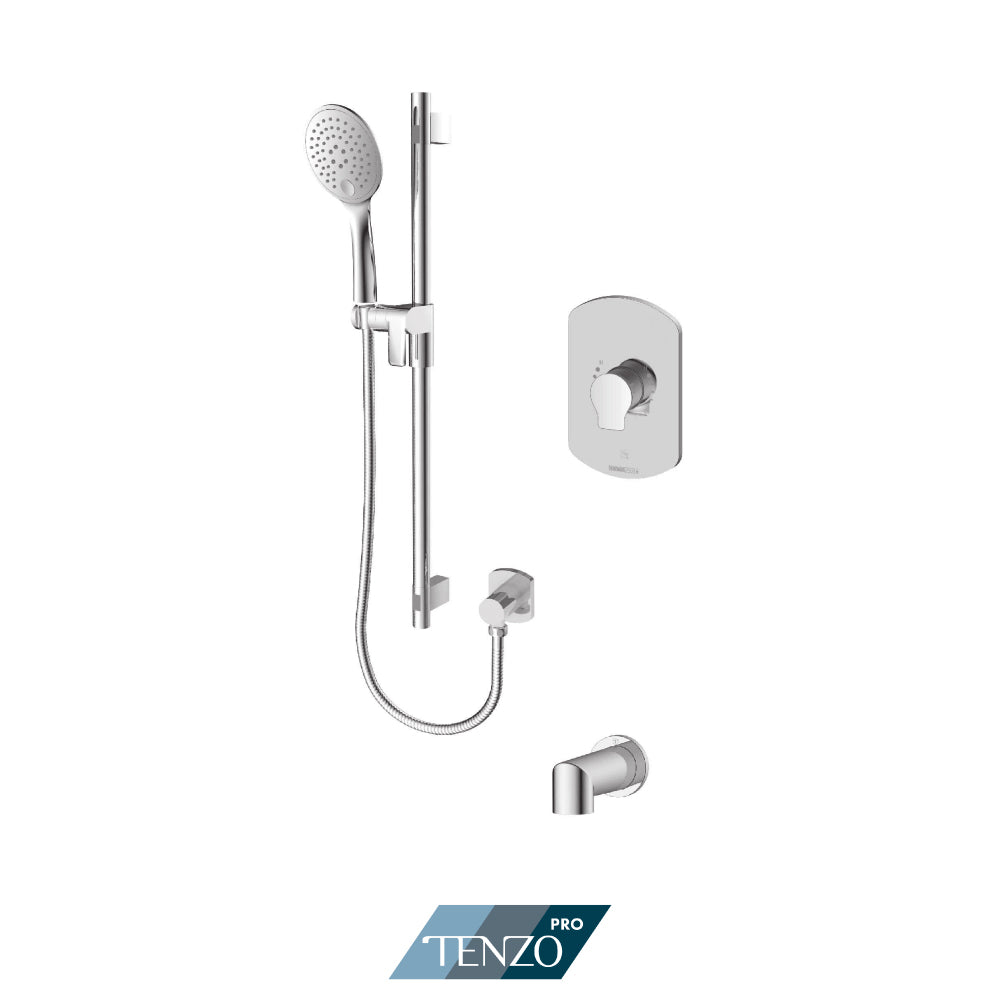

Every visible part of the Tenzo Pro Galia GAPB22R-R1102 shower kit, for a wall where the rough-in valve is already in place.

What's included

• Galia SMART-TRIM valve trim (F-GAPB22R-XX): escutcheon plate, handle and cartridge
• Sliding bar kit with wall elbow (KRD-1352210-XX): sliding bar, 3-function round hand shower, wall supply elbow and hose
• Wall mount tub spout, solid brass (BS-403-XX)

Not included

• Tenzo Pro rough-in valve body (R-PB22R)

Features

• Trim only, every visible above-surface part, finished to match.
• Pressure-balanced cartridge holds the set temperature as other outlets draw.
• SMART-TRIM is the Tenzo Pro trim platform: one rough-in body in the wall, and the plate, handle and cartridge supplied together in the trim.
• Sliding bar kit is supplied complete with its wall supply elbow and hose.
• Solid brass.
• 2 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower and Bath Kit Trim
• Collection: Galia (Tenzo Pro)
• Style: Modern
• System: SMART-TRIM
• Valve Type: Pressure Balance
• Functions: 2
• Hand Shower: 3-function round, on a sliding bar
• Tub Spout: Wall mount, solid brass
• Valve Flow: 22 L/min [4.8 gpm] @ 60 psi
• Pressure Balance Cartridge: CAR-HY-PB-RO40-01
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the rough, this is GAPB22R-R1102.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The matching Tenzo Pro rough is R-PB22R, the 2-function rotary, not shared body, available with PEX, NPT or expansion PEX connections.
• The cartridge ships with the trim, not in the rough, so the valve body can go in the wall before the finish is chosen.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
