Tenzo Galia Freestanding Tub Filler Trim With Hand Shower - F-GA52

Tenzo Galia Freestanding Tub Filler Trim With Hand Shower - F-GA52

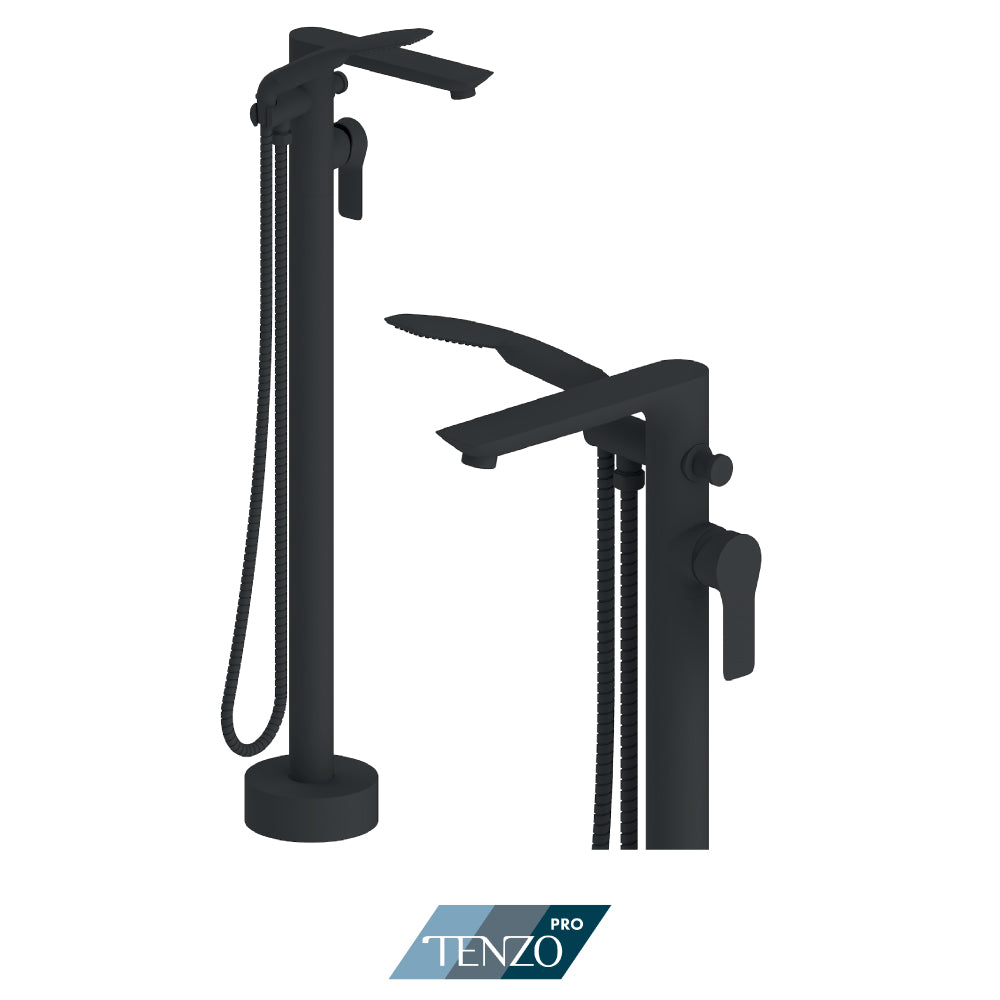

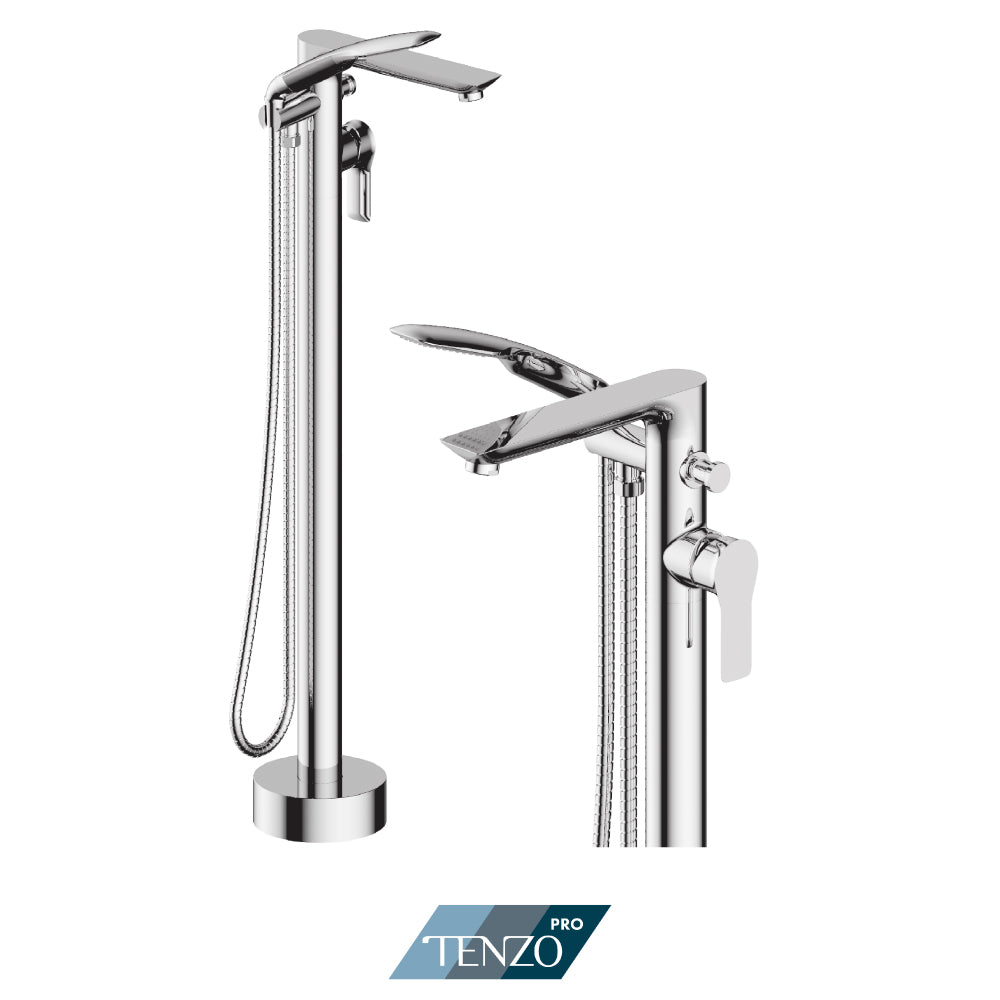

The finished Galia freestanding tub filler, for a floor where the freestanding rough-in is already set.

What's included

• Freestanding tub filler column, solid brass (F-GA52-XX)
• Hand shower, 1 function (HS-223-XX)
• Shower hose, 150 cm [59"] (SSH-150-XX)

Not included

• Freestanding tub filler floor rough-in (R-51-P)

Features

• Trim only, every visible above-floor part, finished to match.
• Single lever sets temperature and volume.
• Diverter sends water to the hand shower.
• Spout runs 28 L/min [7.4 gpm] at 60 psi.
• Stands 921 mm [36-1/4"] tall on a round 150 mm [5-7/8"] base.
• Solid brass.
• 2 finishes.

Specifications

• Room: Bathroom
• Product Type: Freestanding Tub Filler Trim
• Collection: Galia (Tenzo Pro)
• Style: Modern
• Hole Configuration: 1
• Handles: Single lever
• Mounting Location: Floor
• Installation Type: Freestanding
• Overall Height: 921 mm [36-1/4"]
• Spout Height: 850 mm [33-7/16"]
• Spout Reach: 314 mm [12-3/8"]
• Base Diameter: 150 mm [5-7/8"]
• Spout Flow Rate: 28 L/min [7.4 gpm] @ 60 psi
• Hand Shower: HS-223, 1 function
• Hose Length: 150 cm [59"]
• Cartridge: CAR-HY-SL40-01
• Supply Connection: 1/2" PEX (on the rough-in)
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The floor rough-in is not included. Ordered complete with the rough, this is GA52.
• Order this version only where the rough is already set in the floor and the finish is being changed or completed.
• The freestanding rough is R-51-P, which has integrated ball valves and an adjustable temperature limiter.
• Tenzo is moving to a new generation of freestanding rough-in, so confirm which rough is in the floor before ordering this trim.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
