Tenzo Evolo 3-Function Pressure Balance Shower Column, Tempered Glass - ETZG-53

Tenzo Evolo 3-Function Pressure Balance Shower Column, Tempered Glass - ETZG-53

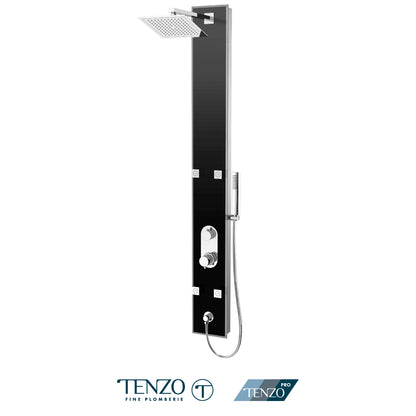

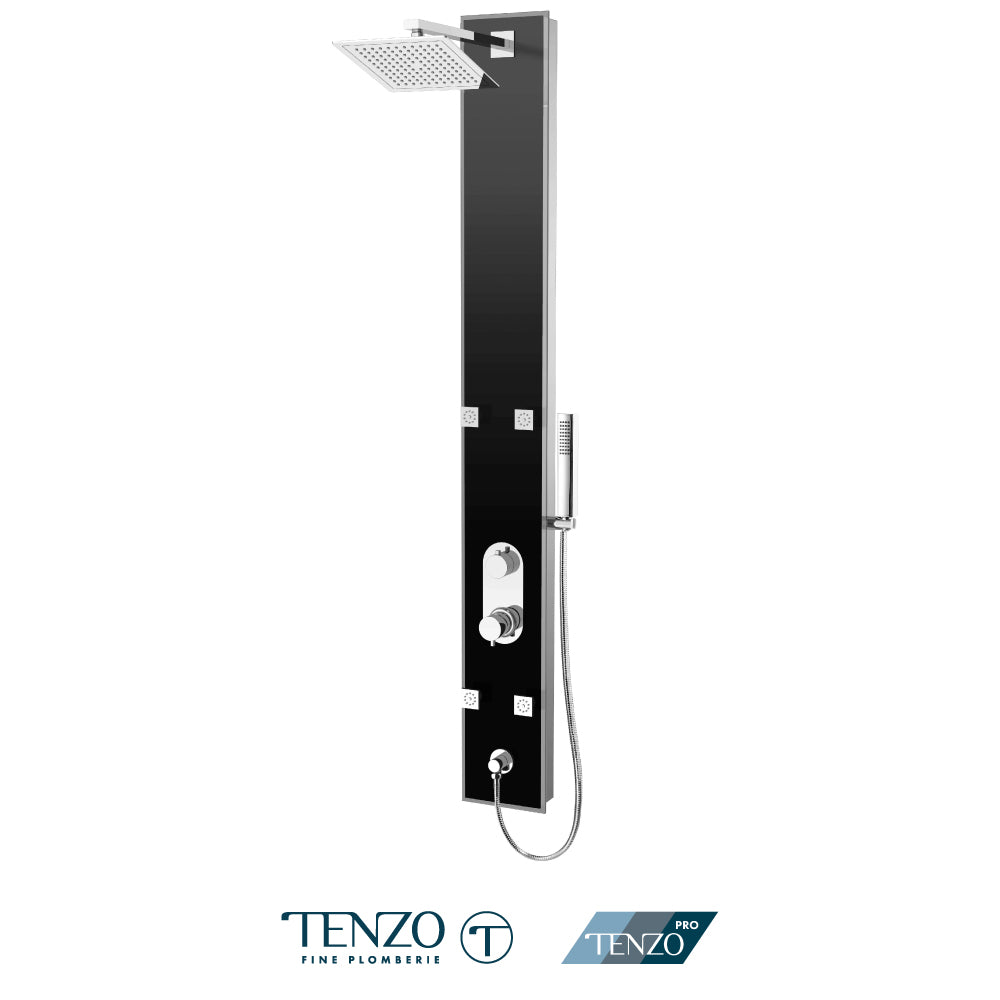

A one-piece tempered glass shower column from the Evolo range, carrying the pressure balance valve, the rain head, 4 body jets and a hand shower.

What's included

• Pressure balance valve with a 3-function diverter, built into the column
• Rain shower head (PVTS-09-S)
• 4 anti-scale brass body jets
• Anti-scale hand shower (HS-210) on a support bracket (HSH-103-70)
• Shower hose, 150 cm [59"] (SSH-150)
• Wall supply elbow (HC-105)

Features

• A complete shower on one panel — valve, head, body jets and hand shower in a single tempered glass column, fed from one 1/2" supply.
• Pressure balanced valve rated 24 L/min [6.3 gpm] at 60 psi, holding temperature when another fixture draws water.
• 3-function diverter across shared zones.
• Anti-scale silicone nozzles on the head and hand shower wipe clean by hand.
• Braided supply hoses.

Specifications

• Room: Bathroom
• Product Type: Shower Column
• Collection: Evolo
• Style: Modern
• Panel: Tempered Glass
• Valve: Pressure balance
• Functions: 3
• Valve Flow Rate: 24 L/min [6.3 gpm] @ 60 psi
• Shower Head Flow: 9.5 L/min [2.5 gpm] @ 60 psi
• Hand Shower Flow: 9.5 L/min [2.5 gpm] @ 60 psi
• Body Jets: 4, brass, anti-scale — 12.1 L/min [3.2 gpm] @ 60 psi combined
• Hose Length: 150 cm [59"]
• Supply Connection: 1/2" female

Good to know

• ETZG-53/R35 is the same column with a diverter spout at the foot, for filling a tub.
• The outlets share a zone, so the diverter selects which one runs.
• The column mounts on the finished wall and connects to a single 1/2" supply, so no valve has to be set behind the tile.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
