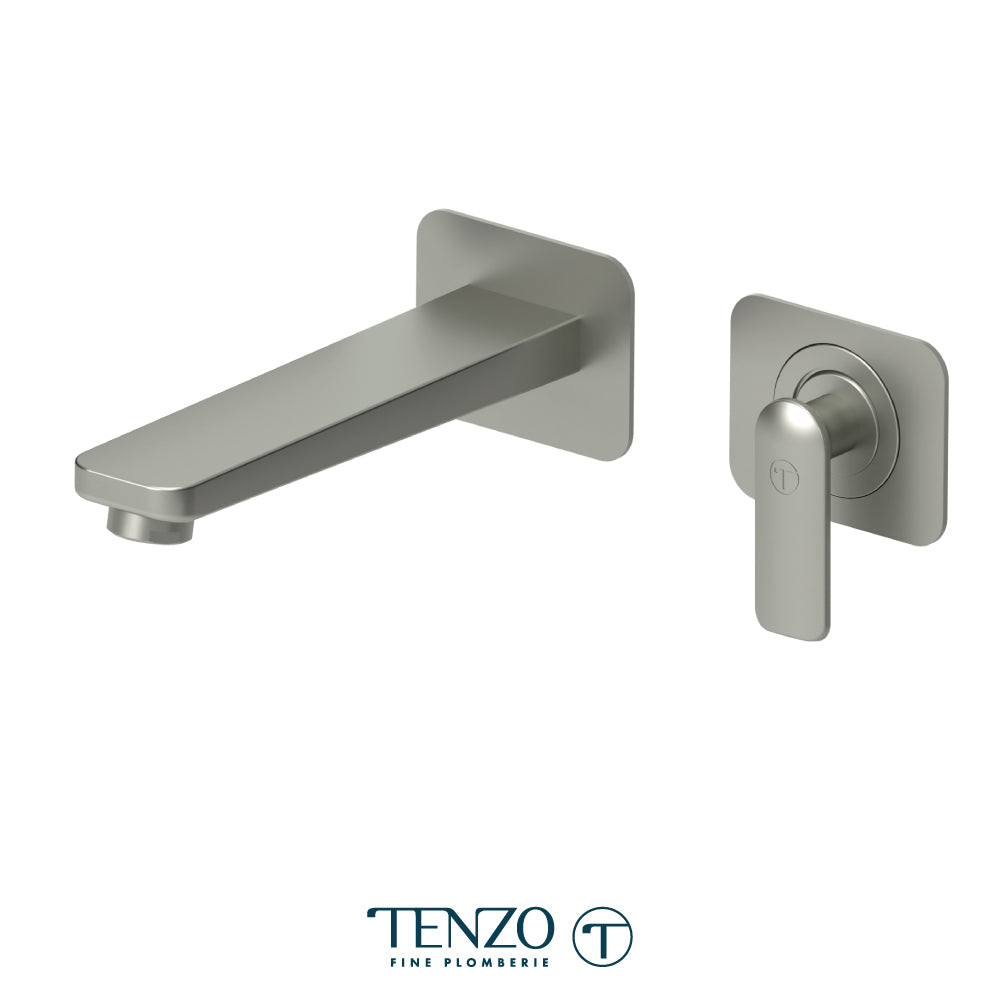

Tenzo Delano Wall Mount Lavatory Faucet Trim Without Drain - F-DE14

SKU:F-DE14-BG

The finished trim for the Delano wall mount lavatory faucet, for a wall where the R-14 rough-in valve is already in place.

What's included

Delano wall mount lavatory faucet trim, solid brass (F-DE14-XX): spout, reversible lever and two separate square escutcheons, 75 x 60 mm, set 110 mm [4-5/16"] apart

Not included

The finished trim for the Delano wall mount lavatory faucet, for a wall where the R-14 rough-in valve is already in place.

What's included

Delano wall mount lavatory faucet trim, solid brass (F-DE14-XX): spout, reversible lever and two separate square escutcheons, 75 x 60 mm, set 110 mm [4-5/16"] apart

Not included

Features

Trim only, every visible above-surface part, finished to match.
Mirror installation: the handle mounts on the left or the right of the spout.
Spout and handle each on their own square escutcheon, 75 x 60 mm, set 110 mm [4-5/16"] apart.
Flat tapered spout projecting 167 mm [6-9/16"] from the finished wall.
Fits a finished wall 46 mm [1-13/16"] to 84 mm [3-5/16"] in front of the valve body.
Ceramic disc cartridge, one lever setting both temperature and volume.
Solid brass.
4 finishes.

Specifications

Good to know

The rough-in valve body is not included. Ordered complete with the R-14 rough, this is DE14.
Order this version only where the rough is already set in the wall and the finish is being changed or completed.
Replacement cartridge is CAR-GN-SL35-01, the 35 mm ceramic mixing cartridge.
No drain is supplied. F-DE14-P adds a pop-up drain with overflow and F-DE14-W one without.
F-DE15 is the same trim on a single rectangular plate.
