Tenzo Delano Wall Mount Lavatory Faucet Trim, Drain without Overflow - F-DE14-W

Tenzo Delano Wall Mount Lavatory Faucet Trim, Drain without Overflow - F-DE14-W

The finished trim for the Delano wall mount lavatory faucet, for a wall where the R-14 rough-in valve is already in place.

What's included

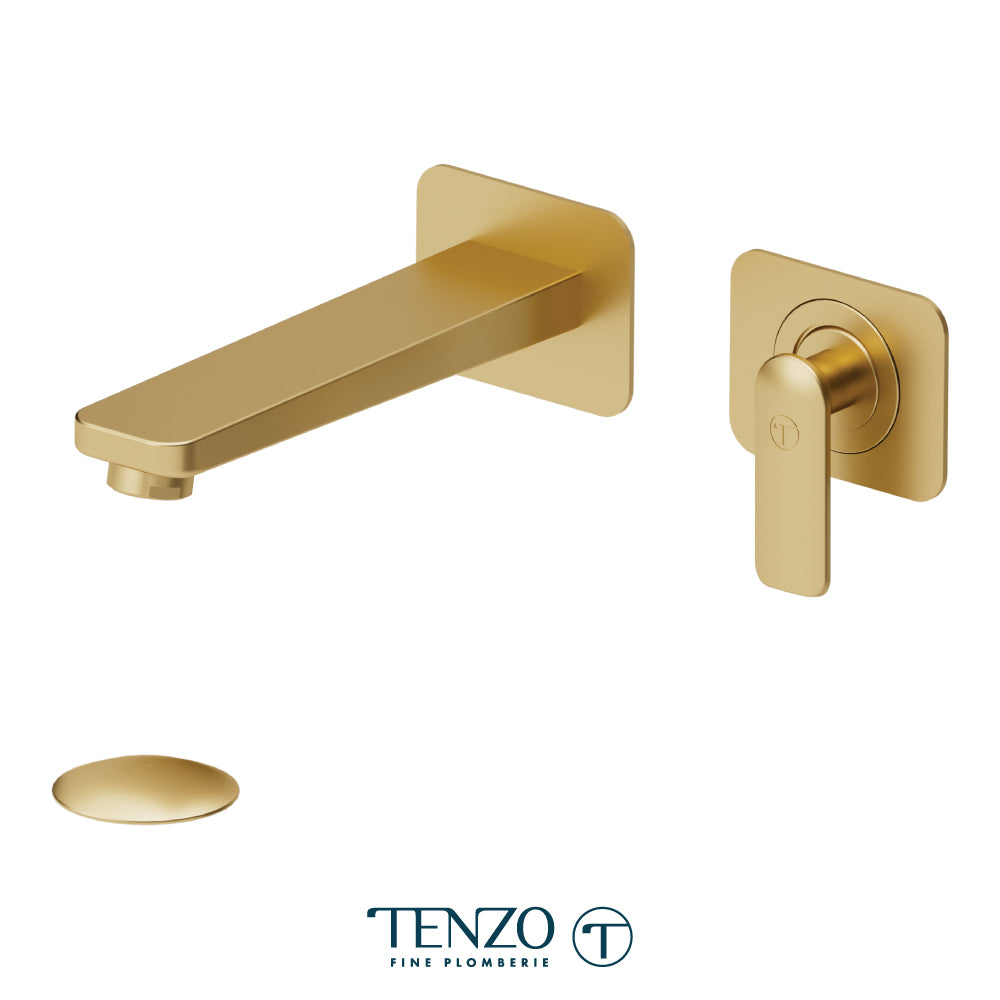

• Delano wall mount lavatory faucet trim, solid brass (F-DE14-W-XX): spout, reversible lever and two separate square escutcheons, 75 x 60 mm, set 110 mm [4-5/16"] apart
• Matching pop-up drain, without overflow, finished to match the faucet

Not included

• R-14 wall mount lavatory faucet rough-in valve body

Features

• Trim only, every visible above-surface part, finished to match.
• Mirror installation: the handle mounts on the left or the right of the spout.
• Spout and handle each on their own square escutcheon, 75 x 60 mm, set 110 mm [4-5/16"] apart.
• Flat tapered spout projecting 167 mm [6-9/16"] from the finished wall.
• Fits a finished wall 46 mm [1-13/16"] to 84 mm [3-5/16"] in front of the valve body.
• Ceramic disc cartridge, one lever setting both temperature and volume.
• Pop-up drain included, without overflow, finished to match the faucet.
• Solid brass.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet Trim
• Collection: Delano
• Style: Modern
• Hole Configuration: 2
• Handles: Single lever, reversible
• Mounting Location: Wall
• Installation Type: Wall Mount
• Escutcheons: Two, 75 x 60 mm
• Centre Spacing: 110 mm [4-5/16"]
• Spout Projection: 167 mm [6-9/16"]
• Wall Depth Range: 46 mm [1-13/16"] to 84 mm [3-5/16"]
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 1/2" female (on the rough-in)
• Cartridge: Ceramic
• Drain: Pop-up, without overflow
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in valve body is not included. Ordered complete with the R-14 rough, this is DE14-W.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• Replacement cartridge is CAR-GN-SL35-01, the 35 mm ceramic mixing cartridge.
• This is the version for a basin with no overflow. F-DE14-P is the same trim with the other drain, and F-DE14 is the trim on its own.
• F-DE15-W is the same trim on a single rectangular plate.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
