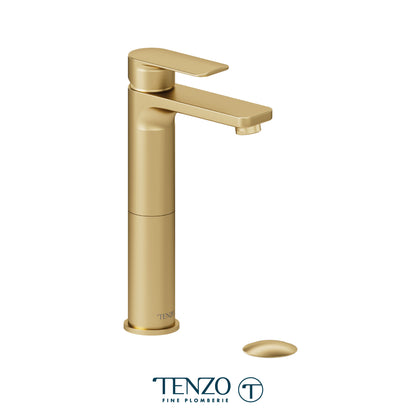

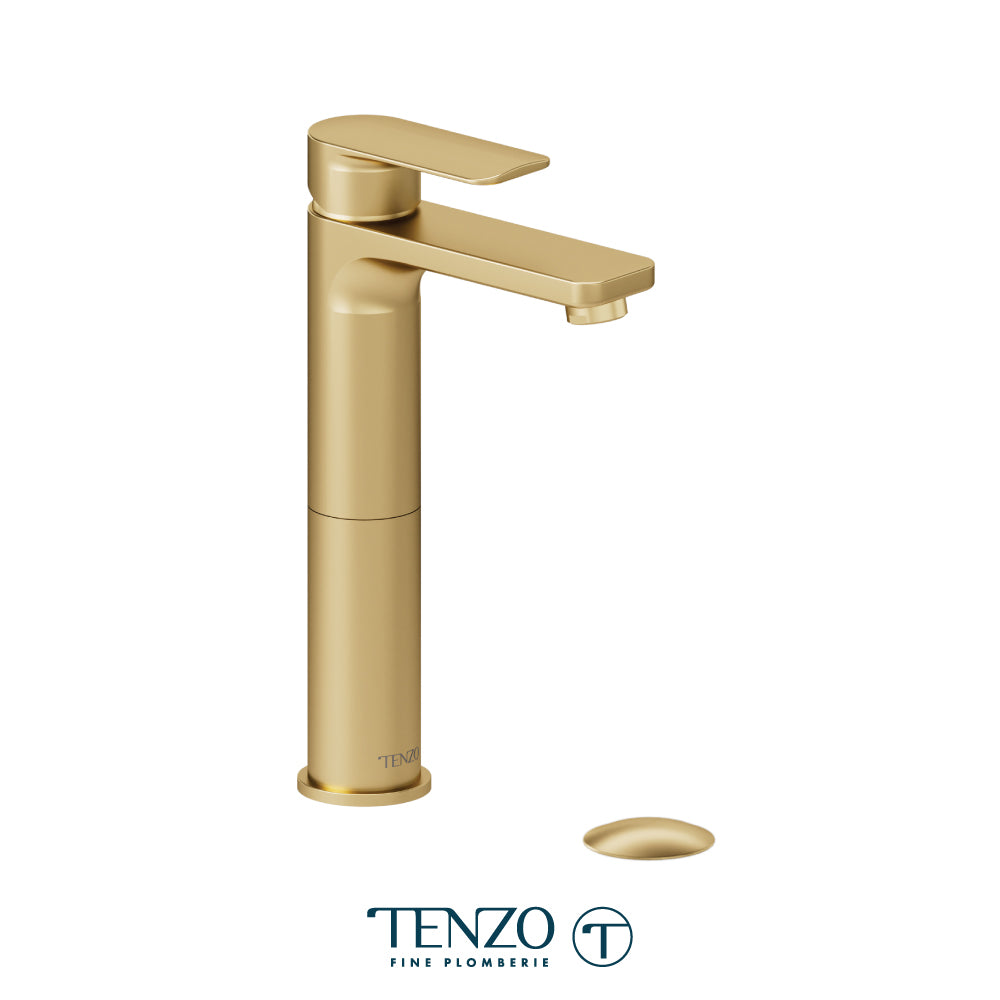

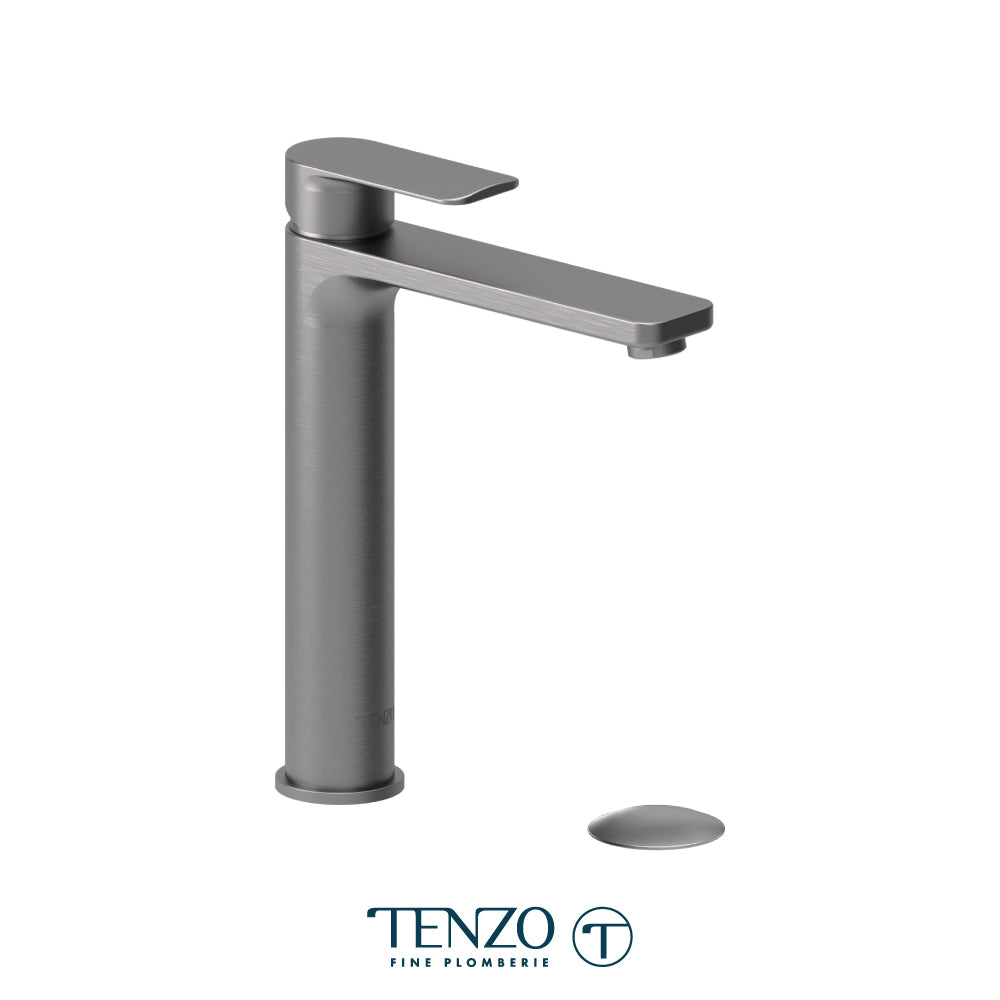

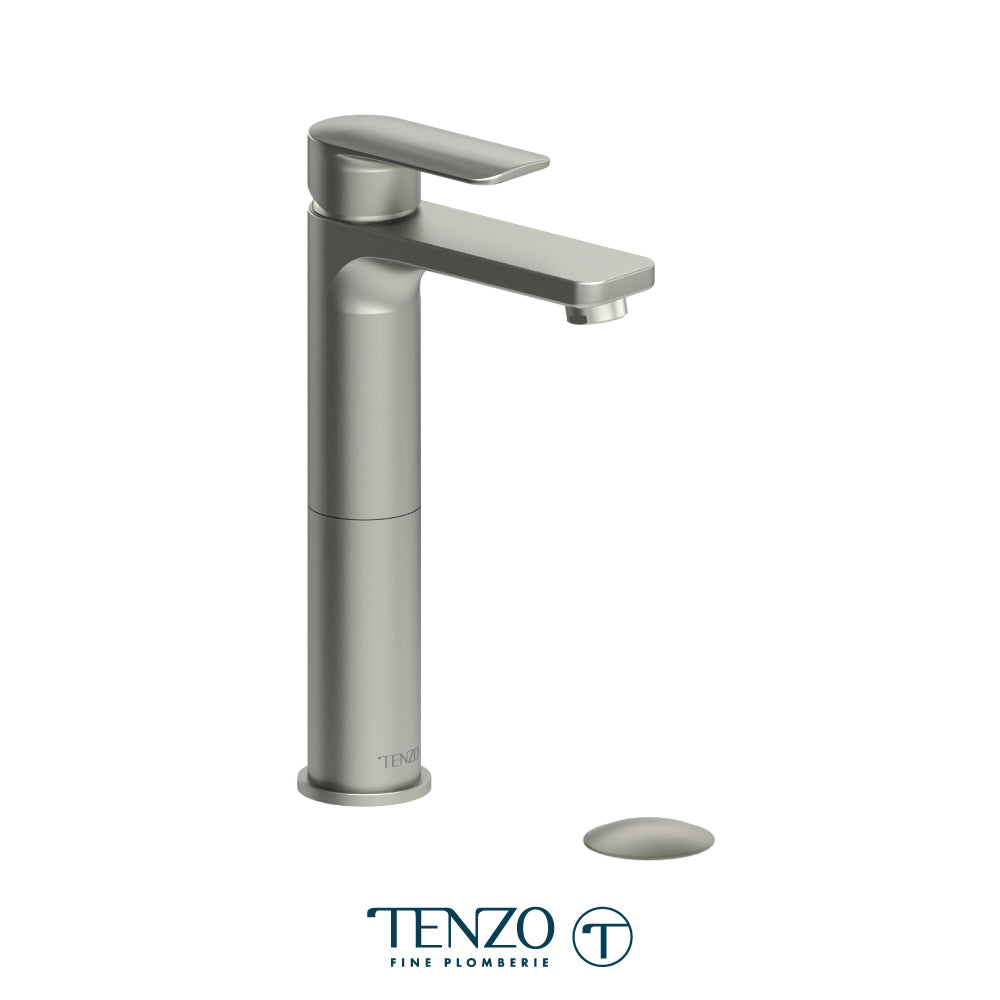

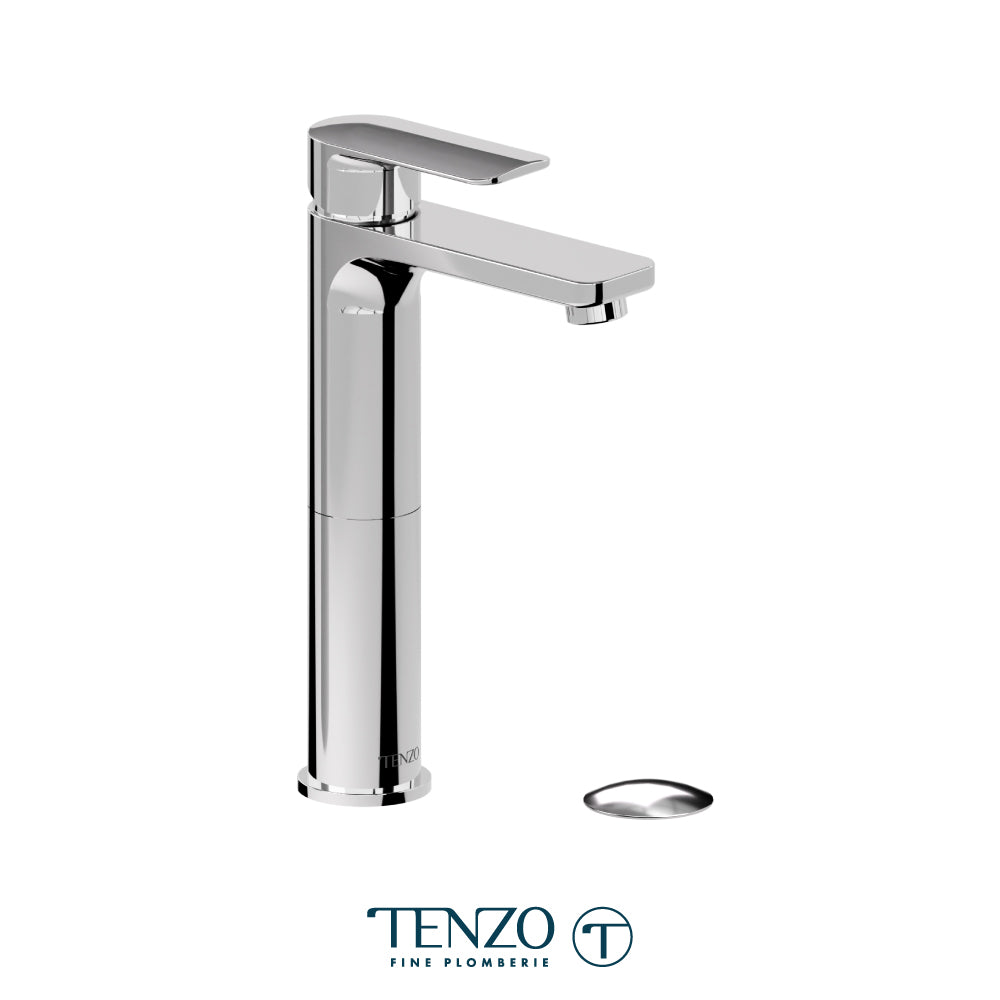

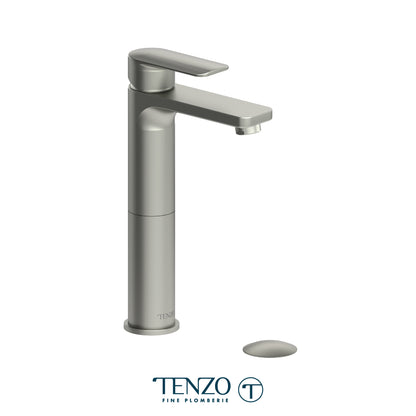

Tenzo Delano Top-Lever Tall Single Hole Lavatory Faucet, Drain with Overflow - DE12H-P

Tenzo Delano Top-Lever Tall Single Hole Lavatory Faucet, Drain with Overflow - DE12H-P

The Delano top-lever single-hole lavatory faucet in solid brass, 215 mm [8 1/2"] to the spout, supplied with its matching pop-up drain for a basin that has an overflow.

What's included

• Single hole lavatory faucet, solid brass
• Matching pop-up drain, with overflow

Features

• A single lever sitting on top of a round column, with a flat tapered spout.
• Stands 268 mm [10 9/16"] overall, 215 mm [8 1/2"] to the spout outlet, reaching 170 mm [6 11/16"] from the centre of the base.
• Ceramic disc cartridge — one lever sets both temperature and volume.
• Pop-up drain included, finished to match the faucet.
• Solid brass body.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet
• Collection: Delano
• Style: Modern
• Hole Configuration: 1
• Handles: Single lever, top mounted
• Mounting Location: Sink / Countertop
• Installation Type: Deck Mount
• Overall Height: 268 mm [10 9/16"]
• Spout Height: 215 mm [8 1/2"]
• Spout Reach: 170 mm [6 11/16"]
• Base Diameter: 52 mm [2 1/16"]
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 3/8" female
• Cartridge: Ceramic
• Drain: Pop-up, with overflow
• Material: Solid brass

Good to know

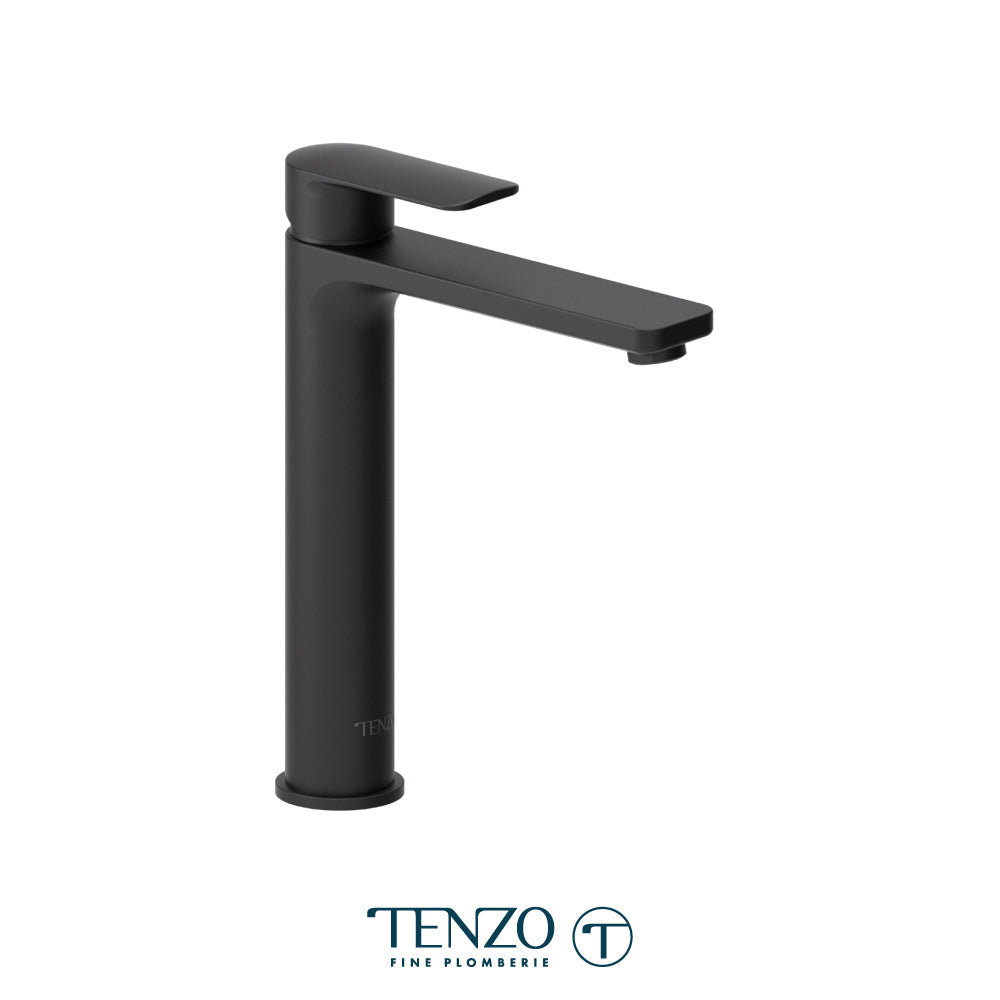

• This is the version for a basin that has an overflow. DE12H-W is the same faucet with the other drain, and DE12H is the faucet on its own.
• The Delano top-lever faucet comes in three heights for different basins. DE11 stands 158 mm [6 1/4"] for a standard basin, and DE12M stands 208 mm [8 3/16"] for a shallow or semi-recessed one.
• Delano also offers a side-lever single-hole faucet — DE10, DE10M and DE10H — with the lever on the side of the body rather than on top.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
