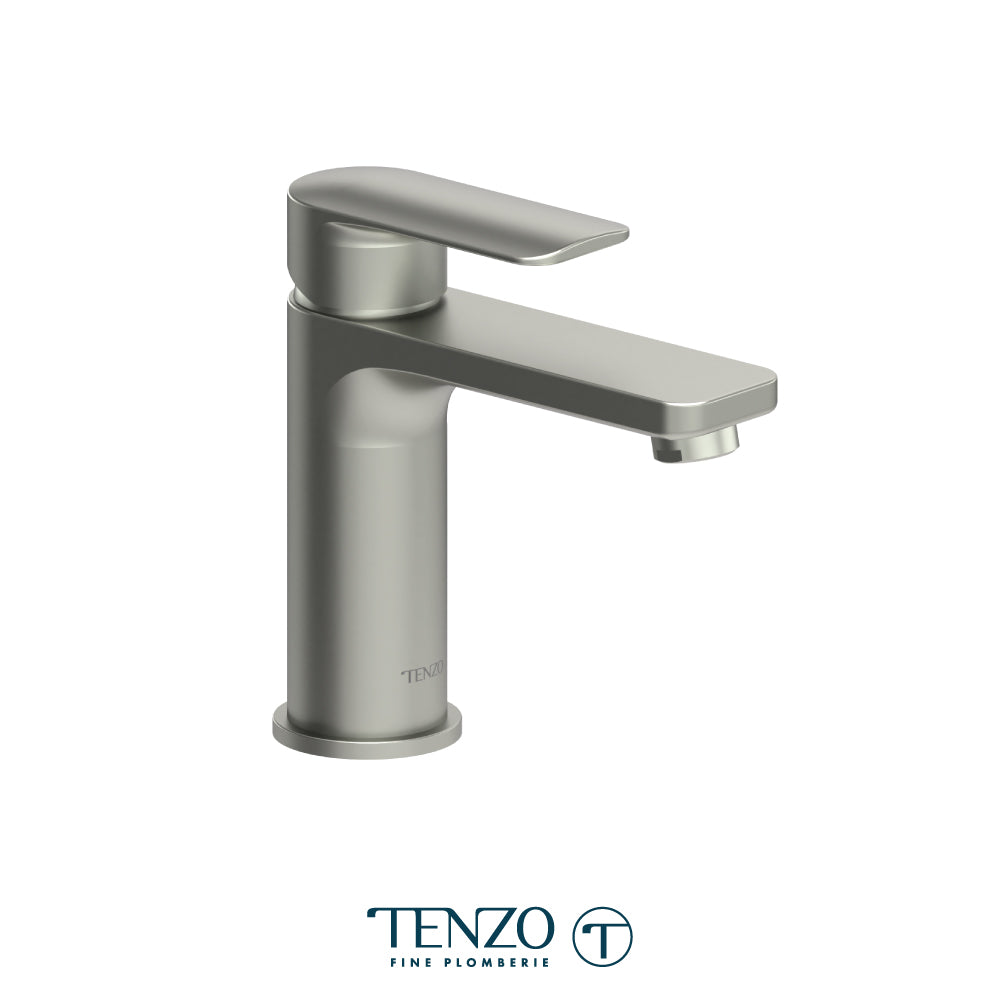

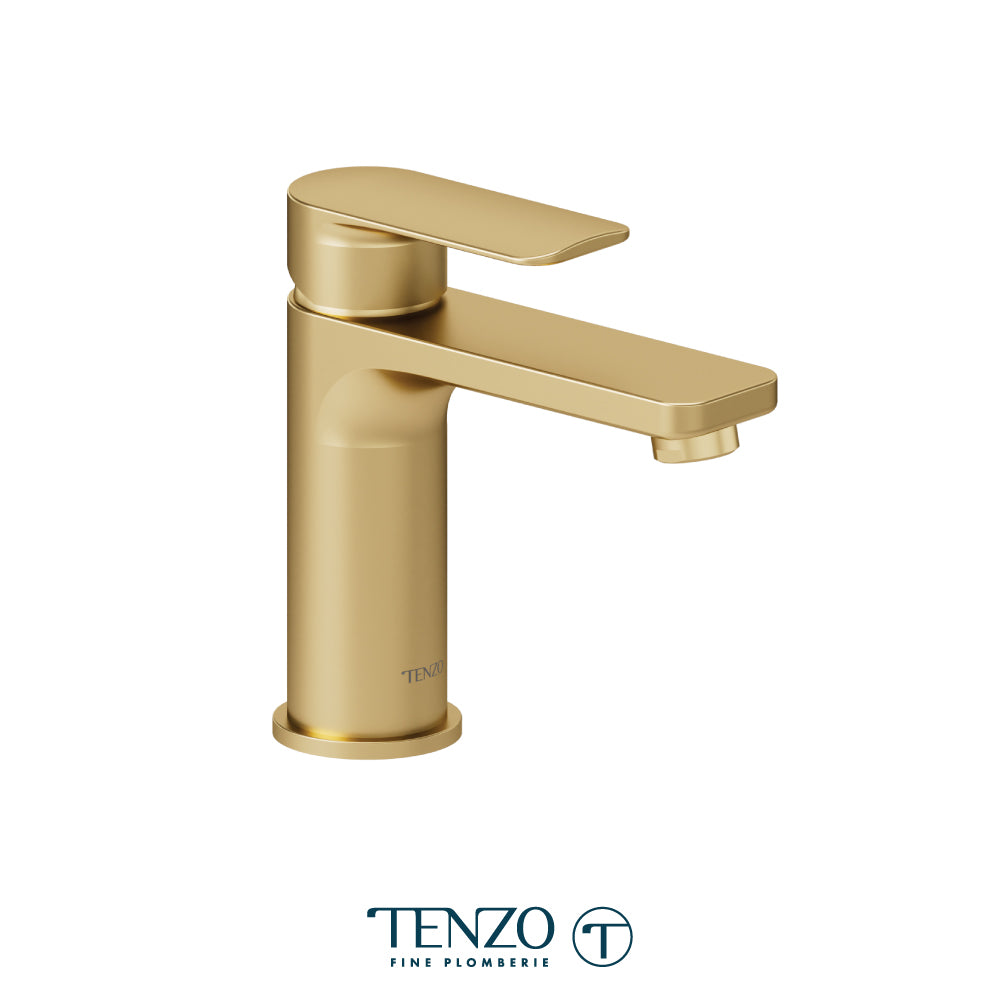

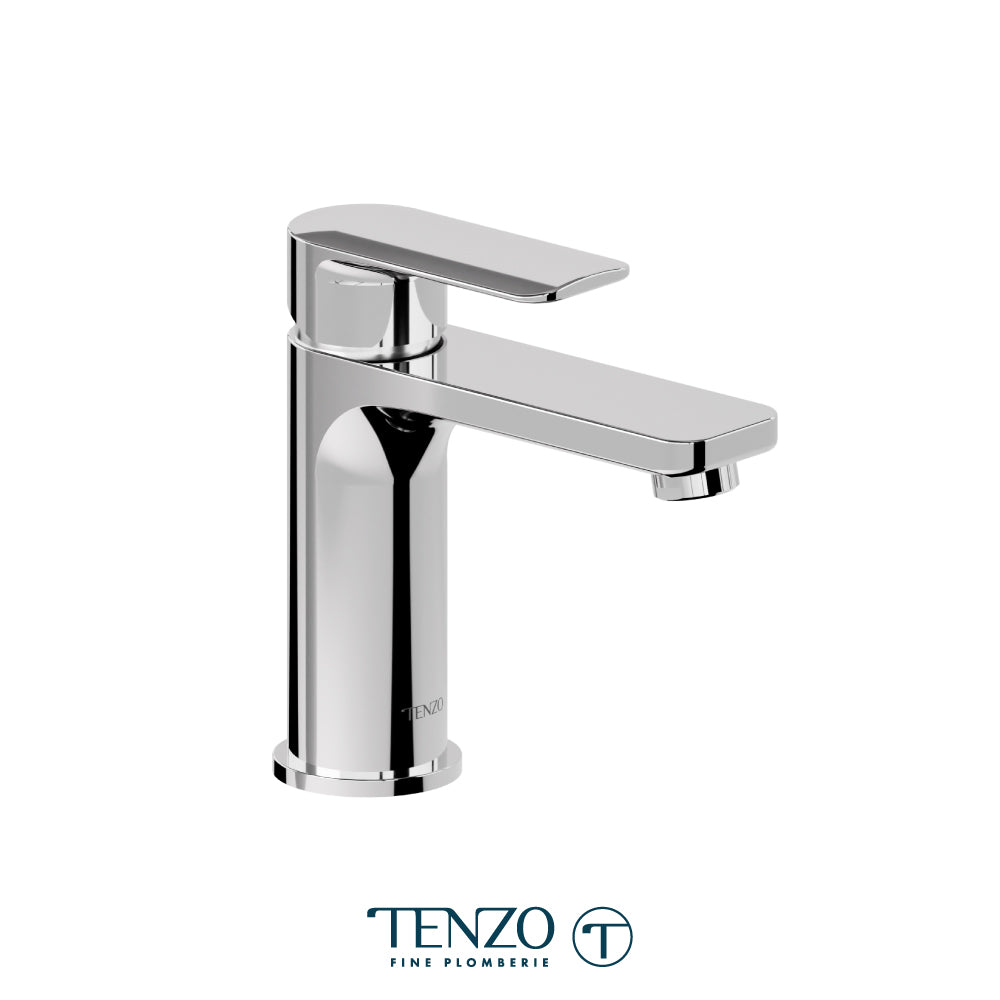

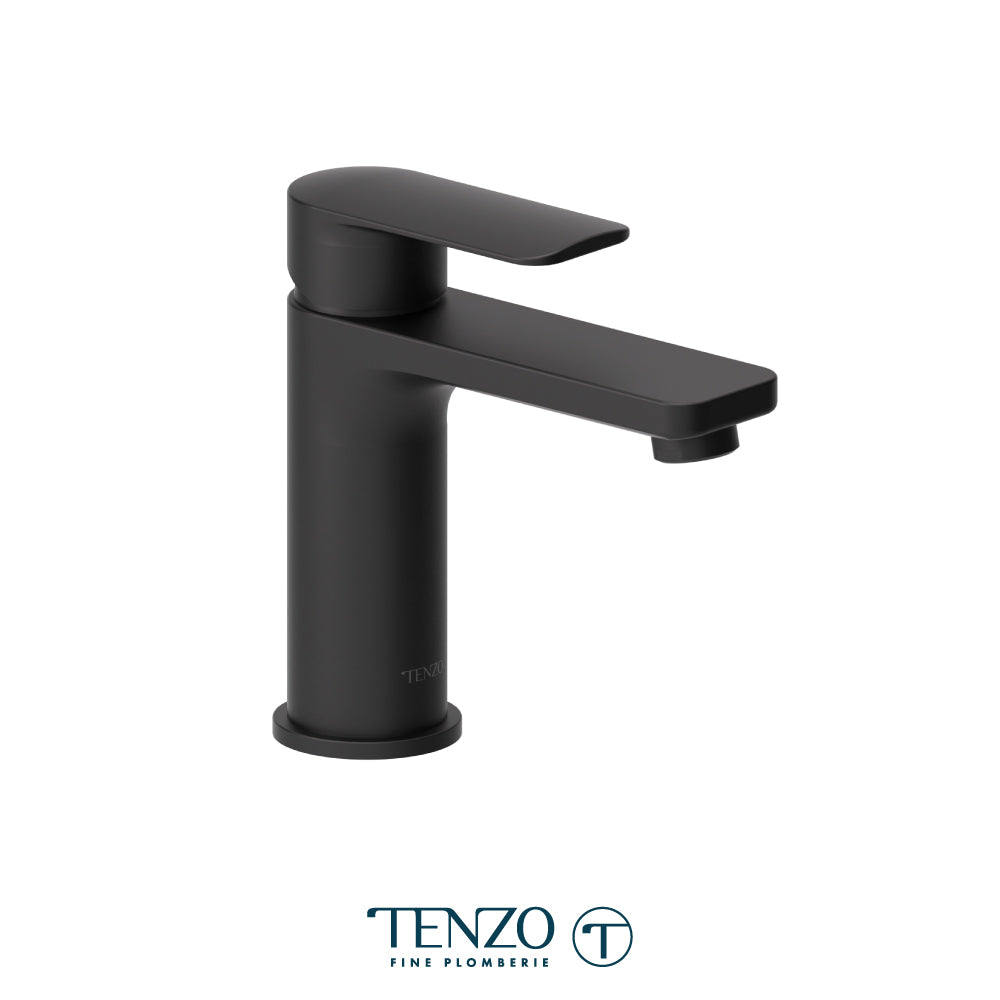

Tenzo Delano Top-Lever Single Hole Lavatory Faucet Without Drain - DE11

Tenzo Delano Top-Lever Single Hole Lavatory Faucet Without Drain - DE11

The Delano top-lever single-hole lavatory faucet in solid brass, 103 mm [4 1/16"] to the spout, supplied without a drain.

What's included

• Single hole lavatory faucet, solid brass

Features

• A single lever sitting on top of a round column, with a flat tapered spout.
• Stands 158 mm [6 1/4"] overall, 103 mm [4 1/16"] to the spout outlet, reaching 120 mm [4 3/4"] from the centre of the base.
• Ceramic disc cartridge — one lever sets both temperature and volume.
• Solid brass body.
• 4 finishes.

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet
• Collection: Delano
• Style: Modern
• Hole Configuration: 1
• Handles: Single lever, top mounted
• Mounting Location: Sink / Countertop
• Installation Type: Deck Mount
• Overall Height: 158 mm [6 1/4"]
• Spout Height: 103 mm [4 1/16"]
• Spout Reach: 120 mm [4 3/4"]
• Base Diameter: 52 mm [2 1/16"]
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 3/8" female
• Cartridge: Ceramic
• Drain: Not included
• Material: Solid brass

Good to know

• Supplied as the faucet only. DE11-P adds the pop-up drain for a basin with an overflow and DE11-W the drain for a basin without one.
• The Delano top-lever faucet comes in three heights for different basins. DE12M stands 208 mm [8 3/16"] for a shallow or semi-recessed basin, and DE12H stands 268 mm [10 9/16"] for a vessel.
• Delano also offers a side-lever single-hole faucet — DE10, DE10M and DE10H — with the lever on the side of the body rather than on top.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
