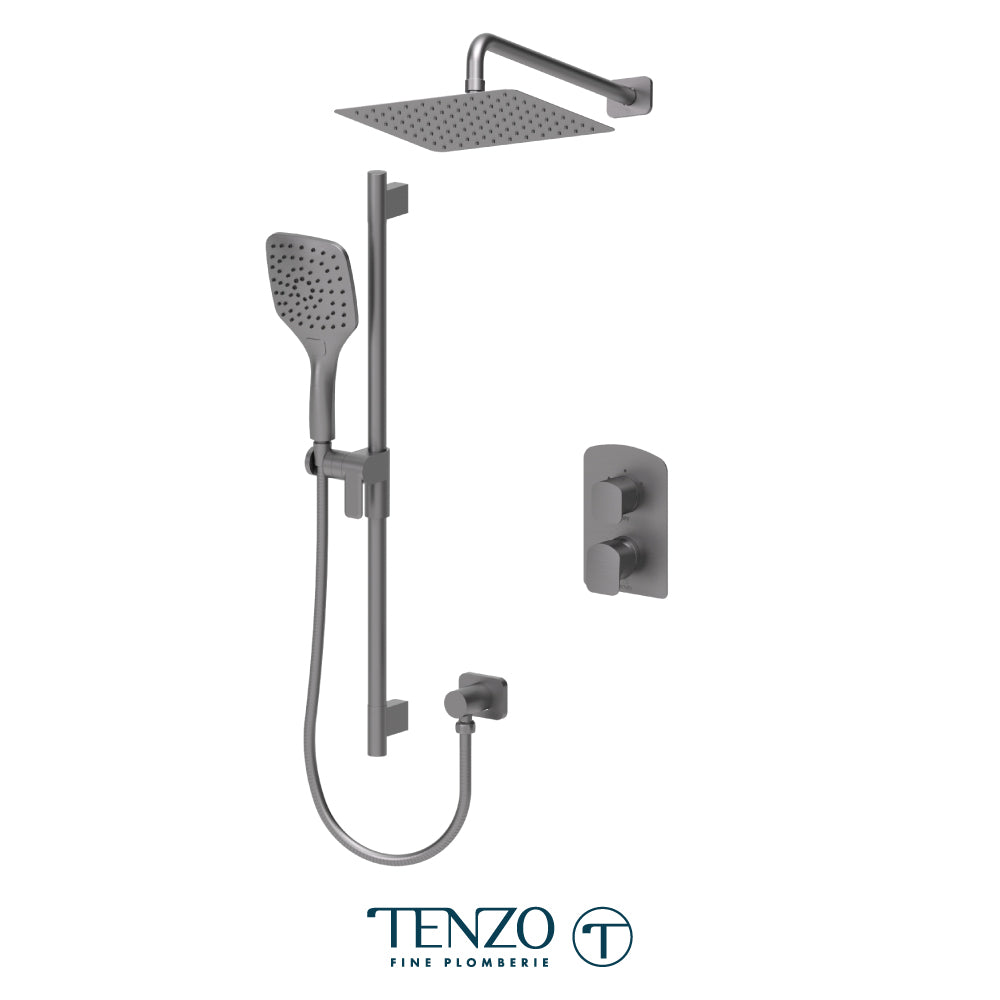

Tenzo Delano T-Box 2-Function Pressure Balance Shower Kit Trim, 10" AirBoost Rain Head & Wall Arm - F-DEPB32-20111

Tenzo Delano T-Box 2-Function Pressure Balance Shower Kit Trim, 10" AirBoost Rain Head & Wall Arm - F-DEPB32-20111

Every visible part of the Delano DEPB32-20111 shower kit, for a wall where the T-Box rough-in valve is already in place.

What's included

• Delano 2-function pressure balance valve trim, with both cartridges (F-DEPB32-XX)
• AirBoost rain shower head, square with round corners, 25 x 25 cm [10"], 2 mm stainless steel (SSTS-10-Q-XX)
• Wall mount shower arm, 40 cm [16"] (SA-608-XX)
• Sliding bar kit with wall elbow (KRD-35188-XX): solid brass sliding bar, 3-function hand shower, wall supply elbow and a 150 cm [59"] hose

Not included

• Universal T-Box rough-in valve (R-31)

Features

• Trim only, every visible above-surface part, finished to match.
• Pressure-balanced cartridge holds the set temperature as other outlets draw.
• 2-function diverter, shared zones, so both outlets can run at the same time.
• Sliding bar kit is supplied complete with its wall supply elbow and hose.
• Solid brass trim, stainless steel rain head.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Kit Trim
• Collection: Delano
• Style: Modern
• System: T-Box
• Valve Type: Pressure Balance
• Functions: 2
• Rain Head: 25 x 25 cm [10"] square, AirBoost, stainless steel
• Shower Head Installation: Wall mount, 40 cm [16"]
• Hand Shower: 3-function, on a solid brass sliding bar
• Hose: 150 cm [59"]
• Valve Flow: 25 L/min [6.6 gpm] @ 60 psi
• Supply Connection: 1/2" NPT female (on the rough-in)
• Pressure Balance Cartridge: CAR-HY-PB-JH04BD
• Diverter Cartridge: CAR-HA-DV3-33097-01
• Supplied As: Trim only, no rough-in
• Material: Solid brass

Good to know

• The rough-in is not included. Ordered complete with the rough, this is DEPB32-20111.
• Order this version only where the rough is already set in the wall and the finish is being changed or completed.
• The T-Box rough is a bare body with service stops. The cartridges sit in the trim, which is what lets one rough serve a pressure balance or a thermostatic shower.
• The diverter is set up for shared zones, so outlets can run together. Tenzo builds a non-shared version to order, with a -CAL suffix.
• The universal T-Box rough is R-31-P with PEX connections, or R-31-N in male NPT and sweat.
• F-DEPB32-20111R is the same trim with a 25 cm [10"] round rain head.
• F-DEPB32-20112 is the same trim with a 30 x 30 cm [12"] square rain head.
• F-DEPB32-20114 is the same trim with a 23 x 23 cm [9"] square rain head.

Certifications & Warranty

• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
