Tenzo Delano T-Box 2-Function Pressure Balance Shower Kit, 12" Recessed Ceiling Rain Head - DEPB32-21164

Tenzo Delano T-Box 2-Function Pressure Balance Shower Kit, 12" Recessed Ceiling Rain Head - DEPB32-21164

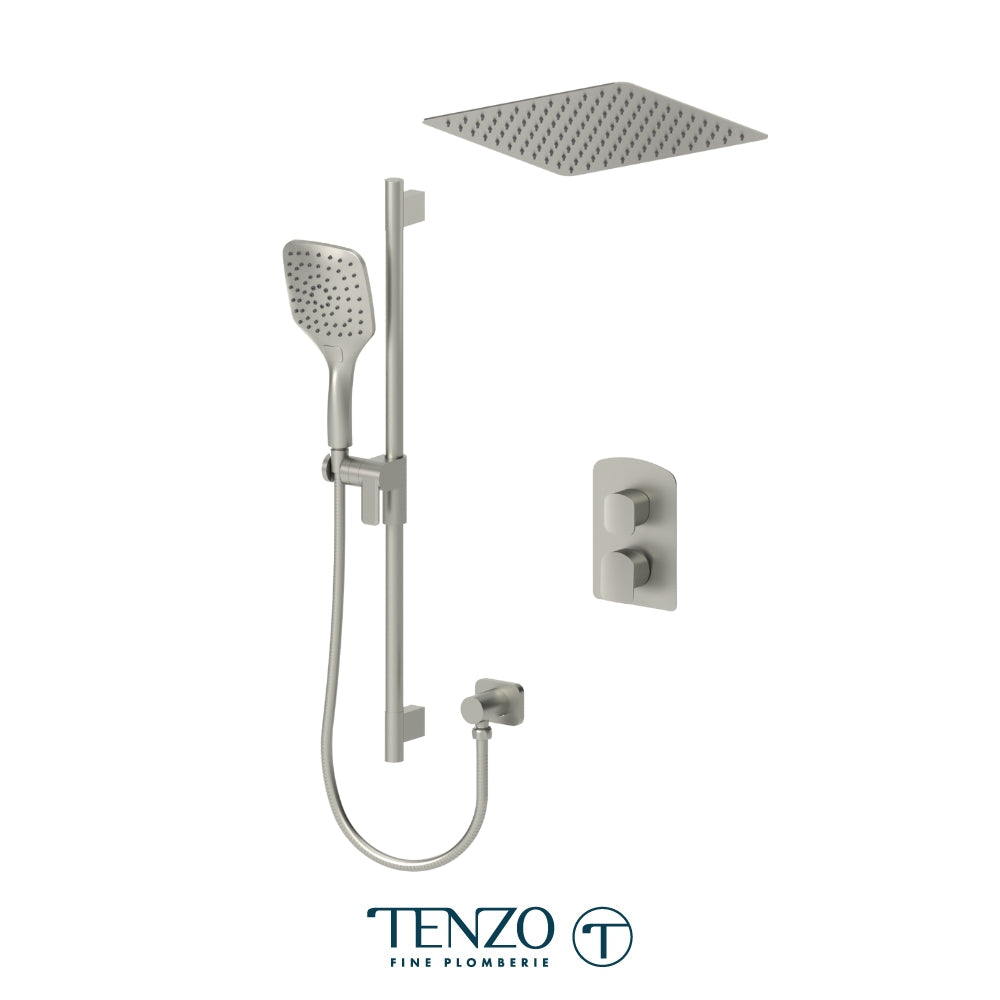

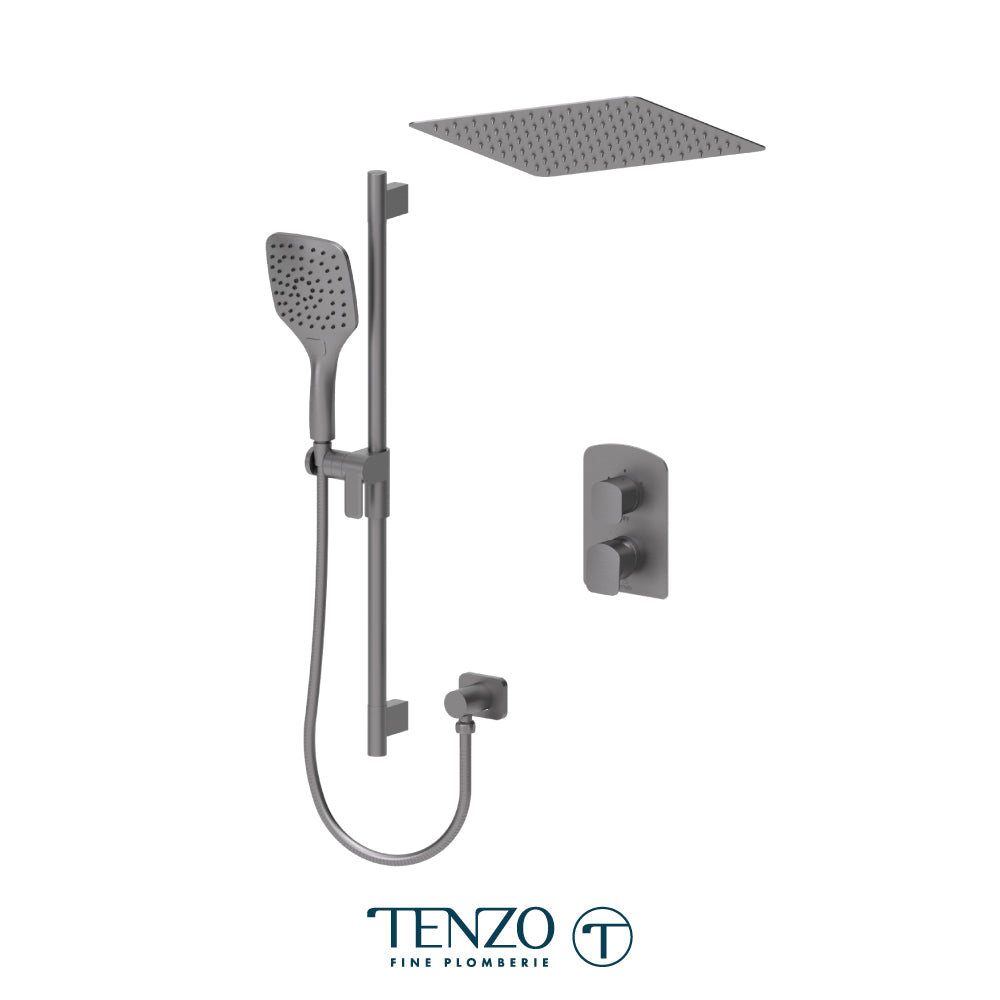

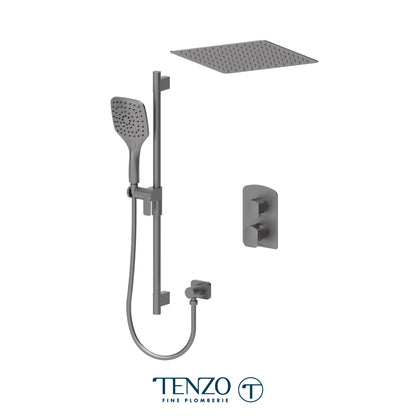

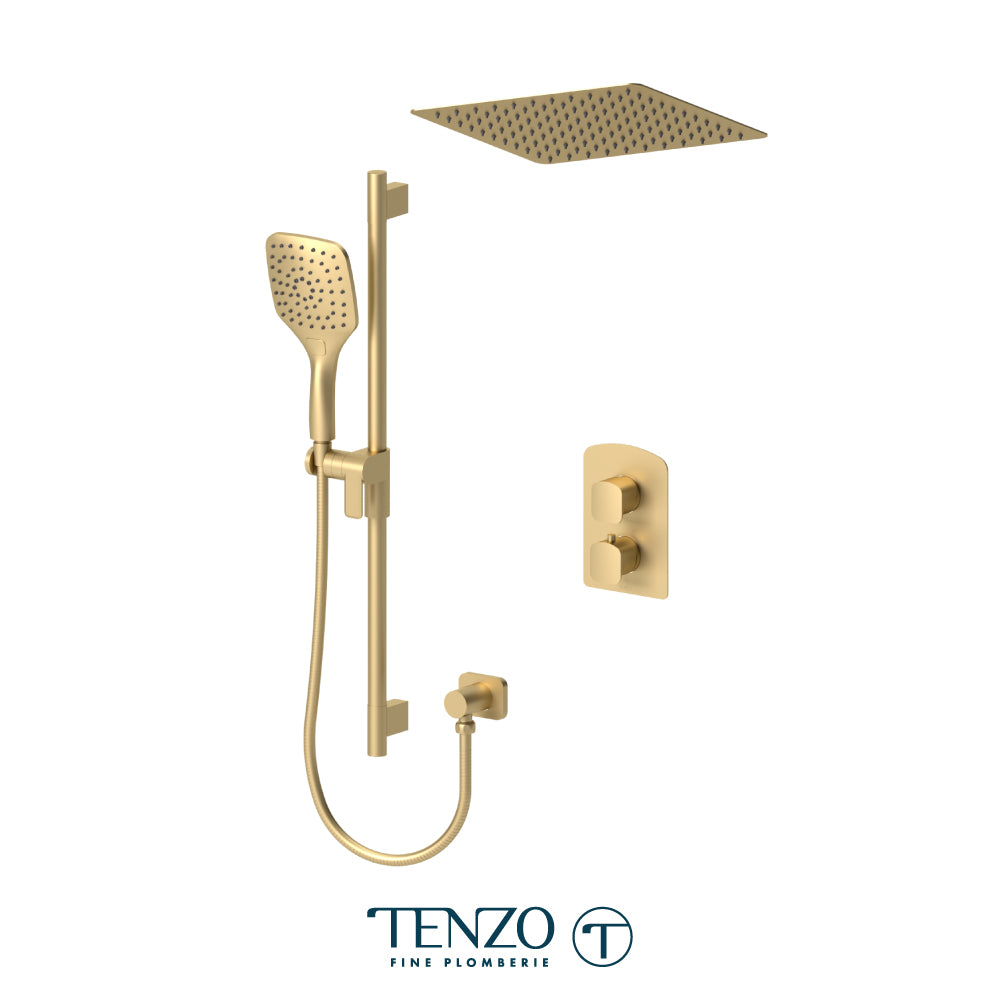

The Delano T-Box shower kit, a 2-function pressure balance valve feeding a 12" rain head and a hand shower on a sliding bar.

What's included

• Universal T-Box rough-in valve, PEX connections (R-31-P)
• Delano 2-function pressure balance trim (F-DEPB32)
• Recessed ceiling rain head, 30 x 30 cm [12"] (CSH-12-Q)
• Sliding bar kit with wall elbow (KRD-35188): bar, 3-function hand shower (HS-218), wall supply elbow and 150 cm [59"] hose

Features

• Ships complete — rough-in valve, trim, rain head and hand shower kit in one order.
• Pressure balanced valve rated 25 L/min [6.6 gpm] at 60 psi, holding temperature when another fixture draws water.
• 2-function diverter: rain head, hand shower, or more than one at once.
• The rain head recesses into the ceiling and sits flush, so no arm is needed.
• Service check and stop valves built into the rough.
• 1/2" male PEX connections on the rough.
• Solid brass trim.
• 3 finishes.

Specifications

• Room: Bathroom
• Product Type: Shower Kit
• Collection: Delano
• Style: Modern
• Valve: T-Box pressure balance, 2 function
• Functions: 2
• Flow Rate: 25 L/min [6.6 gpm] @ 60 psi
• Rain Head: 12" recessed ceiling
• Shower Head Installation: Recessed in the ceiling
• Hand Shower: 3 function, on sliding bar
• Hose Length: 150 cm [59"]
• Supply Connection: 1/2" male PEX
• Material: Solid brass

Good to know

• The outlets share a zone. For outlets that run independently, order the -CAL version of the valve.
• The valve on its own is DEPB32; the rough alone is R-31.
• The rough is also sold in a male NPT / sweat version as R-31-N.
• The recessed head needs a ceiling cavity above it; it is the same head we sell on its own as CSH-12-Q.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
