Tenzo Delano Single Plate Wall Mount Lavatory Faucet Without Drain - DE15

Tenzo Delano Single Plate Wall Mount Lavatory Faucet Without Drain - DE15

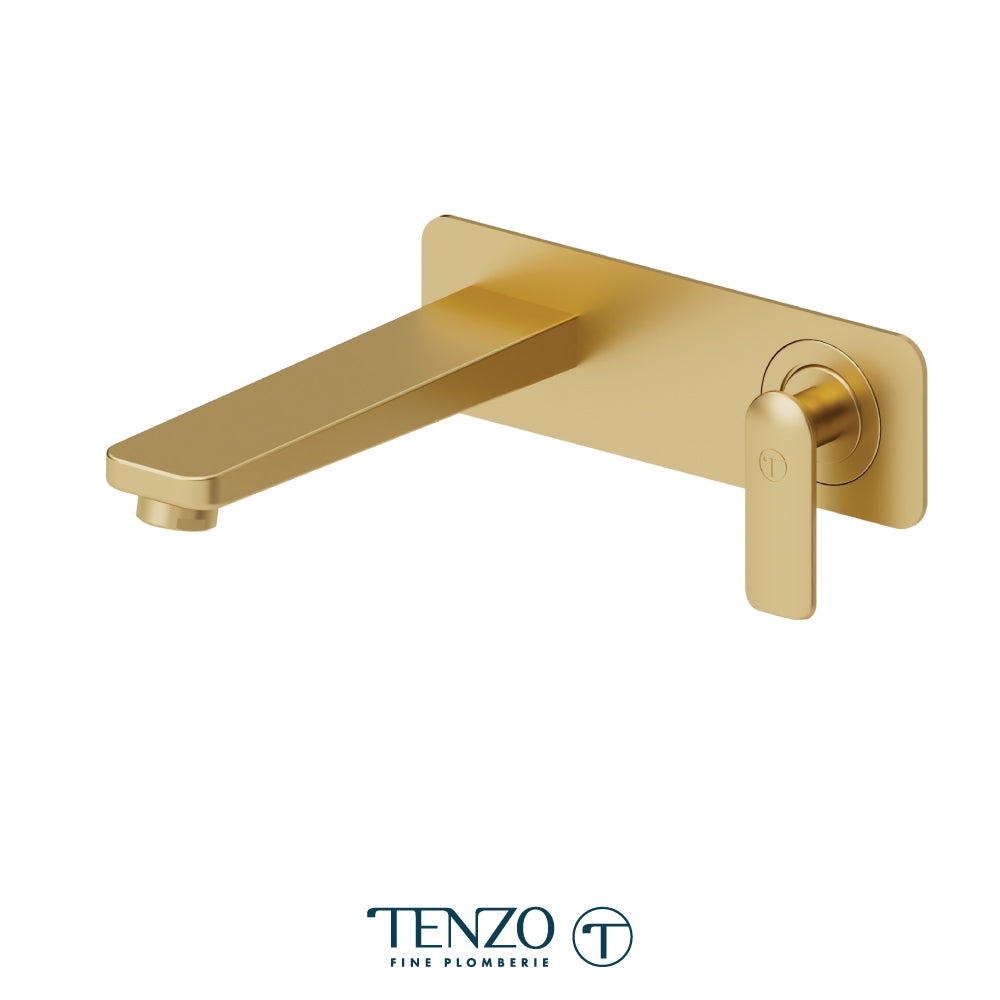

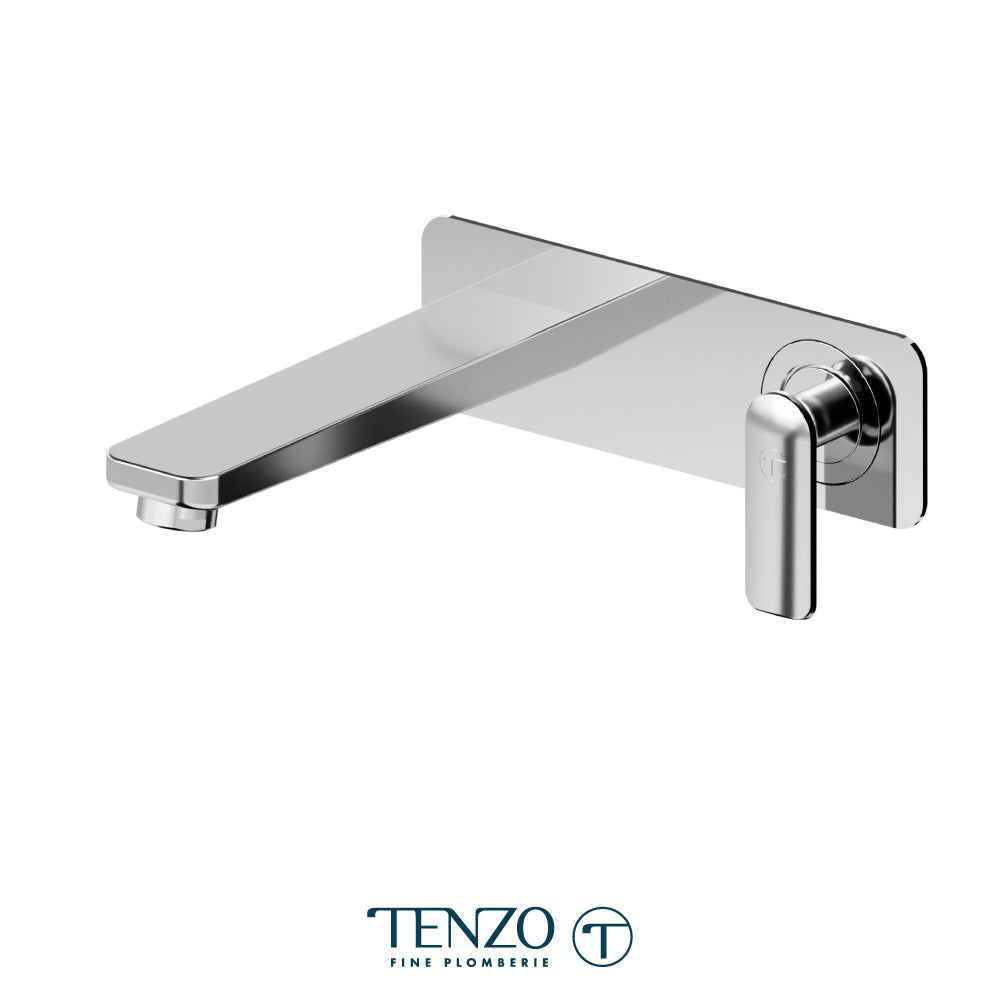

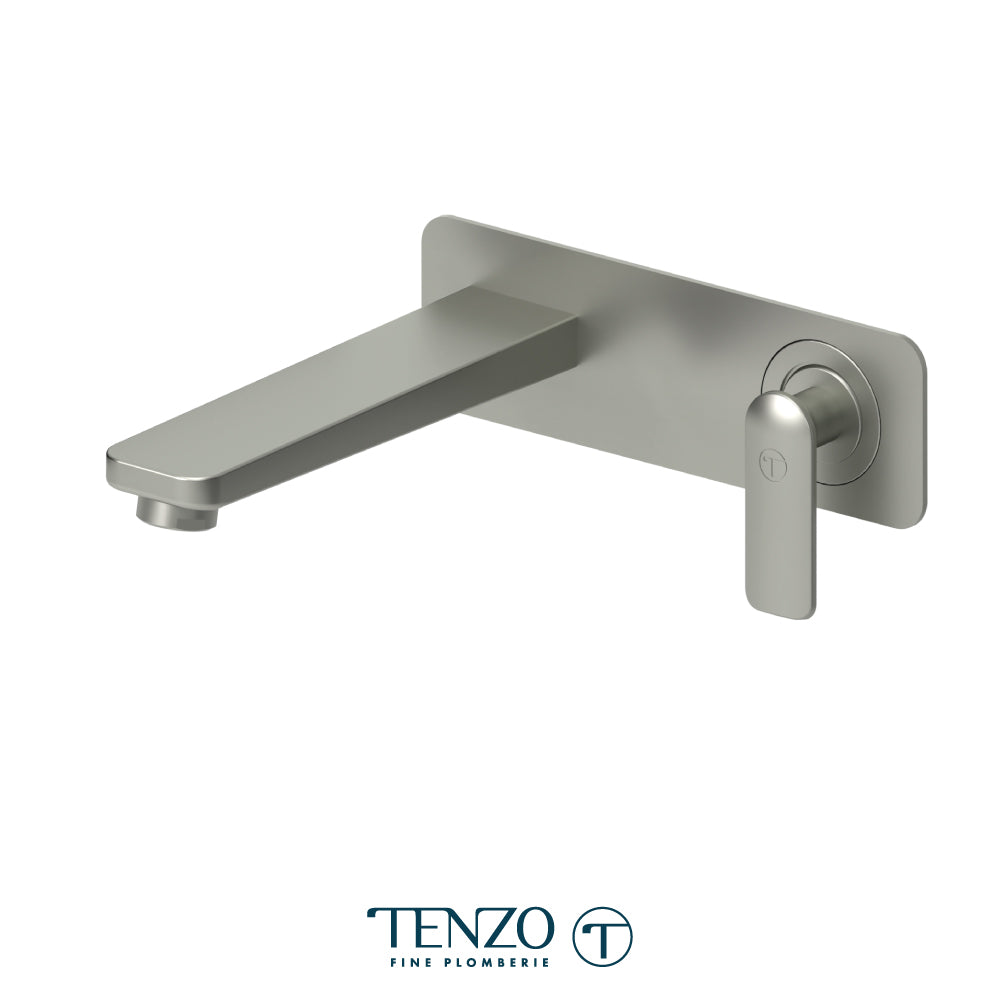

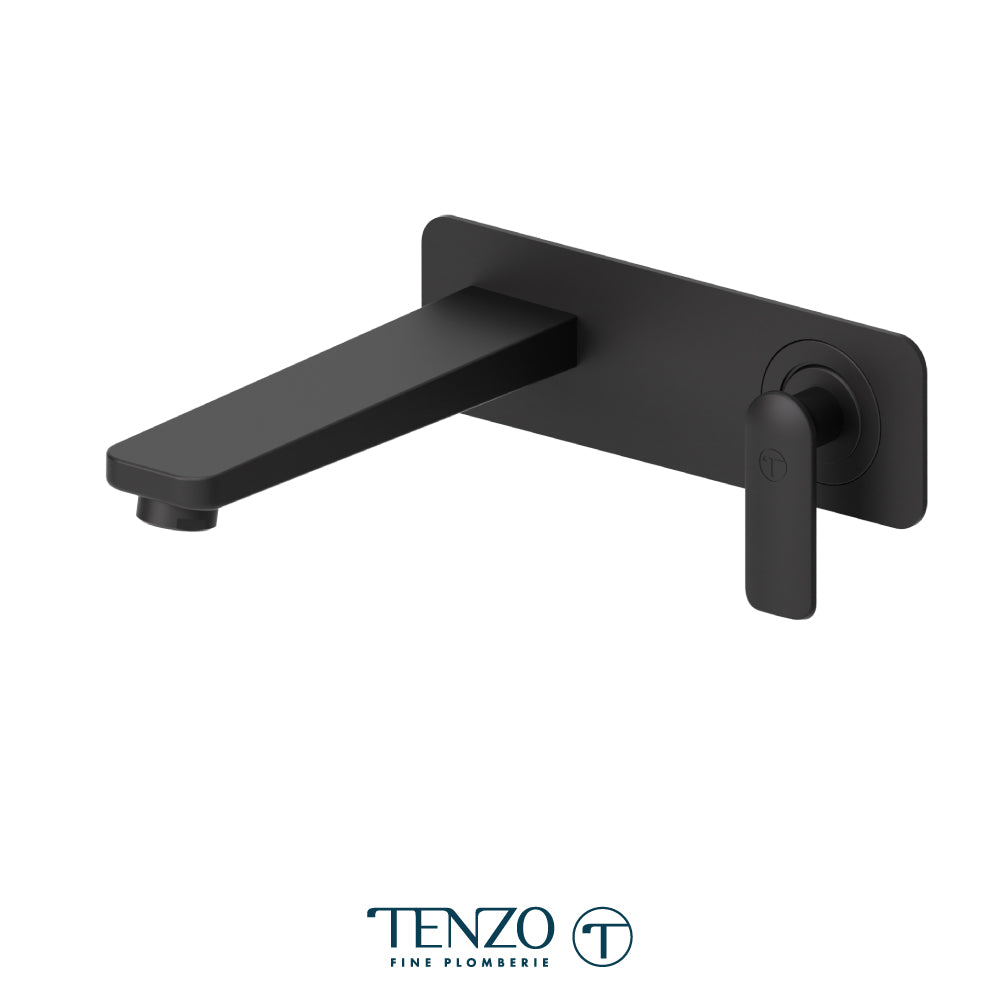

The Delano wall mount lavatory faucet in solid brass, spout and reversible lever on a single rectangular plate, rough-in valve included.

What's included

• Single plate wall mount lavatory faucet, solid brass
• R-14 rough-in valve body

Features

• Ships complete — the R-14 rough-in valve body is in the box with the trim.
• Mirror installation: the handle mounts on the left or the right of the spout.
• Spout and handle share one rectangular plate, 185 x 75 mm [7 5/16" x 2 15/16"].
• Flat tapered spout projecting 167 mm [6 9/16"] from the finished wall.
• Fits a finished wall 46 mm [1 13/16"] to 84 mm [3 5/16"] in front of the valve body.
• Ceramic disc cartridge — one lever sets both temperature and volume.
• Solid brass body.
• 4 finishes.

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet
• Collection: Delano
• Style: Modern
• Hole Configuration: 2
• Handles: Single lever, reversible
• Mounting Location: Wall
• Installation Type: Wall Mount
• Escutcheon: One plate, 185 x 75 mm [7 5/16" x 2 15/16"]
• Spout Projection: 167 mm [6 9/16"]
• Wall Depth Range: 46 mm [1 13/16"] to 84 mm [3 5/16"]
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 1/2" female
• Cartridge: Ceramic
• Drain: Not included
• Material: Solid brass

Good to know

• Supplied without a drain. DE15-P adds the pop-up drain for a basin with an overflow and DE15-W the version without.
• Replacement cartridge is CAR-GN-SL35-01, the 35 mm ceramic mixing cartridge.
• DE14 is the same faucet on two separate square escutcheons instead of one plate.
• The rough-in valve body is also sold on its own as R-14 for a second bathroom or a replacement trim.
• Gun metal is offered on the drain-included versions only.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
