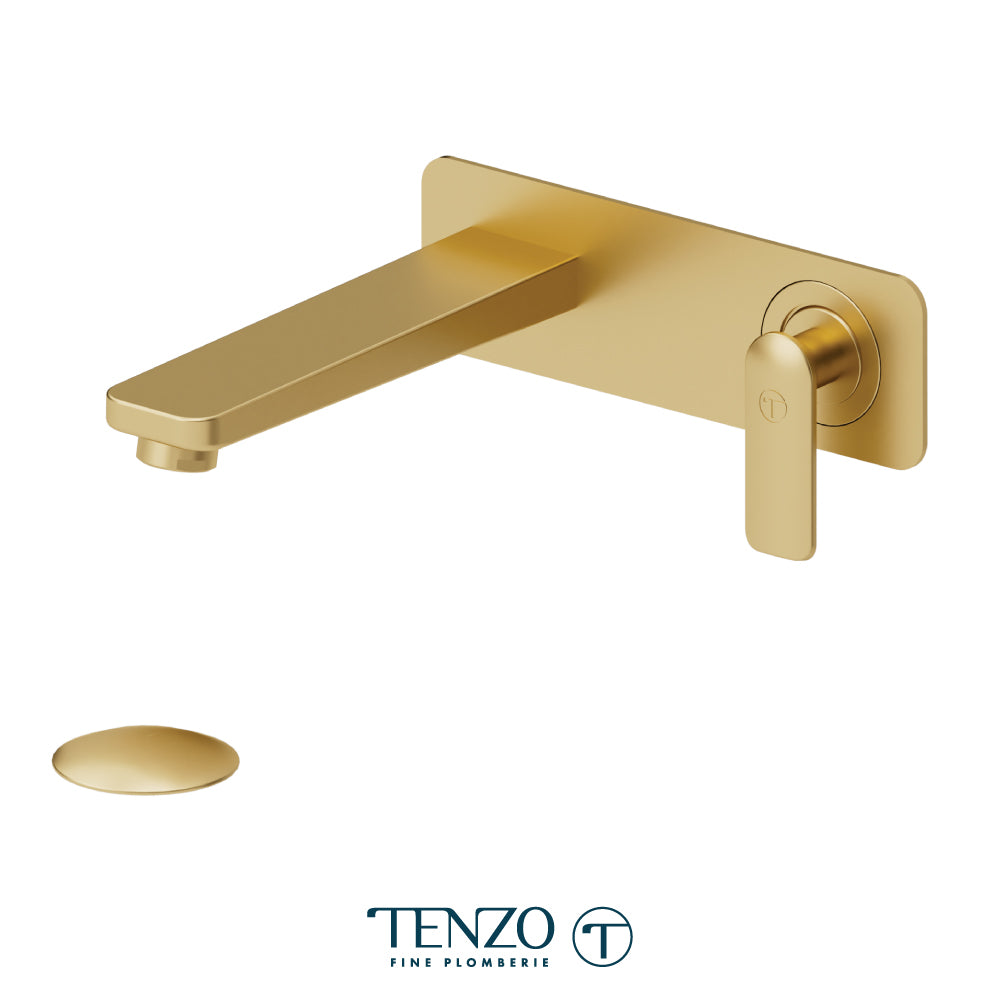

Tenzo Delano Single Plate Wall Mount Lavatory Faucet, Drain with Overflow - DE15-P

Tenzo Delano Single Plate Wall Mount Lavatory Faucet, Drain with Overflow - DE15-P

The Delano wall mount lavatory faucet in solid brass, spout and reversible lever on a single rectangular plate, rough-in valve included, with its matching pop-up drain for a basin that has an overflow.

What's included

• Single plate wall mount lavatory faucet, solid brass
• R-14 rough-in valve body
• Matching pop-up drain, with overflow

Features

• Ships complete — the R-14 rough-in valve body is in the box with the trim.
• Mirror installation: the handle mounts on the left or the right of the spout.
• Spout and handle share one rectangular plate, 185 x 75 mm [7 5/16" x 2 15/16"].
• Flat tapered spout projecting 167 mm [6 9/16"] from the finished wall.
• Fits a finished wall 46 mm [1 13/16"] to 84 mm [3 5/16"] in front of the valve body.
• Ceramic disc cartridge — one lever sets both temperature and volume.
• Pop-up drain included, finished to match the faucet.
• Solid brass body.
• 5 finishes.

Specifications

• Room: Bathroom
• Product Type: Lavatory Faucet
• Collection: Delano
• Style: Modern
• Hole Configuration: 2
• Handles: Single lever, reversible
• Mounting Location: Wall
• Installation Type: Wall Mount
• Escutcheon: One plate, 185 x 75 mm [7 5/16" x 2 15/16"]
• Spout Projection: 167 mm [6 9/16"]
• Wall Depth Range: 46 mm [1 13/16"] to 84 mm [3 5/16"]
• Flow Rate: 4.5 L/min [1.2 gpm] @ 60 psi
• Supply Connection: 1/2" female
• Cartridge: Ceramic
• Drain: Pop-up, with overflow
• Material: Solid brass

Good to know

• This is the version for a basin that has an overflow. DE15-W is the same faucet with the other drain, and DE15 is the faucet on its own.
• Replacement cartridge is CAR-GN-SL35-01, the 35 mm ceramic mixing cartridge.
• DE14 is the same faucet on two separate square escutcheons instead of one plate.
• The rough-in valve body is also sold on its own as R-14 for a second bathroom or a replacement trim.

Certifications & Warranty

• cUPC
• ASME A112.18.1 / CSA B125.1
• Limited lifetime warranty
